8G–8

SEATS

13. Remove the walk-in assembly (passenger side).
14. Remove the spacer (driver side).
15. Remove the seat cushion assembly.
16. Remove the trim cover.

D

Remove the trim cover hog rings from the back side
of the seat cushion assembly.

D

With close attention paid to the hog rings and the
wire which connect the trim cover and the pad and
frame assembly, remove the trim cover while
turning it up.

17. Remove the frame assembly.
18. Remove the pad assembly.

Reassembly

To reassembly, follow the disassembly steps in the
reverse order, noting the following point.

1. Tighten the armrest assembly fixing bolts to the

specified torque.

Torque: 18 N·m (1.8 kg·m/13 lb ft)

2. Tighten the reclining device fixing bolts to the

specified torque.

Torque: 47 N·m (4.8kg·m/35 lb ft)

SEATS

8G–9

Power Seat Assembly

General Description

The circuit consists of the power seat switch, front tilt
motor (driver’s seat only), rear tilt motor (driver’s seat
only),  slide motor and the recliner motor.

The power seat switch has a tilt & slide switch and a
recliner switch.
The motor built in the seat can be actuated by operating
these switches to move the seat to desired position,
independent of the position of the starter switch.

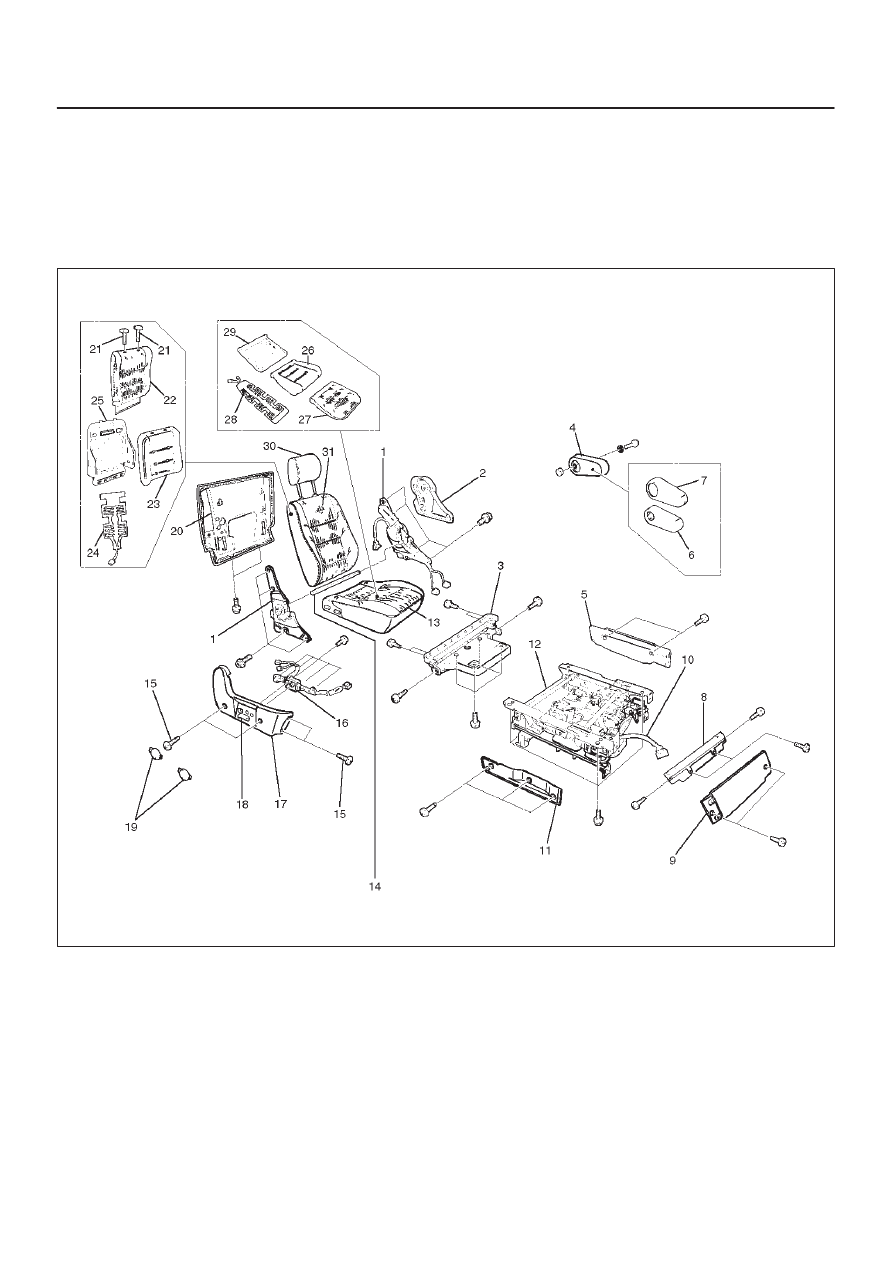

Disassembled View

750RS011

Legend

(1) Reclining Device
(2) Inner Cover
(3) Rear Cover
(4) Armrest Assembly
(5) Inner Lower Cover
(6) Pad & Frame Assembly
(7) Trim Cover
(8) Front Lower Cover
(9) Front Cover

(10) Power Seat Harness

(11) Outer Lower Cover

(12) Adjuster Assembly
(13) Seat Cushion Assembly
(14) Connecting Shaft
(15) Outer Cover Fixing Screws
(16) Switch Assembly
(17) Outer Cover
(18) Switch Knob
(19) Outer Cover Cap
(20) Back Board Assembly
(21) Guide Holder
(22) Trim Cover
(23) Pad Assembly

8G–10 SEATS

(24) Seat Heater
(25) Frame Assembly
(26) Pad Assembly
(27) Trim Cover

(28) Seat Heater
(29) Frame Assembly
(30) Head Rest
(31) Seat Back Assembly

Disassembly

1. Disconnect the battery ground cable.
2. Remove the head rest.
3. Remove the switch knob.

D

Pull the switch knob out.

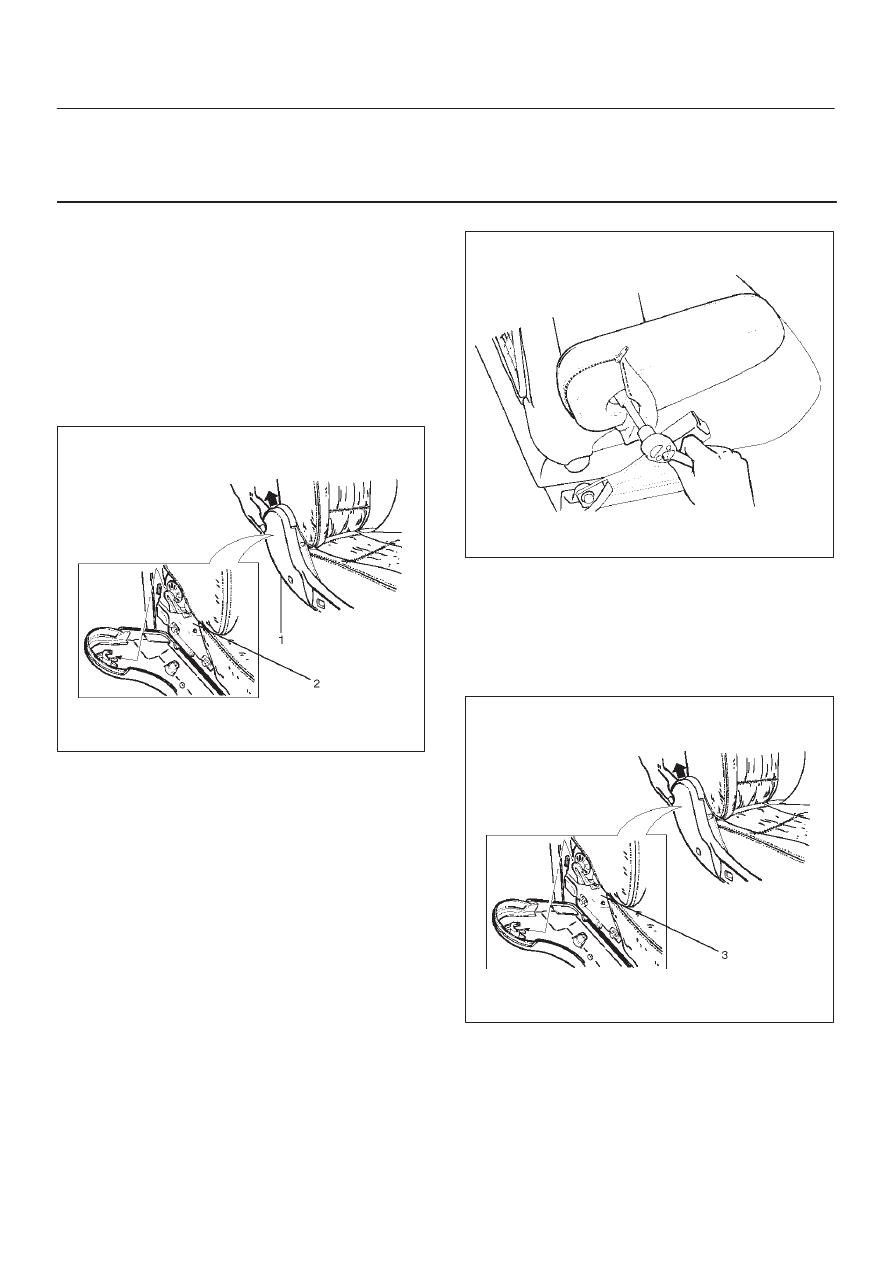

4. Remove the outer cover cap.
5. Remove the outer cover fixing screws.

D

Pull up the outer cover(1) to remove the cover from
the reclining device(2).

750RS012

6. Remove the front cover.
7. Remove the front lower cover.
8. Remove the rear cover.
9. Remove the outer cover.

D

Disconnect the switch connectors and remove the
harness fixing clips.

10. Remove the switch assembly.

D

Remove the switch fixing screws from the outer
cover.

11. Remove the armrest assembly.

D

Open the armrest fastener and remove the fixing
bolt.

750RS004

12. Remove the trim cover.
13. Remove the pad & frame assembly.
14. Remove the inner cover

D

Remove the cover fixing screw.

D

Pull up the inner cover to remove the cover from the
reclining device(3).

750RW007

SEATS 8G–11

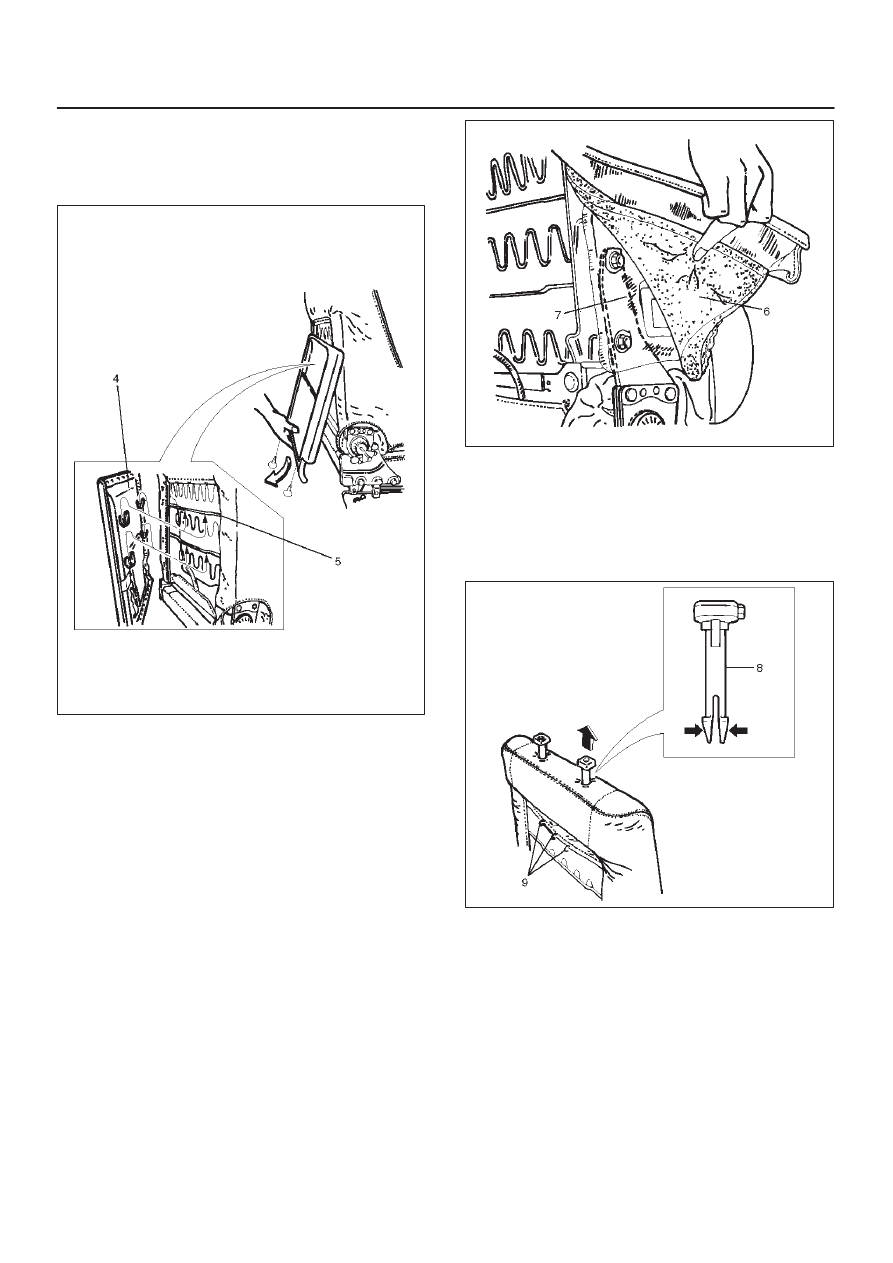

15. Remove the back board assembly(4).

D

Remove the board fixing screws.

D

Pull the back board downward and remove the
board from the seat back frame(5).

750RW008

16. Remove the reclining device(7).

D

Remove the device lower side fixing bolt in order to
separate the seat back from the seat cushion.

D

Disconnect the seat heater connector.

D

Remove the trim cover(6) hog rings from the
backside of the seat back assembly.

D

Turn up the seat back trim cover to remove the
reclining device upper side fixing bolt.

D

Disconnect the connecting shaft and the reclining
device connectors.

750RW009

17. Remove the seat back assembly.
18. Remove the guide holder(8).

D

Remove the trim cover fixing hog rings(9) from the
backside of the seat back assembly.

D

Hold the tip end of the guide holder and pull the
holder out from the seat back assembly.

750RW010

19. Remove the trim cover.

D

Remove the trim cover hog rings from the backside
of the seat back.

D

With close attention paid to the hog rings and the
wire which connect the trim cover and pad & frame
assembly, remove the trim cover while turning it up.

20. Remove the seat heater.
21. Remove the pad assembly.
22. Remove the frame assembly.
23. Remove the outer lower cover.
24. Remove the inner lower cover.
25. Remove the adjuster assembly.

D

Disconnect the connectors and remove the fixing
bolts.
