8G–12 SEATS

D

Remove the power seat harness from the adjuster
assembly.

26. Remove the seat cushion assembly.
27. Remove the trim cover.

D

Remove the trim cover hog rings from the backside
of the seat cushion assembly.

D

With close attention paid to the hog rings and the
wire which connect the trim cover and the pad &
frame assembly, remove the trim cover while
turning it up.

28. Remove the seat heater.
29. Remove the frame assembly.
30. Remove the pad assembly.

Reassembly

To reassemble, follow the disassembly steps in the
reverse order, noting the following point.

1. Tighten the fixing bolts to the specified torque.

D

Refer to the Torque Specifications in this section.

Power Seat Switch

Removal

1. Remove the side cover(3).

D

Refer to the Power Seat Assembly disassembly
steps in this section.

2. Remove the tilt & slide switch lever(4).

D

Hold the switch lever with your fingers and pull it
toward you.

3. Remove the tilt & slide switch(2).

D

Remove two screws.

4. Remove the recliner switch(1).

D

Remove two screws.

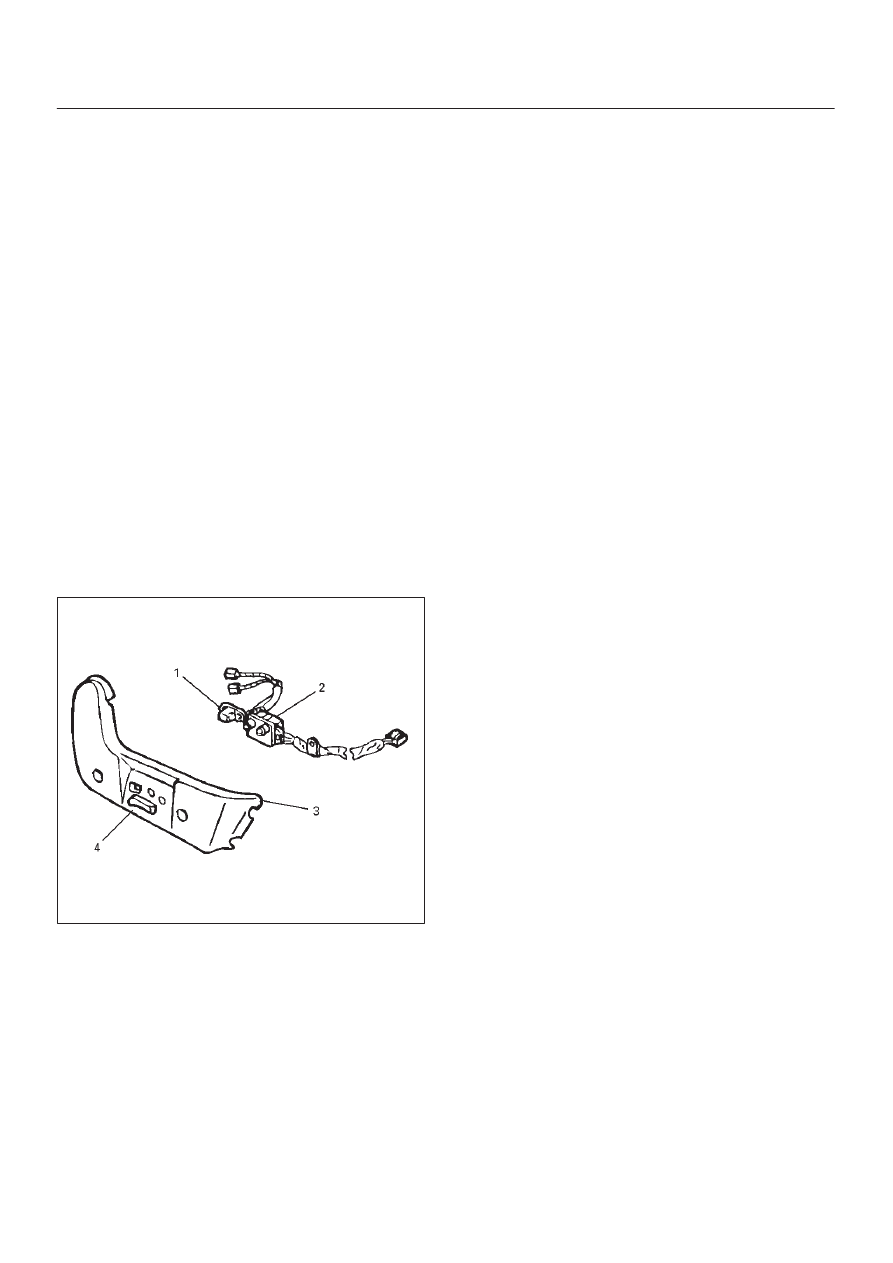

750RS025

Installation

To install, follow the removal steps in the reverse order.

SEATS 8G–13

Front Tilt Motor / Rear Tilt Motor / Slide Motor / Recliner Motor

Parts Location

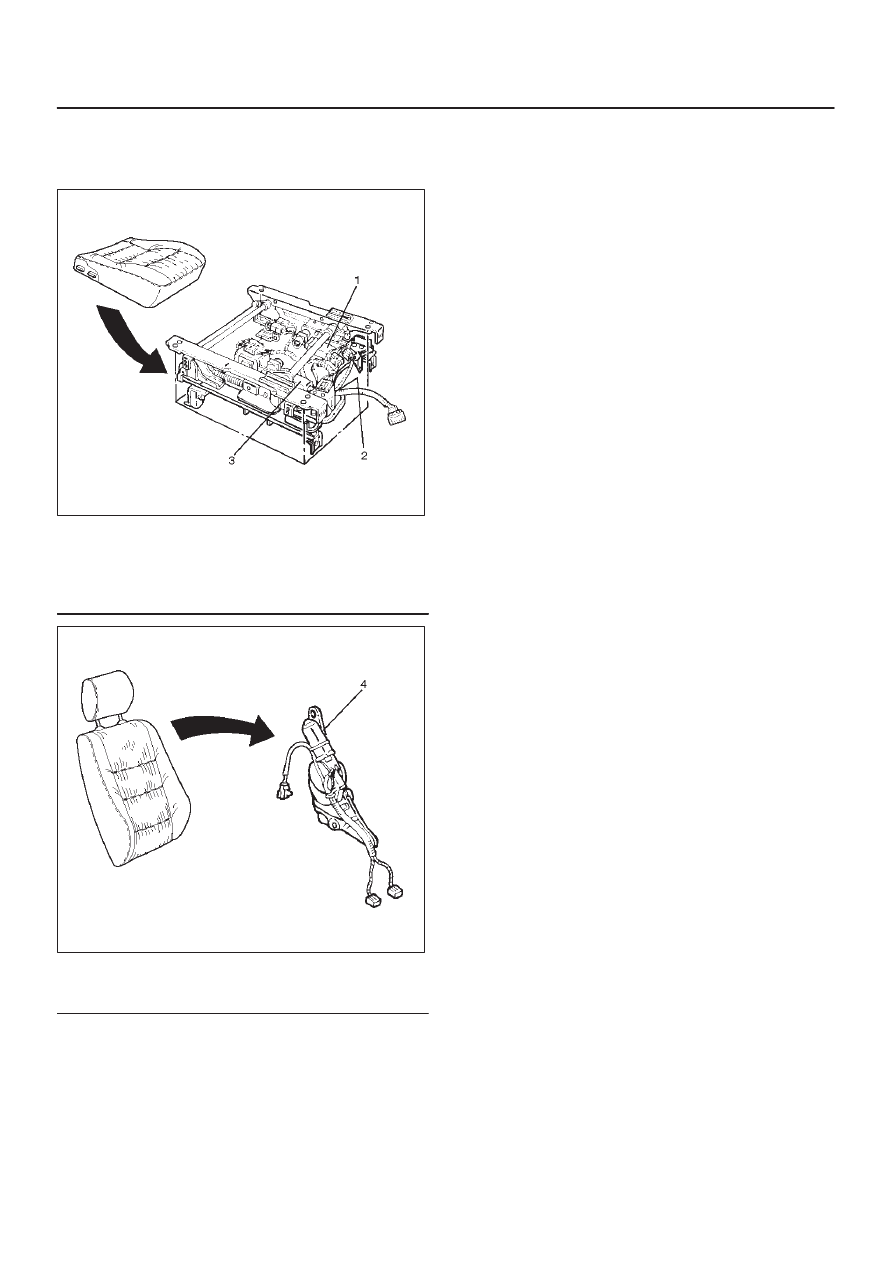

750RS027

Legend

(1) Tilt Motor
(2) Slide Motor
(3) Tilt Motor

750RS028

Legend

(4) Recliner Motor

Removal and Installation

Refer to the Power Seat Assembly in this section.

8G–14 SEATS

Seat Heater System

General Description

The circuit consists of the starter switch, seat heater
switch and the heat unit.
The seat heater is provided in driver’s and front
passenger seats (as option).
When the seat heater switch is ON, the seat heat built in
the seat back and cushion is switched on to warm the
seats.
To prevent the seats from being overheated, the circuit is
fitted with a thermostat.

Seat Heater Switch Removal and
Installation

Refer to the Seat Heater Switch in Lighting System
section.

Heat Unit Parts Location

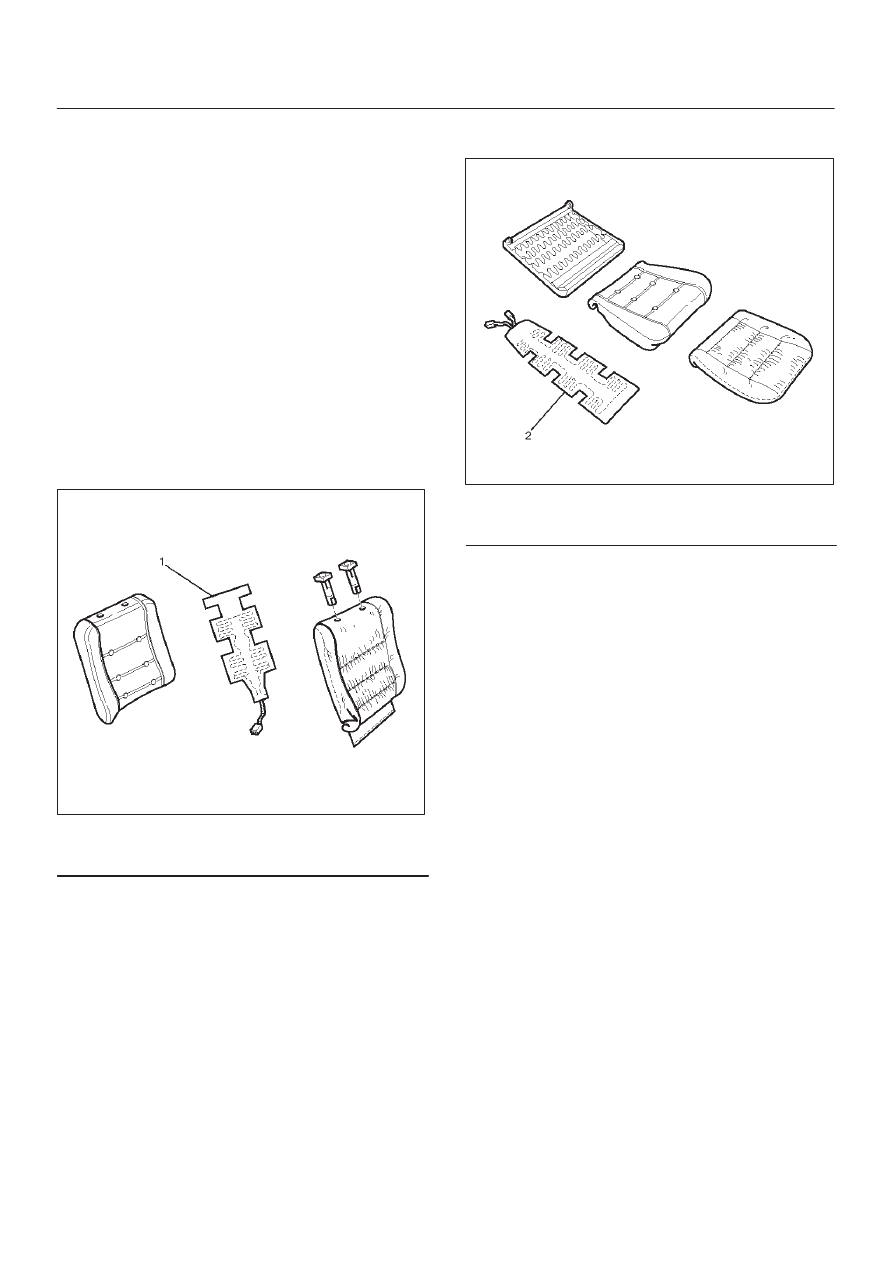

750RS018

Legend

(1) Heat Unit (Seat Back Side)

750RS019

Legend

(2) Heat Unit (Seat Cushion Side)

Heat Unit Removal and Installation

Refer to the Power Seat Assembly in this section.

SEATS 8G–15

Rear Seat Assembly

Rear Seat Assembly and Associated Parts

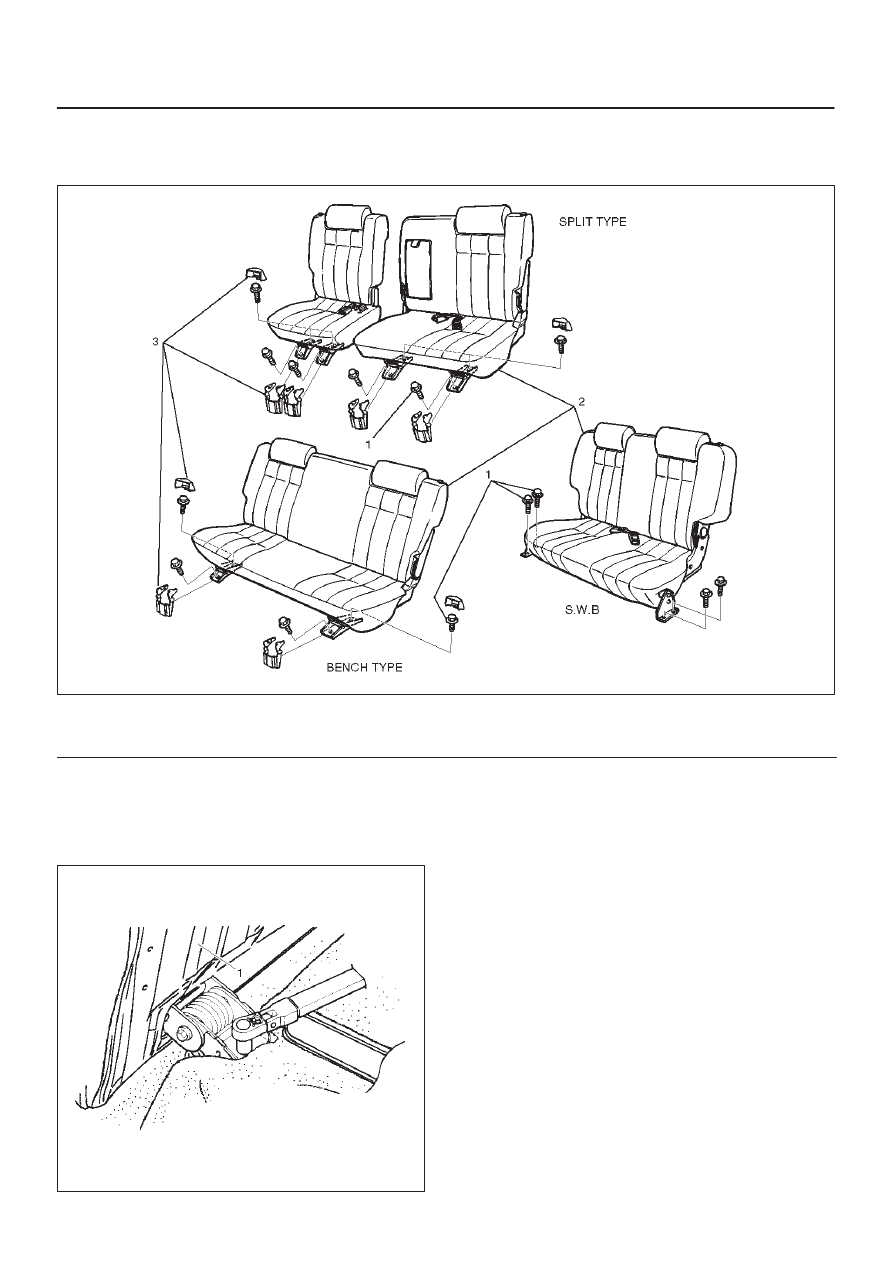

755RW031

Legend

(1) Fixing Bolts

(2) Rear Seat Assembly
(3) Mounting Bracket Cover

Removal

1. Unlock the rear seat(1) lock to remove it.
2. Remove the mounting bracket cover.
3. Remove the fixing bolts.

755RS002

4. Remove the rear seat assembly.

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Tighten the rear seat fixing bolts to the specified

torque.

Torque: 19 N·m (1.9kg·m/14 lb ft)
