8G–4

SEATS

Disassembly

1. Remove the head rest.
2. Remove the reclining knob.

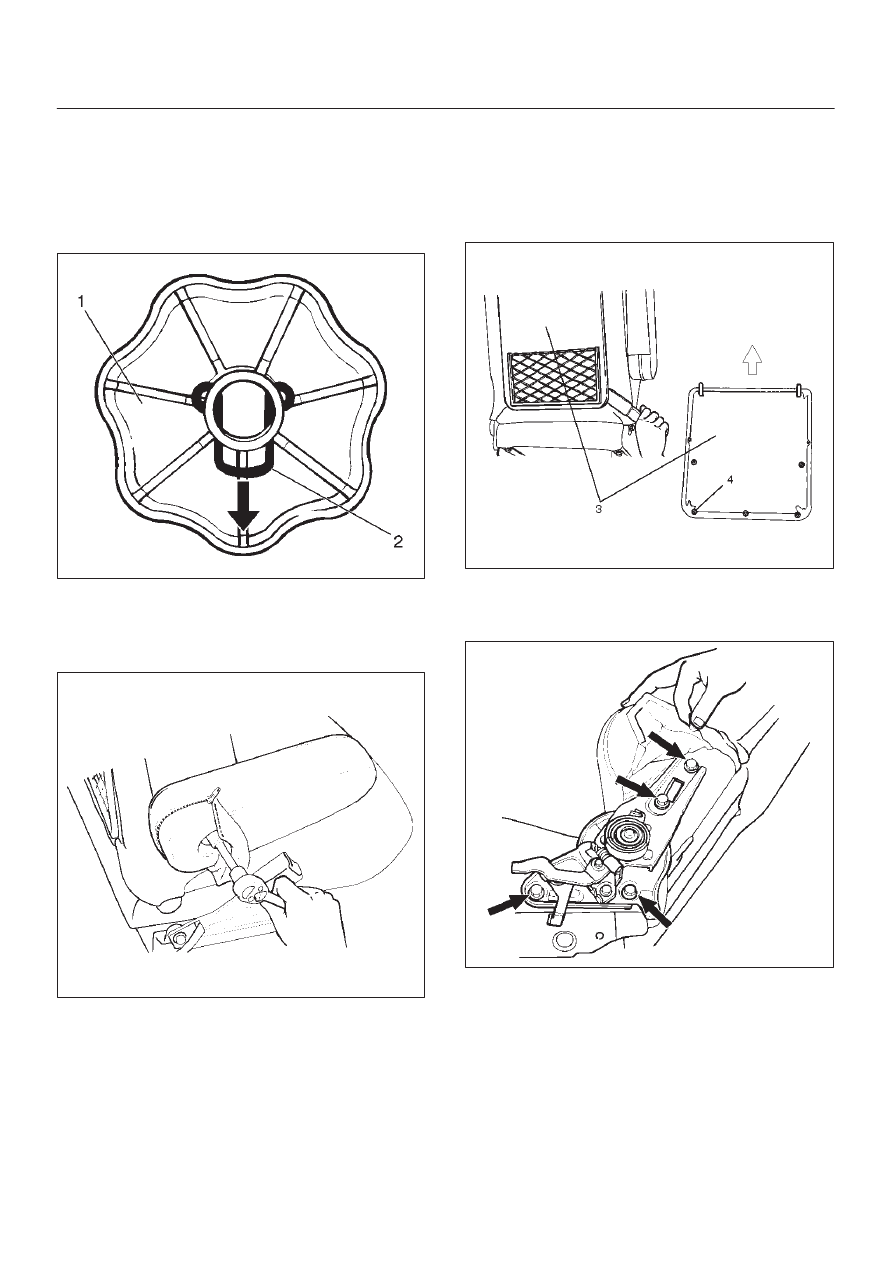

3. Remove the dial(1) (W/height adjuster).

D

Remove the side cover fixing screws and the dial
lock spring(2).

750RW025

4. Remove the side cover.
5. Remove the armrest assembly.

D

Open the armrest fastener and remove the armrest
fixing bolt.

750RS004

6. Remove the trim cover.
7. Remove the pad and frame assembly.
8. Remove the hinge cover.
9. Remove the back board assembly(3).

D

Pull out the back board while prying the clip (4) of
the back board free from the seat back assembly.

750RW032

10. Remove the reclining device.

D

Turn up the seat back trim cover in order to remove
the reclining device fixing bolts.

750RS006

SEATS

8G–5

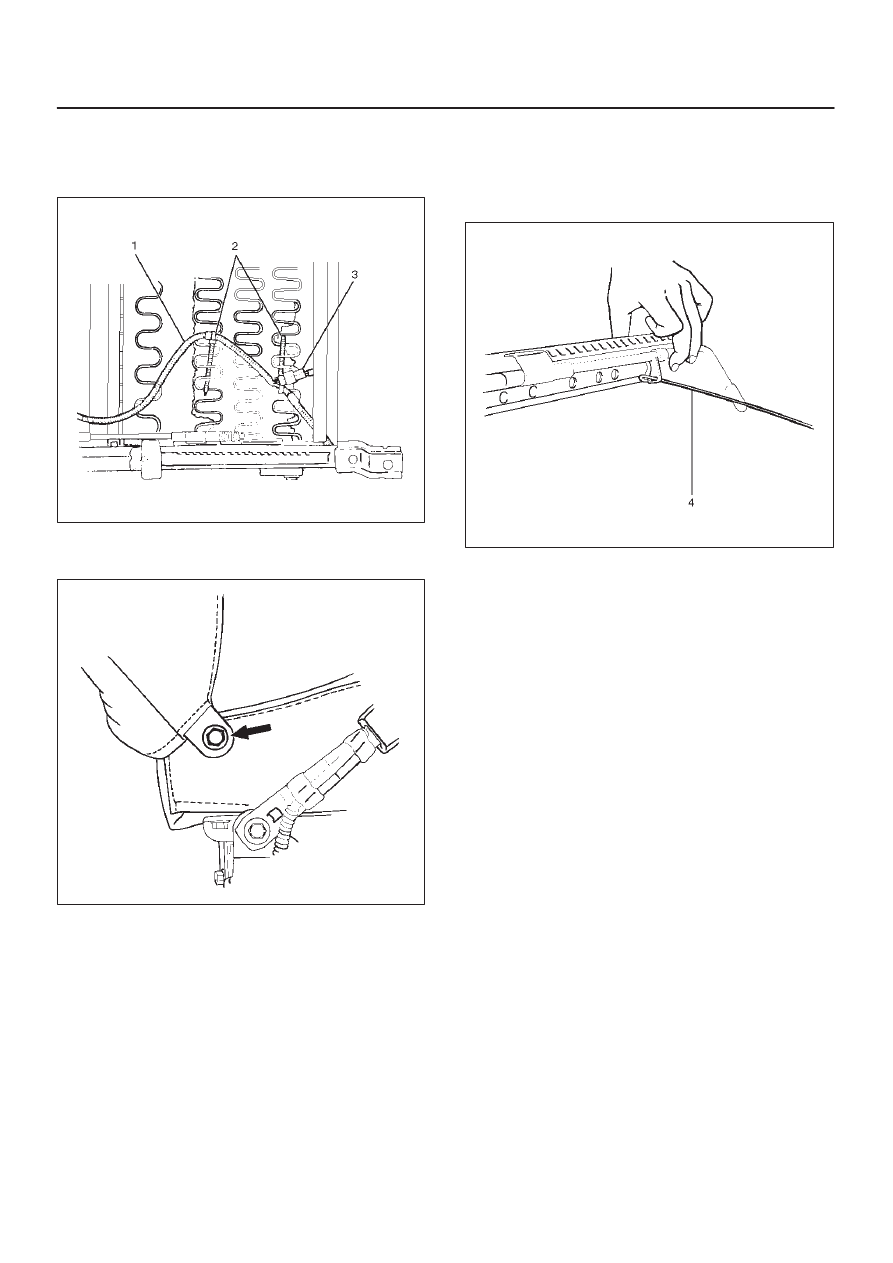

11. Remove the seat back assembly.

D

Remove the clips (2) from the seat heater harness
(1), and separate the seat heater connector (3)
(models with the seat heater).

750RW029

D

Remove the seat back assembly fixing nut on the
opposite side of the reclining device.

750RS007

12. Remove the guide holder.

D

Pull the guide holder out by holding the bottom end
of it from the seat back assembly.

13. Remove the trim cover.

D

Remove the trim cover hog rings from the back side
of the seat back.

D

With close attention paid to the hog rings and the
wire which connect the trim cover and the pad and
frame assembly, remove the trim cover while
turning it up.

14. Remove the pad and frame assembly.
15. Remove the seat heater assembly.
16. Remove the seat adjuster.

D

Disconnect the release wire(4) and remove the
fixing bolts.

750RW006

D

Remove the seat belt buckle assembly.

17. Remove the height adjuster.
18. Remove the spacer (W/O height adjuster).
19. Remove the seat cushion assembly.
20. Remove the trim cover.

D

Remove the trim cover hog rings from the back side
of the seat cushion assembly.

D

With close attention paid to the hog rings and the
wire which connect the trim cover and the pad and
frame assembly, remove the trim cover while
turning it up.

21. Remove the frame assembly.
22. Remove the pad assembly.
23. Remove the seat heater assembly.

Reassembly

To reassembly, follow the disassembly steps in the
reverse order, noting the following point.

1. Tighten the armrest assembly fixing bolts to the

specified torque.

Torque: 18 N·m (1.8 kg·m/13 lb ft)

2. Tighten the reclining device fixing bolts to the

specified torque.

Torque: 47 N·m (4.8kg·m/35 lb ft)

8G–6

SEATS

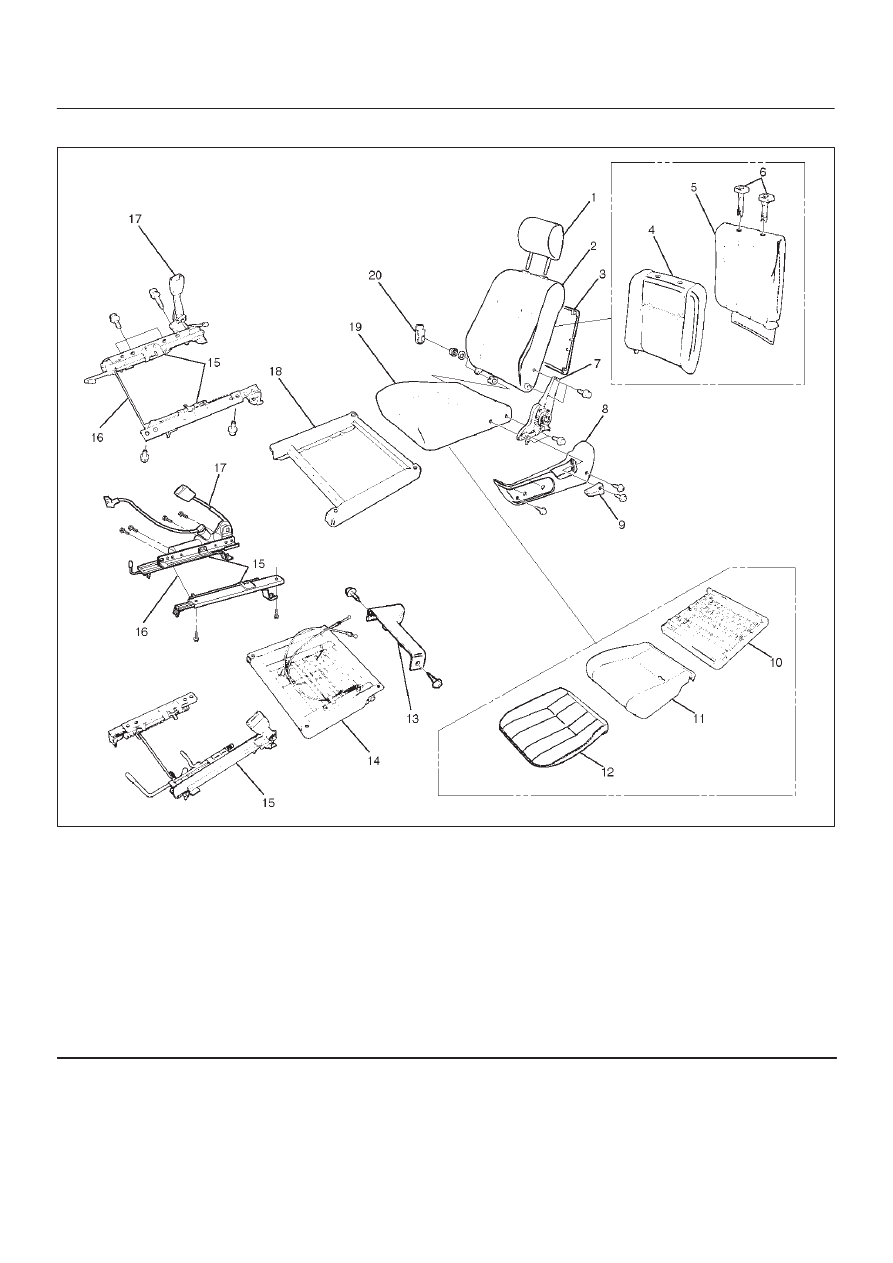

Disassembled View (SWB)

750RX018

Legend

(1) Head Rest
(2) Seat Back Assembly
(3) Back Board Assembly
(4) Pad & Frame Assembly
(5) Trim Cover
(6) Guide Holder
(7) Reclining Device
(8) Slide Cover
(9) Reclining Knob

(10) Frame Assembly

(11) Pad Assembly

(12) Trim Cover
(13) Walk–in Cover
(14) Walk–in Assembly
(15) Seat Adjuster/Seat Adjuster (W/Pretensioner)
(16) Release Wire
(17) Seat Belt Buckle Assembly
(18) Spacer
(19) Seat Cushion Assembly
(20) Hinge Cover

Disassembly

1. Remove the head rest.
2. Remove the reclining knob.
3. Remove the side cover.
4. Remove the hinge cover.

5. Remove the back board assembly.

D

Pull out the back board while prying the clip of the
back board free from the seat back assembly.

SEATS

8G–7

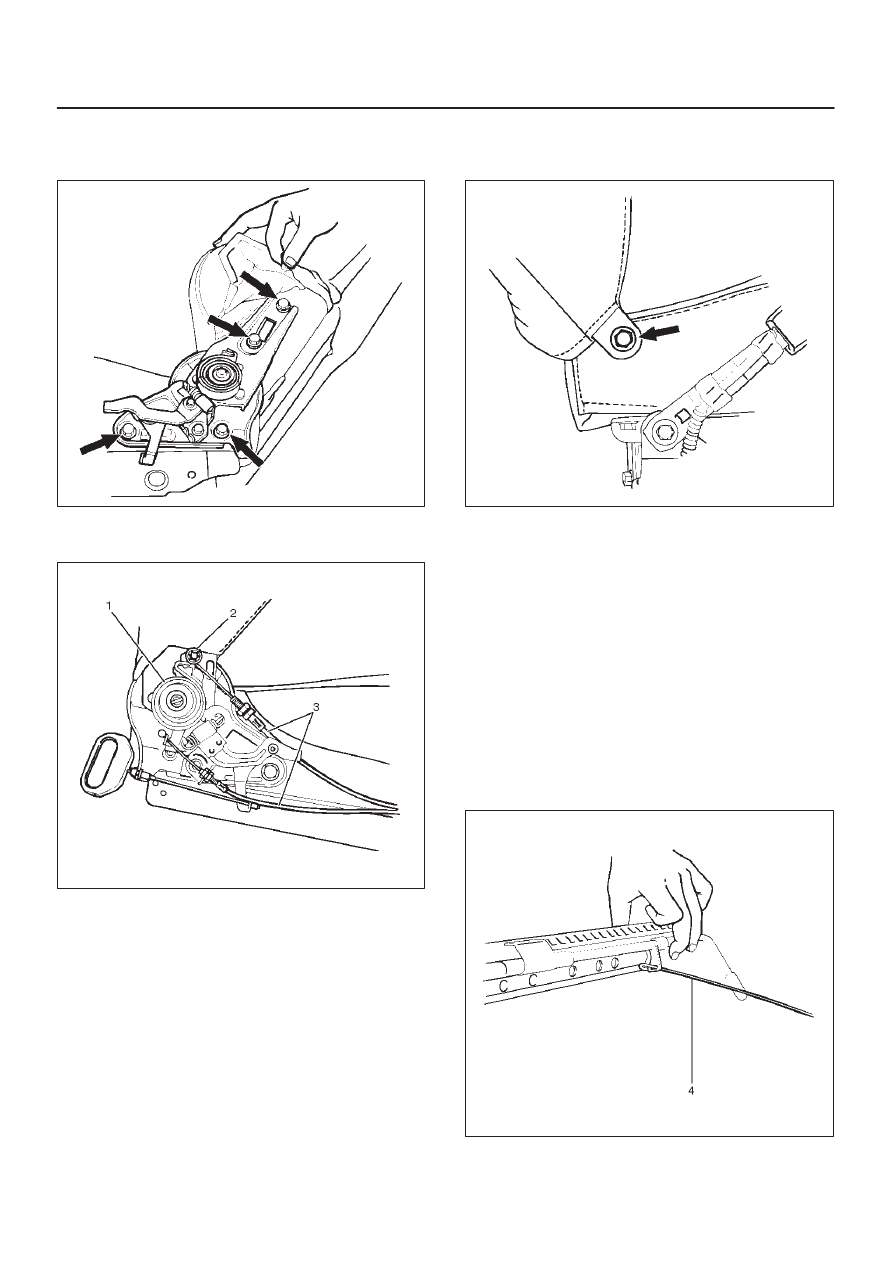

6. Remove the reclining device.

D

Turn up the seat back trim cover in order to remove
the reclining device fixing bolts.

750RS006

D

Remove the push nut (2) and disconnect walk-in
cable (3) from reclining device (1).

750RW034

7. Remove the seat back assembly.

D

Remove the seat back assembly fixing nut on the
opposite side of the reclining device.

750RS007

8. Remove the guide holder.

D

Pull the guide holder out by holding the bottom end
of it from the seat back assembly.

9. Remove the trim cover.

D

Remove the trim cover hog rings from the back side
of the seat back.

D

With close attention paid to the hog rings and the
wire which connect the trim cover and the pad and
frame assembly, remove the trim cover while
turning it up.

10. Remove the pad and frame assembly.

11. Remove the walk-in cover.

12. Remove the seat adjuster.

D

Disconnect the release wire (4) and remove the
fixing bolts.

750RW006

D

Remove the seat belt buckle assembly.
