ENGINE LUBRICATION (X22SE 2.2L)

General Description

A gear-type oil pump is directly driven by the crankshaft
and draws oil from the oil pan, via the suction pipe.  If
then passes the pressured oil through a full-flow
disposable oil filter, to the main oil gallery in the cylinder
Block.  An oil pump pressure relief valve and oil filter
bypass valve are incorporated in the system.
From the main oil gallery in the cylinder block, the
cylinder head and crankshaft main bearings are

supplied with oil.  The camshaft bearings and hydraulic
tappets are supplied through the main feed galleries in
the cylinder head.  Vent valves allow air to be expelled
from the oil galleries in the cylinder head.  The balance
shaft journals are directly fed from the crankshaft main
bearings.  The connecting rod bearings are fed via
passages in the crankshaft.  the oil returns to the oil pan
via passages in the cylinder block.

C06RW004

Legend

EndOFCallout

(1) Oil Strainer
(2) Oil Pump
(3) Relief Valve
(4) Oil Filter
(5) Safety Valve
(6) Oil Gallery
(7) Crankshaft Bearing
(8) Crankshaft
(9) Connecting Rod Bearing

(10) Connecting Rod
(11) Piston
(12) Oil Gallery; Cylinder Head
(13) Camshaft
(14) Camshaft Journal
(15) HLV
(16) Vent Valve
(17) Oil Pan

ENGINE LUBRICATION (X22SE 2.2L)

6G–3

Oil Pump

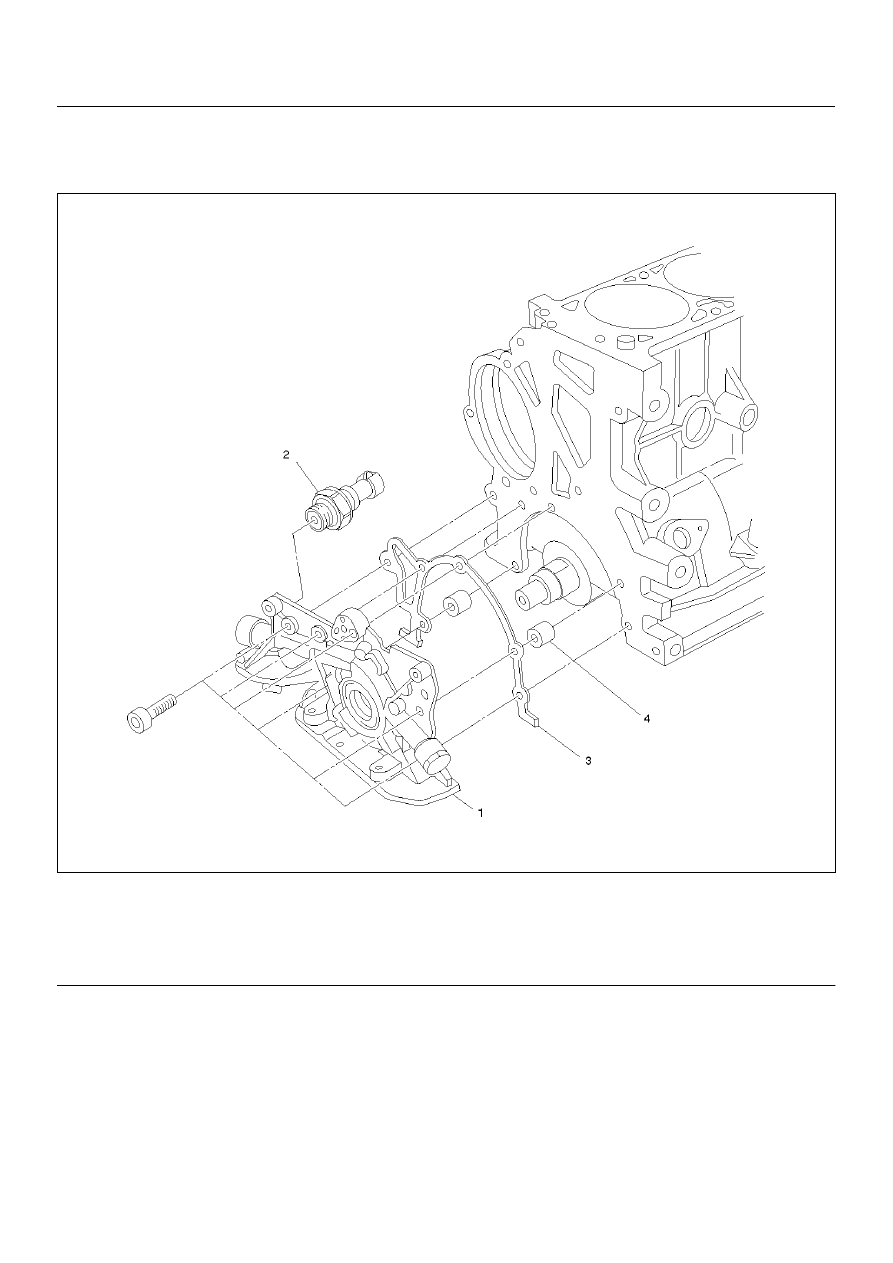

Oil Pump and Associated Parts

051RW004

Legend

EndOFCallout

(1) Oil Pump Assembly
(2) Oil Pressure Switch
(3) Gasket

(4) Sleeve

6G–4

ENGINE LUBRICATION (X22SE 2.2L)

Disassembly

1. Remove crankshaft timing pulley.

2. Remove oil pan.

3. Remove oil pan support.

4. Remove oil strainer.

5. Remove oil pump assembly.

6. Remove oil pressure switch.

7. Remove gasket.

8. Remove sleeve.

Inspection and Repair

CAUTION:  Make necessary correction or parts
replacement if wear, damage or any other abnormal
conditions are found through inspection.

Body and Gears

The pump assembly must be replaced if one or more of
the conditions below is discovered during inspection:

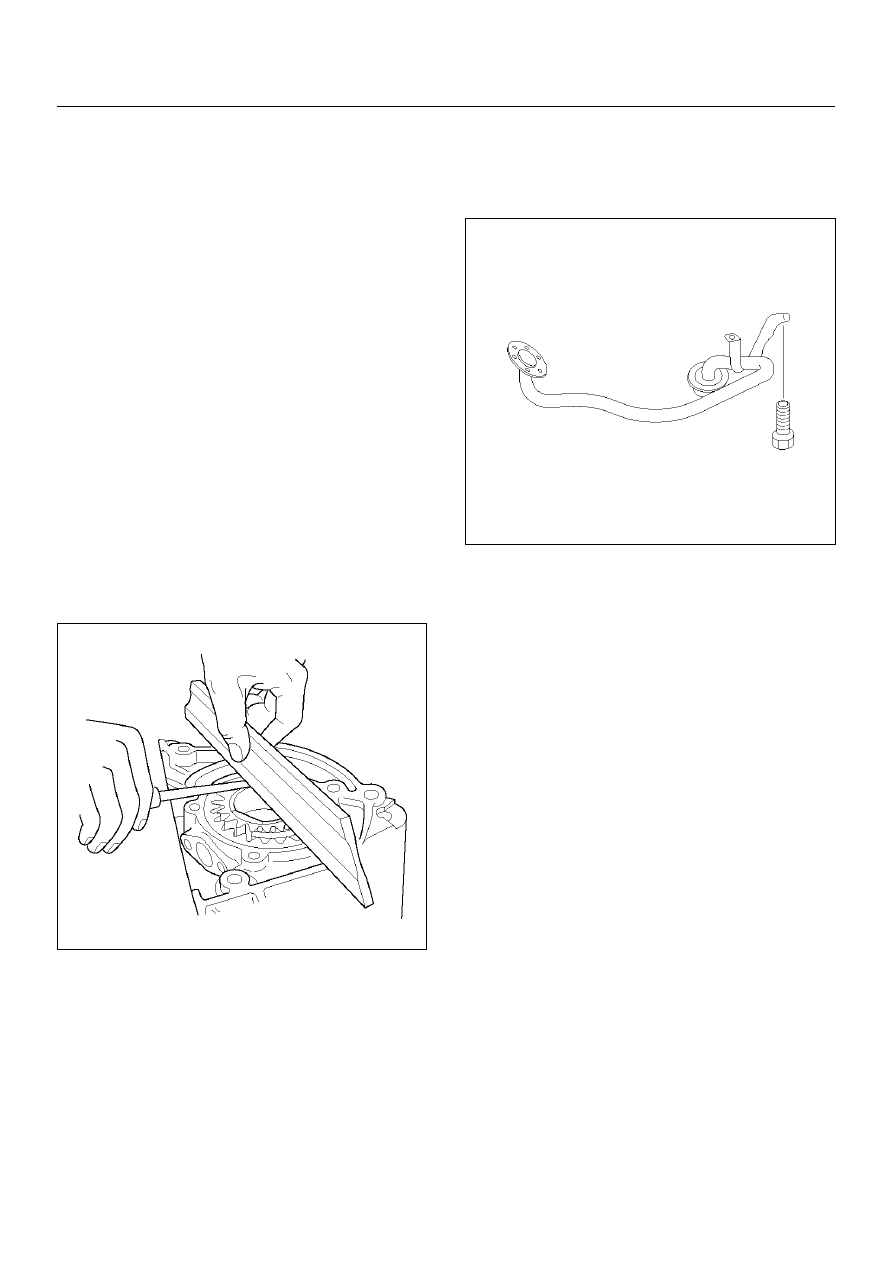

Indentation of gear pair — use feeler strip and straight
edge.

Dimension : 0.03 mm to 0.10 mm

(0.0012 to 0.0039 in)

051RW014

Oil Strainer

Check the oil strainer for cracking and scoring. If
cracking and scoring are found, the oil strainer must be
replaced.

051RW013

Reassembly

1. Install oil pressure switch to the oil pump.

Torque : 40 N·m (4.1 kg·m/37 lbft)

2. Install the oil pump with the sleeve and the gasket.

Torque : 6 N·m (0.6 kg·m/4.4 lbft)

3. Install oil strainer.

Torque : 8 N·m (0.8 kg·m/5.8 lbft)

4. Install Oil pan support.

Torque : 20 N·m (2.0 kg·m/14 lbft)

5. Install the oil pan.

Tighten the bolts in 2 steps:

1st step: 8 N·m (0.8 kg·m/5.8 lbft)

2nd step: 30

°°°°

6. Install crankshaft timing pulley.

Tighten the bolts in 2 steps:

1st step: 130 N·m (13.2 kg·m/94 lbft)

2nd step: 45

°°°°
