6E1–319

X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

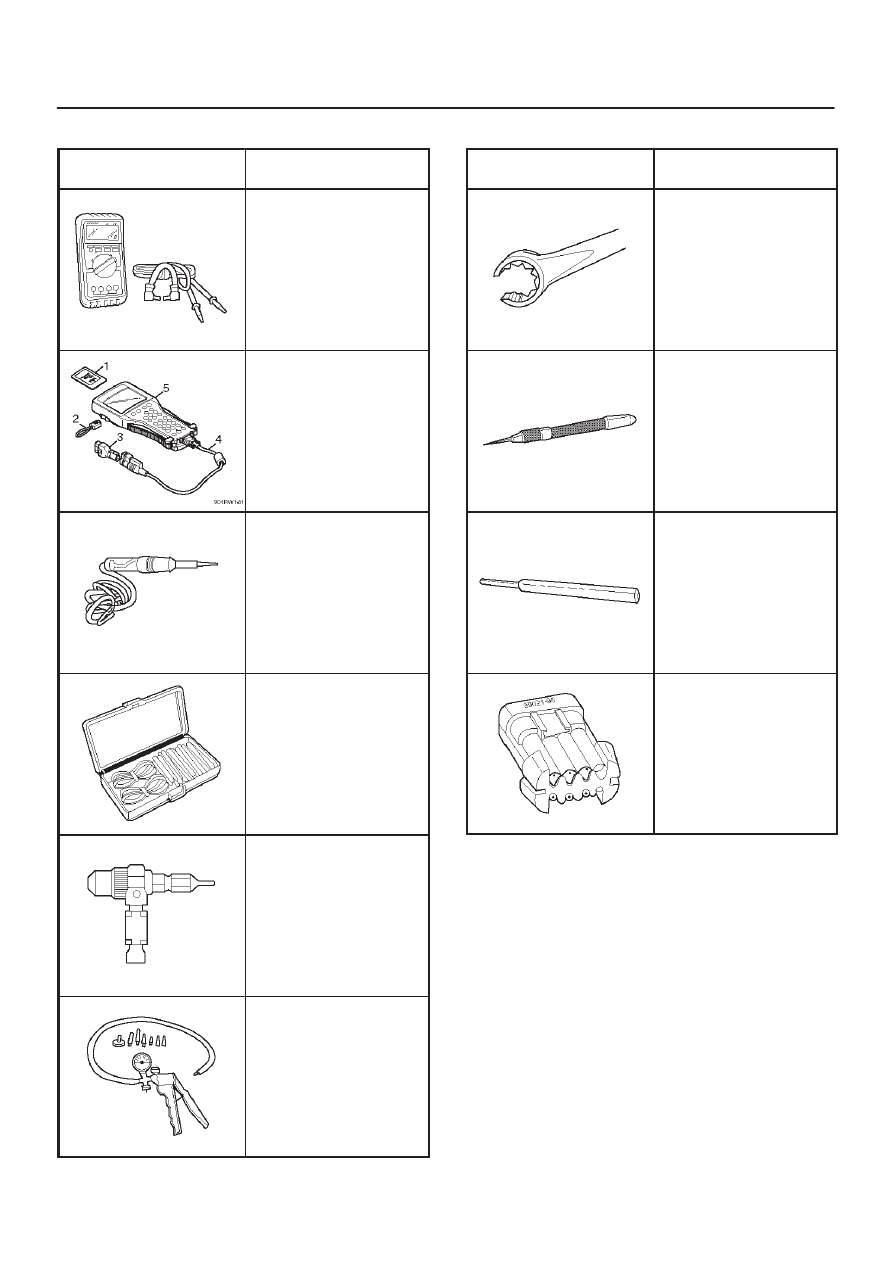

SPECIAL TOOLS

ILLUSTRATION

TOOL NO.

TOOL NAME

5-8840-0285-0

(J 39200)

High Impedance

Multimeter (Digital

Voltmeter – DVM)

(1) PCMCIA Card

(2) RS232 Loop Back

Connector

(3) SAE 16/19 Adapter

(4) DLC Cable

(5) TECH–2

5-8840-0607-0

(J 34142-B)

Unpowered Test Light

5-8840-0385-0

(J 35616-A/BT-8637)

Connector Test Adapter

Kit

5-8840-0383-0

(J 26792/BT-7220-1)

Spark Tester

5-8840-0279-0

(J 23738-A)

Vacuum Pump with

Gauge

ILLUSTRATION

TOOL NO.

TOOL NAME

5-8840-2640-0

(J 39194-B)

Heated Oxygen Sensor

Wrench

5-8840-0632-0

(J 35689-A)

Terminal Remover

5-8840-0388-0

(J 28742-A)

Weather Pack II

Terminal Remover

5-8840-2606-0

(J 39021-45)

Injector Test Light

ENGINE EXHAUST (X22SE 2.2L)

6F–1

ENGINE

ENGINE EXHAUST (X22SE 2.2L)

CONTENTS

Service Precaution......................................... 6F - 1
General Description ....................................... 6F - 2

Front Exhaust Pipe........................................ 6F - 3

Front Exhaust Pipe and Associated Parts .. 6F - 3
Removal ..................................................... 6F - 3
Installation .................................................. 6F - 3

Exhaust Silencer ........................................... 6F - 4

Exhaust Silencer and Associated Parts...... 6F - 4

Removal...................................................... 6F - 4
Installation................................................... 6F - 4

Rear Exhaust pipe......................................... 6F - 5

Rear Exhaust pipe and Associated Parts ... 6F - 5
Removal...................................................... 6F - 5
Installation................................................... 6F - 5

Main Data and Specifications ........................ 6F - 6

Service Precaution

WARNING:  THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS).   REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER  YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING.  WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE
SRS COMPONENTS OR THE SRS WIRING,  REFER
TO THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT  IN
POSSIBLE AIR BAG DEPLOYMENT, PERSONAL
INJURY, OR OTHERWISE UNNEEDED SRS SYSTEM
REPAIRS.

CAUTION:  Always use the correct fastener in the
proper location.  When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will  call out those fasteners that require a
replacement after removal. ISUZU will also call out
the  fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do  not
use supplemental coatings (Paints, greases, or
other corrosion inhibitors) on threaded  fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener  torque and the joint
clamping force, and may damage the fastener. When
you install fasteners,  use the correct tightening
sequence and specifications. Following these
instructions can help you  avoid damage to parts
and systems.

SECTION

6F–2

ENGINE EXHAUST (X22SE 2.2L)

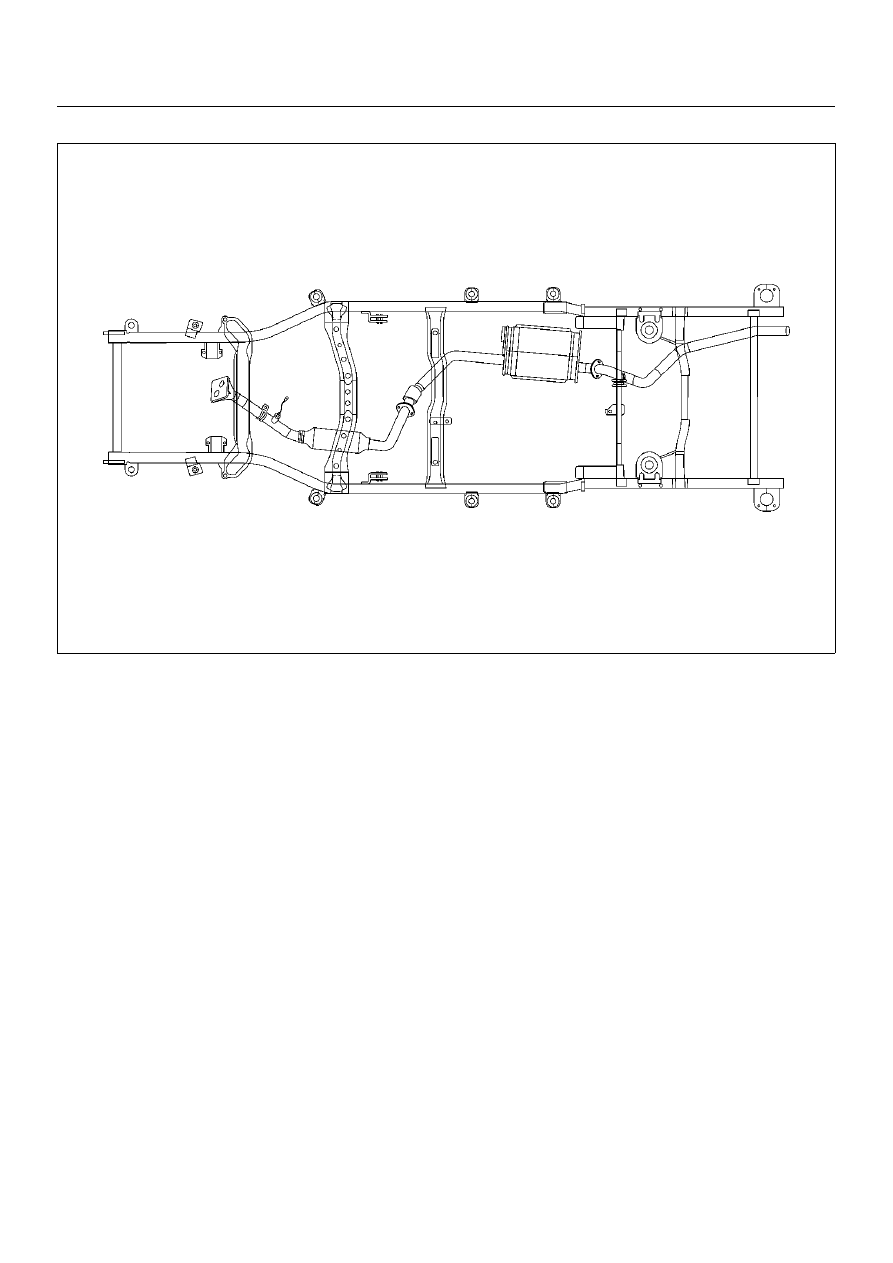

General Description

150RX013

When inspecting or replacing exhaust system
components, make sure there is adequate clearance
from all points  on the underbody to prevent overheating
the floor pan and possible damage to the passenger
compartment insulation and trim materials.
Check complete exhaust system and nearby body areas
and rear compartment lid for broken, damaged, missing
or mispositioned parts, open seams, holes, loose
connections or other deterioration which could permit
exhaust fumes to  seep into the rear compartment or
passenger compartment. Dust or water in the rear
compartment may be an indication of  a problem in one
of these areas. Any faulty areas should be corrected
immediately.

Hangers

Various types of hangers are used to support exhaust
system(s). These include conventional rubber straps,
rubber rings,  and rubber blocks.
The installation of exhaust system supports is very
important, as improperly installed supports can cause
annoying vibrations  which can be difficult to diagnose.

Three Way Catalytic Converter

The three way catalytic converter is an emission control
device added to the exhaust system to reduce pollutants
from  the exhaust gas stream.

CAUTION:  The catalytic converter requires the use

of unleaded fuel only.
Periodic maintenance of the exhaust system is not
required. If the vehicle is raised for other service, it is
advisable to  check the condition of the complete
exhaust system.
A dual bed monolith catalytic converter is used in
combination with three way catalytic converter.
Catalytic Types:
Three way (Reduction/Oxidation) catalyst
The catalyst coating on the three way (reduction)
converter contains platinum and rhodium which lowers
the levels of nitrous oxide (NOx) as well as
hydrocarbons (HC) and carbon monoxide (Co).

Gasket

The gasket must be replaced whenever a new exhaust
pipe, muffler or catalytic converter is installed.

ENGINE EXHAUST (X22SE 2.2L)

6F–3

Front Exhaust Pipe

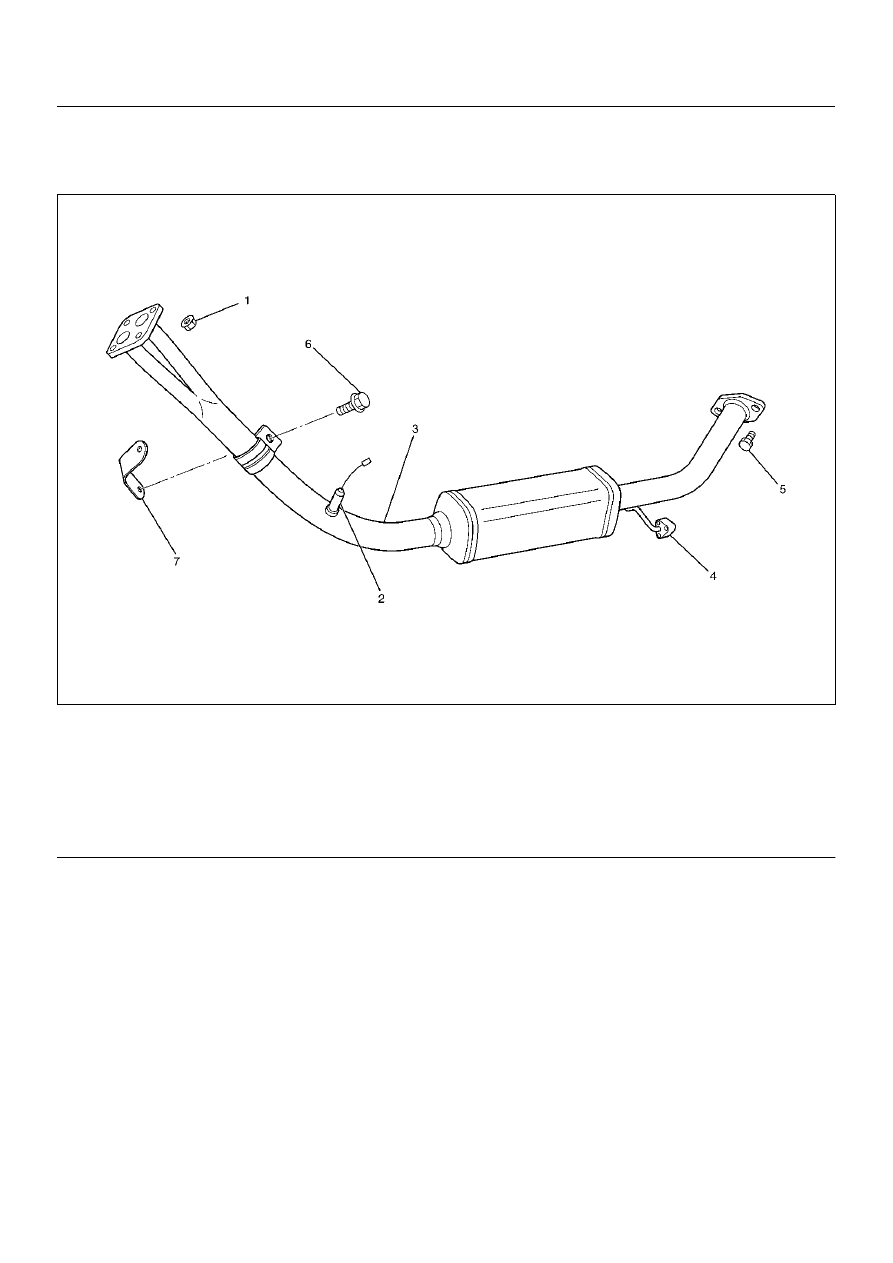

Front Exhaust Pipe and Associated Parts

150RX012

Legend

EndOFCallout

Removal

1. Disconnect battery ground cable.

2. Raise the vehicle and support with suitable safety

stands.

3. Disconnect O2 sensor harness connector and

remove front side O2 sensor (2).

4. Remove front exhaust pipe fixing bolts (6),(7).

5. Remove front exhaust pipe fixing four stud nuts from

exhaust manifold (1).

6. Remove front exhaust pipe (3).

Installation

1. Install front exhaust pipe (3) and tighten four stud

nuts (1) and two bolts (6) to the specified torque:

Torque:

Stud Nuts : 28 N·m (2.9 kg·m/21 lbft)

Bolts (6) : 43 N·m (4.4 kg·m/32 lbft)

Bolts (7) : 23 N·m (2.3 kg·m/17 lbft)

2. Tighten front side O2 sensor and reconnect O2

sensor harness connector.

Torque : 55 N·m (5.6 kg·m/41 lbft)

(1) Front Exhaust Pipe Fixing Nuts
(2) O2 Sensor
(3) Front Exhaust Pipe with Three Way Catalytic

Converter

(4) Front Exhaust Pipe Mounting Rubber

(5) Front Exhaust Pipe Fixing Bolt
(6) Front Exhaust Pipe Fixing Bolt (Clamp)
(7) Front Exhaust Pipe Mounting Bracket
