6F–4

ENGINE EXHAUST (X22SE 2.2L)

Exhaust Silencer

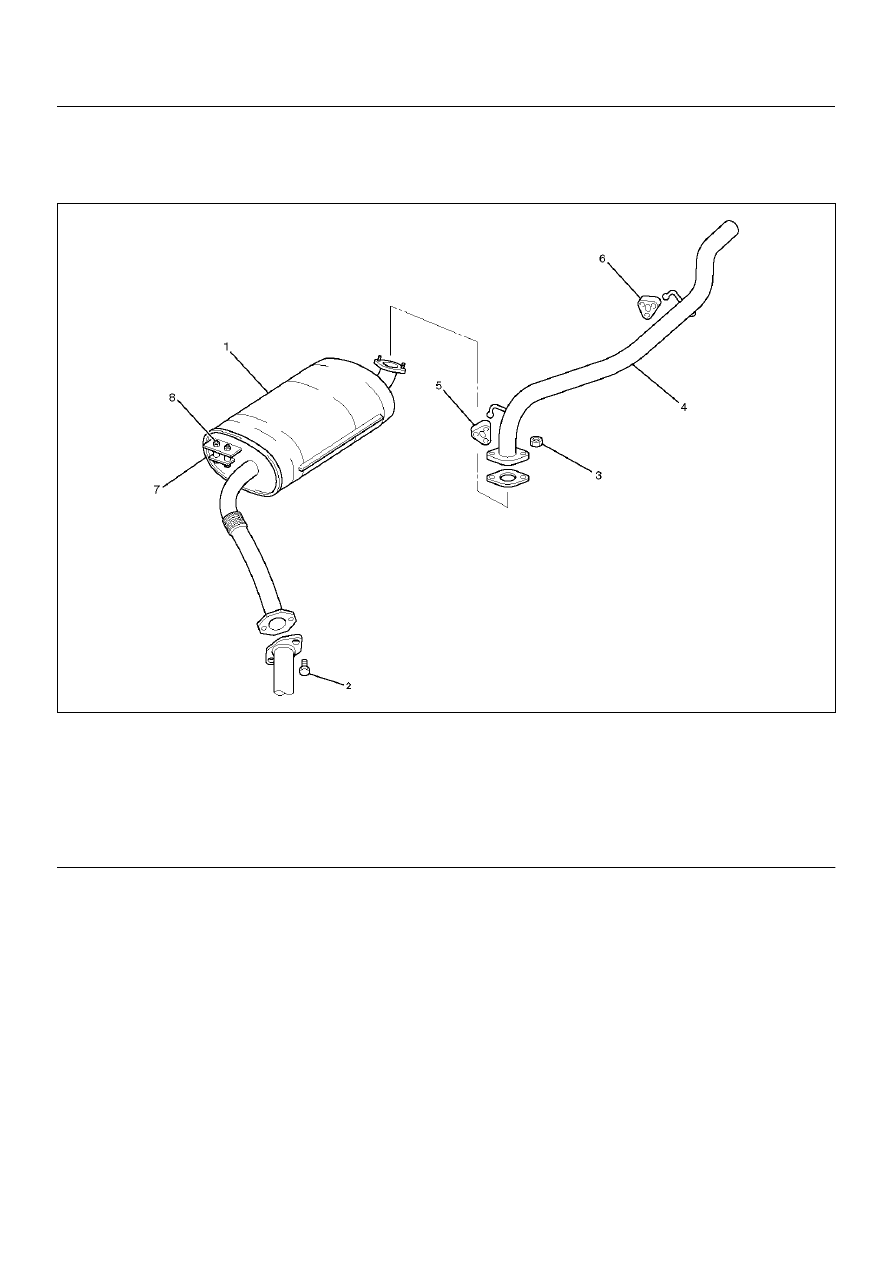

Exhaust Silencer and Associated Parts

150RW032

Legend

EndOFCallout

Removal

1. Disconnect battery ground cable.

2. Raise the vehicle and support with suitable safety

stands.

3. Remove exhaust silencer fixing nuts (3) then

disconnect rear exhaust pipe from exhaust silencer.

4. Remove exhaust silencer fixing nuts (2) then

disconnect exhaust silencer from front exhaust pipe
(5).

5. Remove exhaust silencer mounting nuts (8) from

chassis side then remove exhaust silencer (1).

Installation

1. Install the exhaust silencer (1) chassis side and

tighten two nuts (8) to the specified torque.

Nuts: 15 N·m (1.5 kg·m/11 lbft)

2. Install the exhaust silencer and tighten two Bolts (2)

on front exhaust pipe to specified torque.

Bolts: 43 N·m (4.4 kg·m/32 lbft)

3. Install the rear exhaust pipe and tighten two nuts (3)

on exhaust silencer to specified torque.

Nuts: 43 N·m (4.4 kg·m/32 lbft)

(1) Exhaust Silencer
(2) Front Exhaust Pipe Fixing Bolt
(3) Exhaust Silencer Fixing Nuts
(4) Exhaust Rear Pipe
(5) Mounting Rubber

(6) Mounting Rubber
(7) Mounting Rubber
(8) Exhaust Silencer Fixing Nuts

ENGINE EXHAUST (X22SE 2.2L)

6F–5

Rear Exhaust pipe

Rear Exhaust pipe and Associated Parts

150RW032

Legend

EndOFCallout

Removal

1. Disconnect battery ground cable.

2. Raise the vehicle and support with suitable safety

stands.

3. Remove rear exhaust pipe fixing nuts (3), then

disconnect rear exhaust pipe from exhaust silencer.

4. Remove mounting rubber (5), (6).

5. Remove rear exhaust pipe (4).

Installation

1. Install the mounting rubber (5), (6).

2. Install the exhaust pipe (4) and tighten two nuts (3)

on exhaust silencer to specified torque.

Nuts: 43 N·m (4.4 kg·m/32 lbft)

(1) Exhaust Silencer
(2) Front Exhaust Pipe Fixing Bolt
(3) Exhaust Silencer Fixing Nuts
(4) Exhaust Rear Pipe
(5) Mounting Rubber

(6) Mounting Rubber
(7) Mounting Rubber
(8) Exhaust Silencer Fixing Nuts

6F–6

ENGINE EXHAUST (X22SE 2.2L)

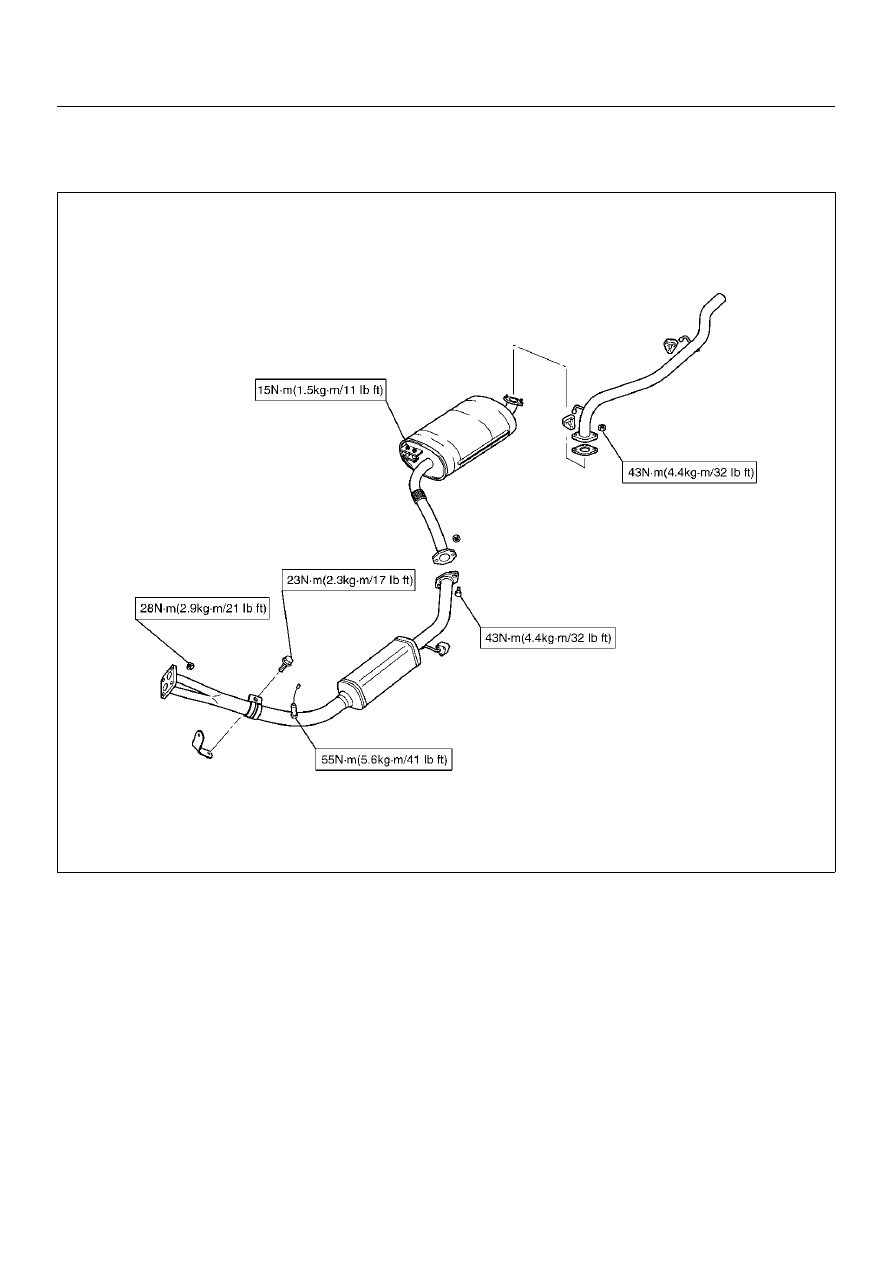

Main Data and Specifications

Torque Specifications

150RX011
