6D3–6

STARTING AND CHARGING SYSTEM (X22SE 2.2L)

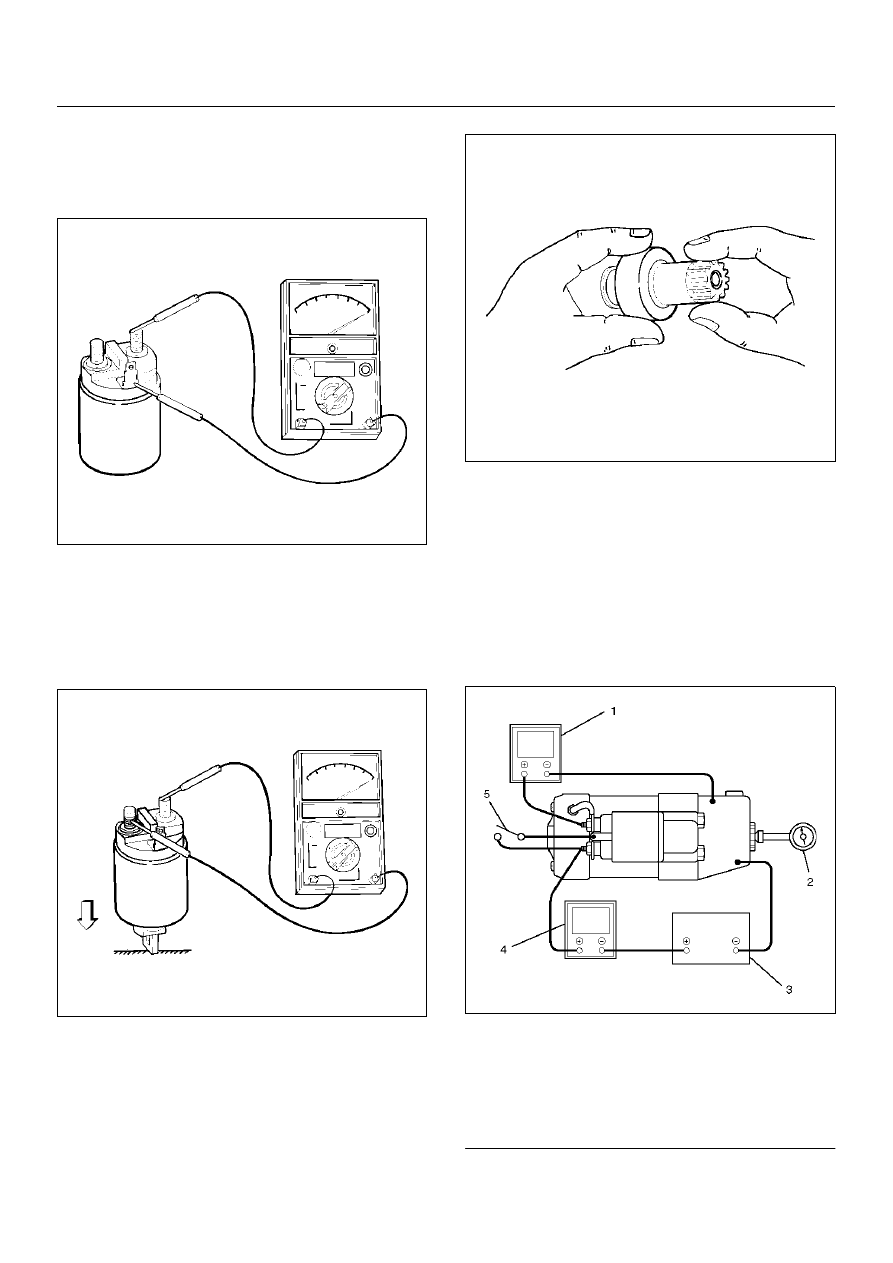

Continuity of Series Coil

Check for continuity between terminals S and M.
Replace, if there is no continuity (i.e., coil is
disconnected).

065RW017

Continuity of Contacts

With the plunger faced downward, push down the
magnetic switch. In this state, check for continuity
between terminals B and M. Replace, if there is no
continuity (i.e., contacts are faulty).

065RW018

Pinion

Check if the pinion rotates smoothly in drive direction by
hand, or if it is locked when it is rotated in reverse. If not,
replace the pinion.

065RS025

Characteristic Test

For easily confirming the characteristics, conduct the
noload test as follows:
Rating as short as 30 seconds requires rapid testing.
Fix the starter on the test bench, and wire as shown in
illustration. When the switch is closed,  the current flows
and the starter runs under no load. At this time,
measure current, voltage and speed  to check if they
satisfy the standard.

065RW020

Legend

EndOFCallout

(1) Volt Meter
(2) Revolution Indicator
(3) Battery
(4) Ammeter
(5) Switch

STARTING AND CHARGING SYSTEM (X22SE 2.2L)

6D3–7

Charging System

General Description

The charging system is an IC integral regulator charging
system and its main components are connected  as
shown in illustration.
The regulator is a solid state type and it is mounted
along with the brush holder assembly inside  the
generator installed on the rear end cover.
The generator does not require particular maintenance
such as voltage adjustment.  The rectifier connected to
the stator coil has eight diodes to transform AC voltage
into DC voltage.
This DC voltage is connected to the output terminal of
generator.

General On–Vehicle Inspection

The operating condition of charging system is indicated
by the charge warning lamp. The warning lamp comes
on when the starter switch is turned to “ON" position.
The charging system operates normally if the lamp goes
off when the engine starts.
If the warning lamp shows abnormality or if
undercharged or overcharged battery condition is
suspected, perform diagnosis by checking the charging
system as follows:

1. Check visually the belt and wiring connector.

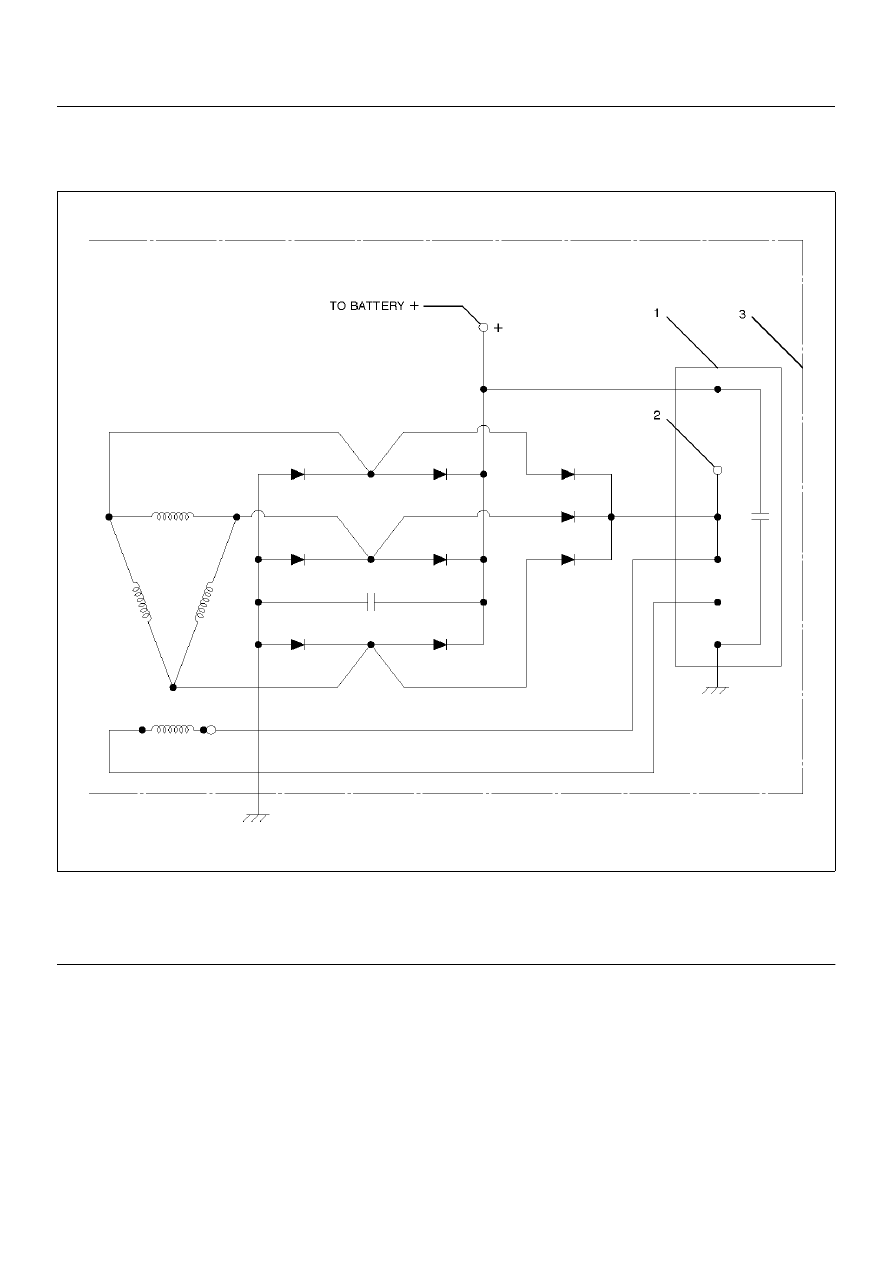

6D3–8

STARTING AND CHARGING SYSTEM (X22SE 2.2L)

2. With the engine stopped, turn the stator switch to

“ON" position and observe the warning lamp.
If lamp does not come on:
Disconnect wiring connector from generator, and

ground the terminal “L" on connector side.
If lamp comes on:
Repair or replace the generator.

066RW021

Legend

EndOFCallout

(1) Regulator
(2) Indicator Lamp

(3) Generator Assembly

STARTING AND CHARGING SYSTEM (X22SE 2.2L)

6D3–9

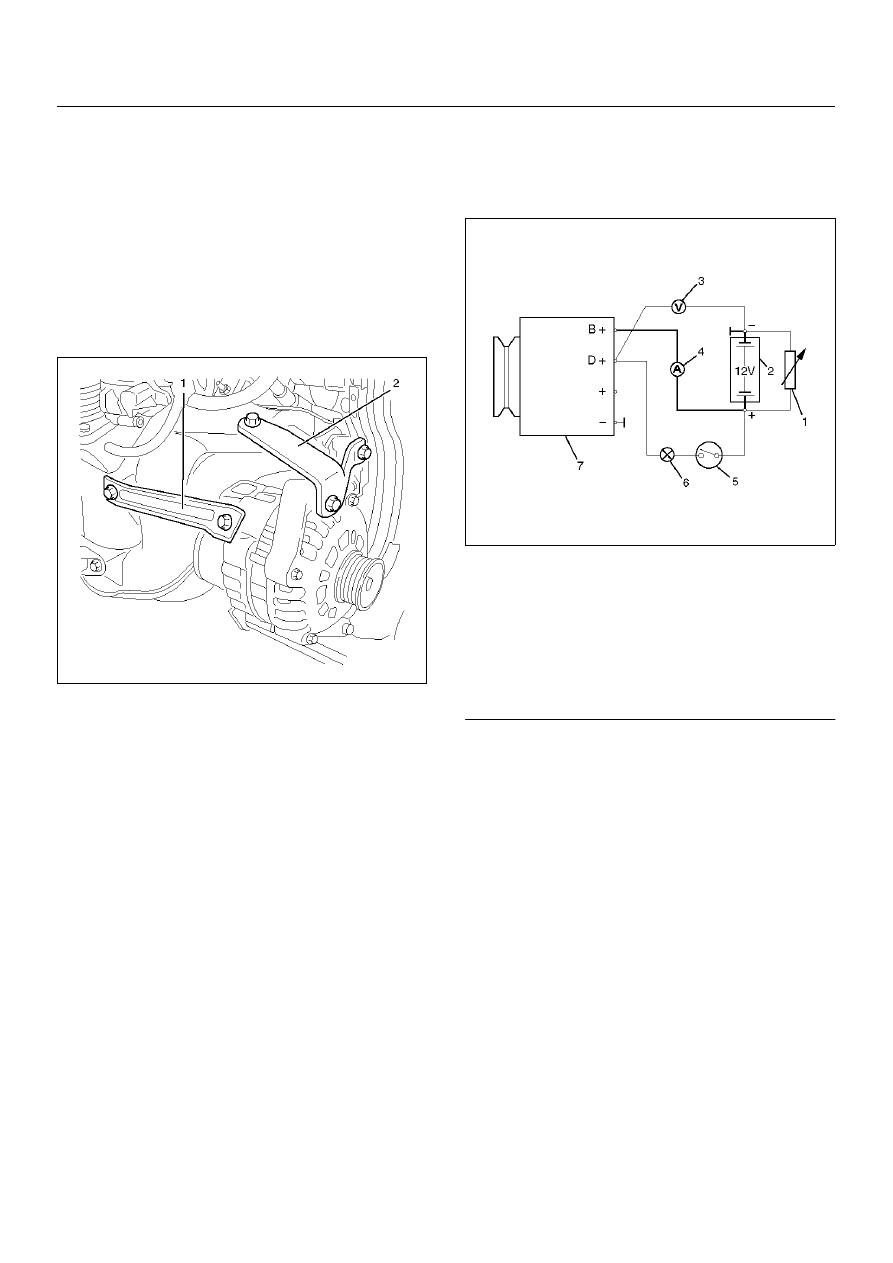

Generator

Removal

1. Disconnect battery ground cable.

2. Move drive belt tensioner to loose side using wrench

then remove drive belt.

3. Disconnect terminal “B" wiring connector and

connector.

4. Remove generator bracket (1), (2) and remove

generator assembly.

065RW025

Inspection

Generator Power and Circuit Diagram

066RW020

Legend

EndOFCallout

1. Disconnect battery.

2. Close off connecting cable from alternator terminal

“B+".

3. Set ammeter (measuring range 100A) in

disconnected line.

4. Connect controllable load resistor to battery

terminal.

5. Set resistor in front of connection to “0"; connect first

to battery, then to resistor.

6. Connect tachometer.

7. Connect oscilloscope according to manufacturer's

instructions.

8. Connect battery.

9. Start engine and read off resulting current at various

engine speeds.

(1) Load resistor, set parallel to battery
(2) Battery
(3) Voltmeter
(4) Ammeter
(5) Ignition Lock
(6) Charge Telltale
(7) Generator
