5C–26

POWER-ASSISTED BRAKE SYSTEM

5. If dimension (4) is out of the standard range, adjust

push rod using the Push Rod Support 5–8840–
2305–0.

331RW014

6. Mount plate and seal assembly in vacuum booster

front shell. Then install the retainer.

7. Install vacuum booster fixing nut and tighten the

specified torque.

Torque: 15 N·m (1.5 kg·m/11 lbft)

8. Install yoke clevis.

9. Connect vacuum hose and make sure that the arrow

on the hose points in the direction of the engine.

10. Install master cylinder, refer to “Master Cylinder

Installation" in this section.

POWER-ASSISTED BRAKE SYSTEM

5C–27

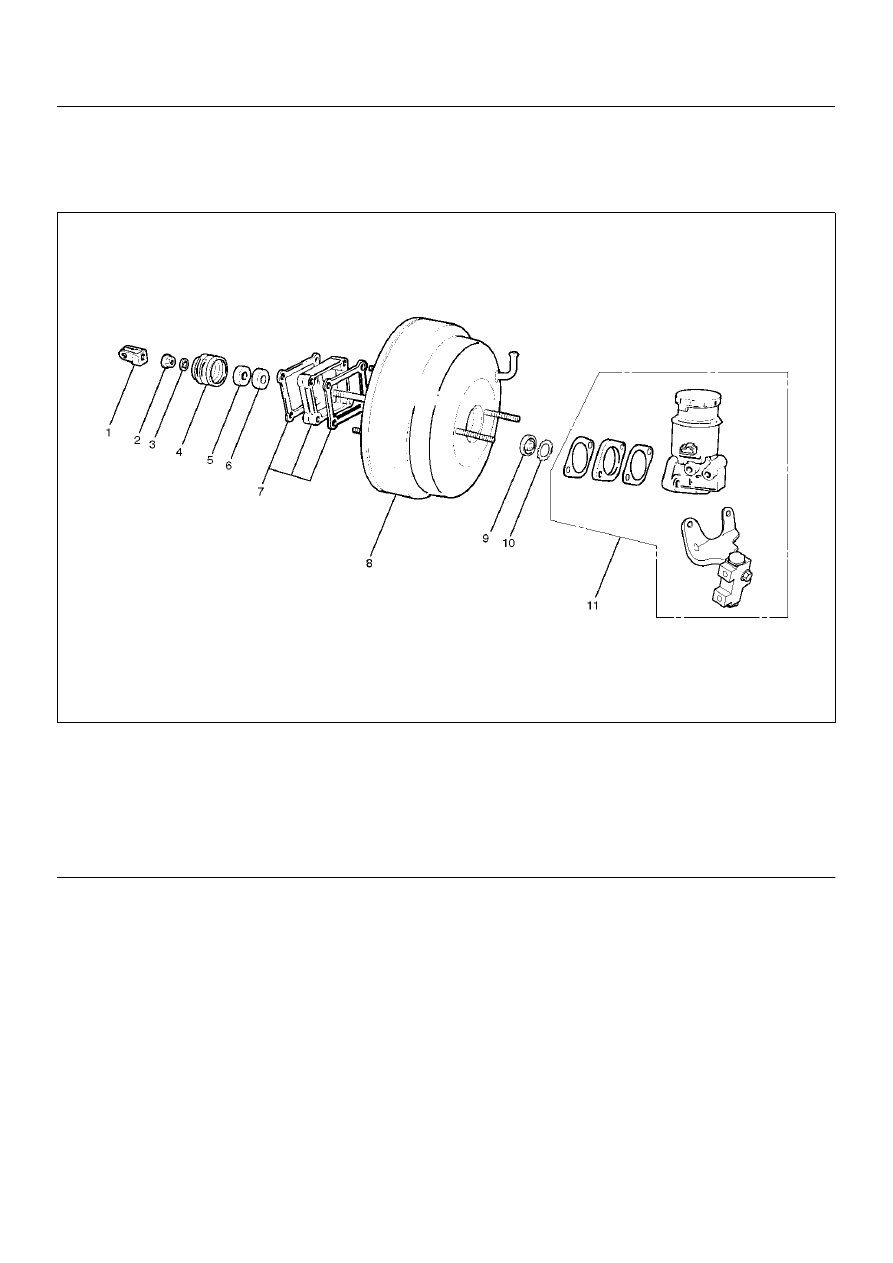

Exterior Components

Exterior Components and Associated Parts

331RW006

Legend

EndOFCallout

Removal

1. Remove master cylinder. Refer to “Master Cylinder"

in this section.

2. Remove vacuum booster. Refer to “Vacuum

Booster" in this section.

3. Remove yoke clevis.

4. Remove lock nut.

5. Remove retaining clip.

6. Remove valve body guard.

7. Remove silencer.

8. Remove filter.

9. Remove 2 gaskets and spacer.

(1) Yoke Clevis
(2) Lock Nut
(3) Retaining Clip
(4) Valve Body Guard
(5) Silencer
(6) Filter

(7) 2 Gaskets and Spacer
(8) Vacuum Booster
(9) Retainer

(10) Plate and Seal Assembly
(11) Master Cylinder

5C–28

POWER-ASSISTED BRAKE SYSTEM

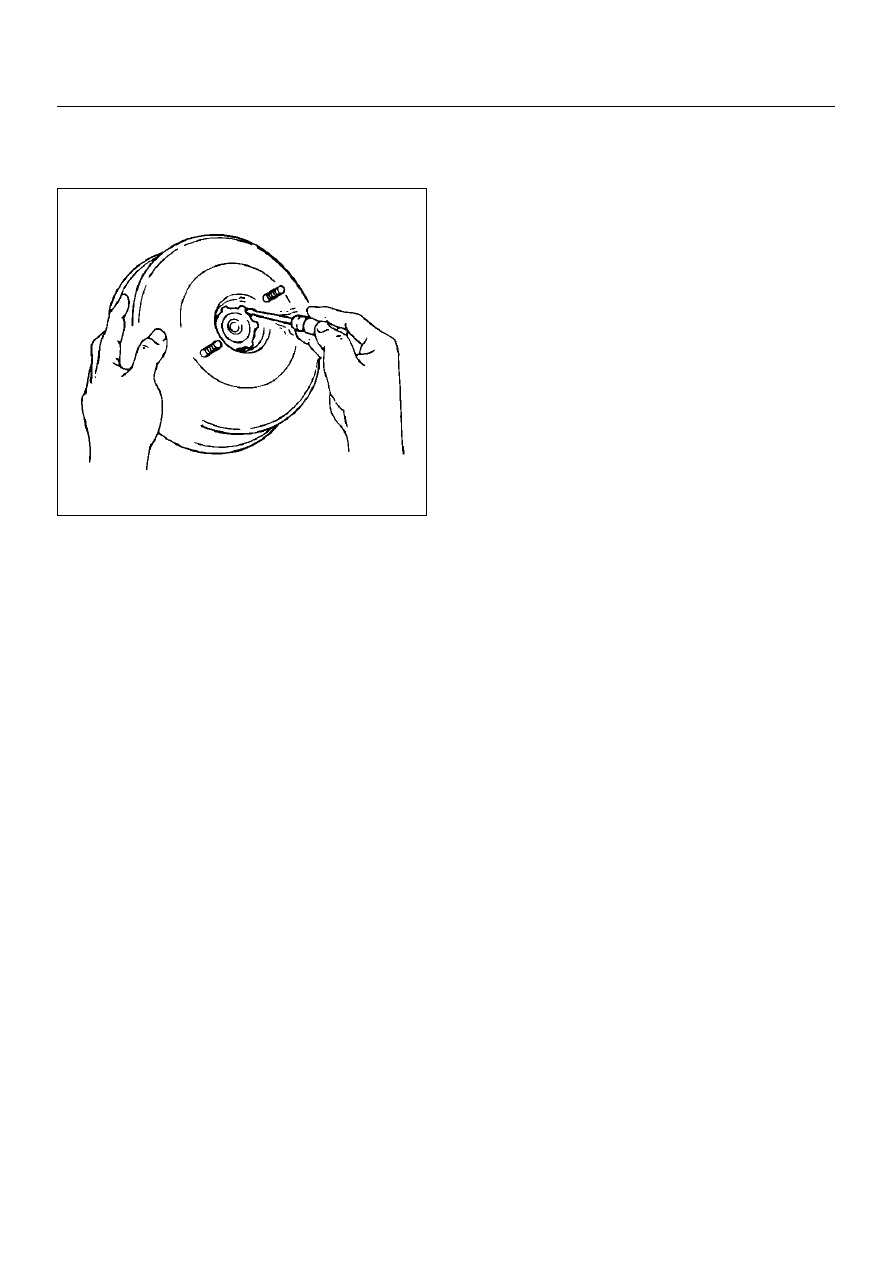

10. Remove retainer, using a small screwdriver to pry

out the retainer. Gently pull out the plate and seal
assembly from the shell.

331RS003

Inspection and Repair

Visual Check

Make necessary parts replacement if cuts, nicks,
excessive wear, or other abnormal conditions are found

through inspection. Check the following parts:

• Yoke clevis

• Valve body guard

• Silencer

• Filter plate and seal assembly

Installation

1. Install plate and seal assembly.

2. Install retainer.

3. Install 2 gaskets and spacer.

4. Install filter.

5. Install silencer.

6. Install valve body guard.

7. Install retainer.

8. Install lock nut and yoke clevis and tighten to the

specified torque.

Torque: 20 N·m (2.0 kg·m/15 lbft)

9. Install vacuum booster, refer to “Vacuum Booster" in

this section.

10. Install master cylinder, refer to “Master Cylinder" in

this section and after installation, perform brake
pedal check and adjustment. Refer to “Brake Pedal"
in this section.

Vacuum Booster Overhaul

Vacuum Booster

The vacuum booster cannot be disassembled for repair.
Replace a defective vacuum booster with a new one.

POWER-ASSISTED BRAKE SYSTEM

5C–29

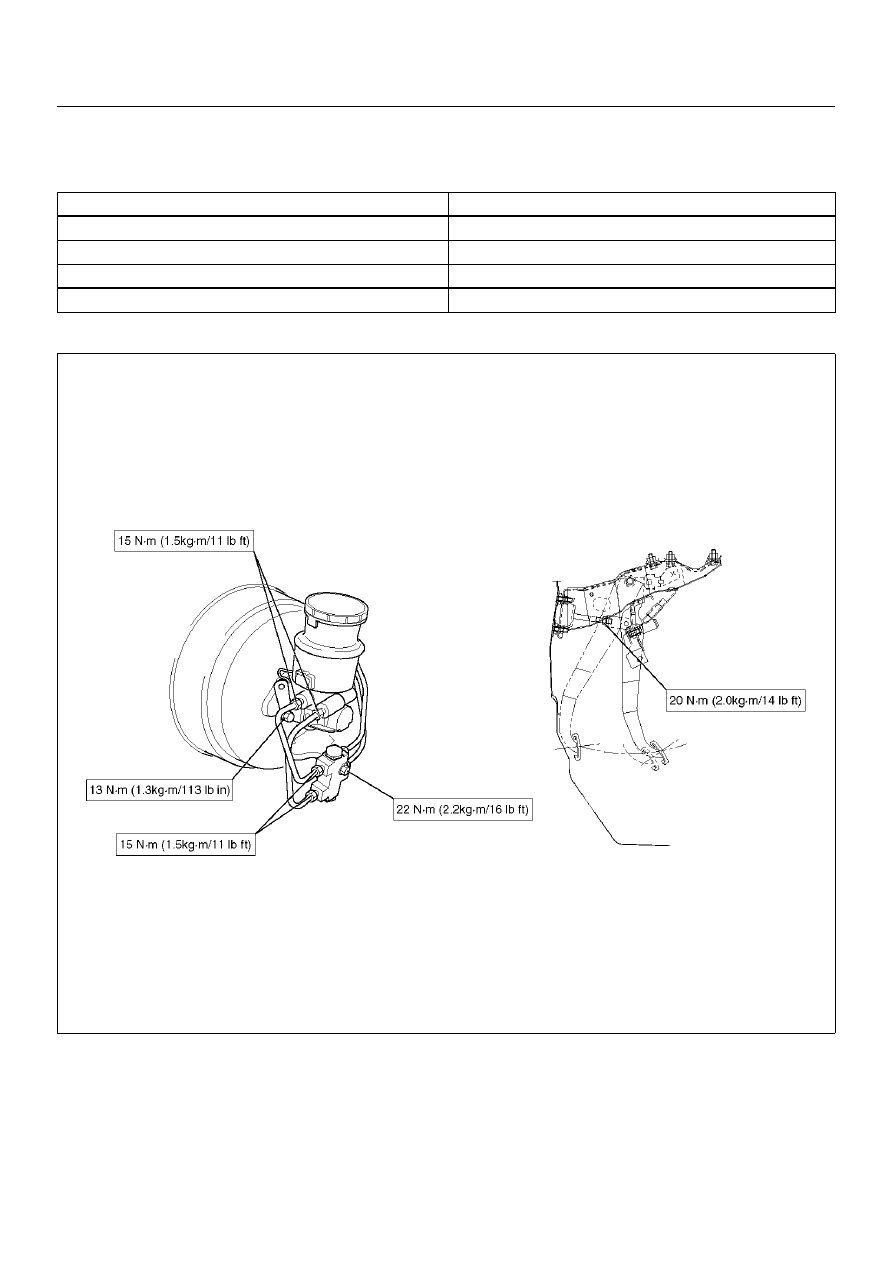

Main Data and Specifications

General Specifications

Torque Specifications

330RY00011

Vacuum booster diaphragm diameter (Front)

205 mm (8.07 in)

Vacuum booster diaphragm diameter (Rear)

230 mm (9.06 in)

Push rod stroke

More than 32.0 mm (1.26 in)

Plunger diameter

10.25 mm (0.40 in)

Push rod diameter

27.4 mm (1.08 in)
