10A–6

CRUISE CONTROL SYSTEM

Adjustment

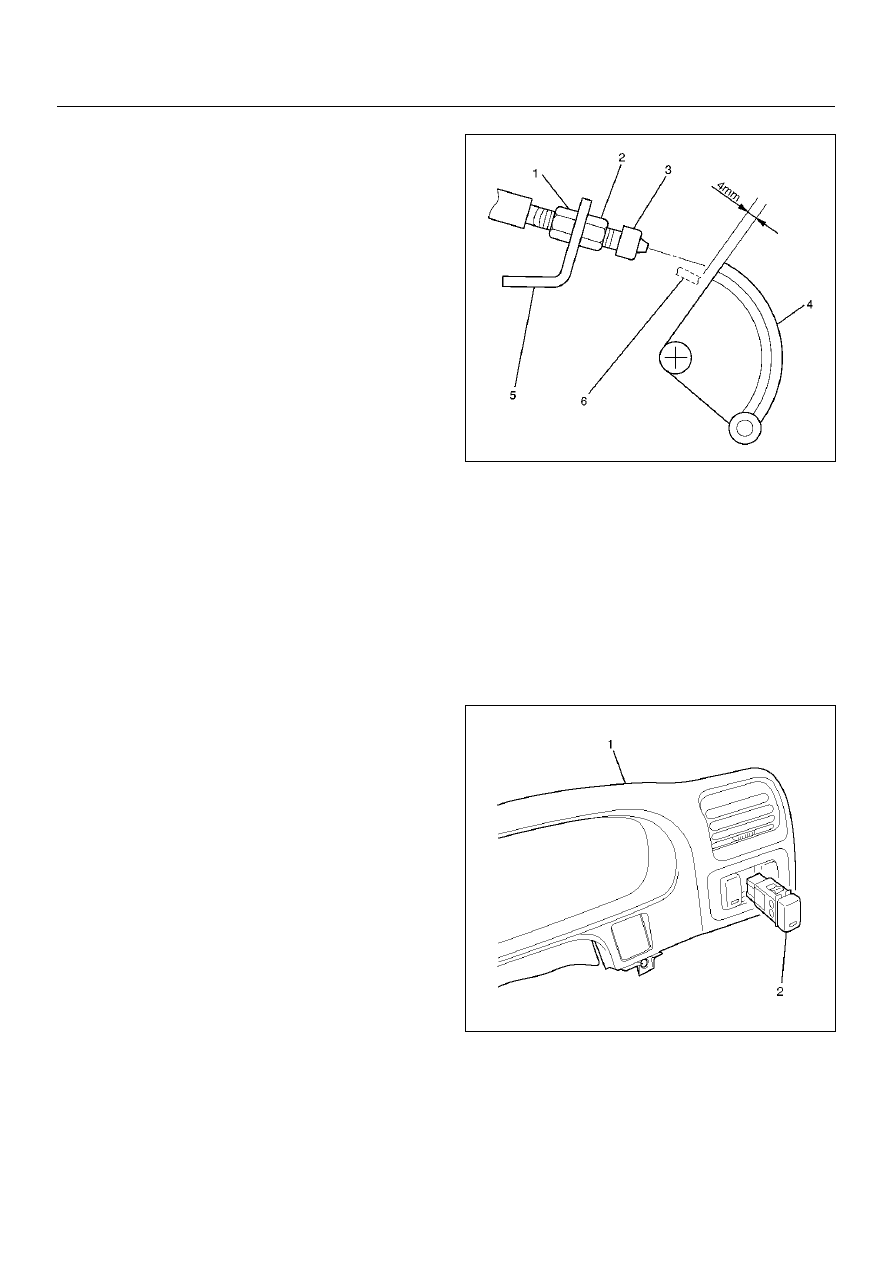

After installing the cruise actuator, the following steps
must be carried out for cruise control cable adjustment.

1. Install the cruise control cable end (3) to the throttle

link (4).

2. Put the screw portion of the cable in the bracket (5).

3. Put the nut (1) to the bracket and then tighten the

nut (2).

• If the distance between the throttle link (4) and

the throttle link lever (6) is out of the specified
range, loosen the nut (2) to adjust it.

035RW140

Mode Switch

Removal and Installation

Refer to Mode Switch in Automatic Transmission
section.

Cruise Control Main Switch

Removal

1. Disconnect the battery ground cable.

2. Remove the meter cluster assembly (1).

• Refer to the Instrument Panel Assembly in Body

Structure section.

3. Remove the cruise control main switch (2).

• Disconnect the switch connector.

• To remove the switch, push the lock from the back

side of the instrument panel cluster assembly.

825RX035

Installation

To install, follow the removal steps in the reverse order.

CRUISE CONTROL SYSTEM

10A–7

Cruise Control Switch (Combination Switch)

Removal and Installation

Refer to Lighting Switch (Combination Switch) in
Lighting System section.
