CRUISE CONTROL SYSTEM

General Description

The cruise control keeps the vehicle running at a fixed
speed until a signal canceling this fixed speed is
received.
When the main switch “AUTO CRUISE" is turned on
with the vehicle in the running mode, the battery voltage
is applied to the control unit.  When a signal from the
control switch is input to the control unit while the
vehicle is in this state, the cruise control actuator is
activated to operate the system.  Also, while the system
is operating, the “AUTO CRUISE" indicator light in the
meter assembly lights up.

1 . SET/COAST Switch Function

1. Set Function: When the SET/COAST switch is

pressed and released with the main switch on, the
speed at which the vehicle is running at that
moment is stored in the memory, and the vehicle
automatically runs at the speed stored.

2. Coast-Down Function: When the SET/COAST

switch is kept on while the vehicle is running, the
vehicle decelerates during that time.  The speed at
which vehicle is running when the control switch is
turned off is stored in the memory, and the vehicle
automatically returns to the stored speed.

3. Tap-Down Function: When the SET/COAST switch

is turned on and off instantaneously while the
vehicle is running, the vehicle decelerates a mile for
each on/off operation.  The vehicle speed at which
the vehicle was running when the SET/COAST was
turned off last is stored in the memory, and the
vehicle automatically returns to this stored speed.

2 . RESUME/ACCEL Switch Function

1. Resume Function: When the RESUME, ACCEL

switch is turned on/off after the system is
temporarily deactivated by pressing the brake or
clutch pedal while the vehicle is running, the vehicle
resumes,  the speed stored before the system was
released.

2. Accelerate Function: When the RESUME/ACCEL

switch is kept on after the system is released
completely, the vehicle accelerates its speed during
that time.  The vehicle speed at which the vehicle
was running when the switch was turned off is
stored in the memory, and the vehicle automatically
returns to this speed.

3. Tap-Up Function: When the RESUME/ACCEL

switch is turned on and off instantaneously while the
vehicle is running, the vehicle accelerates a mile for
each on/off operation.  The vehicle speed at which
the vehicle was running when the switch was turned
off last is stored in the memory, and the vehicle
automatically returns to this stored speed.

3 . CANCEL Function

1. Temporary Cancellation:

• When the brake pedal is pressed.

• When the clutch pedal is pressed. (M/T)

• When the select lever is shifted to any position

other than “D", “3", “2" or “L". (A/T)

• When the vehicle speed has decreased about 20

km/h or more than the stored speed.

2. Complete Cancellation:

• When the starter switch or the main switch is

turned off.

• When the failsafe function is activated.

Diagnosis

Refer to the Cruise Control System Diagnosis in Wiring
System section.

CRUISE CONTROL SYSTEM

10A–3

Brake Switch

Removal and Installation

Refer to the Stoplight Switch Replacement in Brake
section.

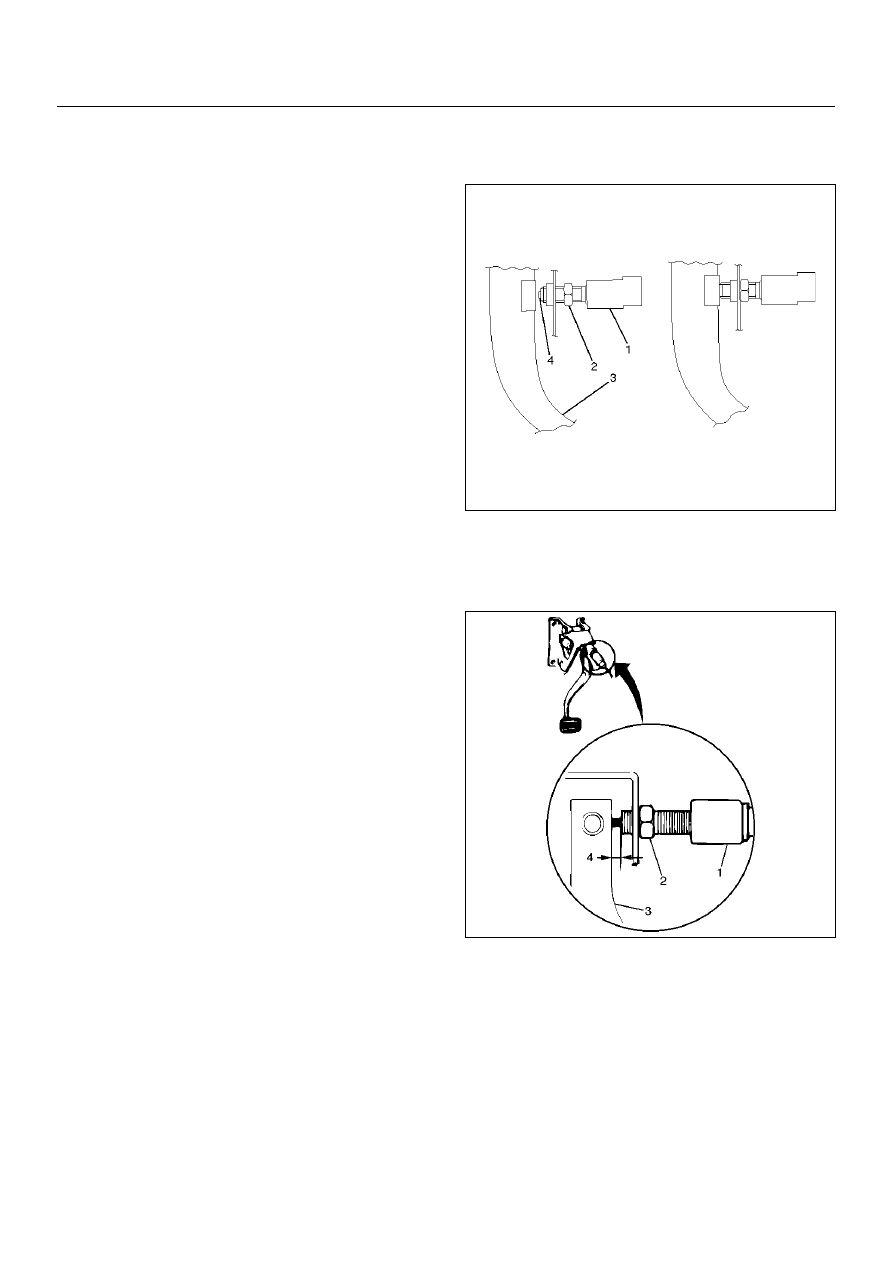

Adjustment

1. Check that the brake pedal (3) is fully returned by

pedal return spring.

2. Disconnect the switch connector.

3. Loosen the lock nut (2).

4. Rotate the brake switch (1) by hand until push rod

disappears from brake switch tip (4).

5. Return the brake switch by a half turn.

6. Tighten the lock nut.

7. Connect the switch connector.

310RS028

Clutch Switch

Removal and Installation

Refer to the Clutch Control in Clutch section.

Adjustment

1. Turn the clutch switch (1) until the switch plunger is

fully retracted against the clutch pedal arm.

2. Adjust clutch switch by backing it out half a turn and

measure the clearance (4) between the clutch pedal
arm (3) and the clutch switch.

3. Lock the lock nut(2).

4. Connect clutch switch connector.

Clutch Switch (bolt) and Clutch Pedal Clearance

0.5 – 1.5 mm (0.020 – 0.059 in)

203RS016-1

10A–4

CRUISE CONTROL SYSTEM

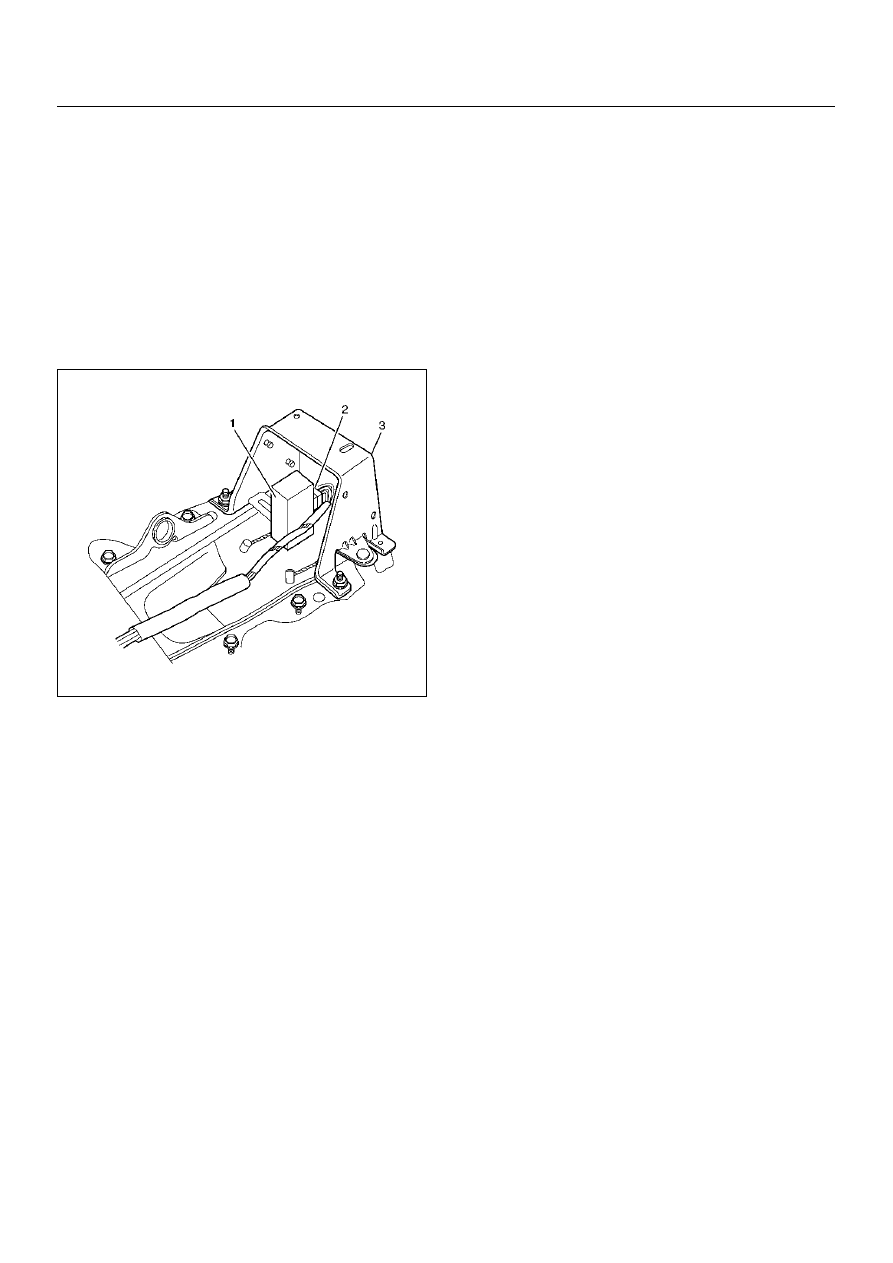

Cruise Control Unit

Removal

1. Disconnect the battery ground cable.

2. Remove the rear console box assembly.

• Remove four screws.

3. Remove the cover (3).

• Remove four nuts.

4. Remove the cruise control unit (1).

• Disconnect the connector (2).

825RX017

Installation

To install, follow the removal steps in the reverse order.

CRUISE CONTROL SYSTEM

10A–5

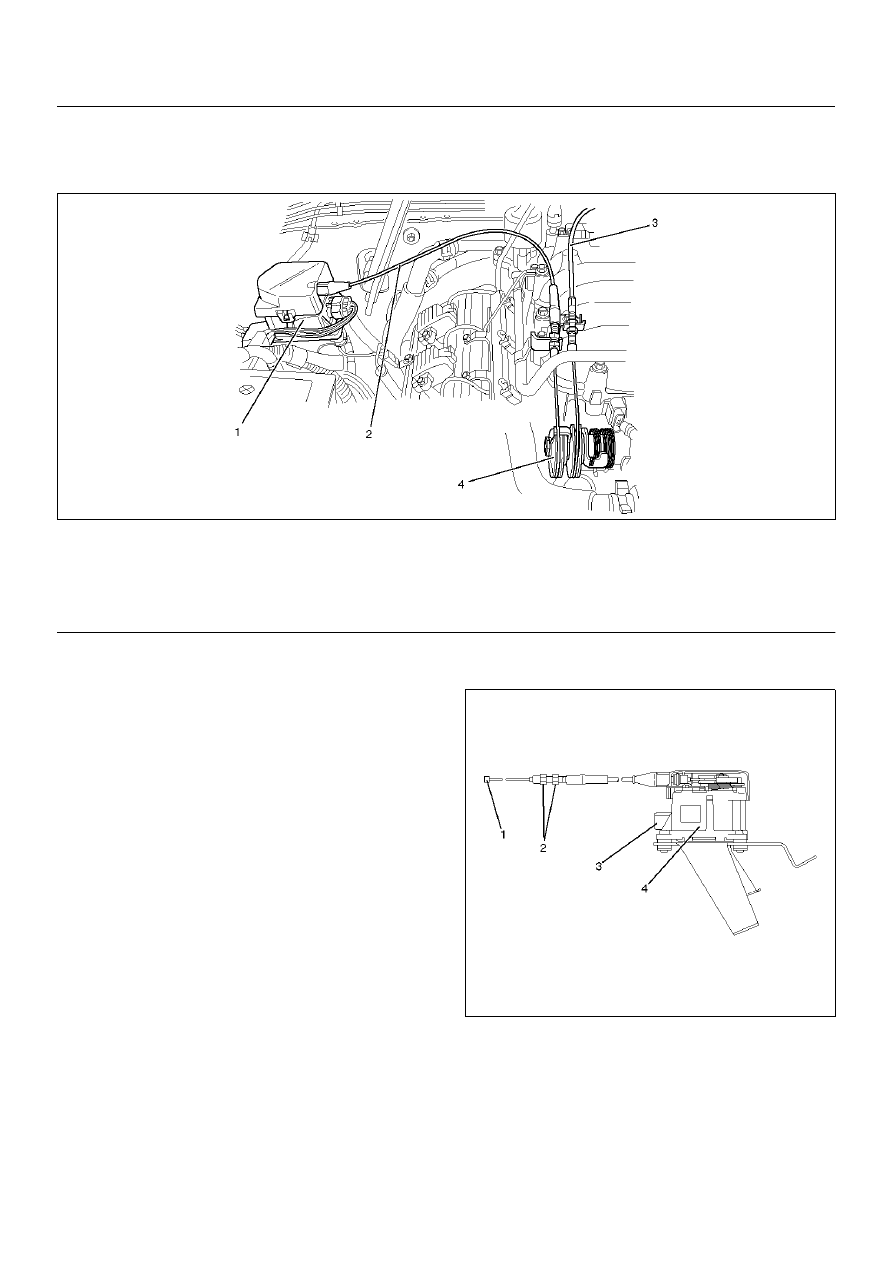

Cruise Actuator

Actuator Cable Diagram

825RW093

Legend

EndOFCallout

Removal

1. Disconnect the battery ground cable.

2. Remove the cruise actuator assembly (4).

• Disconnect the connector (3).

• Remove the cable end (1) from the throttle link

(cruise control side).

• Loosen two fixing nuts (2).

• Remove three actuator assembly fixing screws.

825RW049

Installation

To install, follow the removal steps in the reverse order,
noting the following point:

1. Take care not to bend the cable excessively.

(1) Cruise Actuator Assembly
(2) Cruise Control Cable
(3) Accelerator Cable

(4) Throttle Link (Cruise Control Side)
