8D–100

WIRING SYSTEM

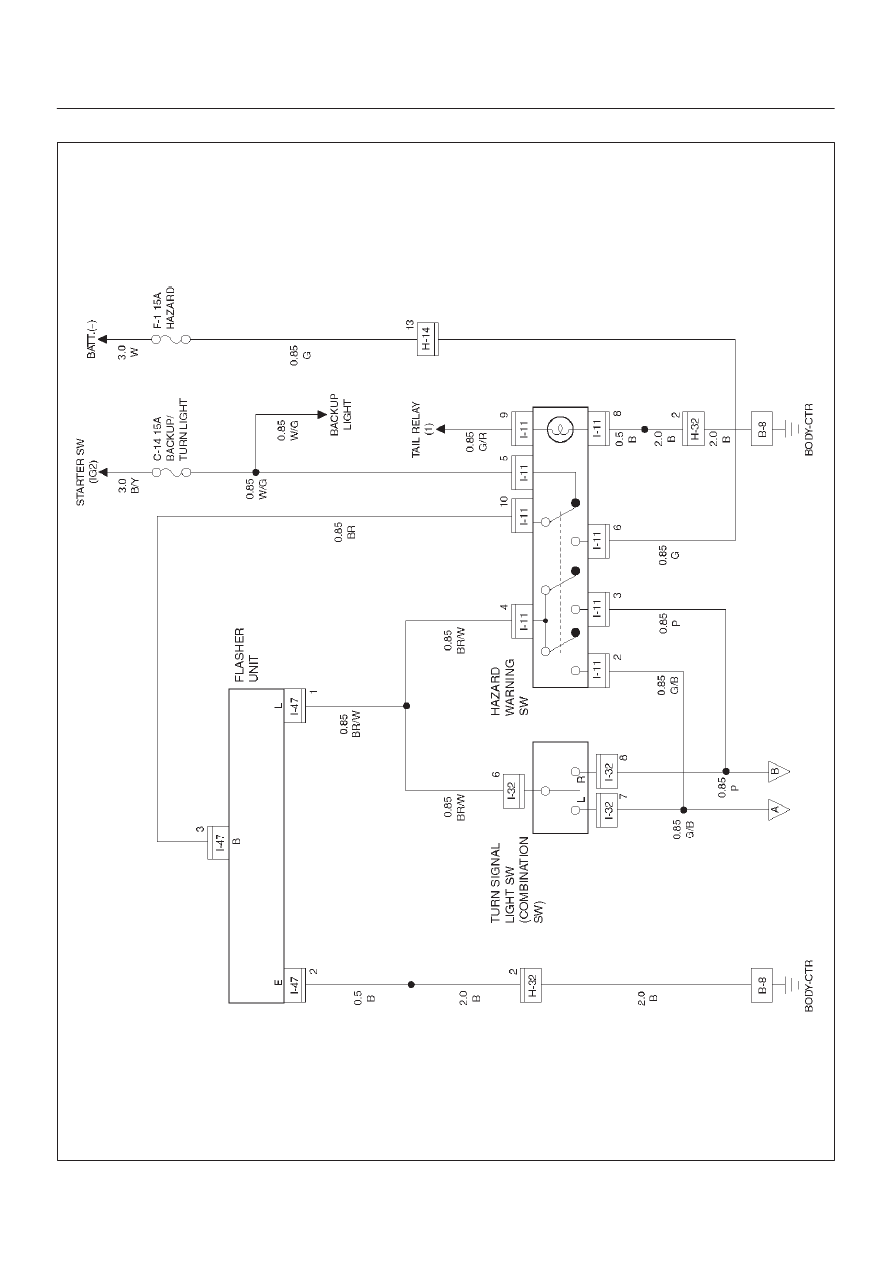

Circuit Diagram–1

D08RX199

8D–101

WIRING SYSTEM

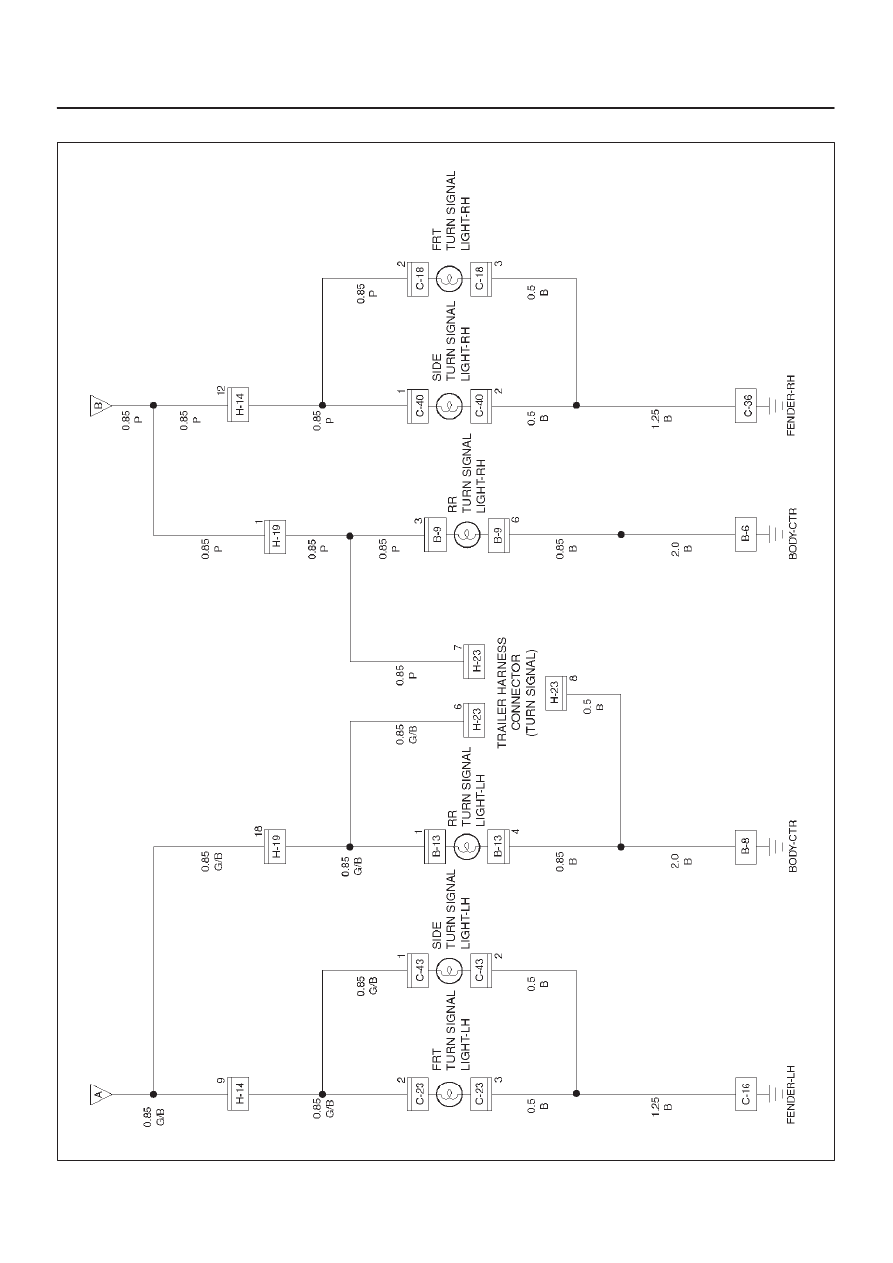

Circuit Diagram–2

D08RX200

8D–102

WIRING SYSTEM

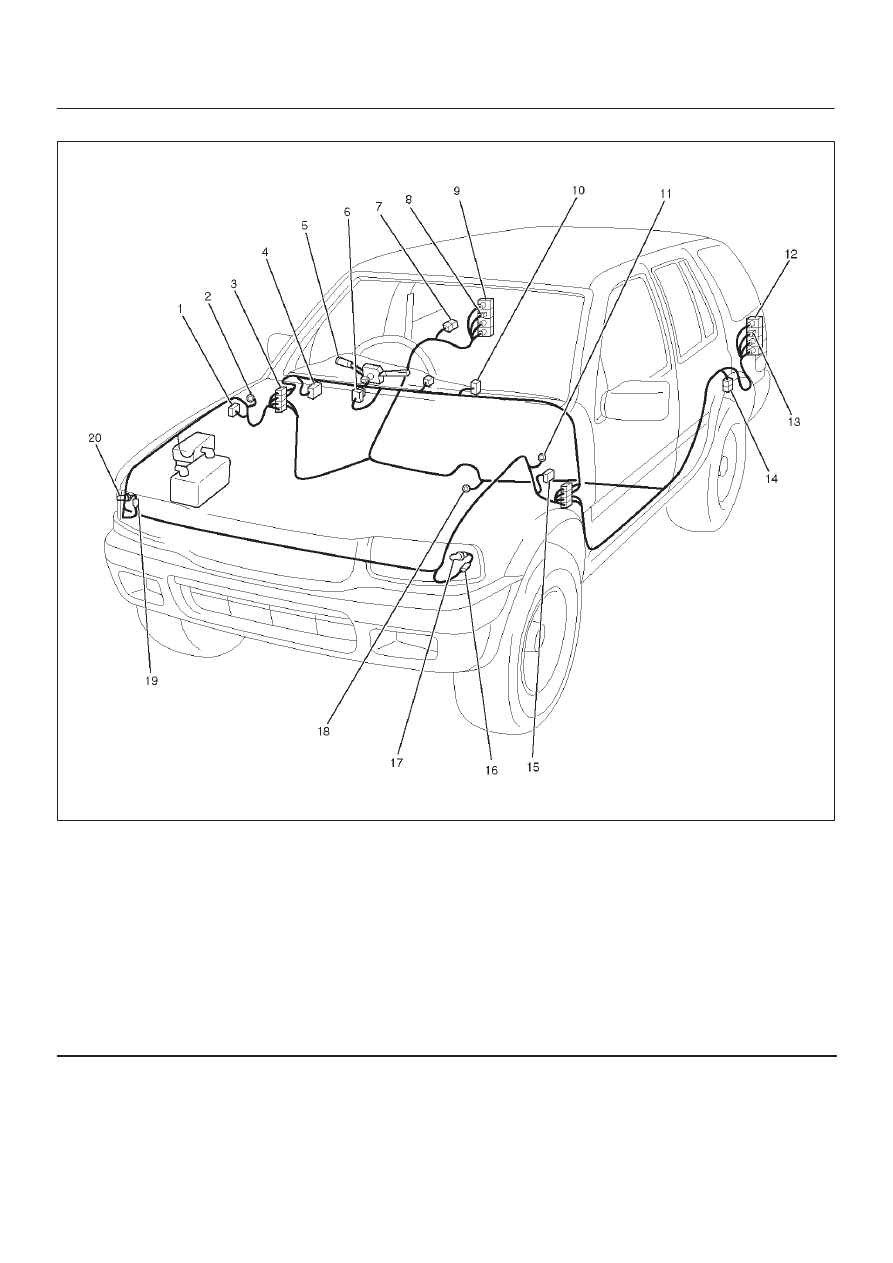

Parts Location

D08RX201

Legend

(1) C–40
(2) C–36
(3) H–14, H–19, H–32
(4) Relay & Fuse Box
(5) Turn Signal light Switch
(6) I–32, I–47
(7) H– 23 (2Door Model)
(8) B–9
(9) Rear Turn Signallight – RH

(10) I–11

(11) C–16

(12) Rear Turn Signallight – LH
(13) B–13
(14) H–23 (4Door Model)
(15) C– 43
(16) C–23
(17) Front Turn Signallight – LH
(18) B– 8
(19) C–18
(20) Front Turn Signallight – RH

8D–103

WIRING SYSTEM

Diagnosis

Turn Signal Light Does Not Flash

Step

Action

Value(s)

Yes

No

1

Is fuse C–14 normal?

—

Go to Step 2

Replace the

fuse

2

1. Turn the hazard warning switch off.
2. Disconnect the switch connector I–11.

Is there continuity between switch side connector I–11
terminal 5 and 10?

—

Go to Step 3

Replace or

replace the

switch

3

Turn the starter switch on.

Is the battery voltage applied between harness side
connector I–11 terminal 5 and the ground?

Approx. 12V

Go to Step 5

Go to Step 4

4

Repair an open circuit between the fuse C–14 and the
hazard warning switch.

Is the action complete?

—

Go to Step 3

—

5

1. Reconnect the connector I–11 with the hazard

warning switch.

2. Disconnect the flasher unit connector I–47.

Is the battery voltage applied between harness side
connector I-47 terminal 3 and the ground?

Approx. 12V

Go to Step 7

Go to Step 6

6

Repair an open circuit between connector I–11 terminal
10 and connector I–47 terminal 3.

Is the action complete?

—

Go to Step 5

—

7

Is there continuity between harness side connector
I-47 terminal 2 and  the ground B–8?

—

Go to Step 9

Go to Step 8

8

Repair an open circuit between connector I–47
terminal 2 and the ground B–8.

Is the action complete?

—

Go to Step 7

—

9

1. Reconnect the flasher unit connector I–47.
2. Disconnect the turn signal light switch connector

I–32.

Is there continuity between switch side connector
terminal 6 and 7 with the switch turned to the left
position, and terminal 6 and 8 with the switch turned to
the right position?

—

Go to Step 10

Repair or

replace the

switch

10

Is there continuity between harness side connector
I–47 terminal 1 and harness side connector I–32
terminal 6?

—

Go to Step 12

Go to Step 11

11

Repair an open circuit between connector I–47
terminal 1 and connector I–32 terminal 6.

Is the action complete?

—

Verify repair

—

12

Replace the flasher unit.

Is the action complete?

—

Verify repair

—
