Opel Frontera UE. Manual - part 488





8D–92

WIRING SYSTEM

License Plate Light Inoperative

Step

Action

Value(s)

Yes

No

1

Do the taillights come on?

Go to Step 2

Go to Step 6

2

Remove the license plate light bulb.

Is the bulb normal?

Go to Step 3

Replace bulb

3

1. Disconnect the license plate light connector G–8.
2. Turn the lighting switch on.

Is the battery voltage applied between harness side
connector G–8 terminal 1 and the ground?

Approx. 12V

Go to Step 5

Go to Step 4

4

Repair an open circuit between connector H–19
terminal 6 and the license plate light.

Is the action complete?

Verify repair

5

Repair an open circuit between the license plate light
and the ground B–8.

Is the action complete?

Verify repair

6

Refer to the diagnosis procedure for “Both Taillight
Inoperative” in this section.

Is the action complete?

Verify repair

8D–93

WIRING SYSTEM

Interior Illumination Light

General Description

The circuit consists of lighting switch, tail relay, and
illumination lights.
All these lights come on when lighting switch is turned on
with the switch to either parking or headlight position.

8D–94

WIRING SYSTEM

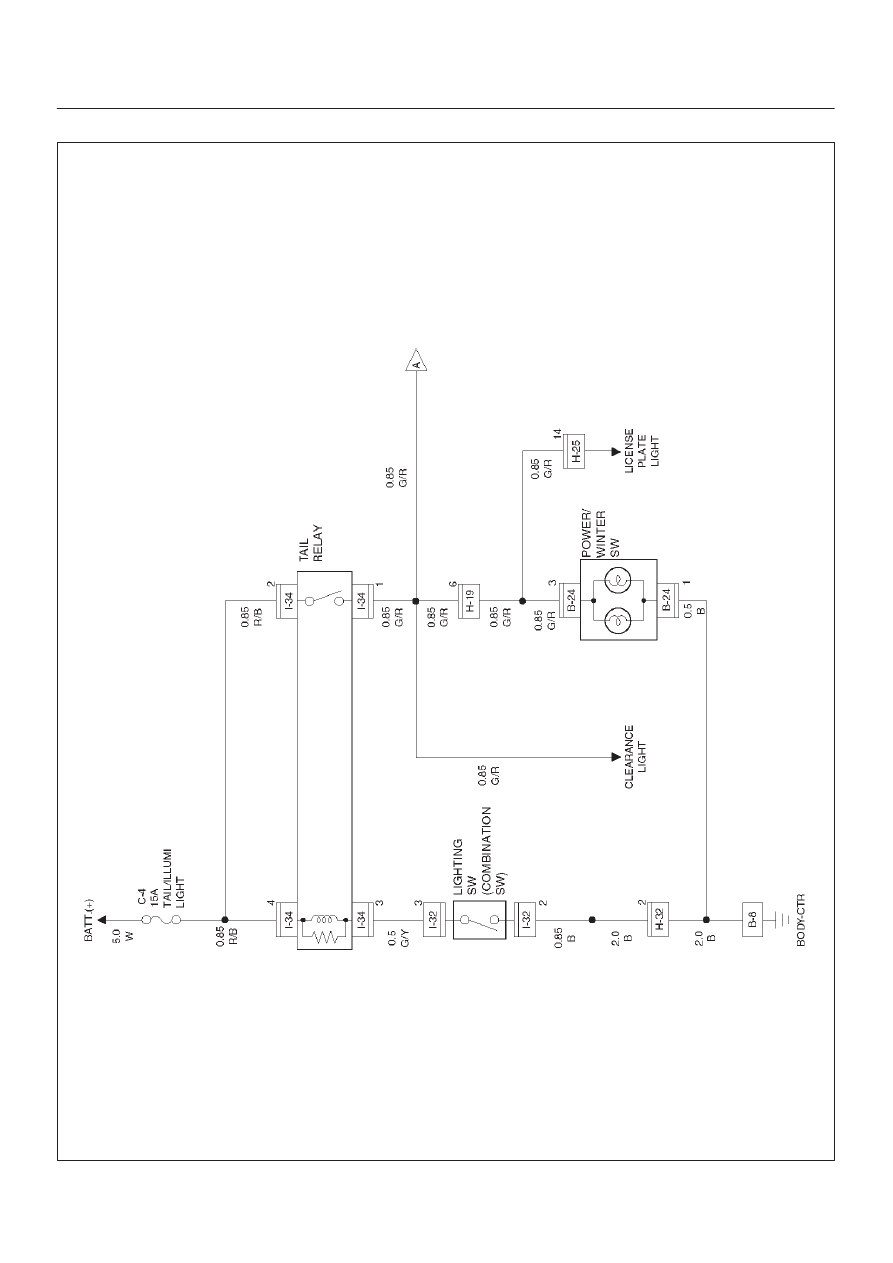

Circuit Diagram–1

D08RX195

8D–95

WIRING SYSTEM

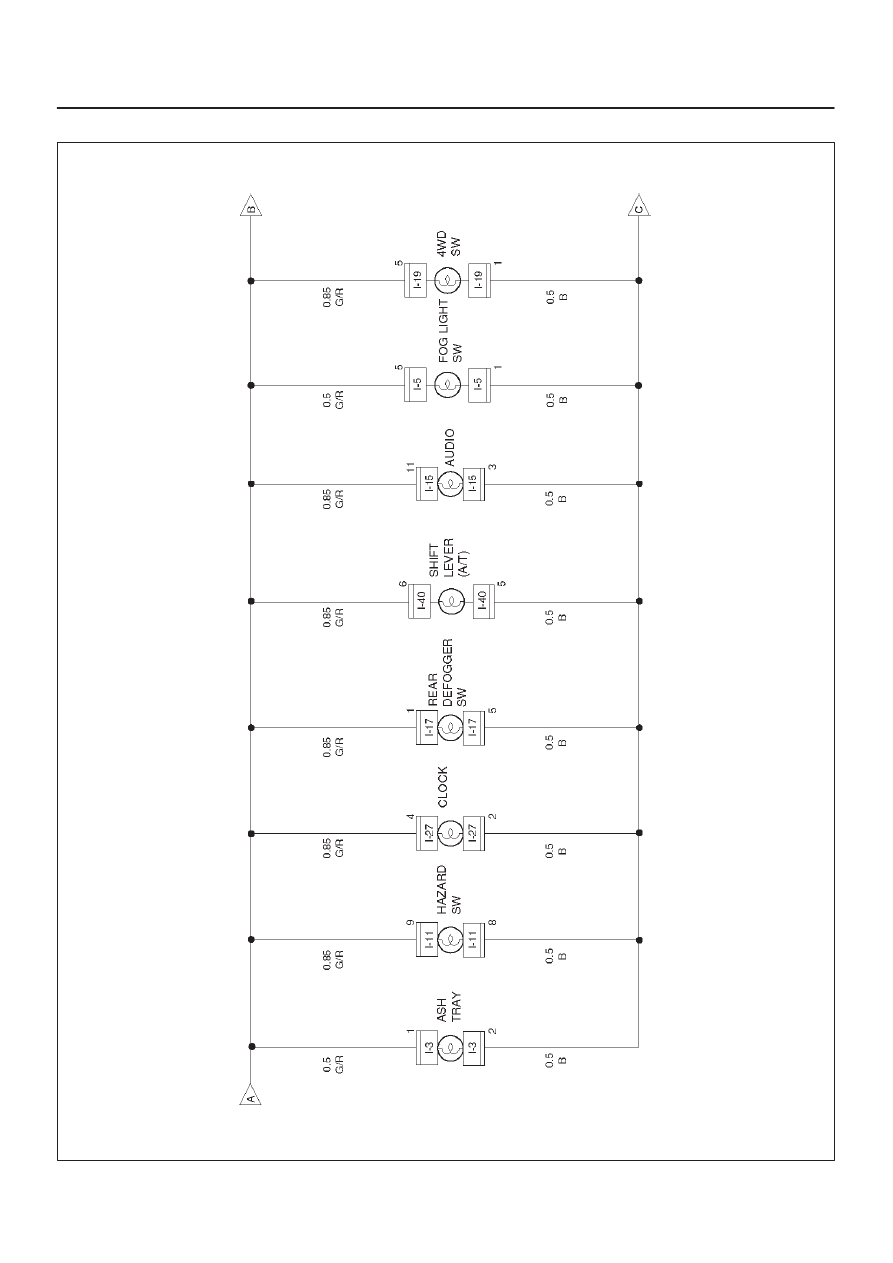

Circuit Diagram–2

D08RX196
