8D–96

WIRING SYSTEM

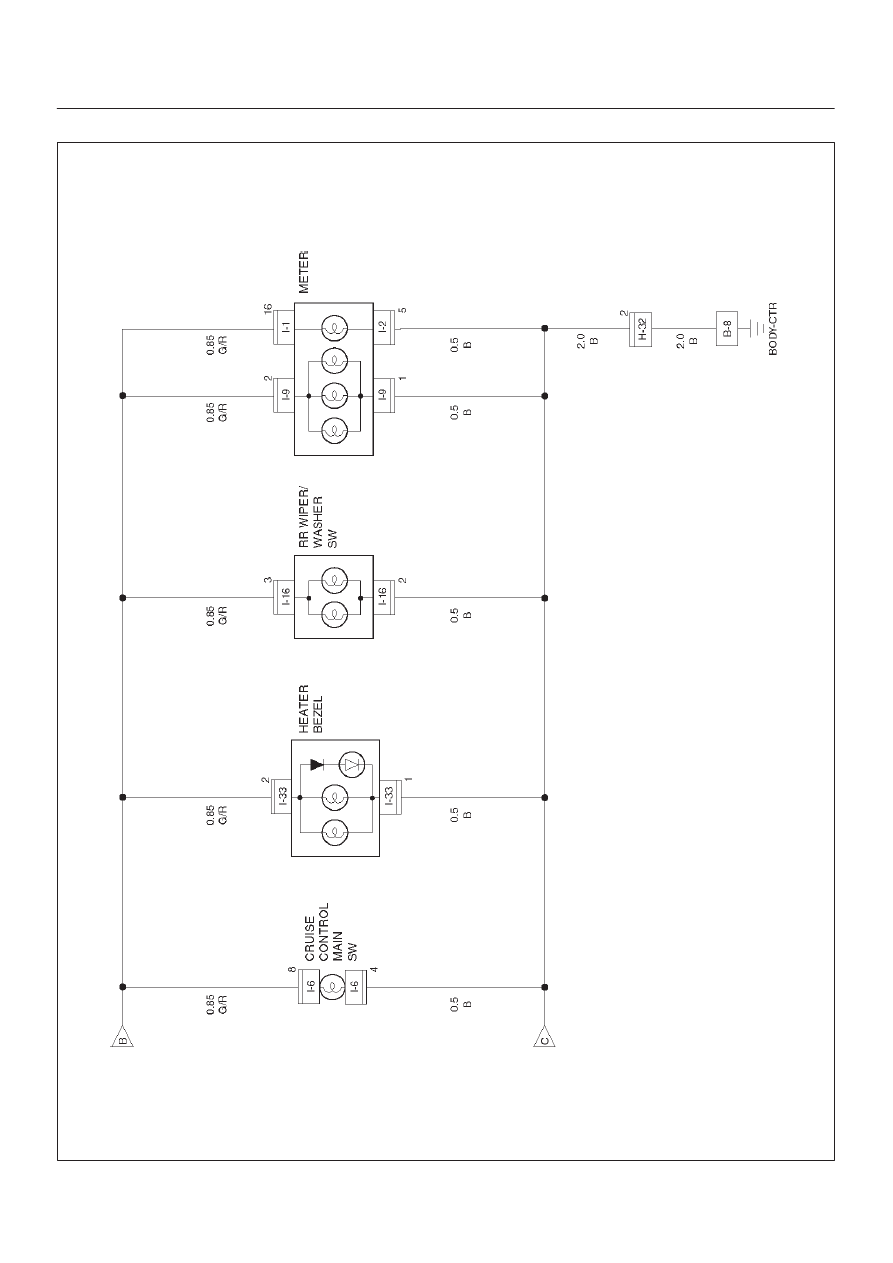

Circuit Diagram–3

D08RX197

8D–97

WIRING SYSTEM

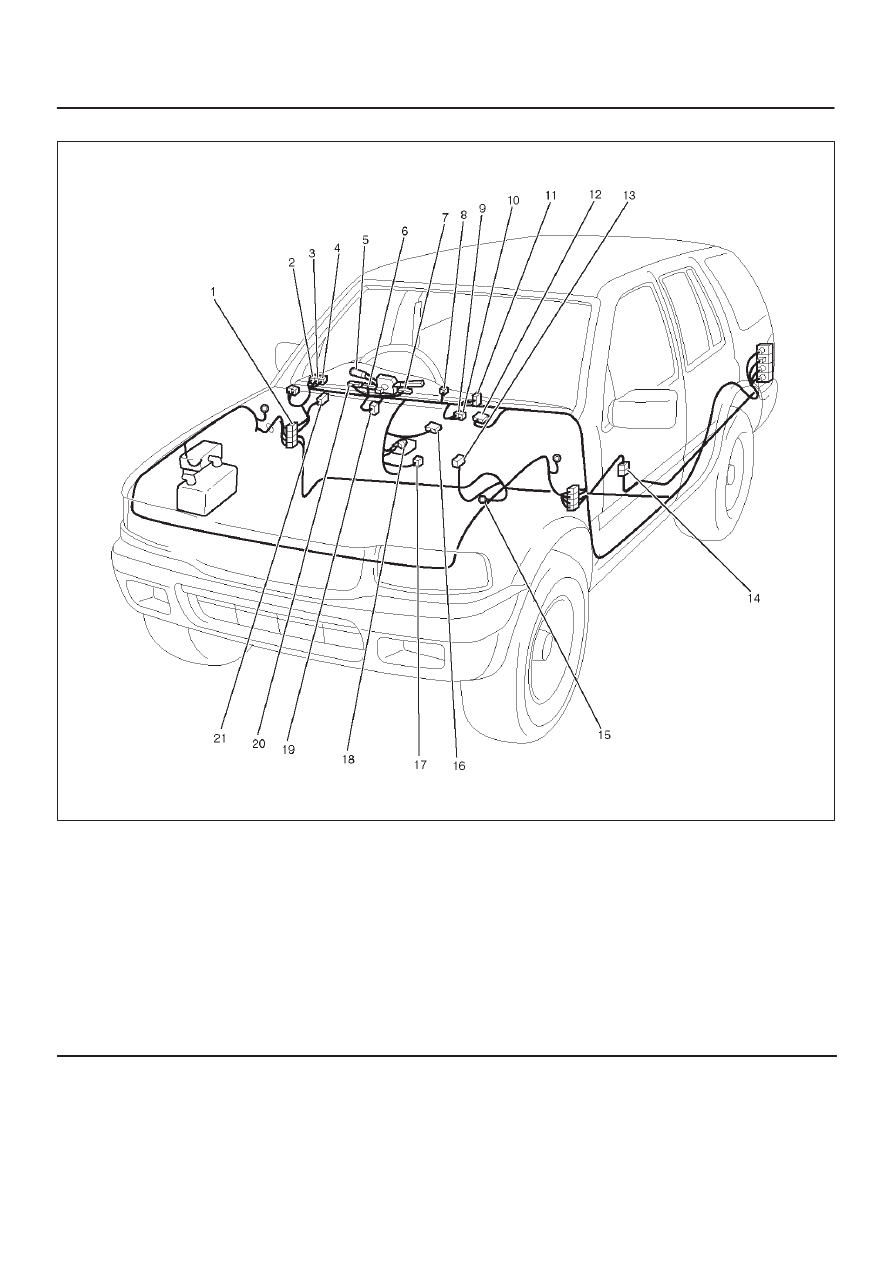

Parts Location

D08RX198

Legend

(1) H–19, H–32
(2) I–19
(3) I–6
(4) I–5
(5) Lighting Switch
(6) I–2
(7) I–9
(8) I–27
(9) I–16

(10) I–17

(11) I–11

(12) I–33
(13) B–24
(14) H–25
(15) B–8
(16) I–15
(17) I–40
(18) I–3
(19) I–32
(20) I–1
(21) Relay & Fuse Box (I–34)

8D–98

WIRING SYSTEM

Diagnosis

Interior Illumination Lights Inoperative

Step

Action

Value(s)

Yes

No

1

Turn the light switch to clearance light position.

Do the exterior light come on?

—

Go to Step 3

Go to Step 2

2

Refer to the diagnosis procedure in Clearance Light,
Taillight and License Plate Light section.

Is the action complete?

—

Verify repair

—

3

Repair an open circuit between tail relay harness side
connector I–34 terminal 1 and interior lights.

Is the action complete?

—

Verify repair

—

8D–99

WIRING SYSTEM

Turn Signal Light, Hazard Warning Light

General Description

The circuit consists of turn signal/light switch
(combination switch) turn signal light, hazard warning
switch and flasher unit. When turn signal light switch is
turned on with starter switch on, turn signal light will
operate. When turn signal light is flashing, indicator light
in meter also starts flashing. When hazard warning switch
is turned on, current flows to flasher unit through hazard
warning switch to cause hazard warning light to flash
independent of position of starter switch. At the same
time, indicator lights in meter also start flashing.
