8D–104

WIRING SYSTEM

Turn Signal Light Flashes Too Quickly

Step

Action

Value(s)

Yes

No

1

Do all of turn signal lights flash?

—

Go to Step 2

Go to Step 3

2

Replace the flasher unit.

Is the action complete?

—

Verify repair

—

3

Is the bulb of turn signal light that does not work
normal?

—

Go to Step 4

Replace the

bulb

4

Repair an open circuit between the turn signal light
switch and the turn signal light.

Is the action complete?

—

Verify repair

—

8D–105

WIRING SYSTEM

Stoplight

General Description

The circuit consists of stoplight, high mounted stoplight
and stoplight switch.
With brake pedal depressed, stoplight switch is turned to
on to illuminate stoplight.
Stoplight switch controls not only the operation of
stoplight but also the input of cruise cancel signals to
cruise control unit.

8D–106

WIRING SYSTEM

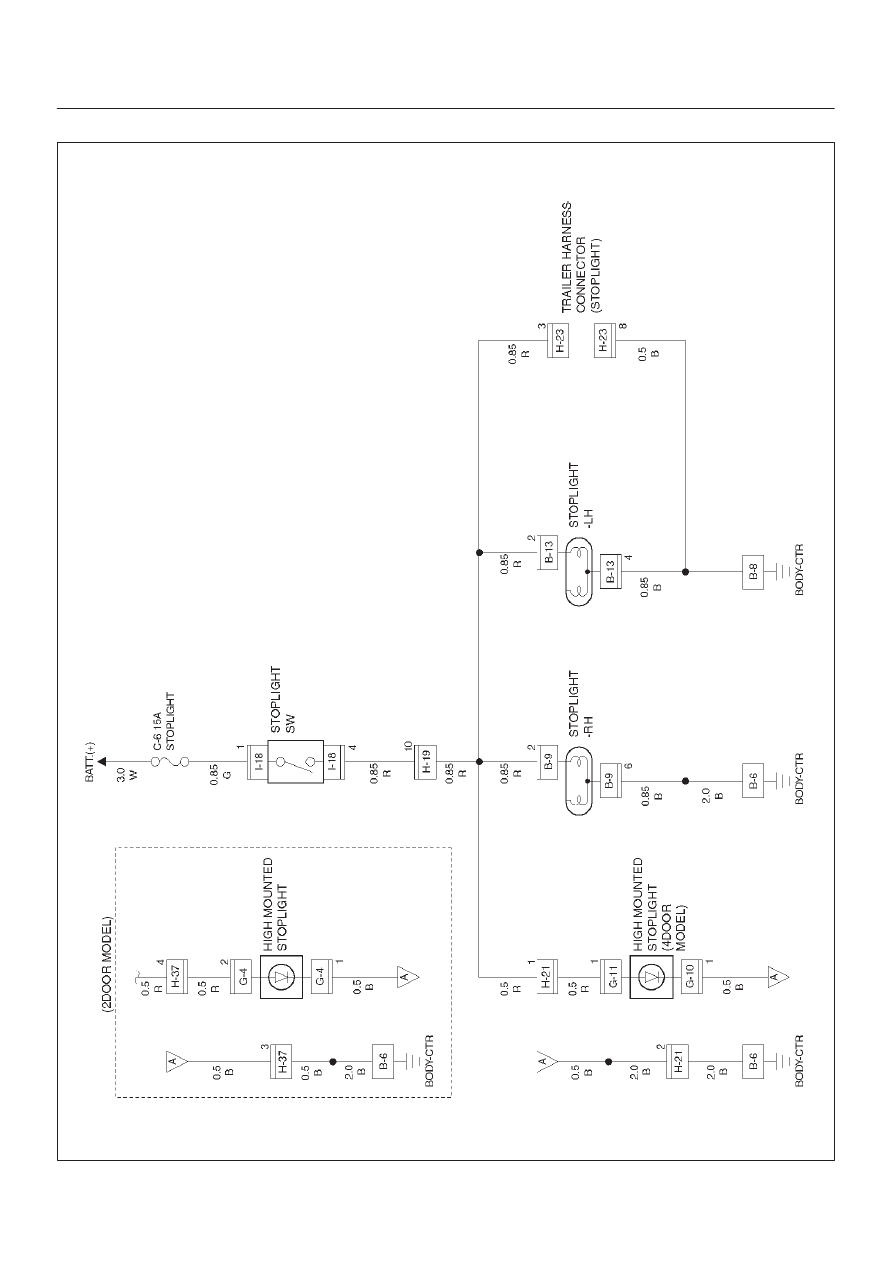

Circuit Diagram

D08RX202

8D–107

WIRING SYSTEM

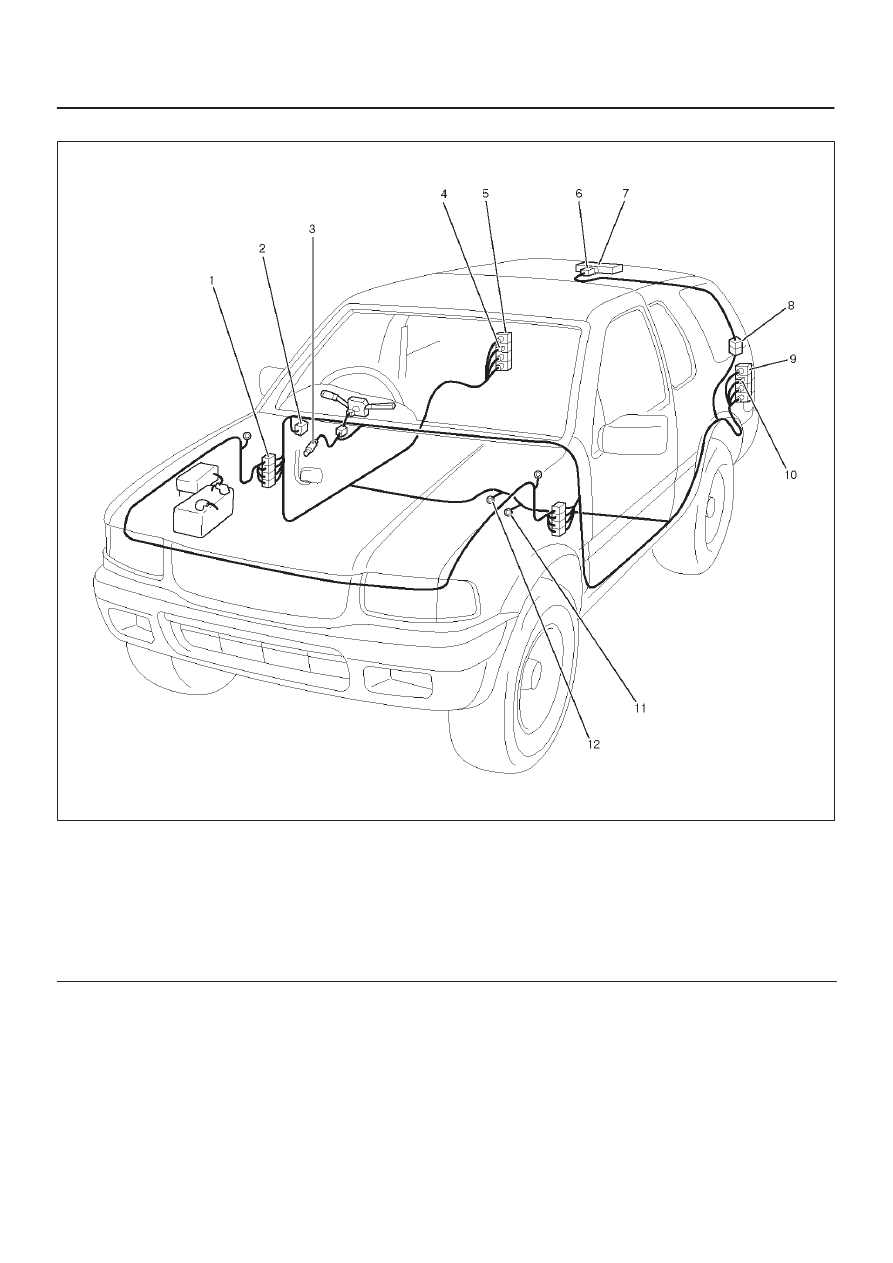

Parts Location (2Door Model)

D08RX203

Legend

(1) H–19
(2) Relay & Fuse Box
(3) I–18
(4) B–9
(5) Stoplight – RH
(6) G–4

(7) High Mounted Stoplight
(8) H–37
(9) Stoplight – LH

(10) B–13

(11) B–8

(12) B–6
