8A–22

LIGHTING SYSTEM

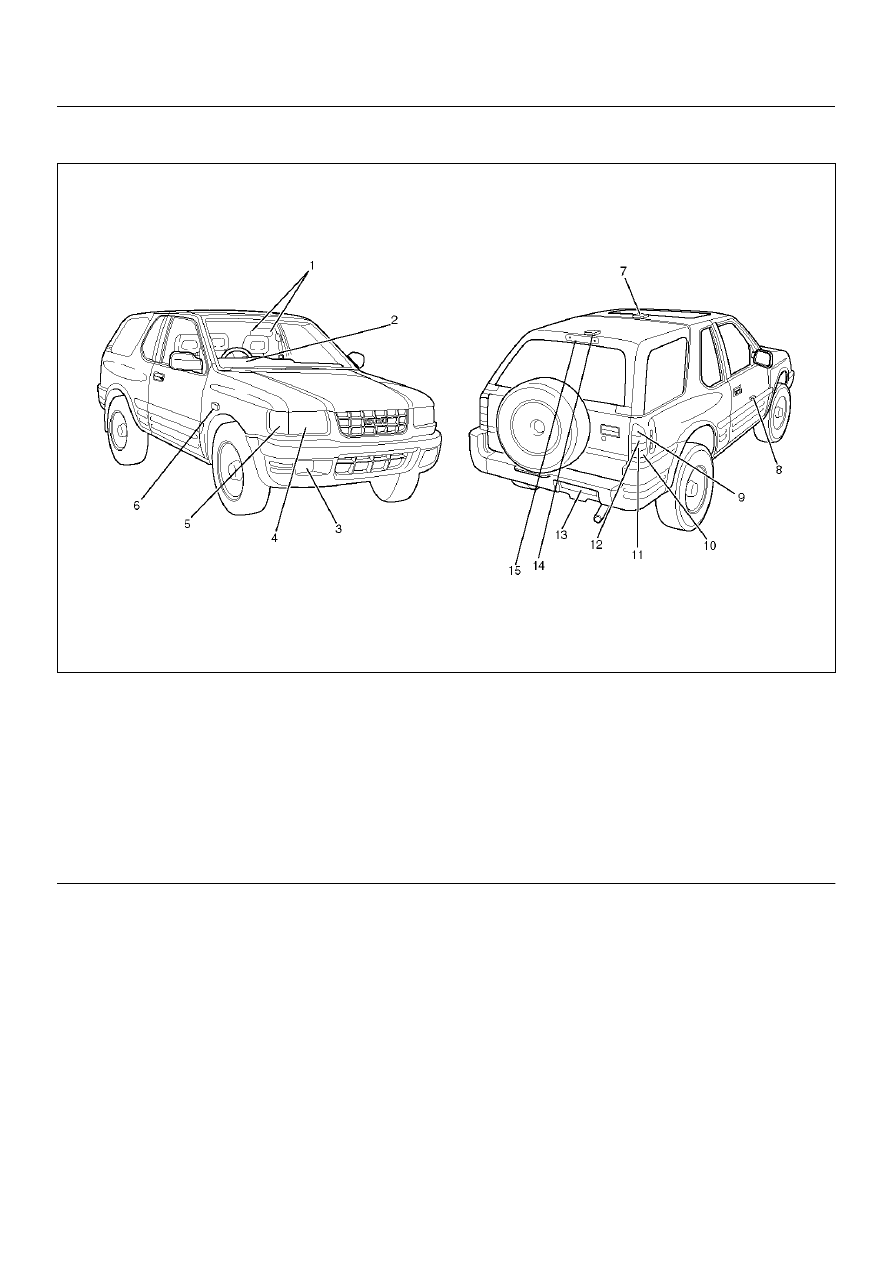

Light and Bulb Specifications (2Door Model)

801RX023

Legend

EndOFCallout

(1) Map Light
(2) Meter
(3) Fog Light
(4) Headlight/Clearance Light
(5) Front Turn Signal Light
(6) Side Turn Signal Light
(7) Dome Light
(8) Courtesy Light

(9) Stoplight

(10) Taillight
(11) Backup Light
(12) Rear Turn Signal Light
(13) License Plate Light
(14) Luggage Room Light
(15) High Mounted Stoplight

LIGHTING SYSTEM

8A–23

Light and Bulb Specifications

Light Name

Bulb No.

Rated

Power

Number of

Bulbs

Lens Color

Remarks

Headlight/Clearance Light

—

60w/55w,

5w

2

White

Halogen

Front Turn signal Light

—

21w

2

Amber

Fog Light

—

55w

2

White

Halogen

Rear Turn Signal Light

—

21w

2

Amber

Backup Light

—

21w

2

White

Taillight

—

5w

2

Red

Stoplight

—

21w

2

Red

High Mounted Stoplight

—

5w

4

Red

License Plate Light (Tailgate type)

—

5w (5W)

1 (2)

White

Map Light

—

5w

2

White

Dome Light

—

7w

1

White

Luggage Room Light (2Door Model)

—

5w(3.4w)

1(1)

White

Courtesy Light

—

3.4w

4

White

Indicator/Warning
Light

Check Trans

—

1.4w

1

Red

Meter

A/T Oil Temp

—

3w

1

Red

Meter

Cruise Set

—

1.4w

1

Green

Meter

Power Drive

—

1.4w

1

Amber

Meter

Winter Drive

—

1.4w

1

Green

Meter

Turn Signal

—

1.4w

2

Green

Meter

High Beam

—

1.4w

1

Blue

Meter

ABS

—

1.4w

1

Amber

Meter

Seat Belt

—

2w

1

Red

Meter

Malfunction Indicator
(Check Engine)

—

1.4w

1

Amber

Meter

Low Fuel

—

1.4w

1

Amber

Meter

4WD

—

1.4w

1

Green

Meter

Oil Pressure

—

1.4w

1

Red

Meter

Brake System

—

1.4w

1

Red

Meter

Charge

—

1.4w

1

Red

Meter

A/T Shift Position

—

1.4w

7

P,N,D,3,2,L

:Green

R: Amber

Meter

Air Bag

—

2w

1

Red

Meter

Illumination Light

Meter

—

3.4w

4

Meter

Shift lever

—

1.4w

1

White

Shift lever

WIPER/WASHER SYSTEM

8B–1

BODY AND ACCESSORIES

WIPER / WASHER SYSTEM

CONTENTS

Service Precaution......................................... 8B - 1

Windshield Wiper/Washer System ................ 8B - 2

General Description .................................... 8B - 2

Windshield Wiper And Washer Switch .......... 8B - 2

Removal and Installation ............................ 8B - 2

Windshield Wiper Motor ................................ 8B - 2

Removal ..................................................... 8B - 2
Installation .................................................. 8B - 2

Windshield Washer Motor ............................. 8B - 3

Removal ..................................................... 8B - 3
Installation .................................................. 8B - 3

Windshield Washer Spray Pattern ................ 8B - 4
Windshield Wiper Linkage............................. 8B - 5

Windshield Wiper Linkage and

Associated Parts ..................................... 8B - 5

Removal ..................................................... 8B - 5
Installation .................................................. 8B - 5

Windshield Wiper Arm/Blade ........................ 8B - 6

Removal ..................................................... 8B - 6
Installation .................................................. 8B - 6

Windshield Wiper Blade Rubber ................... 8B - 7

Removal ..................................................... 8B - 7
Installation .................................................. 8B - 7

Rear Wiper/Washer System.......................... 8B - 8

General Description .................................... 8B - 8

Rear Wiper and Washer Switch .................... 8B - 8

Removal ..................................................... 8B - 8
Installation .................................................. 8B - 8

Rear Wiper Motor (4Door Model) .................. 8B - 9

Removal...................................................... 8B - 9
Installation................................................... 8B - 9

Rear Wiper Motor (2Door Model) .................. 8B - 10

Removal...................................................... 8B - 10
Installation................................................... 8B - 10

Rear Washer Motor ....................................... 8B - 11

Removal...................................................... 8B - 11
Installation................................................... 8B - 11

Alarm and Relay Control Unit........................ 8B - 11

Removal...................................................... 8B - 11
Installation................................................... 8B - 11

Rear Wiper Arm/Blade (4Door Model) .......... 8B - 12

Removal...................................................... 8B - 12
Installation................................................... 8B - 12

Rear Wiper Arm/Blade (2Door Model) .......... 8B - 12

Removal...................................................... 8B - 12
Installation................................................... 8B - 12

Rear Washer Nozzle (4Door Model) ............. 8B - 13

Removal...................................................... 8B - 13
Installation................................................... 8B - 13
Rear Washer Spray Pattern........................ 8B - 13

Rear Washer Nozzle (2Door Model) ............. 8B - 14

Removal...................................................... 8B - 14
Installation................................................... 8B - 14
Rear Washer Spray Pattern........................ 8B - 14

Rear Wiper Blade Rubber ............................. 8B - 15

Removal...................................................... 8B - 15
Installation................................................... 8B - 15

Main Data and Specifications ........................ 8B - 16

Service Precaution

WARNING:  THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS).   REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER  YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING.  WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE
SRS COMPONENTS OR THE SRS WIRING,  REFER
TO THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT  IN
POSSIBLE AIR BAG DEPLOYMENT, PERSONAL
INJURY, OR OTHERWISE UNNEEDED SRS SYSTEM
REPAIRS.

CAUTION:  Always use the correct fastener in the
proper location.  When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will  call out those fasteners that require a
replacement after removal. ISUZU will also call out
the  fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do  not
use supplemental coatings (Paints, greases, or
other corrosion inhibitors) on threaded  fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener  torque and the joint
clamping force, and may damage the fastener. When
you install fasteners,  use the correct tightening
sequence and specifications. Following these
instructions can help you  avoid damage to parts
and systems.

SECTION

8B–2

WIPER/WASHER SYSTEM

Windshield Wiper/Washer System

General Description

The circuit consists of the starter switch, windshield
wiper & washer switch, windshield wiper motor,
windshield  washer motor and alarm & relay control unit.
When the windshield wiper & washer switch is turned on

with the starter switch on, the battery voltage is applied
to  the wiper motor to activate the wiper.
The washer motor squirts glass cleaning fluid while the
washer switch is being pushed.  The alarm & relay
control unit relay is  used to control motion of the wiper.

Windshield Wiper And Washer Switch

Removal and Installation

Refer to  Combination Switch in Steering section.

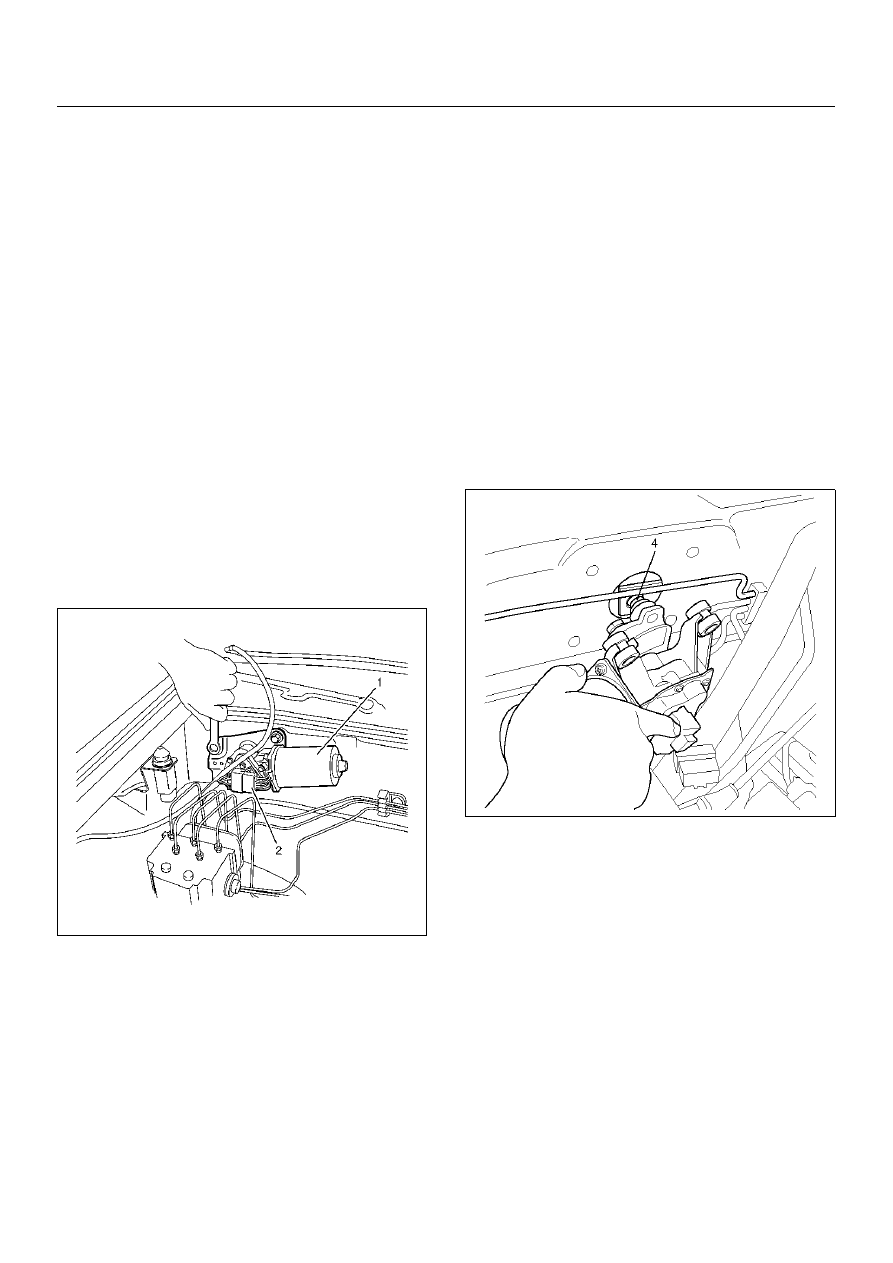

Windshield Wiper Motor

Removal

1. Disconnect the battery ground cable.

2. Disconnect the connector (2).

3. Remove 4 mounting bolts (3).

4. Remove the windshield wiper motor(1).

880RW002

5. Remove the crank arm fixing ball (4).

880RX011

Installation

To install, follow the removal steps in the reverse order.
