8A–14

LIGHTING SYSTEM

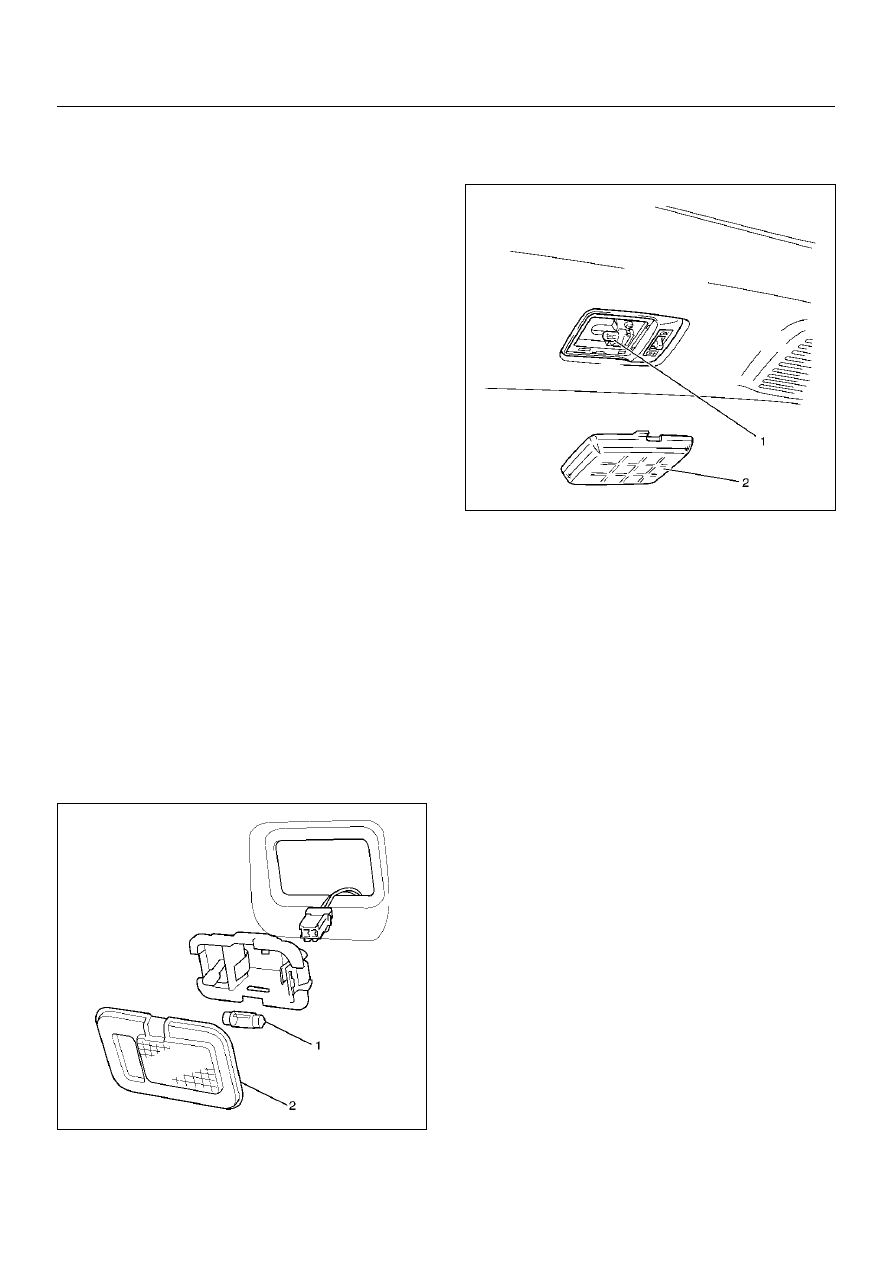

Luggage Room Light Bulb (4Door Model)

Removal

1. Disconnect the battery ground cable.

2. Remove the lens (2).

3. Remove the bulb (1).

• Pull out the bulb.

825RW077

Installation

To install, follow the removal steps in the reverse order.

Luggage Room Light Bulb (2Door Model)

Removal

1. Disconnect the battery ground cable.

2. Remove the lens (2).

3. Remove the bulb (1).

• Pull out the bulb.

805RX002

Installation

To install, follow the removal steps in the reverse order.

LIGHTING SYSTEM

8A–15

HVAC Bezel Illumination Light Bulb

Removal and Installation

Refer to Control Panel Illumination bulb in Heating,
Ventilation and Air Conditioning (HVAC) section.

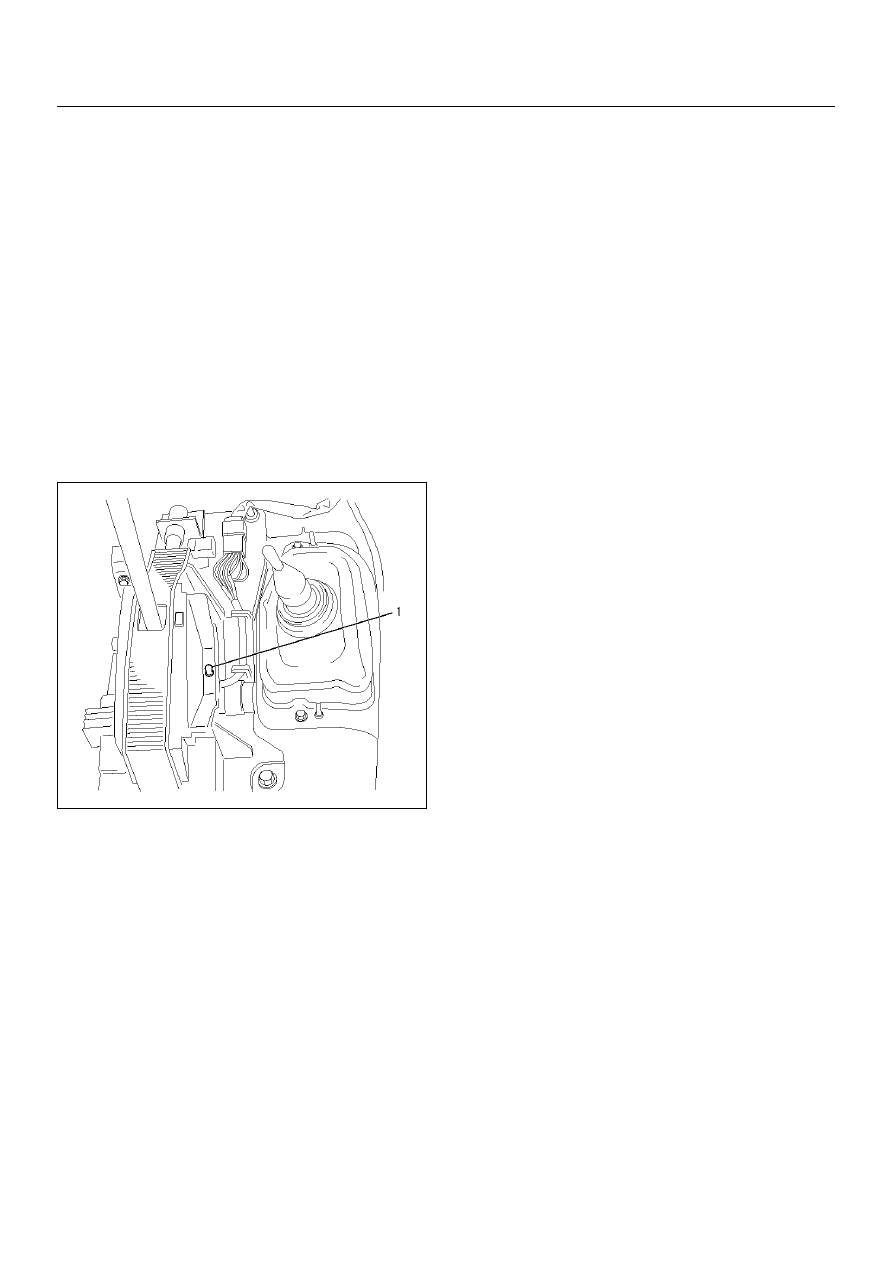

Shift Lever Illumination Light Bulb (A/T)

Removal

1. Disconnect the battery ground cable.

2. Remove the console assembly.

• Remove four screws.

3. Remove the bulb (1).

• Turn the bulb socket counterclockwise.

• Pull out the bulb from the socket.

825RW287

Installation

To install, follow the removal steps in the reverse order.

8A–16

LIGHTING SYSTEM

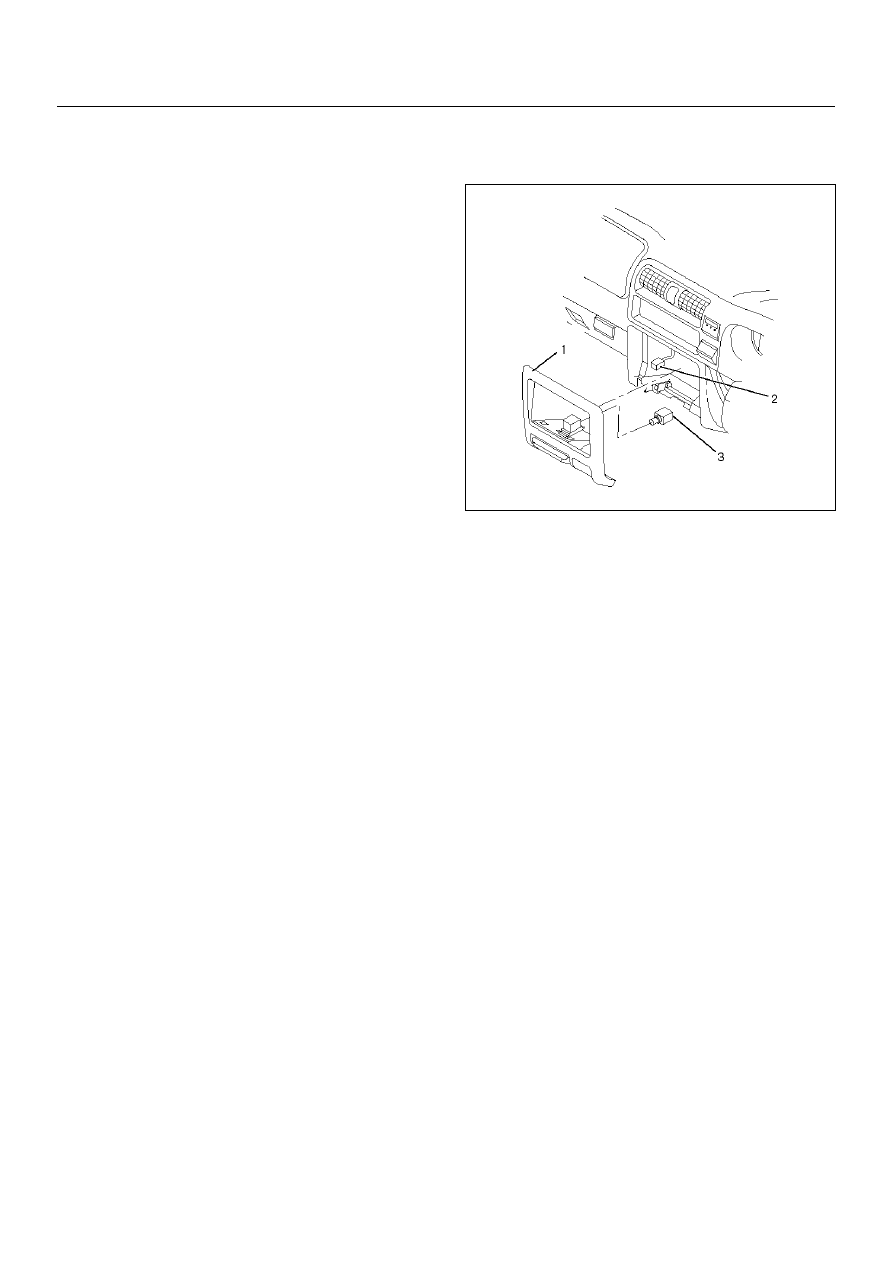

Ashtray Illumination Bulb

Removal

1. Disconnect the battery ground cable.

2. Remove the lower cluster panel(1).

• Refer to Instrument Panel Assembly in Body

Structure section.

3. Disconnector the connector (2).

4. Turn the socket counterclockwise to remove it then

pull out the bulb(3).

45RW013

Installation

To install, follow the removal steps in the reverse order.

Starter Switch

Removal and Installation

Refer to Lock cylinder in steering section.

Lighting Switch (Combination Switch)

Removal and Installation

Refer to Combination Switch in Steering section.

Dimmer·Passing Switch (Combination Switch)

Removal and Installation

Refer to Combination Switch in Steering section.

LIGHTING SYSTEM

8A–17

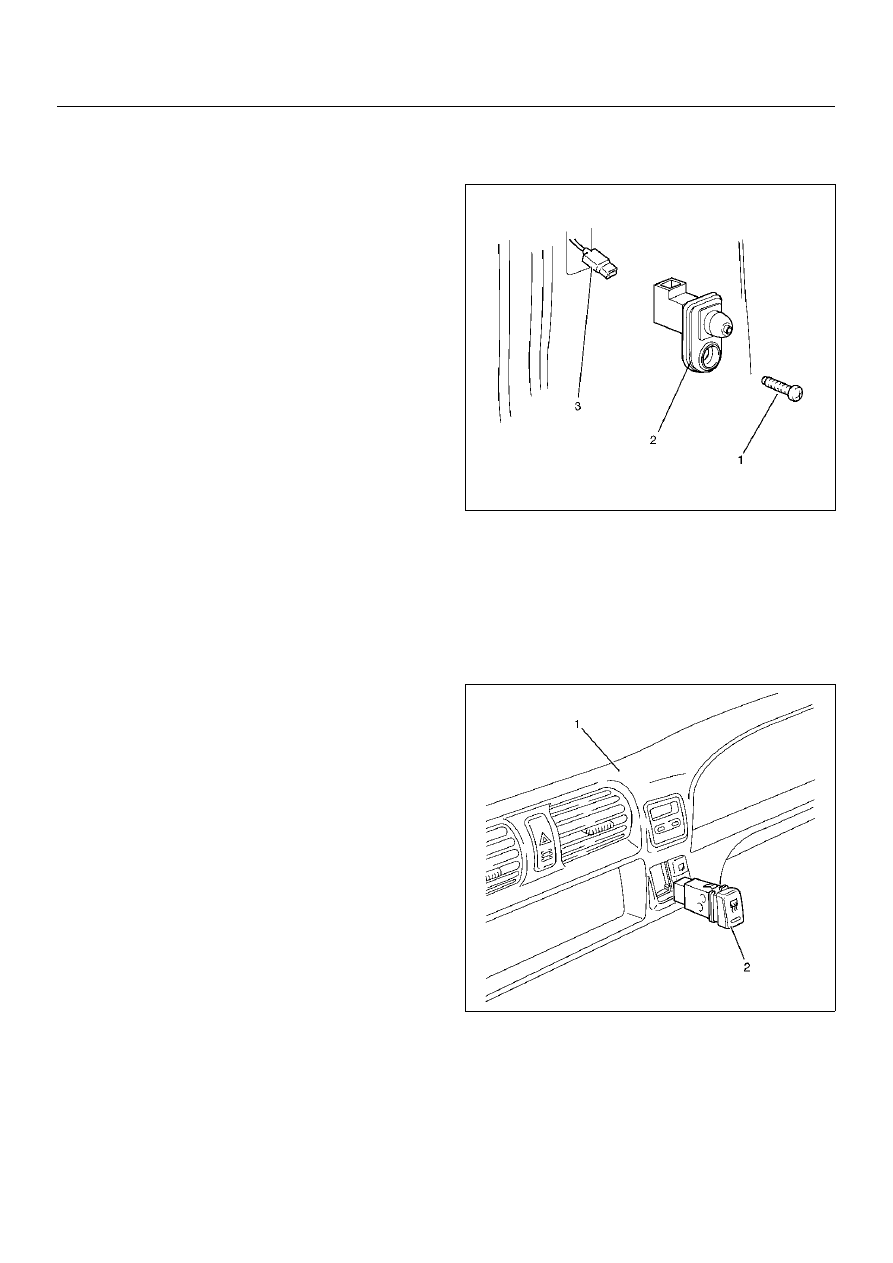

Door Switch

Removal

1. Disconnect the battery ground cable.

2. Remove the door switch (2).

• Remove the screw (1).

• Disconnect the connector (3).

825RW289

Installation

To install, follow the removal steps in the reverse order.

Rear Defogger Switch

Removal

1. Disconnect the battery ground cable.

2. Remove the meter cluster assembly (1).

• Refer to Instrument Panel Assembly in Body

Structure section.

3. Remove the rear defogger switch (2).

• Disconnect the switch connector.

• Push the lock from the back side of the meter

cluster assembly.

825RW280

Installation

To install, follow the removal steps in the reverse order.
