8A–18

LIGHTING SYSTEM

Key Remind Switch (Starter Switch)

Removal and Installation

Refer to Lock Cylinder in Steering section.

Hazard Warning Light Switch

Removal

1. Disconnect the battery ground cable.

2. Remove the meter cluster assembly (1).

• Refer to Instrument Panel Assembly in Body

Structure section.

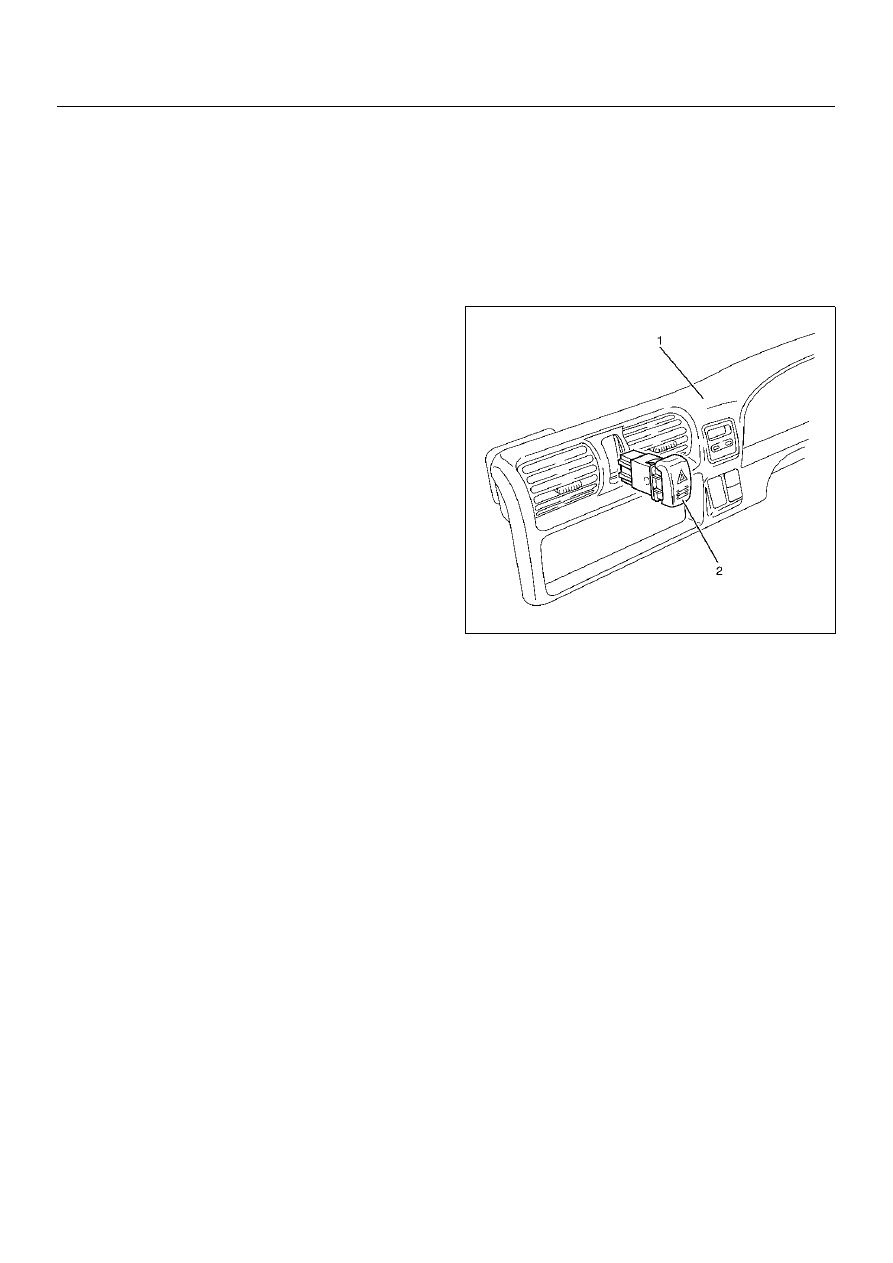

3. Remove the hazard warning switch (2).

• Disconnect the switch connector.

• Push the lock from the back side of the meter

cluster assembly.

825RW279

Installation

To install, follow the removal steps in the reverse order.

Stoplight Switch

Removal and Installation

Refer to Stoplight Switch in Brake section.

LIGHTING SYSTEM

8A–19

4WD Switch

Removal

1. Disconnect the battery ground cable.

2. Remove the meter cluster assembly (1).

• Refer to Instrument Panel Assembly in Body

Structure section.

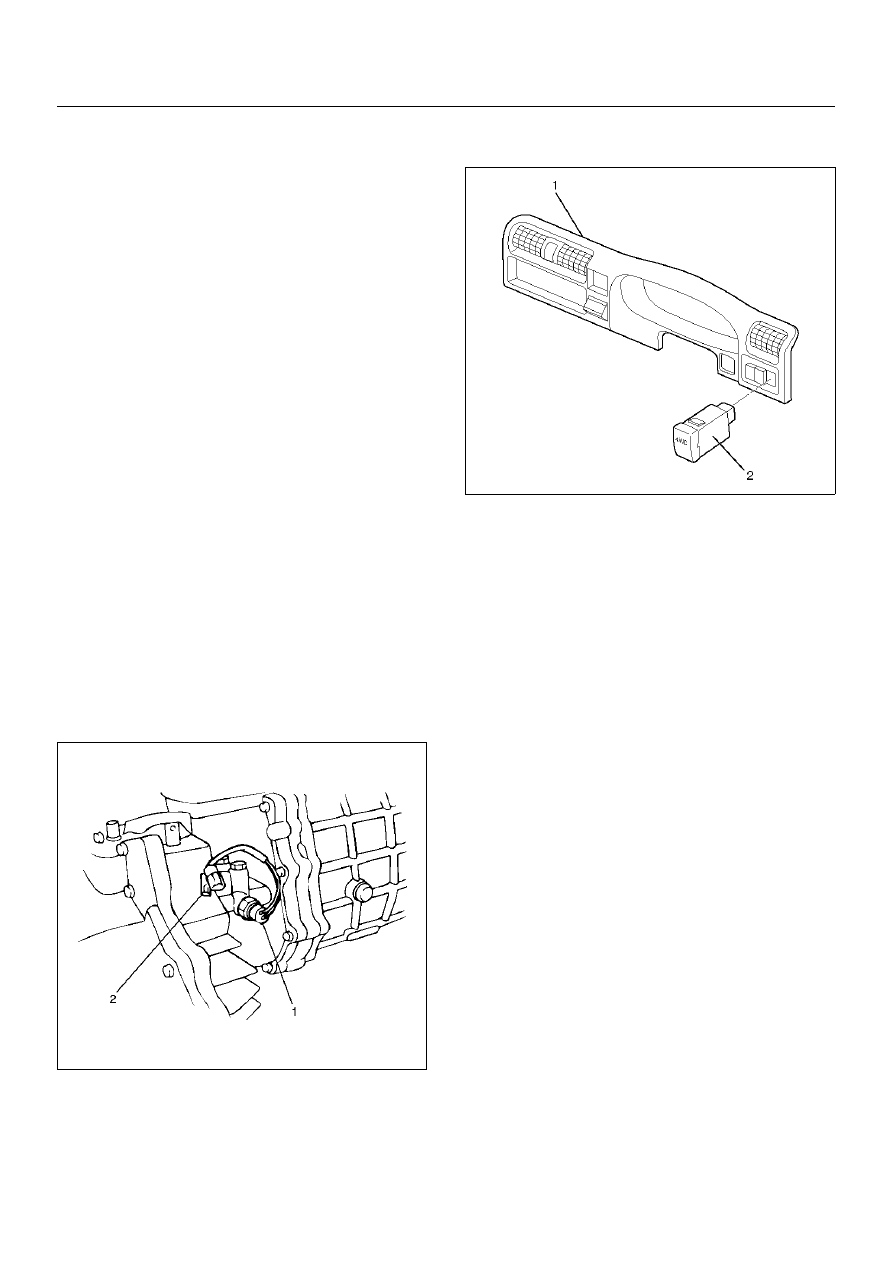

3. Remove the 4WD switch (2).

• Disconnect the switch connector.

• Push the lock from the back side of the meter

cluster assembly.

825RW275-1

Installation

To install, follow the removal steps in the reverse order.

Backup Light Switch (M/T)

Removal

1. Disconnect the battery ground cable.

2. Remove the backup light switch (1).

• Disconnect the connector (2).

230RW010

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Apply liquid gasket to the screw portion of the switch

to prevent oil leak.

Turn Signal Light Switch (Combination Switch)

Removal and Installation

Refer to Combination Switch in Steering section.

8A–20

LIGHTING SYSTEM

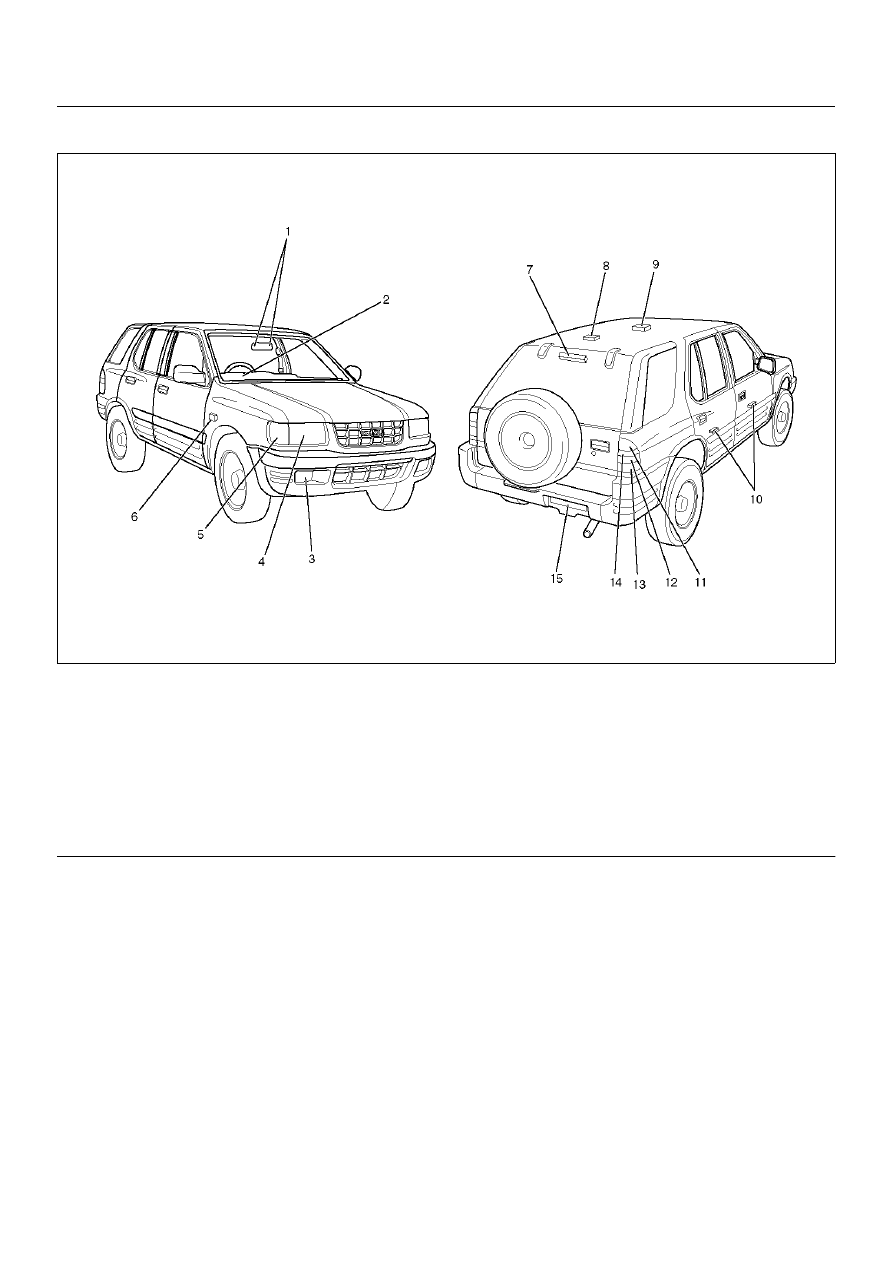

Light and Bulb Specifications (4Door Model · Spear Tire Under Mount Type)

810RX016

Legend

EndOFCallout

(1) Map Light
(2) Meter
(3) Fog Light
(4) Headlight/Clearance Light
(5) Front Turn Signal Light
(6) Side Turn Signal Light
(7) High Mounted Stoplight

(8) Luggage Room Light
(9) Dome Light

(10) Courtesy Light
(11) Stoplight
(12) Backup Light
(13) Taillight
(14) Rear Turn Signal Light
(15) License Plate Light

LIGHTING SYSTEM

8A–21

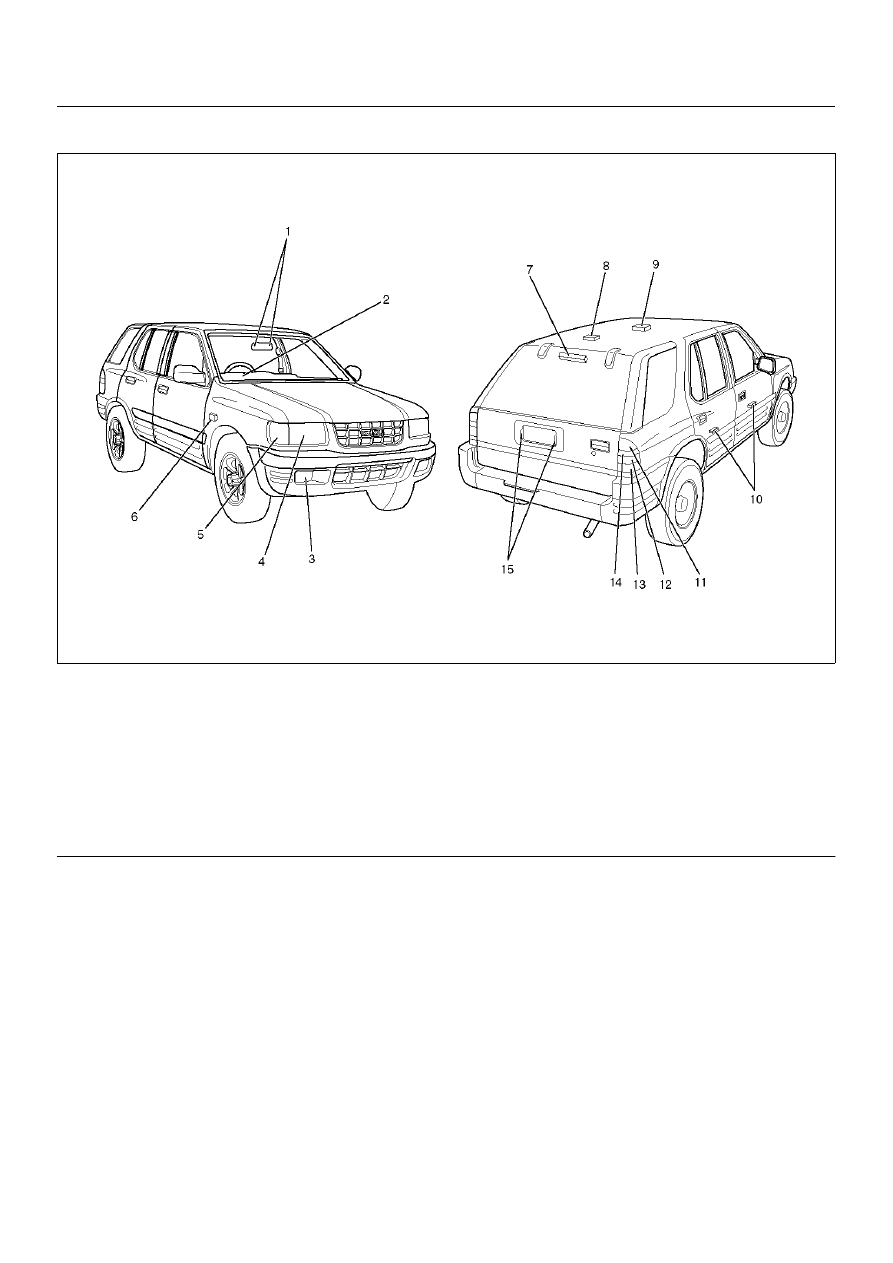

Light and Bulb Specifications (4Door Model · Spear Tire Tail Gate Type)

810RX022

Legend

EndOFCallout

(1) Map Light
(2) Meter
(3) Fog Light
(4) Headlight/Clearance Light
(5) Front Turn Signal Light
(6) Side Turn Signal Light
(7) High Mounted Stoplight

(8) Luggage Room Light
(9) Dome Light

(10) Courtesy Light
(11) Stoplight
(12) Backup Light
(13) Taillight
(14) Rear Turn Signal Light
(15) License Plate Light
