Opel Frontera UE. Manual - part 1749





SUPPLEMENTAL RESTRAINT SYSTEM

9J–37

Driver Air Bag Assembly

Service Precautions

WARNING:  SAFETY PRECAUTIONS MUST BE
FOLLOWED WHEN HANDLING A DEPLOYED AIR
BAG ASSEMBLY. AFTER DEPLOYMENT, THE AIR
BAG ASSEMBLY SURFACE MAY CONTAIN A SMALL
AMOUNT OF SODIUM HYDROXIDE, A BY-PRODUCT
OF THE DEPLOYMENT REACTION, THAT IS
IRRITATING TO THE SKIN AND EYES. MOST OF THE
POWDER ON THE AIR BAG ASSEMBLY IS
HARMLESS. AS A PRECAUTION, WEAR GLOVES
AND SAFETY GLASSES WHEN HANDLING A
DEPLOYED AIR BAG ASSEMBLY, AND WASH YOUR
HANDS WITH MILD SOAP AND WATER
AFTERWARDS.

WARNING:  WHEN CARRYING A LIVE AIR BAG
ASSEMBLY, MAKE SURE THE BAG AND TRIM
COVER ARE POINTED AWAY FROM YOU. NEVER
CARRY AIR BAG ASSEMBLY BY THE WIRES OR
CONNECTOR ON THE UNDERSIDE OF MODULE. IN
THE CASE OF AN ACCIDENTAL DEPLOYMENT, THE
BAG WILL THEN DEPLOY WITH MINIMAL CHANCE
OF INJURY. WHEN PLACING A LIVE AIR BAG
ASSEMBLY ON A BENCH OR OTHER SURFACE,
ALWAYS FACE BAG AND TRIM COVER UP, AWAY
FROM THE SURFACE. NEVER REST A STEERING
COLUMN ASSEMBLY ON THE STEERING WHEEL
WITH THE AIR BAG ASSEMBLY FACE DOWN AND
COLUMN VERTICAL. THIS IS NECESSARY SO THAT
A FREE SPACE IS PROVIDED TO ALLOW THE AIR
BAG ASSEMBLY TO EXPAND IN THE UNLIKELY
EVENT OF ACCIDENTAL DEPLOYMENT.
OTHERWISE, PERSONAL INJURY COULD RESULT.

NOTE:  In the event deployment has occurred, inspect
coil assembly wire for any signs of scorching, melting or
any other damage due to excessive heat. If the coil has
been damaged, replace it.

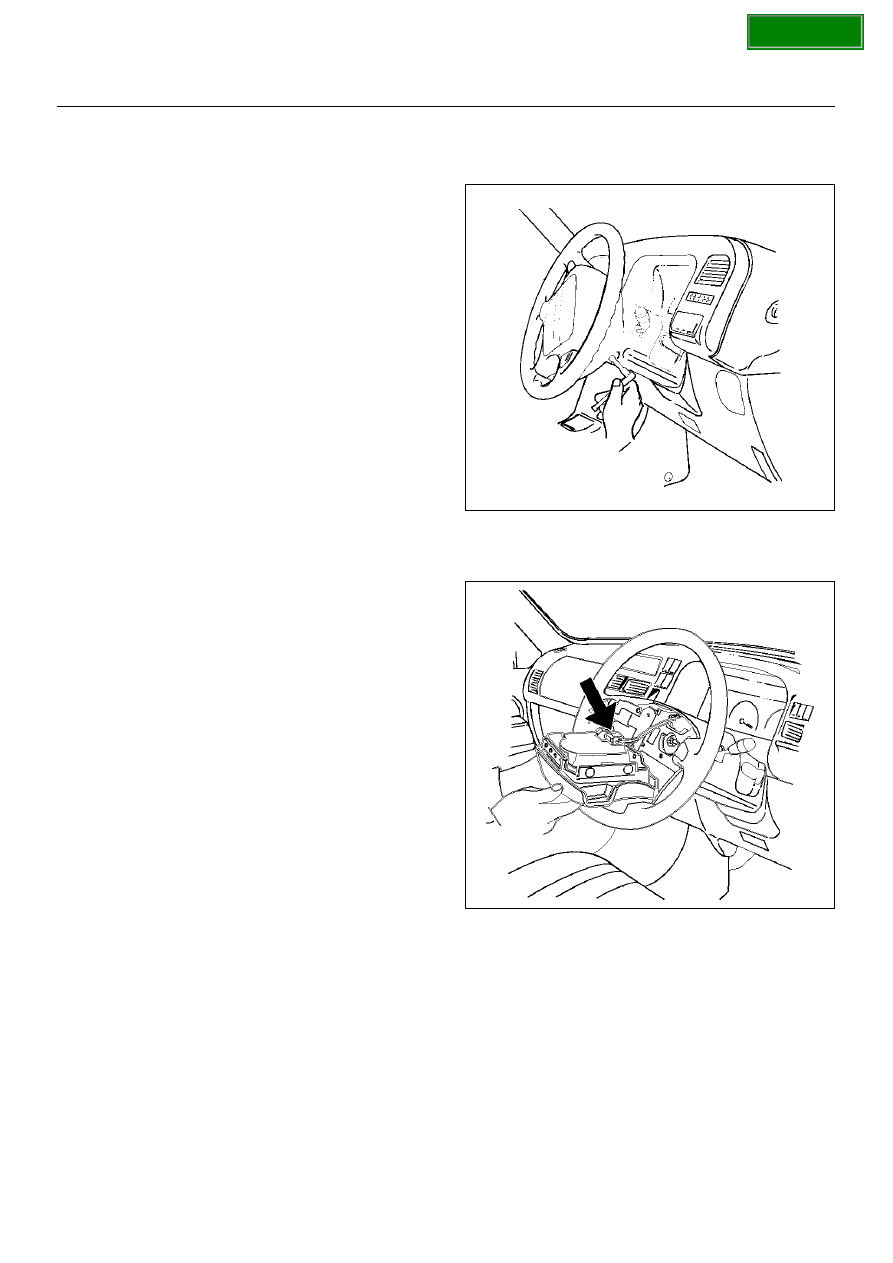

Removal

1. Disable the Supplemental Restraint System (SRS).

(Refer to “Disabling the SRS" in this section.)

2. Remove air bag assembly from steering wheel by

removing two bolts.  Lift air bag assembly out of
steering wheel.

827RX036

3. Disconnect connector and remove air bag assembly.

4. Disconnect horn lead.

827RX035

Installation

1. Connect air bag to wiring harness connector.

NOTE:  Pass the lead wire through the tabs on the
plastic cover (wire protector) of air bag to prevent lead
wire from being pinched.

2. Connect horn lead.

3. Install air bag into steering wheel and tighten bolts

to specified sequence as shown in figure.

Torque: 8.8 N·m (0.9 kg·m

/

78 lbin)

CAUTION:  Never use the air bag assembly from
another vehicle.

SECTION

9J–38

SUPPLEMENTAL RESTRAINT SYSTEM

Use only the air bag assembly for UE.

4. Enable the Supplemental Restraint System (SRS).

(Refer to “Enabling the SRS" in this section.)

Steering Wheel

Service Precautions

WARNING:  SAFETY PRECAUTIONS MUST BE
FOLLOWED WHEN HANDLING A DEPLOYED AIR
BAG ASSEMBLY. AFTER DEPLOYMENT, THE AIR
BAG ASSEMBLY SURFACE MAY CONTAIN A SMALL
AMOUNT OF SODIUM HYDROXIDE, A BY-PRODUCT
OF THE DEPLOYMENT REACTION, THAT IS
IRRITATING TO THE SKIN AND EYES. MOST OF THE
POWDER ON THE AIR BAG ASSEMBLY IS
HARMLESS. AS A PRECAUTION, WEAR GLOVES
AND SAFETY GLASSES WHEN HANDLING A
DEPLOYED AIR BAG ASSEMBLY, AND WASH YOUR
HANDS WITH MILD SOAP AND WATER
AFTERWARDS.

WARNING:  WHEN CARRYING A LIVE AIR BAG
ASSEMBLY, MAKE SURE THE BAG AND TRIM
COVER ARE POINTED AWAY FROM YOU. NEVER
CARRY AIR BAG ASSEMBLY BY THE WIRES OR
CONNECTOR ON THE UNDERSIDE OF MODULE. IN
THE CASE OF AN ACCIDENTAL DEPLOYMENT, THE
BAG WILL THEN DEPLOY WITH MINIMAL CHANCE
OF INJURY. WHEN PLACING A LIVE AIR BAG
ASSEMBLY ON A BENCH OR OTHER SURFACE,
ALWAYS FACE BAG AND TRIM COVER UP, AWAY
FROM THE SURFACE. NEVER REST A STEERING
COLUMN ASSEMBLY ON THE STEERING WHEEL
WITH THE AIR BAG ASSEMBLY FACE DOWN AND
COLUMN VERTICAL. THIS IS NECESSARY SO THAT
A FREE SPACE IS PROVIDED TO ALLOW THE AIR
BAG ASSEMBLY TO EXPAND IN THE UNLIKELY
EVENT OF ACCIDENTAL DEPLOYMENT.
OTHERWISE, PERSONAL INJURY COULD RESULT.

NOTE:  In the event deployment has occurred, inspect
coil assembly wire for any signs of scorching, melting or
any other damage due to excessive heat. If the coil has
been damaged, replace it.

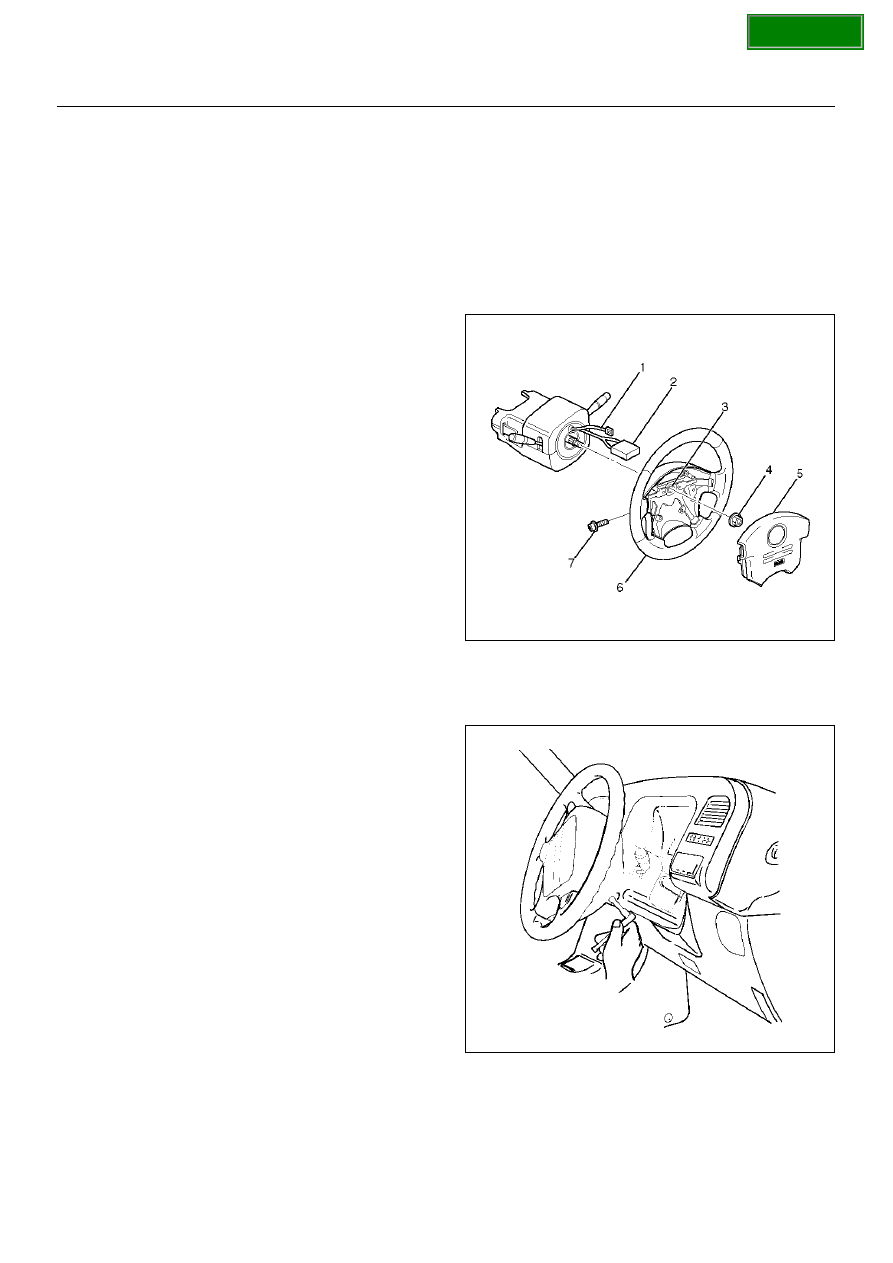

Removal

1. Disable the SRS. (Refer to “Disabling the SRS" in

this section.)

827RX034

2. Remove the air bag assembly (5) from steering

wheel (6) by removing two bolts (7). Lift air bag
assembly out of steering wheel.

827RX036

SECTION

SUPPLEMENTAL RESTRAINT SYSTEM

9J–39

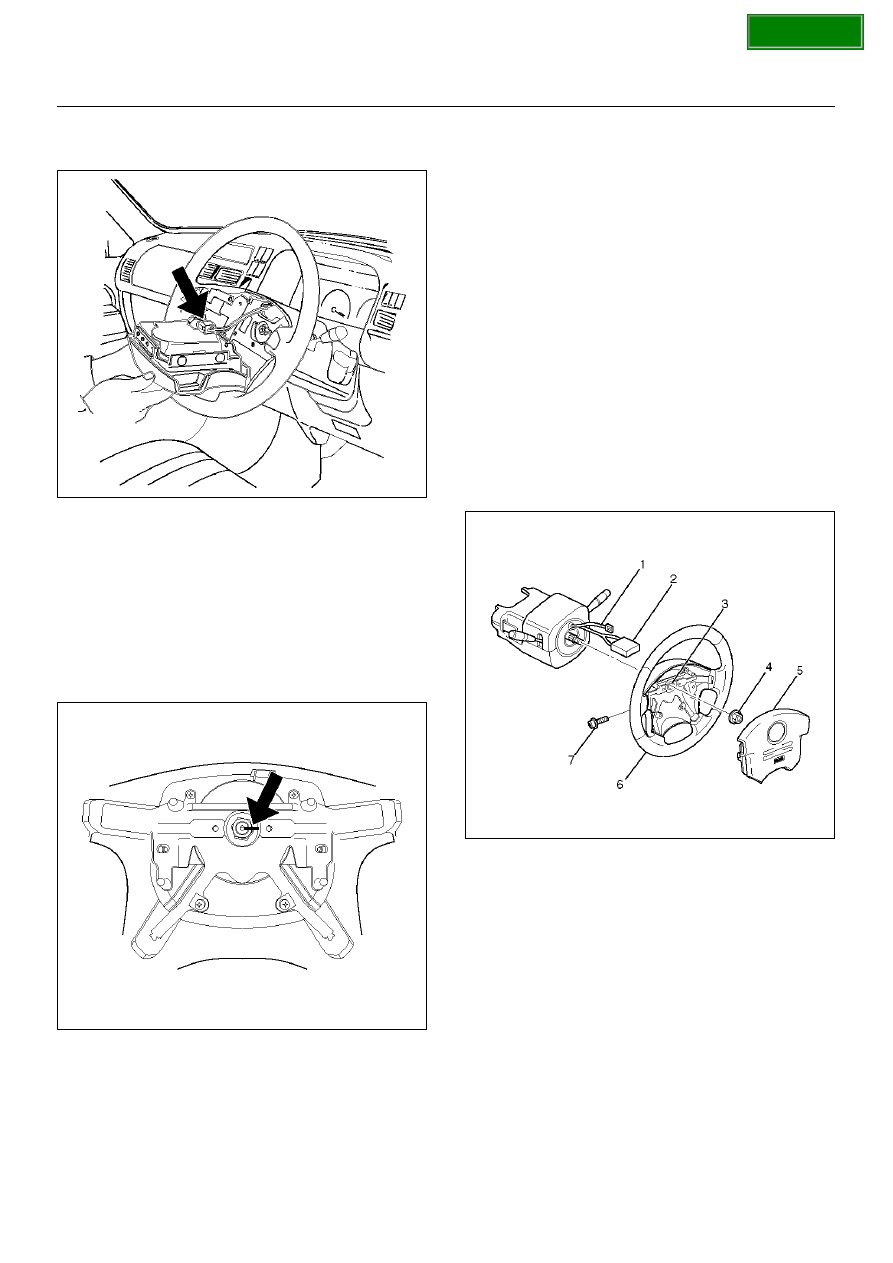

3. Disconnect connector (2) and remove air bag

assembly.

827RX035

3. Disconnect horn lead (1)

4. Remove steering wheel attachment nut (4).

5. Move the tires to the straight ahead position before

removing the steering wheel. Install steering wheel
puller onto steering wheel and remove steering
wheel with 5–8521–0016–0.

6. Apply a setting mark (3) across the steering wheel

and shaft so parts can be  reassembled in their
original position.

827RW063

7. Feed wiring through the wheel and remove wheel.

CAUTION:  Never apply force to the steering wheel
in direction of the shaft by using a hammer or other
impact tools in an attempt to remove the steering
wheel. The steering shaft is designed as an energy
absorbing unit.

Installation

1. Install the steering wheel and align the setting

marks (3).

2. Tighten the steering wheel fixing nut (4) to the

specified torque.

Torque: 34 N·m (3.5 kg·m/25 lbft)

3. Connect horn lead (1).

4. Connect air bag to wiring harness connector (2).

NOTE:  Pass the lead wire through the tabs on the
plastic cover (wire protector) of air bag to prevent lead
wire from being pinched.

5. Install air bag into steering wheel and tighten bolts

(7) to specified sequence as show in figure.

Torque: 8.8 N·m (0.9 kg·m/78 lbin)

CAUTION:  Never use the air bag assembly from
another vehicle. Use only the air bag assembly for
UE.

827RX034

6. Enable the Supplemental Restraint System (SRS).

(Refer to “Enabling The SRS" in this section.)

SECTION

9J–40

SUPPLEMENTAL RESTRAINT SYSTEM

SRS Coil Assembly

Service Precaution

WARNING:  SAFETY PRECAUTIONS MUST BE
FOLLOWED WHEN HANDLING A DEPLOYED AIR
BAG ASSEMBLY. AFTER DEPLOYMENT, THE AIR
BAG ASSEMBLY SURFACE MAY CONTAIN A SMALL
AMOUNT OF SODIUM HYDROXIDE, A BY-PRODUCT
OF THE DEPLOYMENT REACTION, THAT IS
IRRITATING TO THE SKIN AND EYES. MOST OF THE
POWDER ON THE AIR BAG ASSEMBLY IS
HARMLESS. AS A PRECAUTION, WEAR GLOVES
AND SAFETY GLASSES WHEN HANDLING A
DEPLOYED AIR BAG ASSEMBLY, AND WASH YOUR
HANDS WITH MILD SOAP AND WATER
AFTERWARDS.

WARNING:  WHEN CARRYING A LIVE AIR BAG
ASSEMBLY, MAKE SURE THE BAG AND TRIM
COVER ARE POINTED AWAY FROM YOU. NEVER
CARRY AIR BAG ASSEMBLY BY THE WIRES OR
CONNECTOR ON THE UNDERSIDE OF MODULE. IN
THE CASE OF AN ACCIDENTAL DEPLOYMENT, THE
BAG WILL THEN DEPLOY WITH MINIMAL CHANCE
OF INJURY. WHEN PLACING A LIVE AIR BAG
ASSEMBLY ON A BENCH OR OTHER SURFACE,
ALWAYS FACE BAG AND TRIM COVER UP, AWAY
FROM THE SURFACE. NEVER REST A STEERING
COLUMN ASSEMBLY ON THE STEERING WHEEL
WITH THE AIR BAG ASSEMBLY FACE DOWN AND
COLUMN VERTICAL. THIS IS NECESSARY SO THAT
A FREE SPACE IS PROVIDED TO ALLOW THE AIR
BAG ASSEMBLY TO EXPAND IN THE UNLIKELY
EVENT OF ACCIDENTAL DEPLOYMENT.
OTHERWISE, PERSONAL INJURY COULD RESULT.

NOTE:  In the event deployment has occurred, inspect
coil assembly wire for any signs of scorching, melting or
any other damage due to excessive heat. If the coil has
been damaged, replace it.

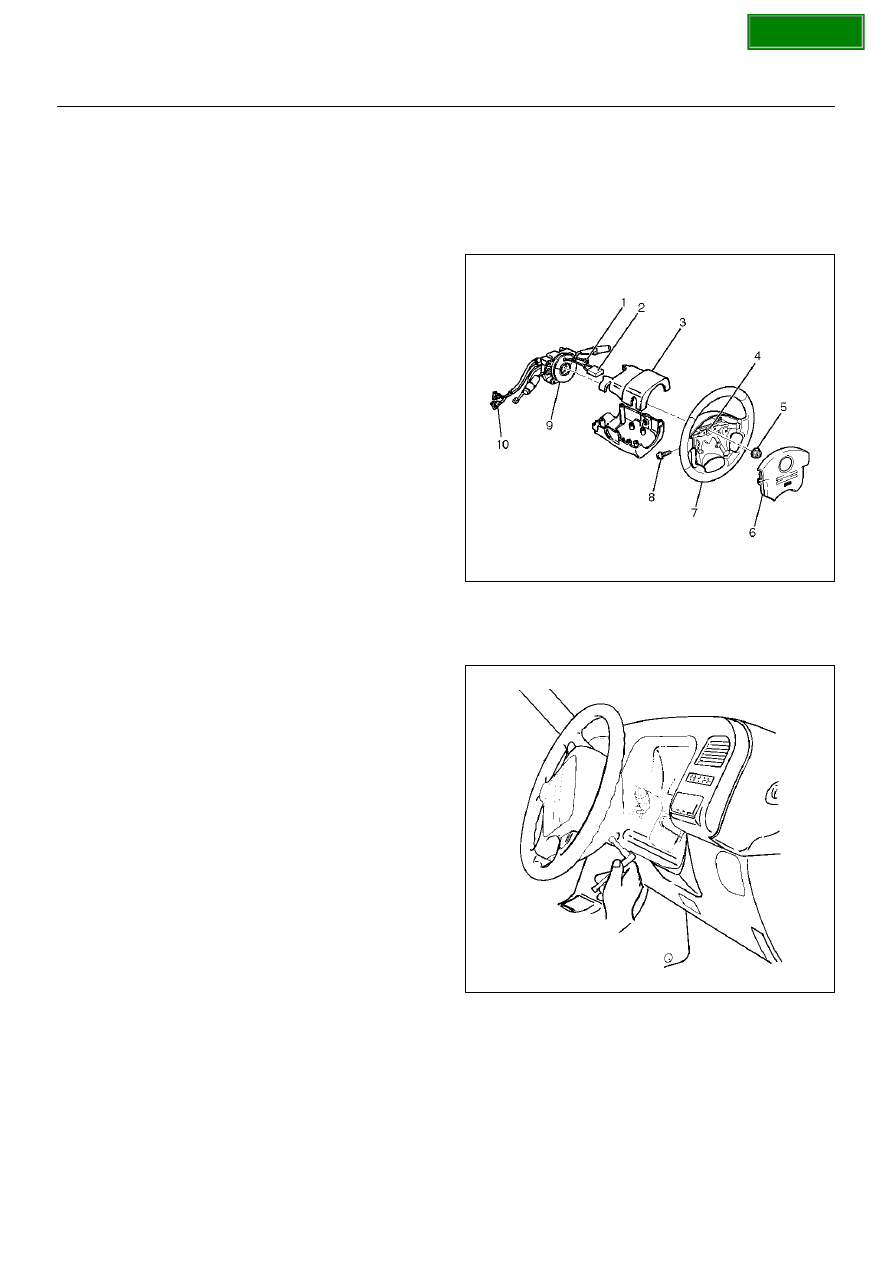

Removal

1. Disable the SRS. (Refer to "Disabling the SRS" in

this section.)

825RX047

2. Remove the air bag assembly (6) from steering

wheel (7) by removing two bolts (8). Lift air bag
assembly out of steering wheel.

827RX036

SECTION
