SUPPLEMENTAL RESTRAINT SYSTEM

9J–29

5–8840–2420–0 (J–41497) SRS Deployment
Fixture

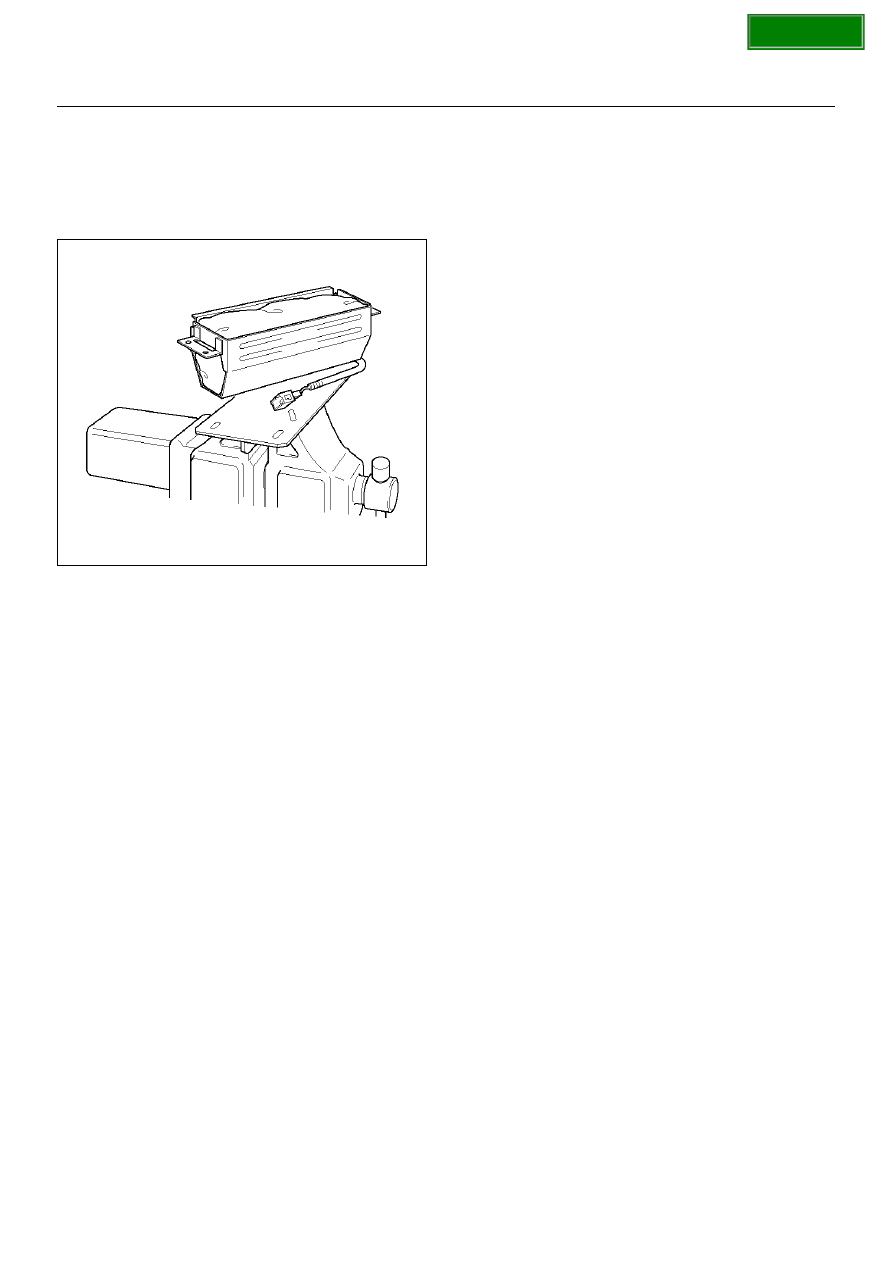

The 5–8840–2420–0 SRS Deployment Fixture must be
used for deployment of the undeployed passenger side
air bag.

901RW088

SECTION

9J–30

SUPPLEMENTAL RESTRAINT SYSTEM

Tech 2 Scan Tool

From 1999 Vehi CROSS (VX), dealer service
departments are recommended to use Tech 2. Please
refer to Tech 2 scan tool user guide.

901RW180

Legend

EndOFCallout

Getting Started

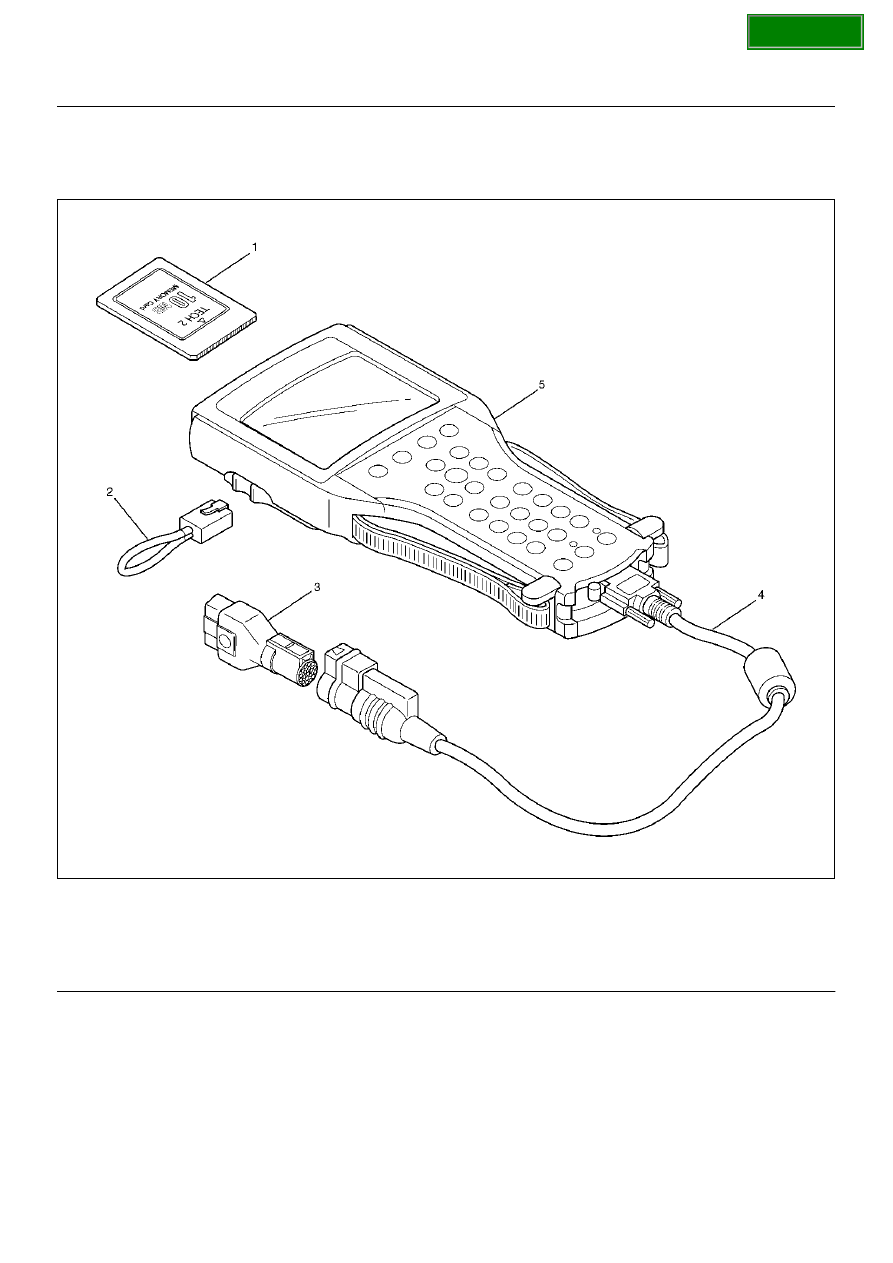

• Before operating the Isuzu PCMCIA card with the

Tech 2, the following steps must be performed:

1. The Isuzu 98 System PCMCIA card (1) inserts into

the Tech 2 (5).

2. Connect the SAE 16/19 adapter (3) to the DLC

cable (4).

1. Connect the DLC cable to the Tech 2 (5)

3. Mark sure the vehicle ignition is off.

(1) PCMCIA Card
(2) RS 232 Loop Back Connector
(3) SAE 16/19 Adaptor

(4) Data Link Connector (DLC) Cable
(5) Tech–2

SECTION

SUPPLEMENTAL RESTRAINT SYSTEM

9J–31

2. Connect the Tech 2 SAE 16/19 adapter to the

vehicle Data Link Connector (DLC).

740RX068

4. The vehicle ignition turns on.

5. Verify the Tech 2 power up display.

060RW009

NOTE:  The RS232 loop back connector is only to use
for diagnosis of Tech 2 and refer to user guide of the
Tech 2.

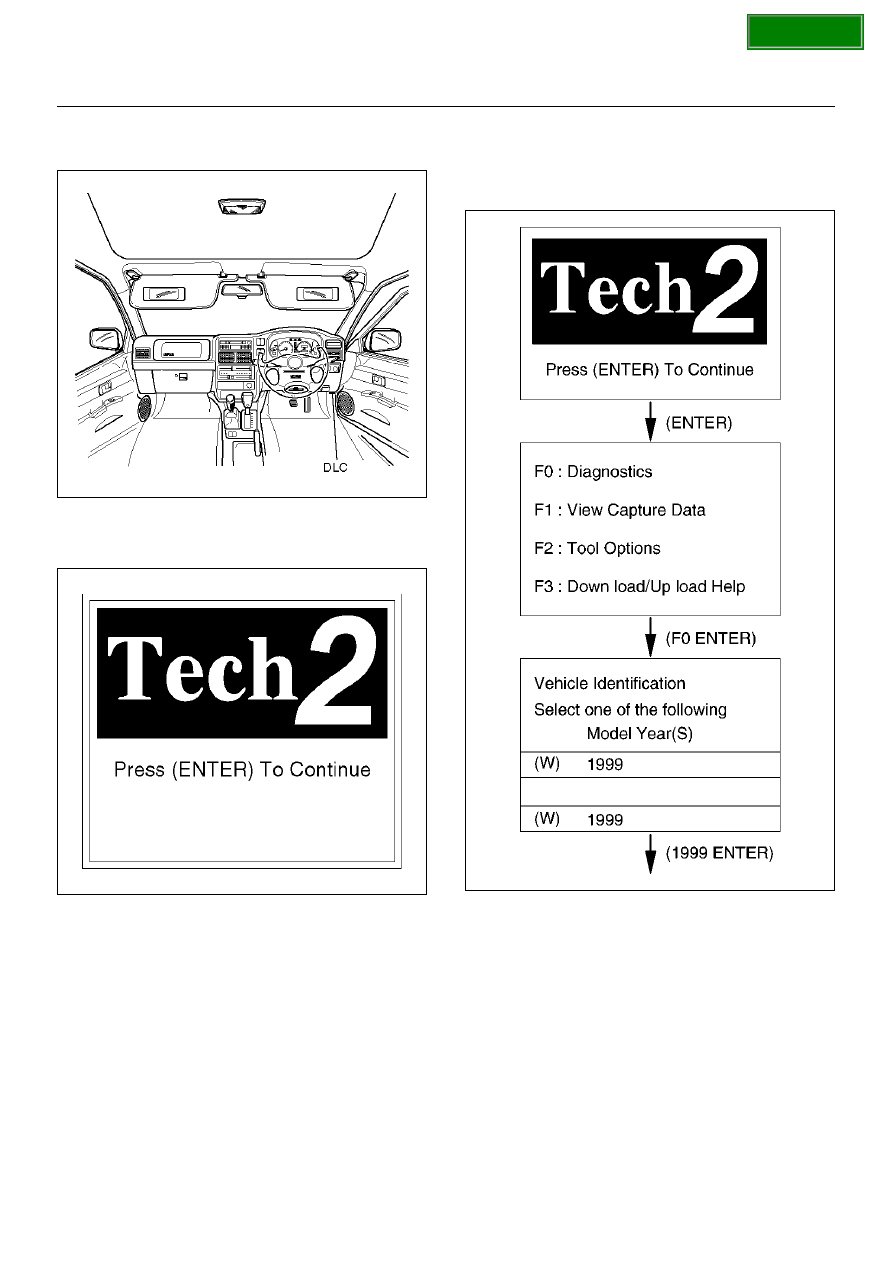

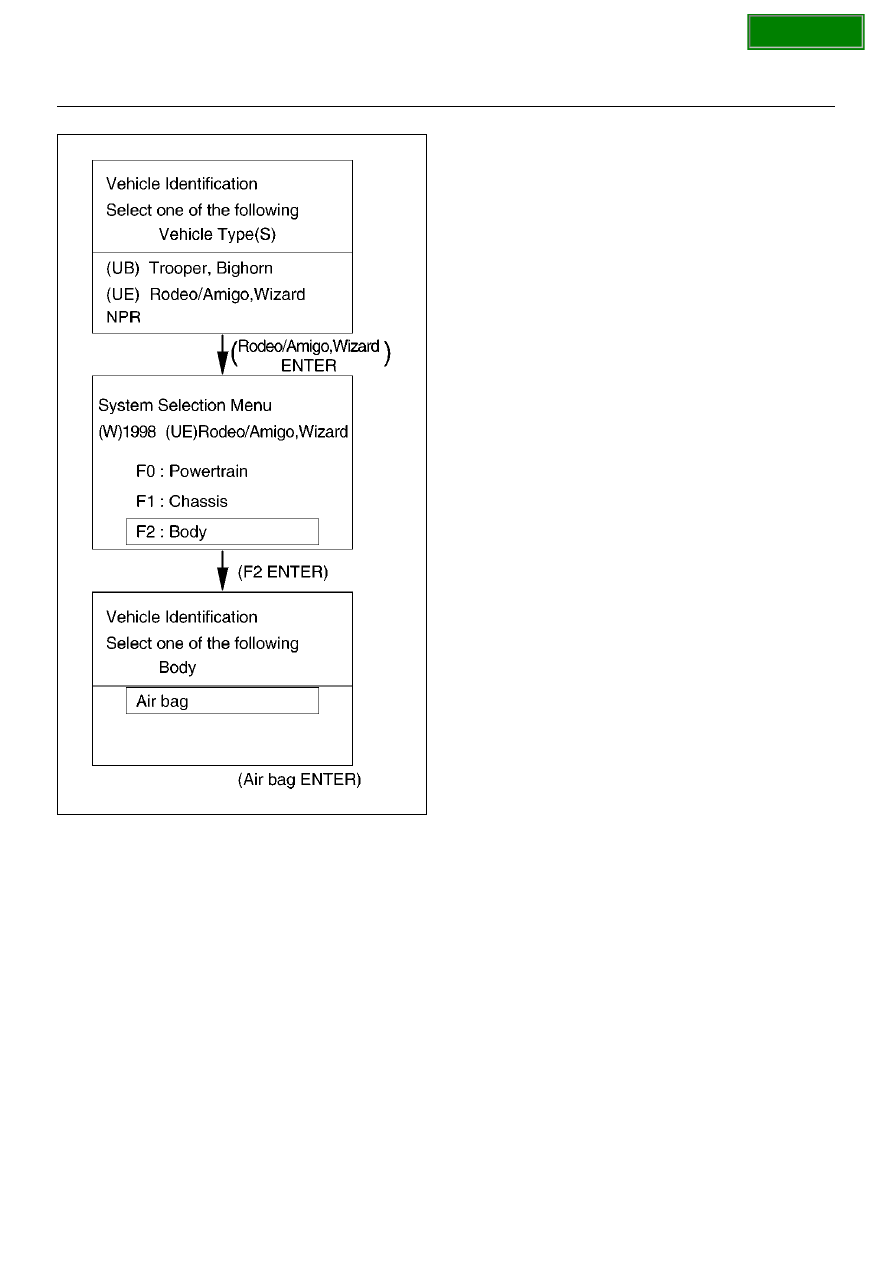

Operating Procedure

The power up screen is displayed when you power up
the tester with the Isuzu systems PCMCIA card. Follow
the operating procedure below.

060RX001

SECTION

9J–32

SUPPLEMENTAL RESTRAINT SYSTEM

060RW013
