SUPPLEMENTAL RESTRAINT SYSTEM

9J–33

Service Precaution

CAUTION:  When fasteners are removed, always
reinstall them at the same location from which they
were removed. If a fastener needs to be replaced,
use the correct part number fastener for that
application. If the correct part number fastener is
not available, a fastener of equal size and strength
(or stronger) may be used.  Fasteners that are not
reused, and those requiring thread locking
compound will be called out. The correct torque
value must be used when installing fasteners that
require it. if the above conditions are not followed,
parts or system damage could result.

WARNING:  WHEN PERFORMING SERVICE ON OR
AROUND SUPPLEMENTAL RESTRAINT SYSTEM
(SRS) COMPONENTS OR SRS WIRING, FOLLOW
THE PROCEDURES LISTED BELOW TO
TEMPORARILY DISABLE THE SRS. FAILURE TO
FOLLOW PROCEDURES COULD RESULT IN
POSSIBLE AIR BAG DEPLOYMENT, PERSONAL
INJURY OR OTHERWISE UNNEEDED SRS REPAIRS.
The Sensing and Diagnostic Module (SDM) in Driver–
Passenger SRS can maintain sufficient voltage to cause
a deployment for up to 15 seconds after the ignition
switch is turned “OFF," the battery is disconnected, or
the fuse powering the SDM is removed.
Many of the service procedures require removal of the
“SRS–1" fuse, and disconnection of the air bag
assembly from the deployment loop to avoid an
accidental deployment.  If the air bag assembly is
disconnected from the deployment loop as noted in the
“Disabling the SRS" procedure that follows, service can
begin immediately without waiting for the 15 second
time period to expire.

Disabling The SRS

Removal

Turn the ignition switch to “OFF" and turn the steering
wheel so that the vehicle's wheels are pointing straight
ahead.

6. Remove SRS fuse METER and SRS, from left dash

side lower fuse block or disconnect battery.

7. Disconnect yellow 2–pin connector at the base of

steering column.

8. Remove glove box assembly; Refer to “Passenger

Air Bag Assembly Replacement"  in this section.

9. Disconnect passenger air bag assembly yellow 2–

pin connector behind the glove box assembly.

CAUTION:  With the “SRS" fuse removed and
ignition switch “ON," the “AIR BAG" warning lamp
will be “ON."  This is normal operation and does not
indicate an SRS malfunction.

Enabling The SRS

Installation

Turn ignition switch to “LOCK" and remove key.

1. Connect yellow 2–pin connector passenger air bag

assembly.

2. Install glove box assembly, Refer to “Passenger Air

Bag Assembly Replacement" in this section.

3. Connect yellow 2–pin connector at the base of the

steering column.

4. Install “AIR BAG" fuse METER and SRS to left dash

side lower fuse block or connect battery.

Turn ignition switch to “ON" and verify that the “AIR
BAG" warning lamp flashes seven times and then turns
“OFF" If it does not operate as described, perform the
“SRS Diagnostic System Check" in section.

Handling / Installation / Diagnosis

5. Air bag assembly should not be subjected to

temperatures above 93

°

C (200

°

F

).

6. Air bag assembly, and SDM should not be used if

they have been dropped from a height of 100 cm
(3.3 feet) or more.

7. When a SDM is replaced, it must be oriented with

the arrow on the SDM pointing toward the front of
the vehicle. It is very important for the SDM to be
located flat on the mounting surface, parallel to the
vehicle datum line. It is important that the SDM
mounting surface is free of any dirt or other foreign
material.

8. Do not apply power to the SRS unless all

components are connected or a diagnostic chart
requests it, as this will set a diagnostic trouble code.

9. The “SRS Diagnostic System Check" must be the

starting point of any SRS  diagnostics. The “SRS
Diagnostic System Check" will verify proper “AIR
BAG" warning lamp operation and will lead you to
the correct chart to diagnose any SRS malfunctions.
Bypassing these procedures may result in extended
diagnostic time, incorrect diagnosis, and incorrect
parts replacements.

Inspections Required After An Accident

CAUTION:  Certain SRS components must be
replaced after a frontal crash involving air bag
deployment.
In all types of accidents regardless of “Air Bag"
deployment, visually inspect all of the following
components and replace as required:

– Driver air bag assembly

– Passenger air bag assembly

– Steering wheel

– SRS coil assembly

– Steering column

– Knee bolster and instrument panel mounting

attachments

– Driver seat and belt

– Passenger seat and belt

– SDM

SECTION

9J–34

SUPPLEMENTAL RESTRAINT SYSTEM

Be sure to replace Sensing and Diagnostic Module
(SDM) in accordance with “SDM Replacement
Guidelines”. In cases of collision without causing air bag
deployment, SDM could be used unless this manual
instructs to replace.

CAUTION:  Refer to SDM replacement Guidelines
below for important information on SDM
replacement in both deployment and non–
deployment crashes.

SDM Replacement Guidelines

1. In case that the air bag has been deployed, replace

the SDM.

2. When DTC 51, 53 and 71 are set.

3. When SDM fell down from a 100 cm (3.3 feet)

height.
All above is SDM replacement Guideline.
Inspection is needed also on the following.

Inspect Supplemental Restraint System (SRS) coil
assembly wiring and steering wheel for any signs of
scorching meting or damage due to excessive heat. If
coil assembly wire or steering wheel is damaged
replace them. The steering column and wheel must be
dimensionally checked to determine if they are
damaged. Refer to in this Section of this manual.
Never use SRS parts from another vehicle. This does
not include remanufactured parts purchased from an
authorized Retailer they may be used for SRS repairs.
Do not attempt to repair the SDM, the SRS harness, the
SRS coil assembly, the air bag assembly, the steering
wheel, or the steering column. Service of these items is
replacement only.
Verify replacement part numbers.

CAUTION:  Proper operation of the SDM and
Supplemental Restraint System (SRS) requires that
any repairs to the vehicle structure return it to its
original production configuration.

SECTION

SUPPLEMENTAL RESTRAINT SYSTEM

9J–35

Sensing and Diagnostic Module (SDM)

Service Precautions

WARNING:  DURING SERVICE PROCEDURES, BE
VERY CAREFUL WHEN HANDLING SDM. NEVER
STRIKE OR JAR SDM.  UNDER SOME
CIRCUMSTANCES, IT COULD CAUSE
DEPLOYMENT AND RESULT IN PERSONAL INJURY
OR IMPROPER OPERATION OF THE
SUPPLEMENTAL RESTRAINT SYSTEM (SRS). SDM
MOUNTING BRACKET BOLTS MUST BE
CAREFULLY TORQUED TO ASSURE PROPER
OPERATION. NEVER POWER UP THE SRS WHEN
SDM IS NOT RIGIDLY ATTACHED TO THE VEHICLE.
THE SDM COULD BE ACTIVATED WHEN POWERED
WHILE NOT RIGIDLY ATTACHED TO THE VEHICLE
WHICH COULD CAUSE DEPLOYMENT AND RESULT
IN PERSONAL INJURY.

WARNING:  PROPER OPERATION OF THE SENSING
AND DIAGNOSTIC MODULE (SDM) REQUIRES THE
SDM TO BE RIGIDLY ATTACHED TO THE VEHICLE
STRUCTURE AND THAT THE ARROW ON THE
SENSOR BE POINTING TOWARD THE FRONT OF
THE VEHICLE.
SDM is specifically calibrated and is keyed to the SDM
location SRS wiring harness. Caution should be used to
ensure proper location of the SDM. The keying of the
SDM to its location and wiring harness connectors
should never be modified in the field.

Removal

1. Disable the SRS. (Refer to “Disable the SRS" in this

manual)

2. Remove dressing panel around the radio and

disconnect cigar lighter harness.

3. Remove the transfer sift lever knob.

4. Remove the center console.

5. Remove three connector from Powertrain Control

Module (PCM).

6. Remove PCM with bracket.(Fixed four bolts)

7. Remove right side stay between instrument panel

and floor.

8. Remove driver and passenger seat.

9. Turn over carpet to rear side.

1. Remove air conditioning duct for rear seat.

(Transform the duct during removing it)

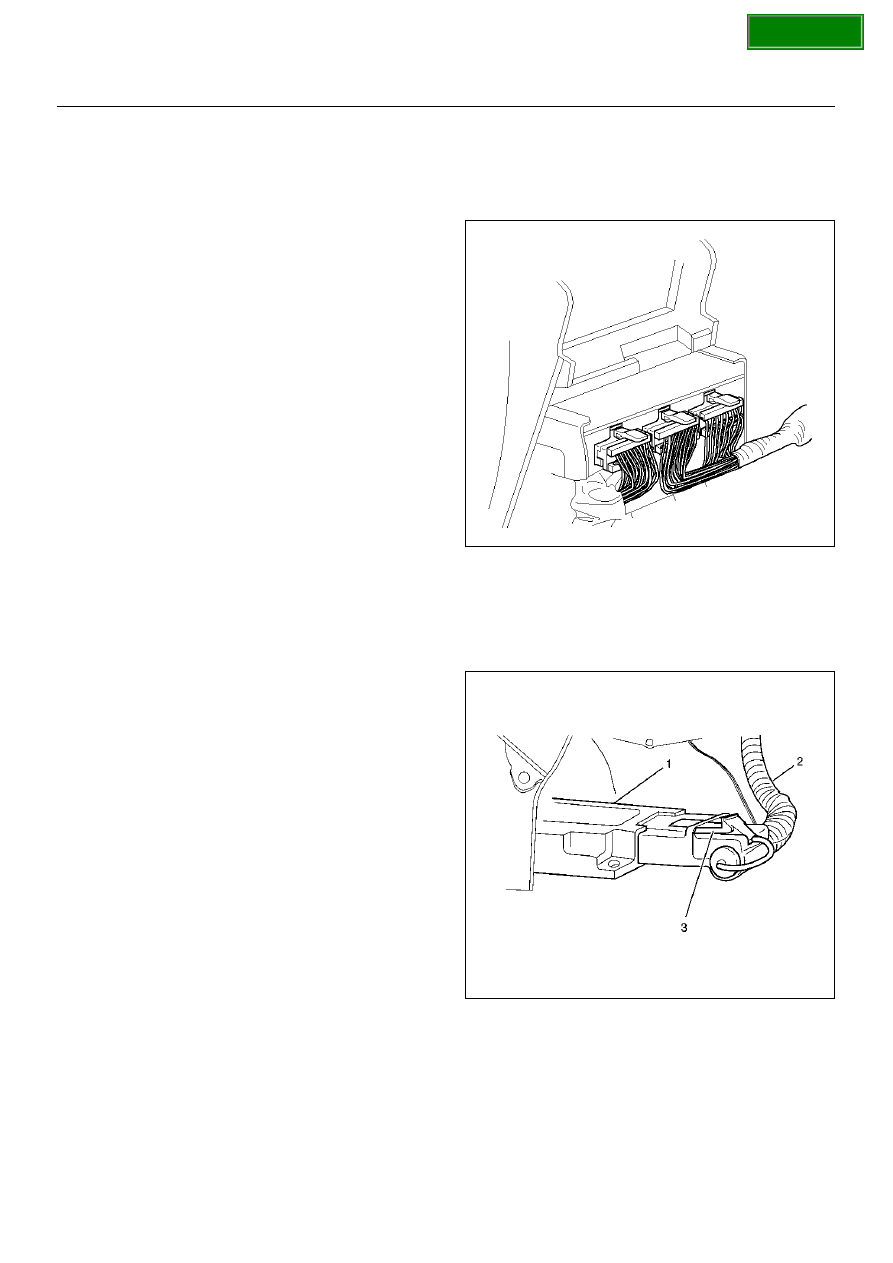

827RW023

10. Pull CPA (3) (Connector Position Assurance–red

color) out and push connector lock down to
disconnect the SDM harness connector (2).

11. Remove the three SDM fixing bolts and remove

SDM (1).

827RW044

Installation

1. Install the SDM (1) on bracket and fixing bolts and

tighten the fixing bolts to the specified torque.

Torque: 10

±±±±

 3 N·m (1.0

±

±

±

±

0.3 kg·m

////

87

±±±±

26  lbin)

1. Connect the SDM harness connector (2) and after

that, put CPA into connector (3).

SECTION

9J–36

SUPPLEMENTAL RESTRAINT SYSTEM

2. Install air conditioning duct for rear seat to normal

position.

2. Return carpet normal position.

3. Install right side stay between instrument panel and

floor, tighten to the specified torque.

Torque: 10

±±±±

3 N·m (1.0

±±±±

0.3 kg·m/87

±±±±

26  lbin)

4. Install PCM with bracket and tighten to the specified

torque.

Torque: 10

±±±±

3 N·m (1.0

±±±±

0.3 kg·m/87

±±±±

26  lbin)

5. Reconnect three connector to Powertrain Control

Module (PCM).

6. Install the center console.

7. Install the transfer shift lever knob.

8. Install the dressing panel around the radio and

reconnect cigar lighter harness.

9. Enable the SRS. (Refer to “Enabling the SRS" in this

manual)
