SUPPLEMENTAL RESTRAINT SYSTEM

9J–9

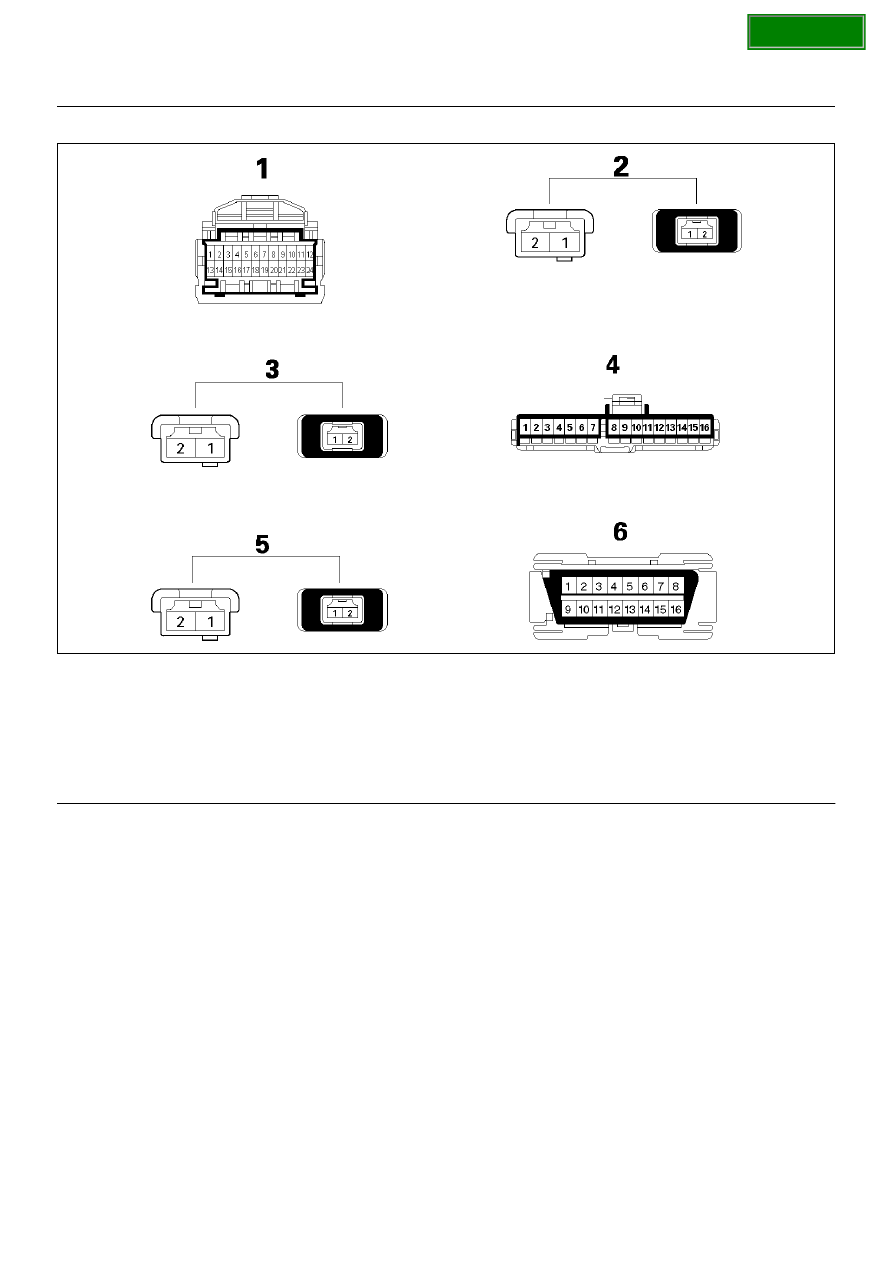

SRS Connector Body Face Views

D09RW003

Legend

EndOFCallout

Repairs and Inspections Required
After an Accident

NOTE:  If any SRS components are damaged, they
must be replaced.  If SRS component mounting points
are damaged, they must be replaced.

• Never use SRS parts from another vehicle.  This

does not include remanufactured parts purchased
from an authorized dealer; they may be used for SRS
repairs.

• Do not attempt to service the SDM, the SRS coil

assembly, or the air bag assembly.  Service of these
items is by replacement only.

• Verify the part number of replacement air bag

assembly.

CAUTION:  Never use the air bag assembly from
another vehicle.
Use only the air bag assembly for UE models.

CAUTION:  Proper operation of the sensors and

Supplemental Restraint System (SRS) requires that
any repairs to the vehicle structure return it to the
original production configuration.  Deployment
requires, at a minimum, replacement of the SDM, air
bag assembly and dimensional inspection of the
steering column.  Any visible damage to the SDM
mounting bracket (s) requires replacement, and the
steering column must be dimensionally inspected,
whether deployment occurred or not.

Accident With Deployment – Component
Replacement and Inspections

Certain SRS components must be replaced or
inspected for damage after a frontal crash involving air
bag deployment.  Those components are:

• Air bag assembly

• SDM

CAUTION:  Refer to “SDM Replacement Guidelines"
below for important information on Sensing and

(1) Sensing and Diagnostic Module (SDM)
(2) Driver Air Bag Assembly
(3) Passenger Air Bag Assembly
(4) “Air Bag" Warning Lamp

(5) Supplemental Restraint System (SRS) Coil

Assembly

(6) Data Link Connector (DLC)

SECTION

9J–10

SUPPLEMENTAL RESTRAINT SYSTEM

Diagnostic Module (SDM) replacement in both
deployment and non deployment crashes.

• Supplemental Restraint System (SRS) coil

assembly—Inspect wiring and connector for any
signs of scorching, melting, or damage due to
excessive heat.   Replace if damaged.  Refer to SRS
coil assembly in this section.

Accident With or Without Deployment—
Component Inspection

Certain SRS and restraint system components must be
inspected after any crash, whether the air bag deployed
or not.  Those components are:

• Steering column—Dimensionally inspect per

“Checking Steering Column for Accident Damage" in
3 of this workshop manual.

• Knee bolsters and mounting points— Inspect for any

distortion, bending, cracking, or other damage.

• Instrument panel steering column reinforcement

plate— Inspect for any distortion, bending, cracking,
or other damage.

• Instrument panel braces—Inspect for any distortion,

bending, cracking, or other damage.

• Seat belts and mounting points—Refer to “Seat

Belts" in 10 of this workshop manual.

SDM Replacement Guidelines

SDM replacement policy requires replacement of SDM,
after crash involving air bag deployment when “SRS
Warning Lamp" turn “ON", “SRS Diagnosis" should be
done according to “Section".

Wiring Damage

If any SRS wire harness is damaged, it should be
replaced. Don't repair SRS. It is replace only.

SRS Connector (Plastic Body And Terminal
Metal Pin) Damage

If any connector or terminal in the SRS wire harness
(except pigtails) is damaged, it should be replaced.

SRS Wire Pigtail Damage

If the wiring pigtail (a wire or wires attached directly to
the device, not by a connector) is damaged, the entire
component (with pigtail) must be replaced.  Examples of
“pigtail" components are the driver air bag assembly, the
passenger air bag assembly, and the SRS coil
assembly.

On–Vehicle Service

Service Precautions

WARNING:  WHEN PERFORMING SERVICE ON OR
AROUND SRS COMPONENTS OR SRS WIRING,
FOLLOW THE PROCEDURES LISTED BELOW TO
TEMPORARILY DISABLE THE SRS.  FAILURE TO
FOLLOW PROCEDURES COULD RESULT IN
POSSIBLE AIR BAG DEPLOYMENT, PERSONAL
INJURY OR OTHERWISE UNNEEDED SRS REPAIRS.
The SDM in Driver—Passenger SRS can maintain
sufficient voltage to cause a deployment for up to 15
seconds after the ignition switch is turned “OFF", the
battery is disconnected, or the fuse powering the SDM
is removed.
Many of the service procedures require removal of the
“SRS" fuse, and disconnection of the air bag assembly
from the deployment loop to avoid an accidental
deployment.  If the air bag assembly is disconnected
from the deployment loop as noted in the “Disabling the
SRS" procedure that follows, service can begin
immediately without waiting for the 15 second time
period to expire.

Disabling The SRS

Removal

Turn the ignition switch to “lock" and remove key.

1. Remove SRS fuse “METER” and “SRS”, from left

dash side lower fuse block or disconnect battery.

2. Disconnect yellow 2–pin connector at the base of

steering column.

3. Remove glove box assembly, Refer to “Passenger

Air Bag Assembly Replacement" in section.

4. Disconnect yellow 2–pin connector behind the glove

box assembly.

CAUTION:  With the “SRS" fuse removed and
ignition switch “ON", “AIR BAG" warning lamp will
be “ON". This is normal operation and does not
indicate an SRS malfunction.

Enabling The SRS

Installation

CAUTION:  Never use the air bag assembly from
another vehicle. Use only the air bag assembly for
UE models.
Turn ignition switch to “LOCK" and remove key.

1. Connect yellow 2–pin connector passenger air bag

assembly.

2. Install glove box assembly, refer to “Passenger Air

Bag Assembly Replacement" in section.

3. Connect yellow 2–pin connector at the base of

steering column.

4. Install “AIR BAG" fuse “METER” and “SRS” to left

dash side lower fuse block or connect battery.

Turn ignition switch to “ON" and verify that the “AIR

SECTION

SUPPLEMENTAL RESTRAINT SYSTEM

9J–11

BAG" warning lamp flashes seven times and then turns
“OFF" If it does not operate as described, perform the
“Supplemental Restraint System (SRS) Diagnostic
System Check" in section.

Handling / Installation / Diagnosis

1. Air bag assembly should not be subjected to

temperatures above 93

°

C (200

°

F

).

2. Air bag assembly, and Sensing and Diagnostic

Module (SDM) should not be used if they have been
dropped from a height of 100 centimeters (3.28
feet).

3. When a SDM is replaced, it must be oriented with

the arrow on the sensor pointing toward the front of
the vehicle.  It is very important for the SDM to be
located flat on the mounting surface, parallel to the
vehicle datum line.  It is important that the SDM
mounting surface is free of any dirt or other foreign
material.

4. Do not apply power to the SRS unless all

components are connected or a diagnostic chart
requests it, as this will set a diagnostic trouble code.

5. The “SRS Diagnostic System Check" must be the

starting point of any SRS diagnostics.  The “SRS
Diagnostic System Check" will verify proper “AIR
BAG" warning lamp operation and will lead you to
the correct chart to diagnose any SRS malfunctions.
Bypassing these procedures may result in extended
diagnostic time, incorrect diagnosis, and incorrect
parts replacement.

Air Bag Assembly Handling /
Shipping / Scrapping

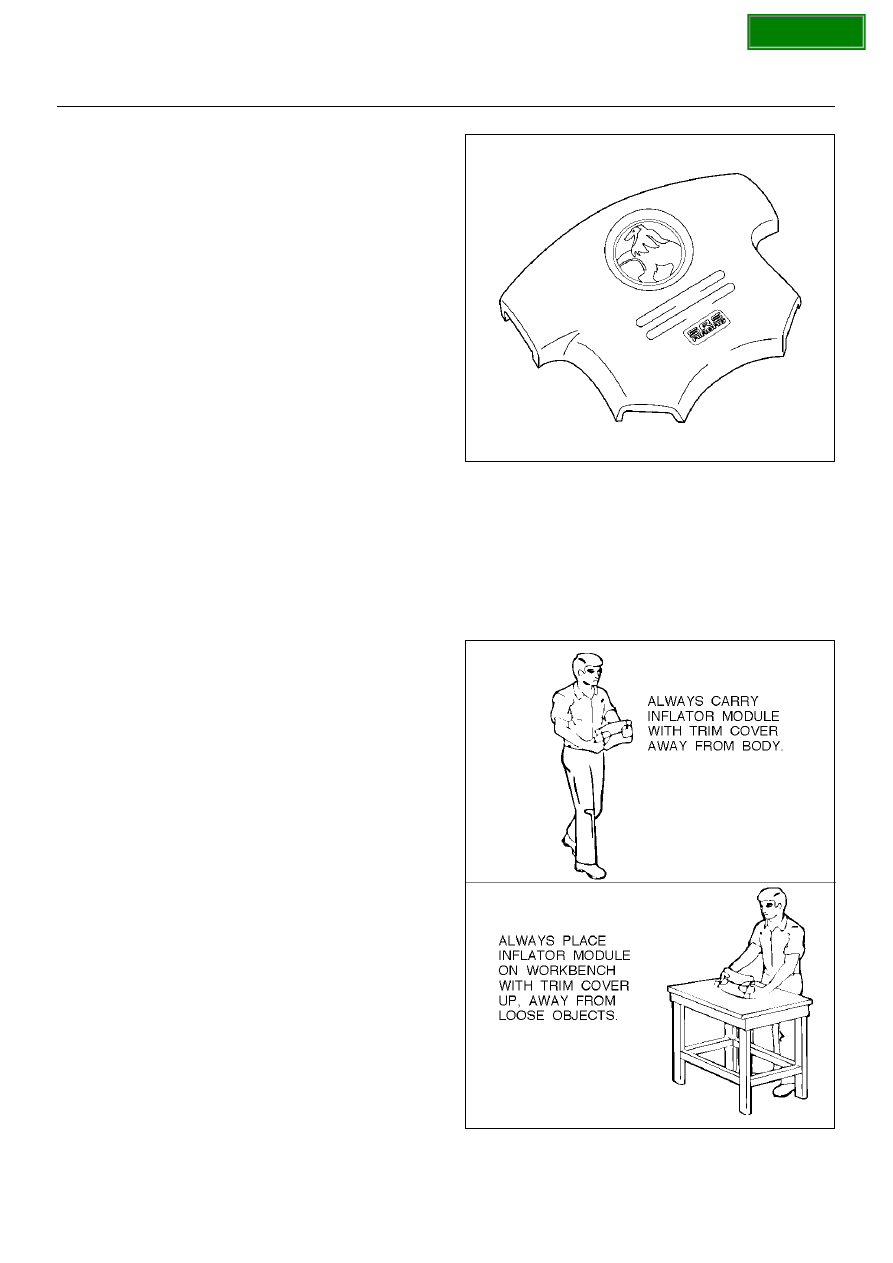

Live (Undeployed) Air Bag Assembly

Special care is necessary when handling and storing a
live (undeployed) air bag assembly.   The rapid gas
generation produced during deployment of the air bag
could cause the air bag assembly, or an object in front of
the air bag assembly, to be thrown through the air in the
unlikely event of an accidental deployment.

827RX037

WARNING:  WHEN CARRYING A LIVE AIR BAG
ASSEMBLY, MAKE SURE THE BAG OPENING IS
POINTED AWAY FROM YOU.   IN CASE OF AN
ACCIDENTAL DEPLOYMENT, THE BAG WILL THEN
DEPLOY WITH MINIMAL CHANCE OF INJURY.
NEVER CARRY THE AIR BAG ASSEMBLY BY THE
WIRES OR CONNECTOR ON THE UNDERSIDE OF
THE MODULE.

827RS044

SECTION

9J–12

SUPPLEMENTAL RESTRAINT SYSTEM

Air Bag Assembly Shipping Procedure For
Live (Undeployed) Air Bag Assemblies

Service personnel should refer to the latest Service
Bulletins for proper Supplemental Restraint System
(SRS) air bag assembly shipping procedures.

Deployed Air Bag Assembly

“You should wear gloves and glasses. After the air bag
assembly has been deployed, the surface of the air bag
may contain solid particulate. This solid particulate
consists primarily of by products of the chemical
reaction, Potassium Chloride and copper metal dust.
Compounds of Potassium Borate, Strontium Chloride,
Copper Chloride, and Ammounium Chloride may be
found in amounts of about 1% (each) of the total
particulate.”

Air Bag Assembly Scrapping Procedure

During the course of a vehicle's useful life, certain
situations may arise which will necessitate the disposal
of a live (undeployed) air bag assembly.  This
information covers proper procedures for disposing of a
live air bag assembly.
Before a live air bag assembly can be disposed of, it
must be deployed.  Alive air bag assembly must not be
disposed of through normal refuse channels.

WARNING:  FAILURE TO FOLLOW PROPER SRS
AIR BAG ASSEMBLY DISPOSAL PROCEDURES
CAN RESULT IN AIR BAG DEPLOYMENT WHICH
MAY CAUSE PERSONAL INJURY.  AN UNDPLOYED
AIR BAG ASSEMBLY MUST NOT BE DISPOSED OF
THROUGH NORMAL REFUSE CHANNELS.  THE
UNDEPLOYED AIR BAG ASSEMBLY CONTAINS
SUBSTANCES THAT CAN CAUSE SEVERE ILLNESS
OR PERSONAL INJURY IF THE SEALED
CONTAINER IS DAMAGED DURING DISPOSAL.
DISPOSAL IN ANY MANNER INCONSISTENT WITH
PROPER PROCEDURES MAY BE A VIOLATION OF
FEDERAL, STATE, AND / OR LOCAL LAW.
In situations which require deployment of a live air bag
assembly module, deployment may be accomplished
inside or outside the vehicle.   The method employed
depends upon the final disposition of the particular
vehicle, as noted in “Deployment Outside Vehicle" and
“Deployment Inside Vehicle" in this section.

Cautions About Air Bag Deployment And
Disposal

Failure to follow proper procedures could result in
erroneous air bag deployment which may cause
personal injury be sure to follow proper procedures.

1. Turn off (Lock) the ignition switch and disconnect the

minus terminal of the battery, then start the work 15
or more sec later. (Air bag is designed to work by
the back-up power source even if the battery power
source is cut off at vehicle collision).

2. Be sure not to disassemble the air bag.

3. Do not give an impact to the air bag and bring the air

bag close to magnet. (The air bag could deploy
unexpectedly).

4. Place the air bag with its trim cover up.

5. Do not let the air bag deploy directly on the floor.

(The air bag may be blown off 20

 ∼

30 cm

 (

6.5 or 10

feet)).

6. Be sure to install the air bag firmly to a deployment

tool (fixing tool).

7. Set a battery 10 m (33 feet) or more away from the

air bag.

8. Before disconnecting air bag harness, ground the

worker by touching the vehicle outer panel with bare
hand.

9. When connecting or disconnecting the harness, do

not work just in front of the air bag.

10. As deployment gives rise to big sound, warn the

people around against it. Further, try to reduce the
sound by covering the steering wheel or tires, and
shut the vehicle windows in case of deployment
inside the vehicle.

11. As deployment generates smoke, select a well

ventilated place. (In case of deployment indoors,
avoid deployment just under a fire alarm, smoke
sensor, and fluorescent lamps).

12. Be careful not to inhale the smoke after deployment.

13. If part of the vehicle glass is damaged, cover the

vehicle with a car cover to prevent the glass from
braking at the time of deployment.

14. Do not touch the air bag immediately after

deployment, since it remains hot for 30 minutes.

15. Do not water the air bag immediately after

deployment.

16. Wear safety glasses and gloves throughout the work

and wash the glasses and gloves after the work.

17. Do not reuse the removed air bag for another

vehicle. (Deployment characteristic is different with
vehicle types).

Deployment Outside Vehicle (Driver Air
Bag Assembly)

Deployment outside the vehicle is proper when the
vehicle is to be returned to service.  This includes, for
example, situations in which the vehicle will be returned
to useful service after a functionally or cosmetically
deficient air bag assembly is replaced.  Deployment and
disposal of a malfunctioning air bag assembly is, of
course, subject to any required retention period.
For deployment of a live (undeployed) air bag assembly
outside the vehicle, the deployment procedure must be
followed exactly.  Always wear safety glasses during this
deployment procedure until a deployed air bag
assembly is scrapped or until an undeployed air bag
assembly is shipped.  Before performing the procedures
you should be familiar with servicing the SRS and with
proper handling of the air bag assembly.  Procedures

SECTION
