SUPPLEMENTAL RESTRAINT SYSTEM

9J–13

should be read fully before they are performed.

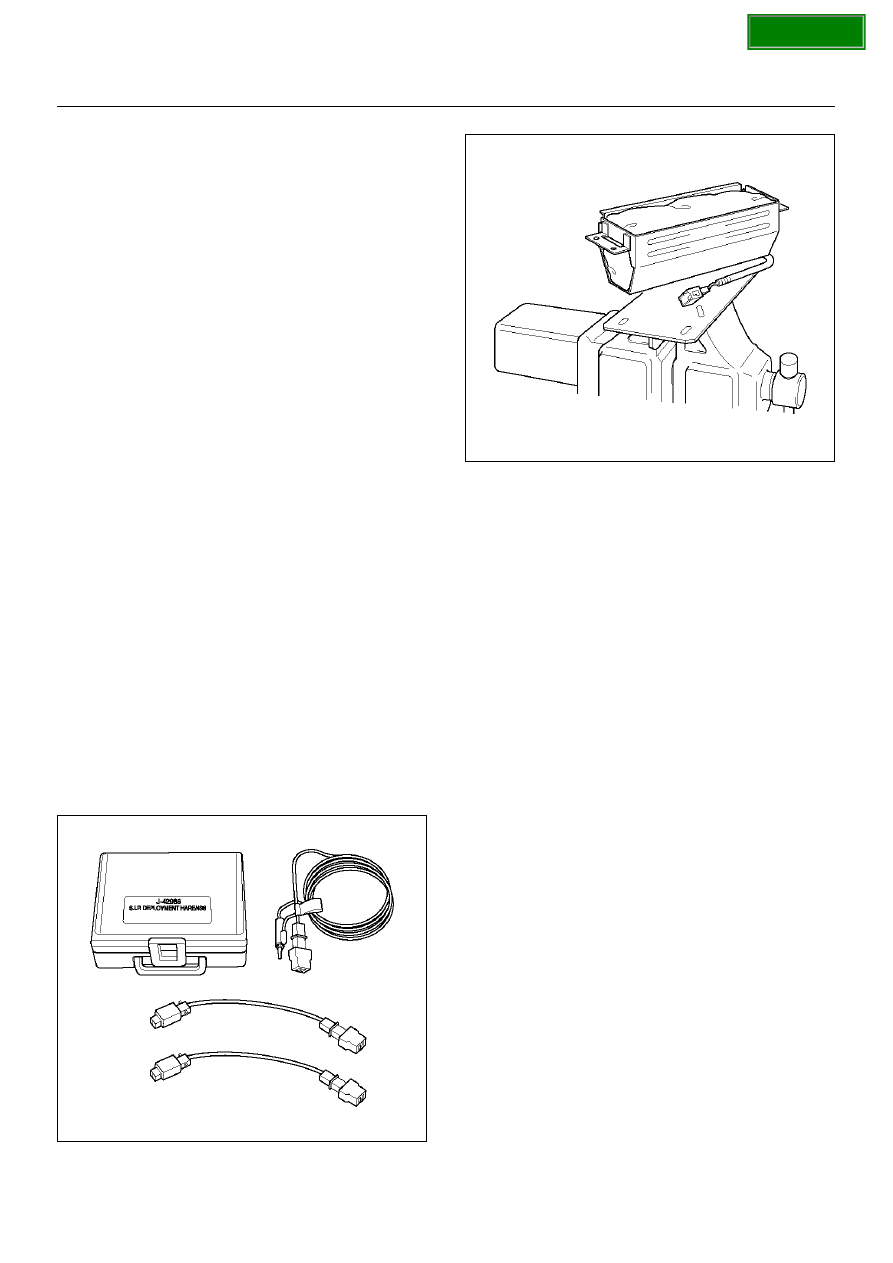

The following procedure requires use of 5–8840–2468–
0 Supplemental Restraint System (SRS) Deployment
Harness with the appropriate pigtail adapter. The
procedure also requires the use of 5–8840–2420–0
Driver Side SRS Deployment Fixture. Do not attempt
this procedure without 5–8840–2468–0 and fixture 5–
8840–2420–0.

901RX046

901RX062

WARNING:  FAILURE TO FOLLOW PROCEDURES IN
THE ORDER LISTED MAY RESULT IN PERSONAL
INJURY.  NEVER CONNECT DEPLOYMENT
HARNESS TO ANY POWER SOURCE BEFORE
CONNECTING DEPLOYMENT HARNESS TO THE
DRIVER AIR BAG ASSEMBLY.  DEPLOYMENT
HARNESS SHALL REMAIN SHORTED AND NOT BE
CONNECTED TO A POWER SOURCE UNTIL THE
AIR BAG IS TO BE DEPLOYED.  THE AIR BAG
ASSEMBLY WILL IMMEDIATELY DEPLOY THE AIR
BAG WHEN A POWER SOURCE IS CONNECTED TO
IT.  WEAR SAFETY GLASSES THROUGHOUT THIS

ENTIRE DEPLOYMENT AND DISPOSAL
PROCEDURE.

NOTE:  This information applies only to driver air bag
assembly .   Refer to “Deployment Outside Vehicle
(Passenger Air Bag Assembly)" in this section for
information on passenger air bag assembly scrapping.

18. Turn ignition switch to “LOCK", remove key and put

on safety glasses.

19. Inspect 5–8840–2419–0 SRS Deployment Harness

and appropriate pigtail adapter for damage.   If
harness or pigtail adapter is damaged, discard and
obtain a replacement.

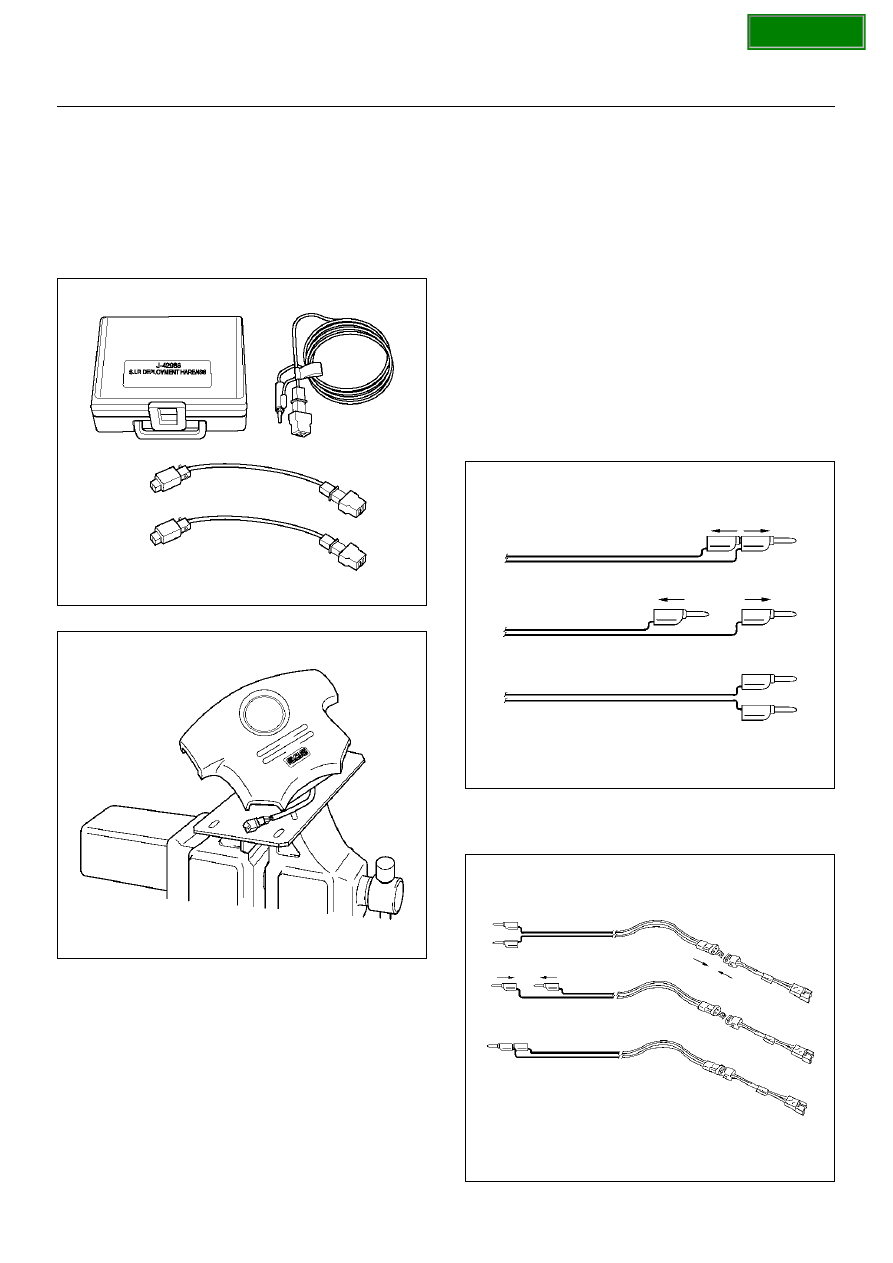

20. Short the two SRS deployment harness leads

together by fully seating one banana plug into the
other.  SRS deployment harness shall remain
shorted and not be connected to a power source
until the air bag is to be deployed.

827RS003

21. Connect the appropriate pigtail adapter to the SRS

deployment harness.

827RS004

SECTION

9J–14

SUPPLEMENTAL RESTRAINT SYSTEM

1. Remove the driver air bag assembly from vehicle.

Refer to driver air bag assembly Removal in this
Section.

WARNING:  WHEN STORING A LIVE AIR BAG
ASSEMBLY OR WHEN LEAVING A LIVE AIR BAG
ASSEMBLY UNATTENDED ON A BENCH OR OTHER
SURFACE, ALWAYS FACE THE AIR BAG AND TRIM
COVER UP AND AWAY FROM THE SURFACE.  THIS
IS NECESSARY SO THAT A FREE SPACE IS
PROVIDED TO ALLOW THE AIR BAG TO EXPAND IN
THE UNLIKELY EVENT OF ACCIDENTAL
DEPLOYMENT. FAILURE TO FOLLOW
PROCEDURES MAY RESULT IN PERSONAL INJURY.

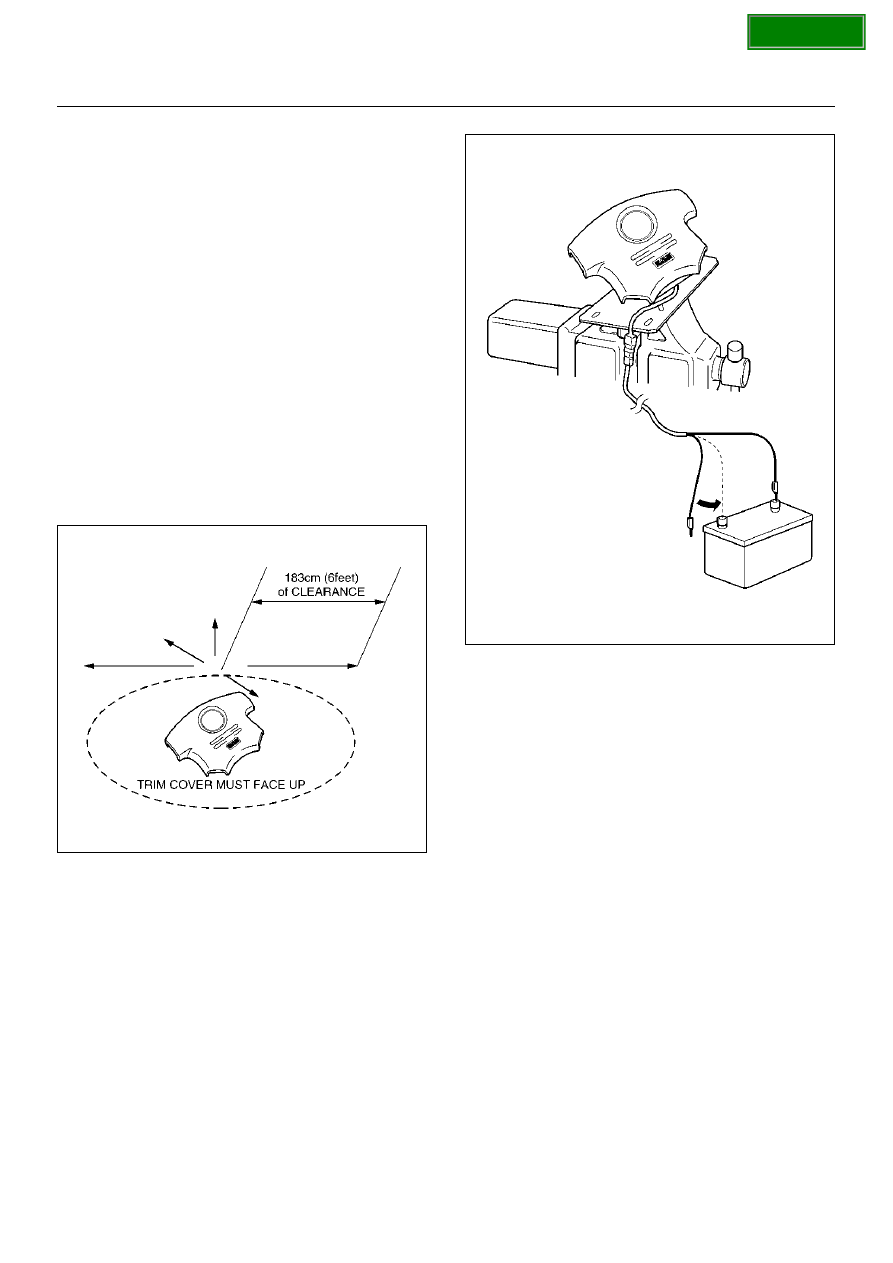

22. Clear a space on the ground about 183 cm (6 feet)

in clearance where the driver air bag assembly is to
be deployed.  A paved, outdoor location where there
is no activity is preferred.  If an outdoor location is
not available, a space on the shop floor where there
is no activity and sufficient ventilation is
recommended.  Ensure no loose or flammable
objects are within the deployment area.

827RX039

23. Place the J–41497 on the bench vice. This is

necessary to provide sufficient stabilization of the
fixture during deployment.

24. Attach the Driver air bag assembly in the J–41497.

Air bag assembly must be mounted such that the
bag will deploy upward. SECURELY HAND–
TIGHTEN ALL FASTENERS PRIOR TO
DEPLOYMENT.

25. Extent double pole extension cord to a position for

away 10 m (33 feet) from the air bag assembly.

26. Place a power source near the shorted end of the

SRS deployment harness.  Recommended
application: 12 volts minimum, 2 amps minimum.  A
vehicle battery is suggested.

827RX042

27. Connect the driver air bag assembly to the pigtail

adapter on the Supplemental Restraint System
(SRS) deployment harness.  Deployment harness
shall remain shorted and not be connected to a
power source until the air bag is to be deployed.
The driver air bag assembly will immediately deploy
the air bag when a power source is connected to it.

NOTE:  Ensure that the pigtail adapter is firmly seated
into the driver air bag assembly connector.  Failure to
fully seat the connectors may leave the shorting bar
located in the driver air bag assembly connector
functioning (shorted) and may result in non deployment
of the driver air bag assembly.

28. Verify that the area around the driver air bag

assembly is clear of all people and loose or
flammable objects.

29. Verify that the driver air bag assembly is firmly and

properly in 5–8840–2420–0.

30. Notify all people in the immediate area that you

intend to deploy the driver air bag.  The deployment
will be accompanied by a substantial noise which
may startle the uninformed.

31. Separate the two banana plugs on the SRS

deployment harness.

NOTE:  When the air bag deploys, the rapid gas
expansion will create a substantial noise.   Notify all
people in the immediate area that you intend to deploy
the driver air bag.

SECTION

SUPPLEMENTAL RESTRAINT SYSTEM

9J–15

WARNING:  DEPLOYMENT HARNESS SHALL
REMAIN SHORTED AND NOT BE CONNECTED TO A
POWER SOURCE UNTIL THE AIR BAG IS TO BE
DEPLOYED.  THE AIR BAG ASSEMBLY WILL
IMMEDIATELY DEPLOY THE AIR BAG WHEN A
POWER SOURCE IS CONNECTED TO IT.
CONNECTING THE DEPLOYMENT HARNESS TO
THE POWER SOURCE SHOULD ALWAYS BE THE
LAST STEP IN THE AIR BAG ASSEMBLY
DEPLOYMENT PROCEDURE.  FAILURE TO FOLLOW
PROCEDURES IN THE ORDER LISTED MAY
RESULT IN PERSONAL INJURY.

32. Connect the Supplemental Restraint System (SRS)

deployment harness wires to the power source to
immediately deploy the driver air bag.
Recommended application: 12 volts minimum, 2
amps minimum.  A vehicle battery is suggested.

33. Disconnect the SRS deployment harness from the

power source.

34. Short the two SRS deployment harness leads

together by fully seating one banana plug into the
other.

35. In the unlikely event that the driver air bag assembly

did not deploy after following these procedures,
proceed immediately with Steps 24 through 26.  If
the driver air bag assembly did deploy, proceed with
Steps 20 through 23.

36. Put on a pair of shop gloves and safety glasses to

protect your hands and eyes from possible irritation
and heat when handling the deployed driver air bag
assembly. After the air bag assembly has been
deployed, the surface of the air bag may contain
solid particulate. This solid particulate consists
primarily of by products of the chemical reaction,
Potassium Chloride and copper metal dust.
Compounds of Potassium Borate, Strontium
Chloride, Copper Chloride, and Ammonium
Chloride may be found in amounts of about 1%
(each) of the total particulate.

WARNING:  SAFETY PRECAUTIONS MUST BE
OBSERVED WHEN HANDING A DEPLOYED AIR
BAG ASSEMBLY.   AFTER DEPLOYMENT, THE
METAL SURFACES OF THE AIR BAG ASSEMBLY
WILL BE VERY HOT.  ALLOW THE INFLATOR
MODULE TO COOL BEFORE HANDLING ANY
METAL PORTION OF IT. DO NOT PLACE THE
DEPLOYED AIR BAG ASSEMBLY NEAR ANY
FLAMMABLE OBJECTS. FAILURE TO FOLLOW
PROCEDURES MAY RESULT IN FIRE OR
PERSONAL INJURY.
AFTER A DRIVER AIR BAG ASSEMBLY HAS BEEN
DEPLOYED, THE METAL CANISTER AND
SURROUNDING AREAS OF THE DRIVER AIR BAG
ASSEMBLY WILL BE VERY HOT. DO NOT TOUCH
THE METAL AREAS OF THE DRIVER AIR BAG
ASSEMBLY FOR ABOUT TEN MINUTES AFTER
DEPLOYMENT. IF THE DEPLOYED DRIVER AIR BAG
ASSEMBLY MUST BE MOVED BEFORE IT IS COOL,

WEAR GLOVES AND HANDLE BY THE AIR BAG OR
TRIM COVER.

37. Disconnect the pigtail adapter from the driver air

bag assembly as soon after deployment as possible.
This will prevent damage to the pigtail adapter or
SRS deployment harness due to possible contact
with the hot driver air bag assembly canister.  The
pigtail adapter can be reused.  They should,
however, be inspected for damage after each
deployment and replaced if necessary.

38. Dispose of the deployed driver air bag assembly

through normal refuse channels after it has cooled
for at least 30 minutes.

39. Wash your hands with mild soap and water

afterward.

NOTE:  The remaining steps are to be followed in the
unlikely event that the driver air bag assembly did not
deploy after following these procedures.

40. Ensure that the SRS deployment harness has been

disconnected from the power source and that its two
banana plugs have been shorted together by fully
seating one banana plug into the other.

827RW055

41. Disconnect the pigtail adapter from the driver air

bag assembly.

WARNING:  WHEN STORING A LIVE AIR BAG
ASSEMBLY OR WHEN LEAVING A LIVE INFLATOR
MODULE UNATTENDED ON A BENCH OR OTHER
SURFACE, ALWAYS FACE THE BAG AND TRIM
COVER UP AND AWAY FROM THE SURFACE.  THIS
IS NECESSARY SO THAT A FREE SPACE IS
PROVIDED TO ALLOW THE AIR BAG TO EXPAND IN
THE UNLIKELY EVENT OF ACCIDENTAL
DEPLOYMENT.  FAILURE TO FOLLOW
PROCEDURES MAY RESULT IN PERSONAL INJURY.

42. Temporarily store the driver air bag assembly with

its trim cover facing up, away from the surface upon
which it rests.

SECTION

9J–16

SUPPLEMENTAL RESTRAINT SYSTEM

Deployment Outside Vehicle (Passenger
Air Bag Assembly)

WARNING:  FAILURE TO FOLLOW PROPER SRS
AIR BAG ASSEMBLY DISPOSAL PROCEDURES
CAN RESULT IN AIR BAG DEPLOYMENT WHICH
MAY CAUSE PERSONAL INJURY.  UNDEPLOYED
AIR BAG ASSEMBLIES MUST NOT BE DISPOSED
OF THROUGH NORMAL REFUSE CHANNELS.  THE
UNDEPLOYED AIR BAG ASSEMBLY CONTAINS
SUBSTANCES THAT CAN CAUSE SEVERE ILLNESS
OR PERSONAL INJURY IF THE SEALED
CONTAINER IS DAMAGED DURING DISPOSAL.
DISPOSAL IN ANY MANNER INCONSISTENT WITH
PROPER PROCEDURES MAY BE A VIOLATION OF
FEDERAL, STATE AND/OR LOCAL LAWS.
Deployment out of the vehicle is proper when the
vehicle is to be returned to service.  This includes, for
example, situations in which a functionally or
cosmetically deficient air bag assembly is replaced.
Deployment and disposal of an air bag assembly is, of
course, subject to any required retention period.
For deployment of a live air bag assembly out of the
vehicle, the deployment procedure must be followed
exactly.  Always wear safety glasses during this
deployment procedure until the deployed air bag
assembly is scrapped.  Before performing the
procedures, you should be familiar with servicing the
SRS system and with proper handling of the air bag
assembly.  Procedures should be read fully before they
are performed.
The following procedure requires use of 5–8840–2468–
0 SRS Deployment Harness with the appropriate pigtail
adapter.  The procedure also requires the use of 5–
8840–2420–0 Passenger Side Supplemental Restraint
System (SRS) Deployment Fixture.  Do not attempt this
procedure without 5–8840–2468–0 and fixture 5–8840–
2420–0.

901RX046

901RW088

WARNING:  FAILURE TO FOLLOW PROCEDURES IN
THE ORDER LISTED MAY RESULT IN PERSONAL
INJURY.  NEVER CONNECT DEPLOYMENT
HARNESS TO ANY POWER SOURCE BEFORE
CONNECTING DEPLOYMENT HARNESS TO THE
AIR BAG ASSEMBLY.  DEPLOYMENT HARNESS
SHALL REMAIN SHORTED AND NOT BE
CONNECTED TO A POWER SOURCE UNTIL THE
AIR BAG IS TO BE DEPLOYED.  THE AIR BAG
ASSEMBLY WILL IMMEDIATELY DEPLOY THE AIR
BAG WHEN A POWER SOURCE IS CONNECTED TO
IT.  WEAR SAFETY GLASSES THROUGHOUT THIS
ENTIRE DEPLOYMENT AND DISPOSAL
PROCEDURE.

NOTE:  This information applies only to passenger air
bag assembly.  Information for disposing of a live driver
air bag assembly can be found in “Deployment Outside
Vehicle" (Driver Air Bag Assembly) in this section.

43. Turn ignition switch to “LOCK" remove key, and put

on safety glasses.

44. Inspect 5–8840–2419–0 SRS Deployment Harness

and appropriate pigtail adapter for damage.  If
harness or pigtail is damaged, discard and obtain a
replacement.

45. Short the two SRS Deployment Harness leads

together by fully seating one banana plug into the
other.  The SRS Deployment Harness shall remain
shorted and not be connected to a power source
until the air bag is to be deployed.

SECTION















Content   ..  1741  1742  1743  1744   ..
