Opel Frontera UE. Manual - part 1740





SUPPLEMENTAL RESTRAINT SYSTEM

9J–1

FONTERA

RESTRAINTS

SUPPLEMENTAL RESTRAINT SYSTEM

CONTENTS

Service Precaution......................................... 9J - 1
General Description ....................................... 9J - 2
SRS Component and Wiring Location View .. 9J - 4
Component Description ................................. 9J - 4
Definition........................................................ 9J - 7
Diagnosis ....................................................... 9J - 8
SRS Connector Body Face Views ................. 9J - 9
Repairs and Inspections Required After

an Accident .................................................. 9J - 9

On–Vehicle Service ....................................... 9J - 10
Air Bag Assembly Handling / Shipping /

Scrapping..................................................... 9J - 11

Special Tools ................................................. 9J - 27
Service Precaution......................................... 9J - 33

Sensing and Diagnostic Module (SDM) ........ 9J - 35

Service Precautions.................................... 9J - 35
Removal ..................................................... 9J - 35
Installation .................................................. 9J - 35

Driver Air Bag Assembly ............................... 9J - 37

Service Precautions.................................... 9J - 37
Removal ..................................................... 9J - 37
Installation .................................................. 9J - 37

Steering Wheel.............................................. 9J - 38

Service Precautions.................................... 9J - 38
Removal...................................................... 9J - 38
Installation................................................... 9J - 39

SRS Coil Assembly ....................................... 9J - 40

Service Precaution...................................... 9J - 40
Removal...................................................... 9J - 40
How to Disconnect the horn terminal.......... 9J - 42
How to Connect  Horn Terminal ................. 9J - 42
Installation................................................... 9J - 43

Steering Column ........................................... 9J - 45

Service Precaution...................................... 9J - 45
Removal...................................................... 9J - 45
Installation................................................... 9J - 47

Passenger Air Bag Assembly........................ 9J - 49

Service Precaution...................................... 9J - 49
Removal...................................................... 9J - 49
Installation................................................... 9J - 49

Main Data and Specifications ........................ 9J - 50
SRS Air Bag System Inspection Standards

For Repair .................................................... 9J - 51

Service Precaution

WARNING:  THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT  AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE
SRS COMPONENTS OR THE  SRS WIRING, REFER
TO THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR  BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION:  Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after  removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE  SPECIFIED, do not
use supplemental coatings (Paints, greases, or
other corrosion inhibitors) on threaded fasteners  or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force,  and may damage the fastener.
When you install fasteners, use the correct
tightening sequence and specifications.  Following
these instructions can help you avoid damage to
parts and systems.

SECTION

9J–2

SUPPLEMENTAL RESTRAINT SYSTEM

General Description

CAUTION:  When fasteners are removed, always
reinstall them at the same location from which they
were removed. If a fastener needs to be replaced,
use the correct part number fastener for that
application. If the correct part number fastener is
not available, a fastener of equal size and strength
(or stronger) may be used. fasteners that are not
reused, and those requiring thread locking
compound will be called out. The correct torque
value must be used when installing fasteners that
require it. If the above conditions are not followed,
parts or system damage could result.

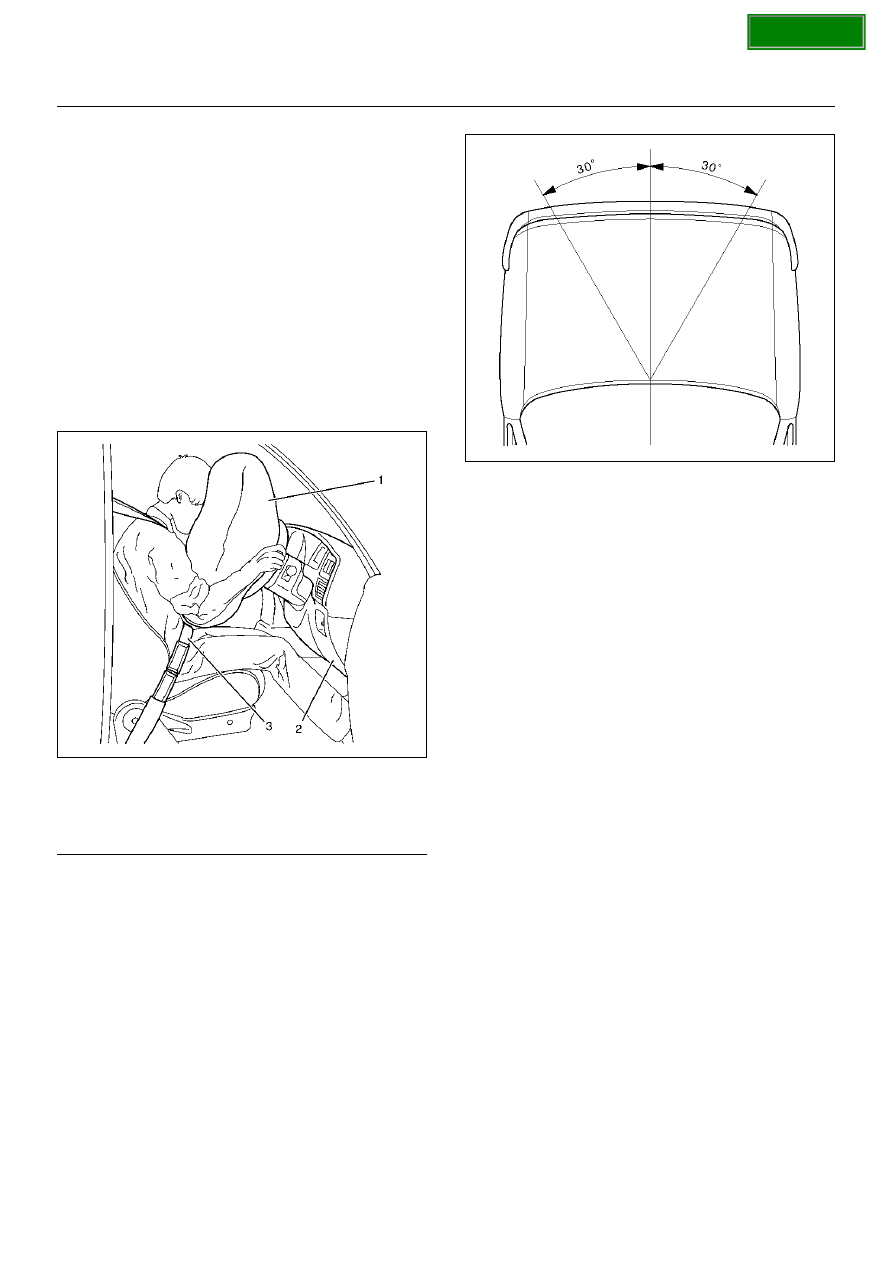

Restraint Devices

827RX044

Legend

EndOFCallout

The Supplemental Restraint System (SRS) helps
supplement the protection offered by the driver and front
passenger seat belts by deploying an air bag from the
center of the steering wheel and from the top of the right
side of the instrument panel.
The air bag deploys when the vehicle is involved in a
frontal crash of sufficient force up to 30 degrees off the
centerline of the vehicle.   To further absorb the crash
energy there is a knee bolster located beneath the
instrument panel for both the driver and passenger, and
the steering column is collapsible.

827RX050

System Description

The SRS consists of the Sensing and Diagnostic
Module (SDM), the driver air bag assembly, the SRS coil
assembly, the passenger air bag assembly, and the “AIR
BAG“ warning lamp in the instrument cluster.   The
SDM, SRS coil assembly (driver side only), driver air
bag assembly, passenger air bag assembly and
connector wire make up the deployment loops.  The
function of the deployment loops is to supply current
through air bag assembly, which will cause deployment
of the air bags in the event of a frontal crash of sufficient
force, up to 30 degrees off the centerline of the vehicle.
The air bag assemblies are only supplied enough
current to deploy when the SDM detects vehicle velocity
changes severe enough to warrant deployment.
The SDM contains a sensing device which converts
vehicle velocity change to an electrical signal.   The
electrical signal generated is processed by the SDM
and then compared to a value stored in memory.   When
the generated signal exceeds the stored value, the SDM
will cause current to flow through the air bag assembly
deploying the air bags.

(1) Deployed Air Bag
(2) Knee Bolster
(3) Seat Belt

SECTION

SUPPLEMENTAL RESTRAINT SYSTEM

9J–3

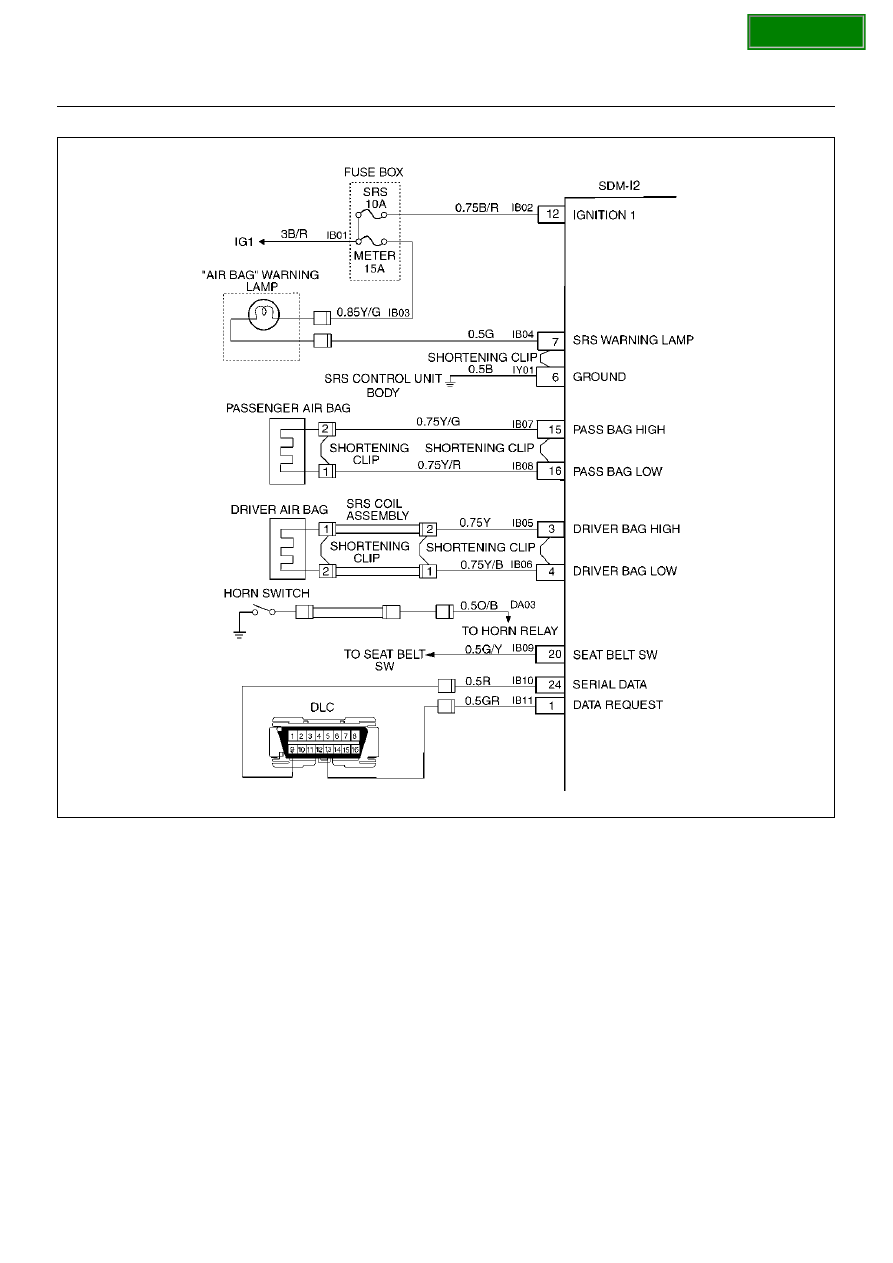

D09RX002

SECTION

9J–4

SUPPLEMENTAL RESTRAINT SYSTEM

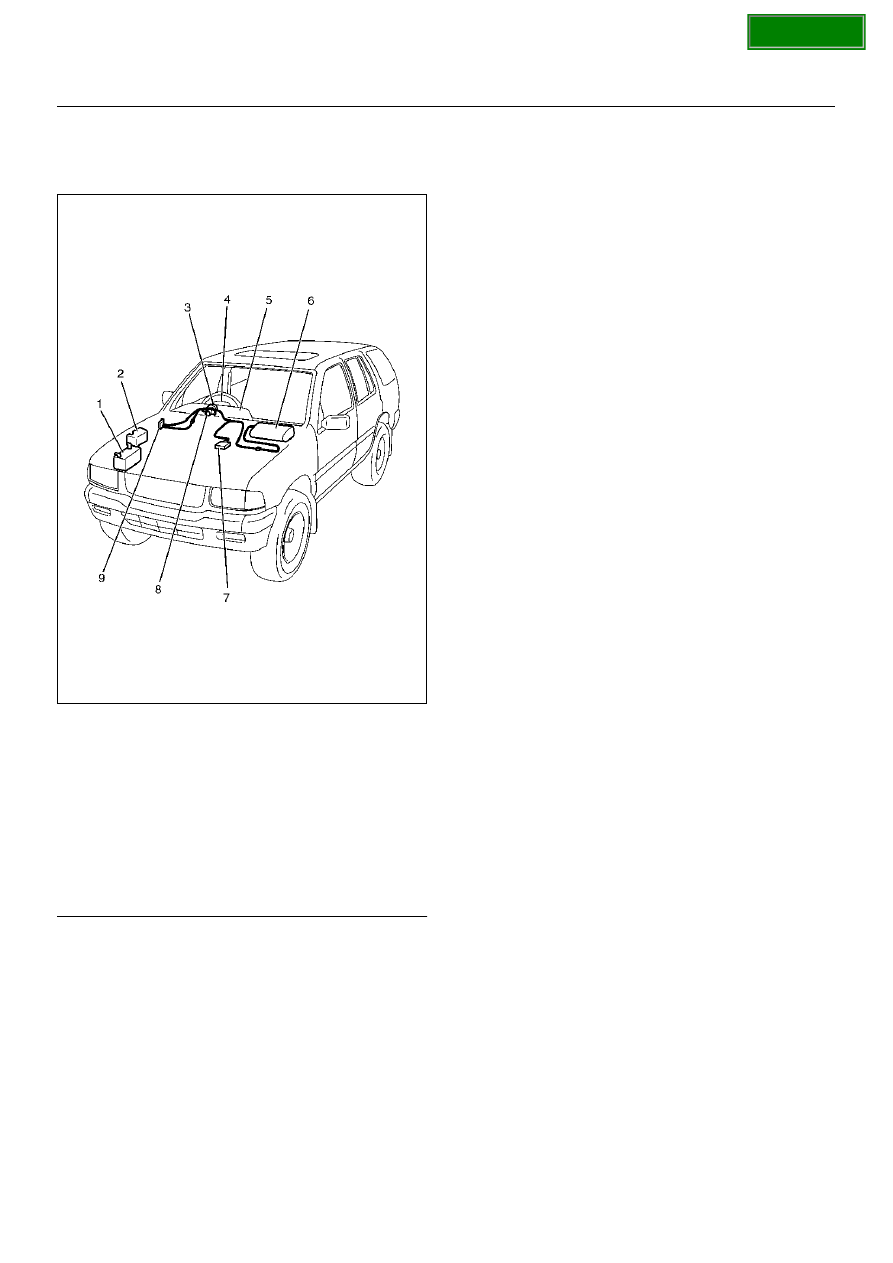

SRS Component and Wiring
Location View

810RX015

Legend

EndOFCallout

Component Description

SDM (Sensing and Diagnostic Module)

WARNING:  DURING SERVICE PROCEDURES, BE
VERY CAREFUL WHEN HANDLING A SDM.   NEVER
STRIKE OR JAR THE SDM.  NEVER POWER UP THE
SRS WHEN THE SDM IS NOT RIGIDLY ATTACHED
TO THE VEHICLE.   ALL SDM AND MOUNTING
BRACKET FASTENERS MUST BE CAREFULLY
TORQUED AND THE ARROW MUST BE POINTED
TOWARD THE FRONT OF THE VEHICLE TO
ENSURE PROPER OPERATION OF THE SRS.  THE
SDM COULD BE ACTIVATED WHEN POWERED

WHILE NOT RIGIDLY ATTACHED TO THE VEHICLE
WHICH COULD CAUSE DEPLOYMENT AND RESULT
IN PERSONAL INJURY.
The SDM is designed to perform the following functions
in the Supplemental Restraint System (SRS):

1. Energy Reserve — The SDM maintains 24–Volt

Loop Reserve (24VLR) energy supply to provide
deployment energy when ignition voltage is lost in a
frontal crash.

2. Frontal Crash Detection — The SDM monitors

vehicle velocity changes to detect frontal crashes
which are severe enough to warrant deployment.

3. Air Bag Deployment — When a frontal crash of

sufficient force is detected, the SDM will cause
enough current to flow through the air bag assembly
to deploy the air bag.

4. Malfunction Detection — The SDM performs

diagnostic monitoring of SRS electrical components
and sets a diagnostic trouble code when a
malfunction is detected.

5. Frontal Crash Recording — The SDM records

information regarding SRS status during frontal
crash.

6. Malfunction Diagnosis — The SDM displays SRS

diagnostic trouble codes and system status
information through the use of a scan tool.

7. Driver Notification — The SDM warns the vehicle

driver of SRS malfunctions by controlling the “Air
Bag" warning lamp.

The SDM is connected to the SRS wiring harness by a
24–pin connector.   This harness connector uses a
shorting clip across certain terminals in the contact
area.   This shorting clip connects the “AIR BAG"
warning lamp to ground when the SDM harness
connector is disconnected or Connector Position
Assurance (CPA) is not inserted even if completely
connected.   This will cause the “AIR BAG" warning
lamp to come “ON" steady whenever the ignition switch
is at the ON or START positions with the SDM
disconnected.

(1) Battery
(2) Relay & Fuse Box
(3) SRS Coil Assembly
(4) Driver Air Bag Assembly
(5) Meter Assembly
(6) Passenger Air Bag Assembly
(7) SDM
(8) Starter Switch
(9) Fuse Box, SRS, METER

SECTION
