9A–8

SEAT BELT SYSTEM

Rear Center Seat Belt / Buckle Assembly

Rear Center Seat Belt / Buckle Assembly and Associated Parts

755R200006

Legend

EndOFCallout

Removal

1. Remove the rear cushion frame assembly.

• Refer to Rear Seat Assembly in Seats section.

2. Remove the rear seat lock assembly and rear seat

belt buckle assembly.

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Tighten the rear seat lock assembly and rear seat

belt buckle assembly fixing bolts to the specified
torque.

Torque: 39N·m (4.0 kg·m/29lbft)

NOTE:  Removal and installation procedure of rear
center seat belt assembly same as rear seat belt buckle
assembly procedures.

(1) Rear Seat Lock Assembly
(2) Rear Seat Belt Buckle Assembly

(3) Rear Cushion Frame Assembly

SECTION

SEAT BELT SYSTEM

9A–9

Child Seat Tether Anchor Bracket (Child Restraint)

General Description

Plastic plug is provided at two or three places on the
luggage floor panel.
Remove the center plug fom the floor panel.
Install the bracket to the hole where the plug is

removed.
Alternatively, the bracket may be installed in the
right-hand or left-hand plug hole.

Child Seat Tether Anchor Bracket and Associated Parts

760R100042

Legend

EndOFCallout

Installation

1. Turn the plug counterclockwise to remove it.

2. Install the bracket such that its tether belt hook hole

is facing toward the front of the vehicle.

3. Tighten the fixing bolt to the specified torque.

Torque: 20N·m (2.0kg·m/14lbft)

(1) Rear Seat
(2) Luggage Floor carpet

(3) Child Seat Tether Anchor Bracket
(4) Tether Anchor Plug

SECTION

9A–10

SEAT BELT SYSTEM

Main Data and Specifications

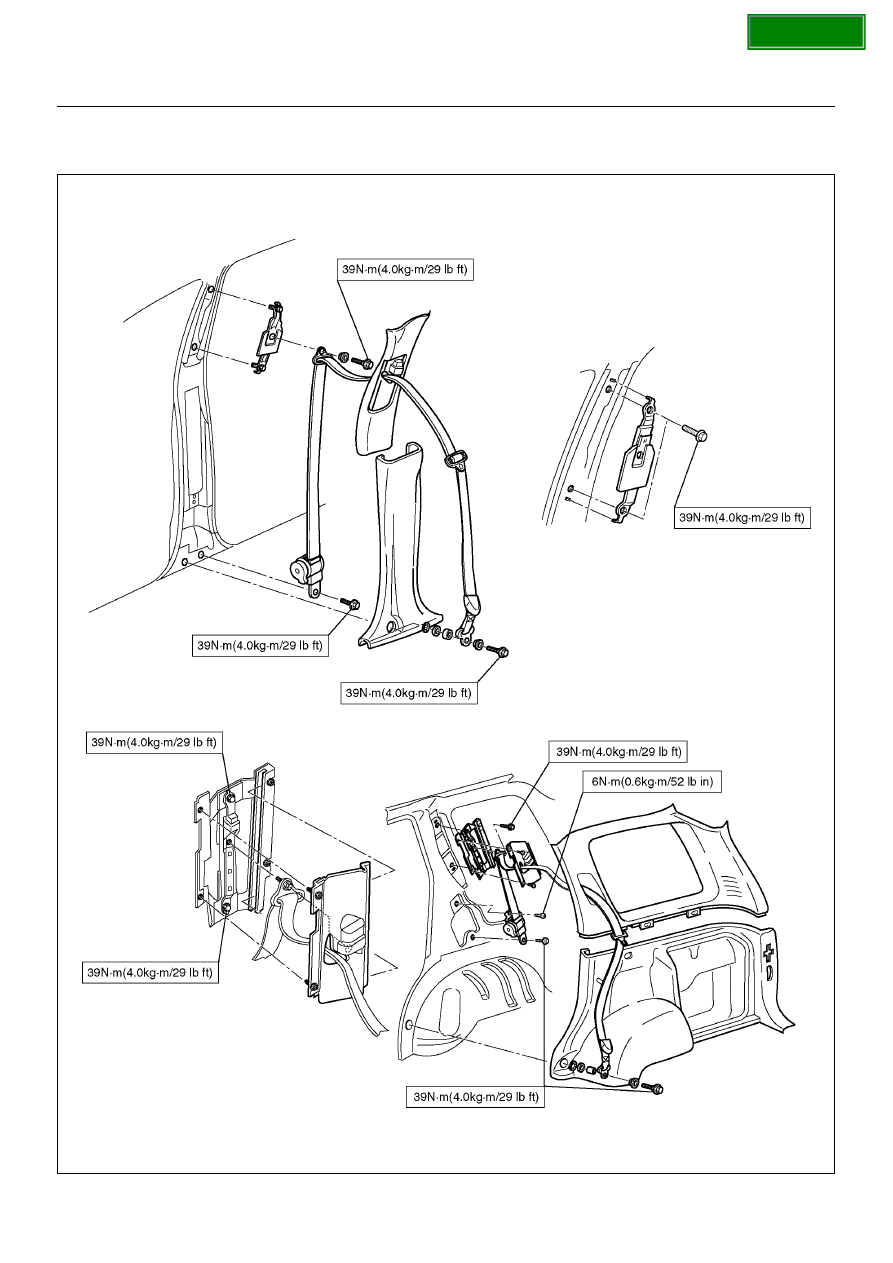

Torque Specifications

760R100050

SECTION

SEAT BELT SYSTEM

9A–11

760R100044
