Sunroof Frame Complete Assembly

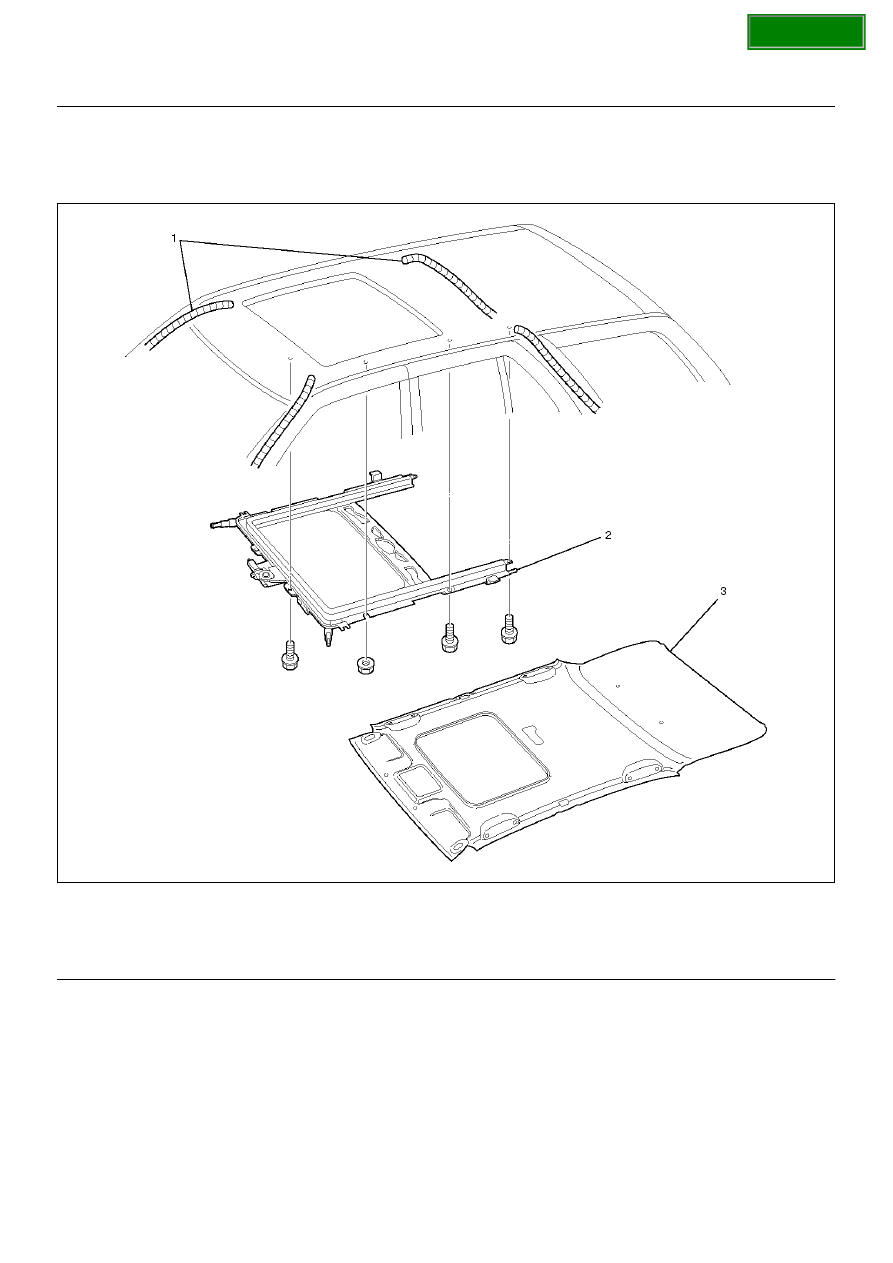

Sunroof Frame Complete Assembly and Associated Parts

665RW005

Legend

EndOFCallout

Removal

1. Disconnect the battery ground cable.

2. Remove the headlining.

• Refer to Headlining in Exterior/Interior Trim

section.

(1) Sunroof Drain Hose
(2) Sunroof Frame Complete Assembly

(3) Headlining

SECTION

8I–8

SUNROOF/CONVERTIBLE TOP

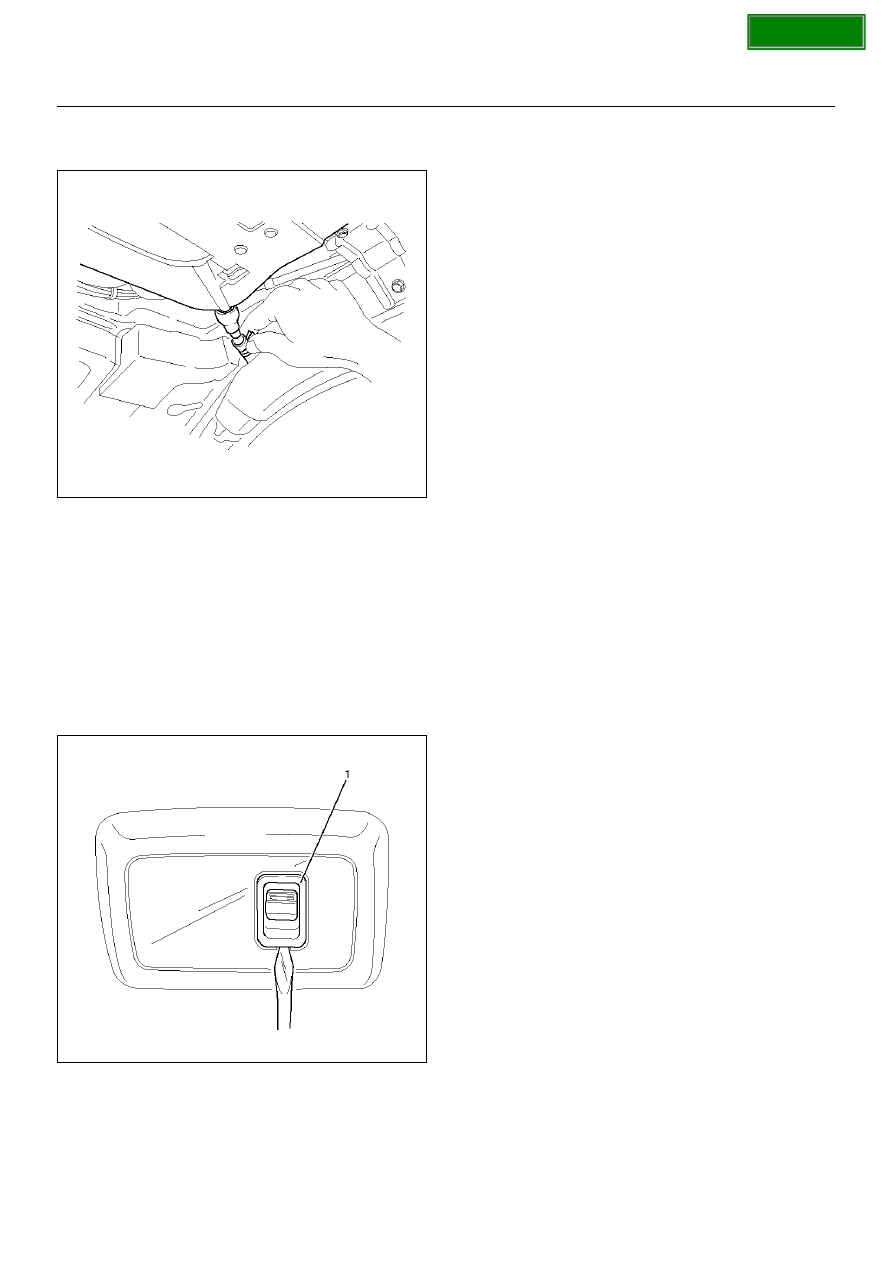

3. Disconnect the sunroof drain hose at the sunroof

frame side as shown in the figure.

665RW010

4. Disconnect the sunroof harness connection.

5. Remove two sunroof frame complete assembly

fixing nuts (front side) and six fixing bolts from the
frame complete assembly, and then remove the
sunroof frame complete assembly.

NOTE:  Be sure to remove the frame complete
assembly while supporting it.

Installation

1. Install the sunroof frame complete assembly.

2. After installing the frame complete assembly, loosen

the sunroof glass fixing nuts and adjust the sunroof
glass setting position.

• Refer to Sunroof Glass in this section.

3. Install the sunroof drain hose.

4. Install the headlining.

• Refer to Headlining in Exterior/Interior Trim

section.

Sunroof Switch

Removal

1. Disconnect the battery ground cable.

2. Remove the sunroof switch (1).

• Remove the switch by pushing the spring with the

tip of a screwdriver.

• Disconnect the switch connector.

825RW091

Installation

To install, follow the removal steps in the reverse order.

SECTION

SUNROOF/CONVERTIBLE TOP

8I–9

Sunroof Control Unit

Removal

1. Disconnect the battery ground cable.

2. Remove the headlining.

• Refer to Headlining in Exterior/Interior Trim

section.

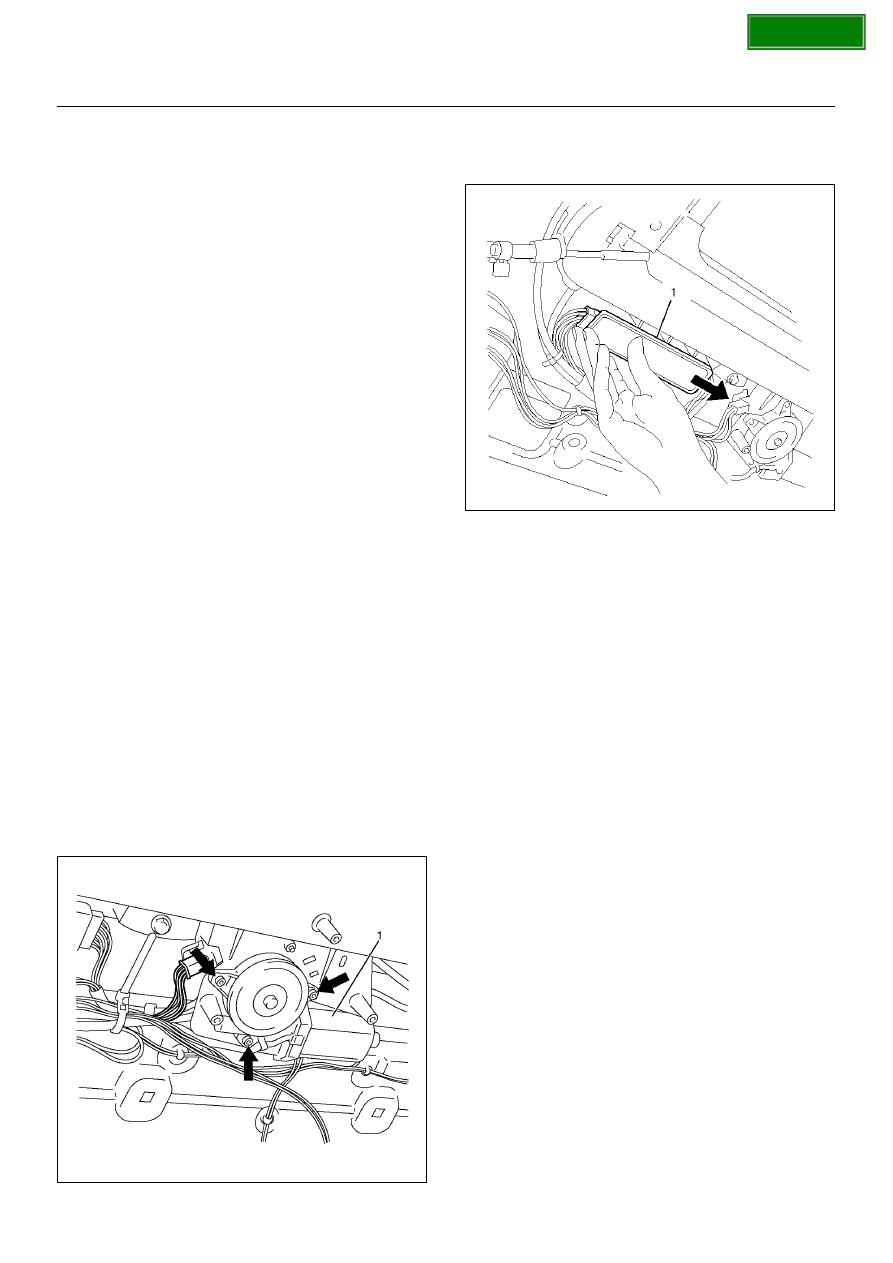

3. Remove the sunroof control unit (1).

• Disconnect two connectors.

• Slide it to the direction indicated by arrow in the

illustration and remove it.

665RW013

Installation

To install, follow the removal steps in the reverse order.

Sunroof Motor

Removal

1. Disconnect the battery ground cable.

2. Remove the headlining.

• Refer to Headlining in Exterior/Interior Trim

section.

3. Remove the sunroof motor (1).

• Disconnect the connector.

• Remove the three screws.

665R100001

Installation

To install, follow the removal steps in the reverse order.

SECTION

8I–10

SUNROOF/CONVERTIBLE TOP

Main Data and Specifications

Torque Specification

Application

N·m

kg·m

lb in

Sunroof Glass Fixing Screws

4

0.4

35
