Reading the Circuit Diagram

In this section, each system has its own parts location
illustration and circuit diagram. And harness connector
faces used in the circuit diagram are shown at the end of
this section.

Parts Location

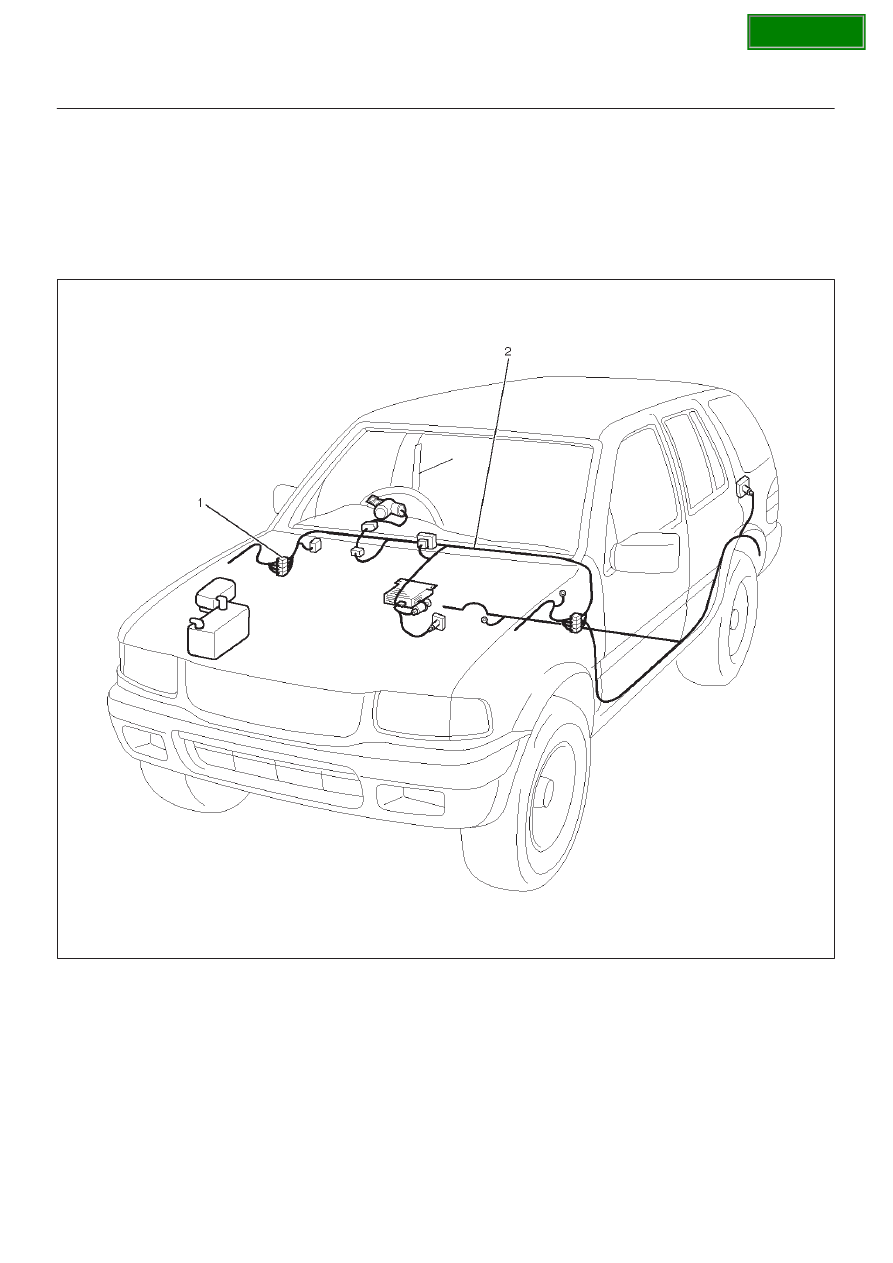

The parts location shows the location of the connectors
(1) and the harness (2) used in each harness routing.

D08RWD38

SECTION

8D–23

WIRING SYSTEM

Circuit Diagram

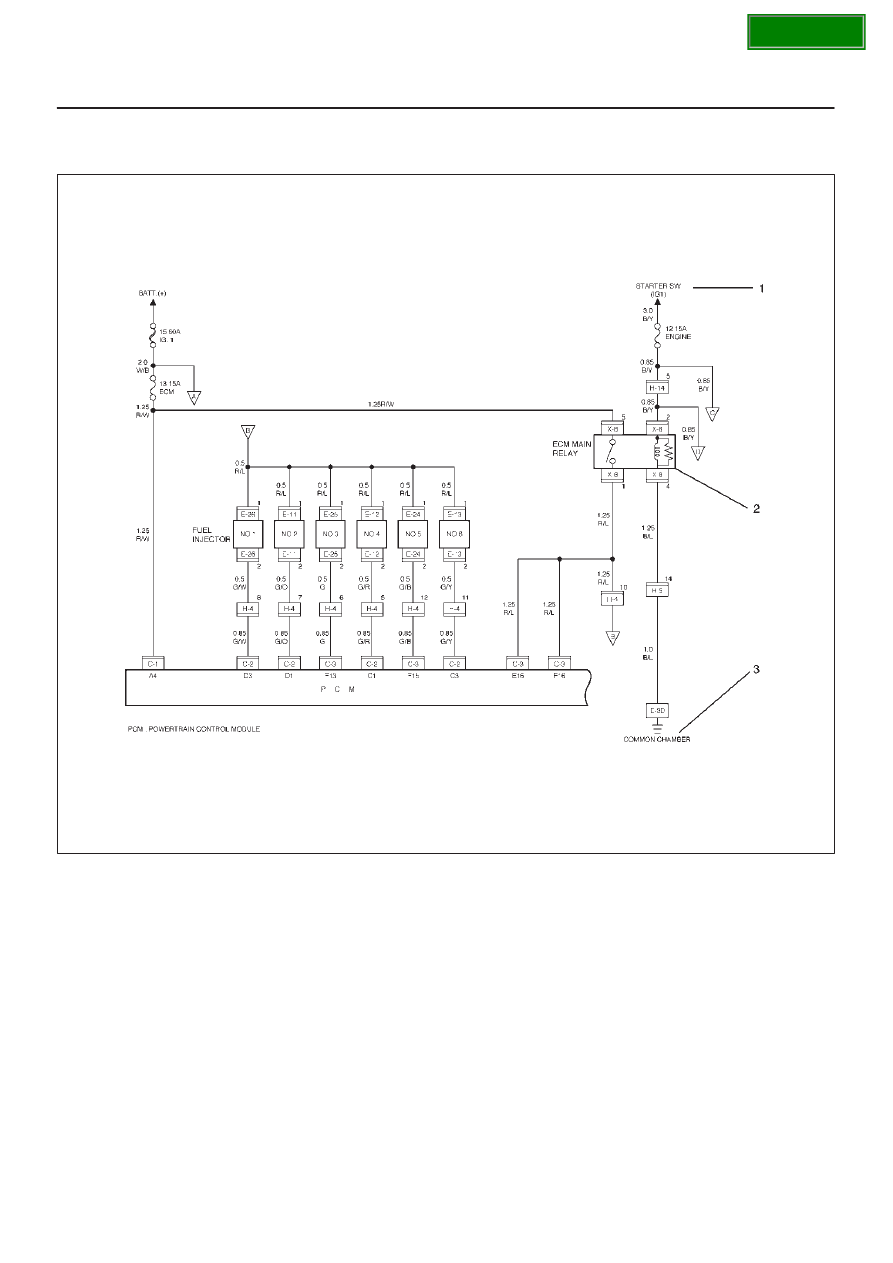

The circuit diagram shows the power supply (1) the load
or loads (2) and the grounding point(s) (3).

D08RX124

SECTION

8D–24

WIRING SYSTEM

Harness Connector Faces

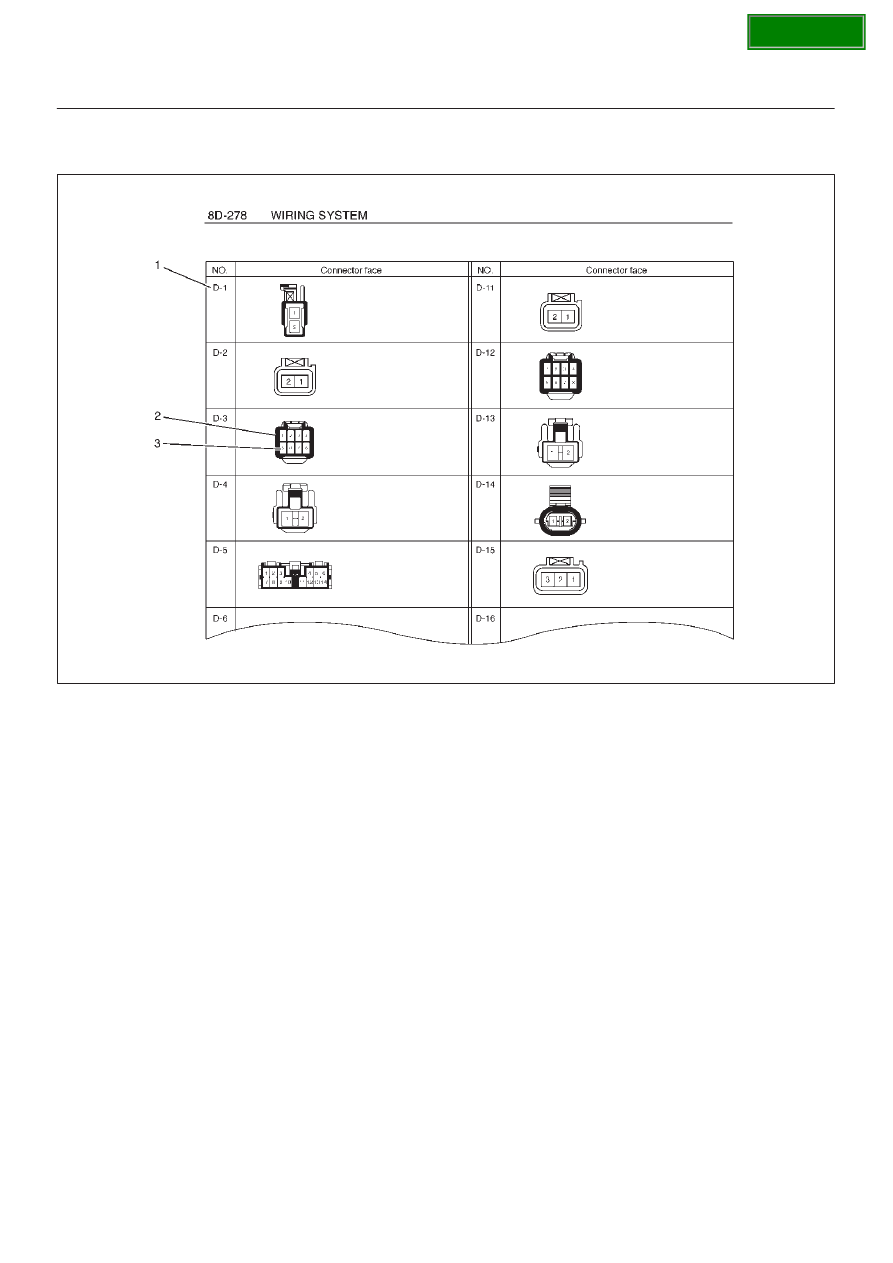

The harness connector faces show each connector’s
number (1), configuration (2) and the pin number (3).

F00RX011

SECTION

8D–25

WIRING SYSTEM

Main Data and Specifications

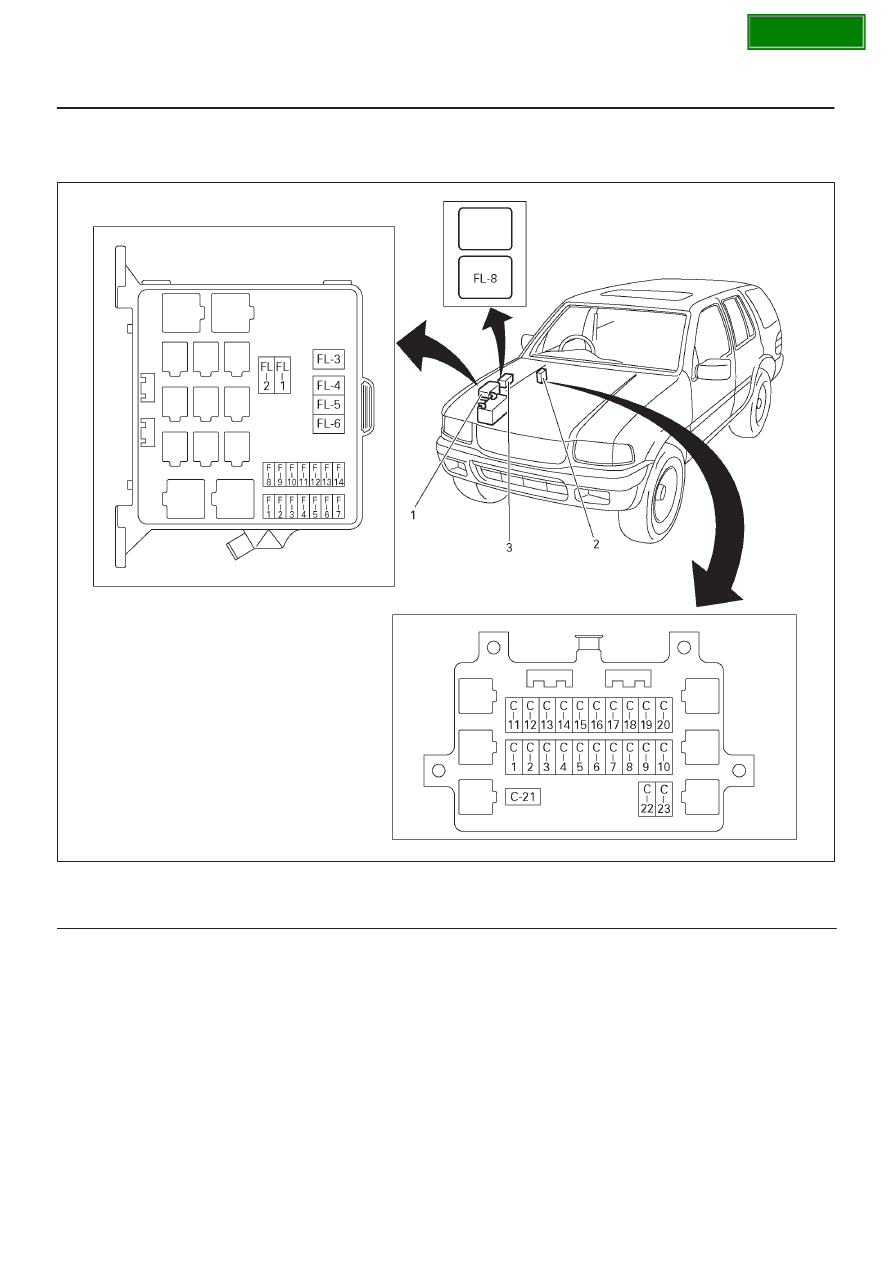

Fuse, Fusible Link and Circuit Breaker Location

810R100009

Legend

(1) Relay & Fuse Box (Engine Room)

(2) Relay & Fuse Box (Instrument Panel)
(3) Relay & Fuse Option Box (Engine Room)
