Opel Frontera UE. Manual - part 1649
8D–26
WIRING SYSTEM

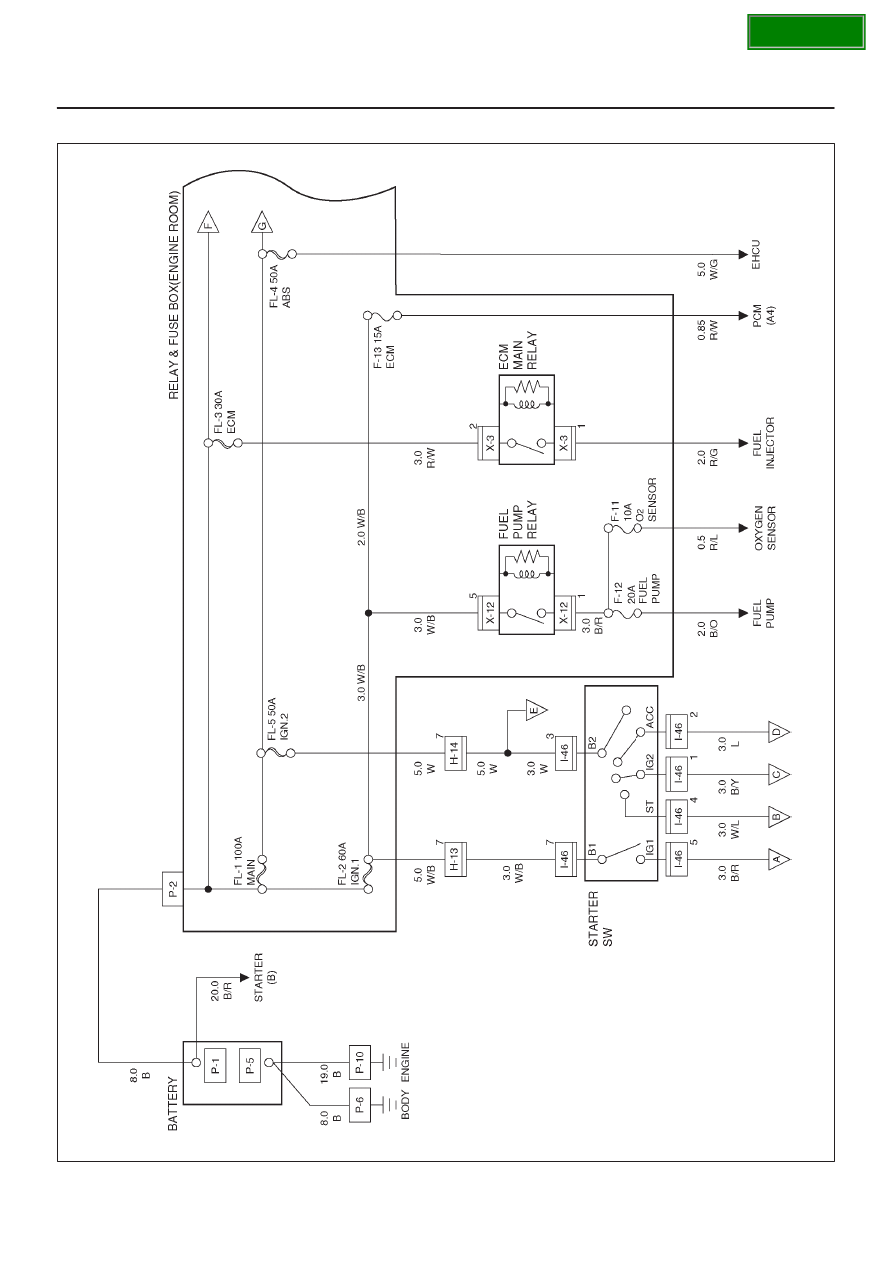

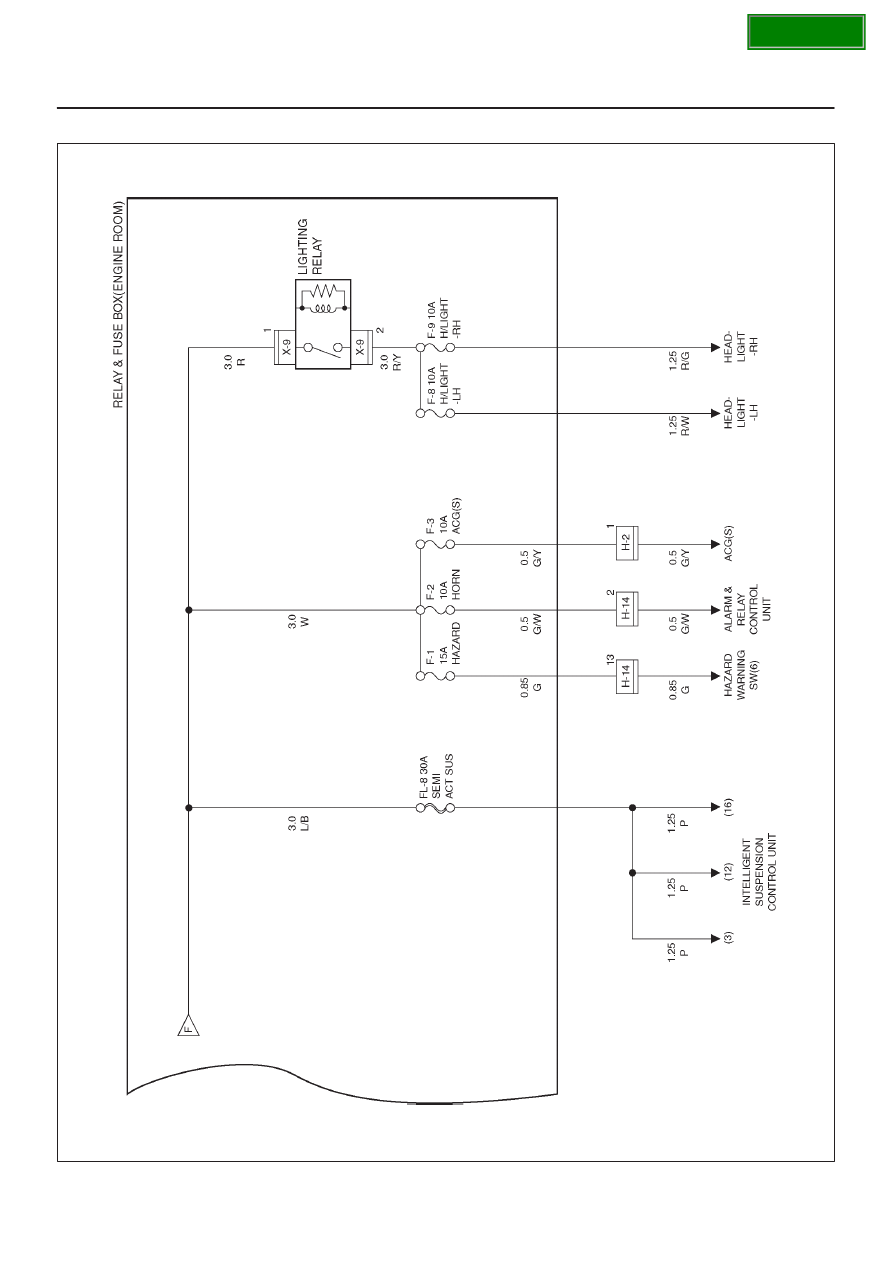

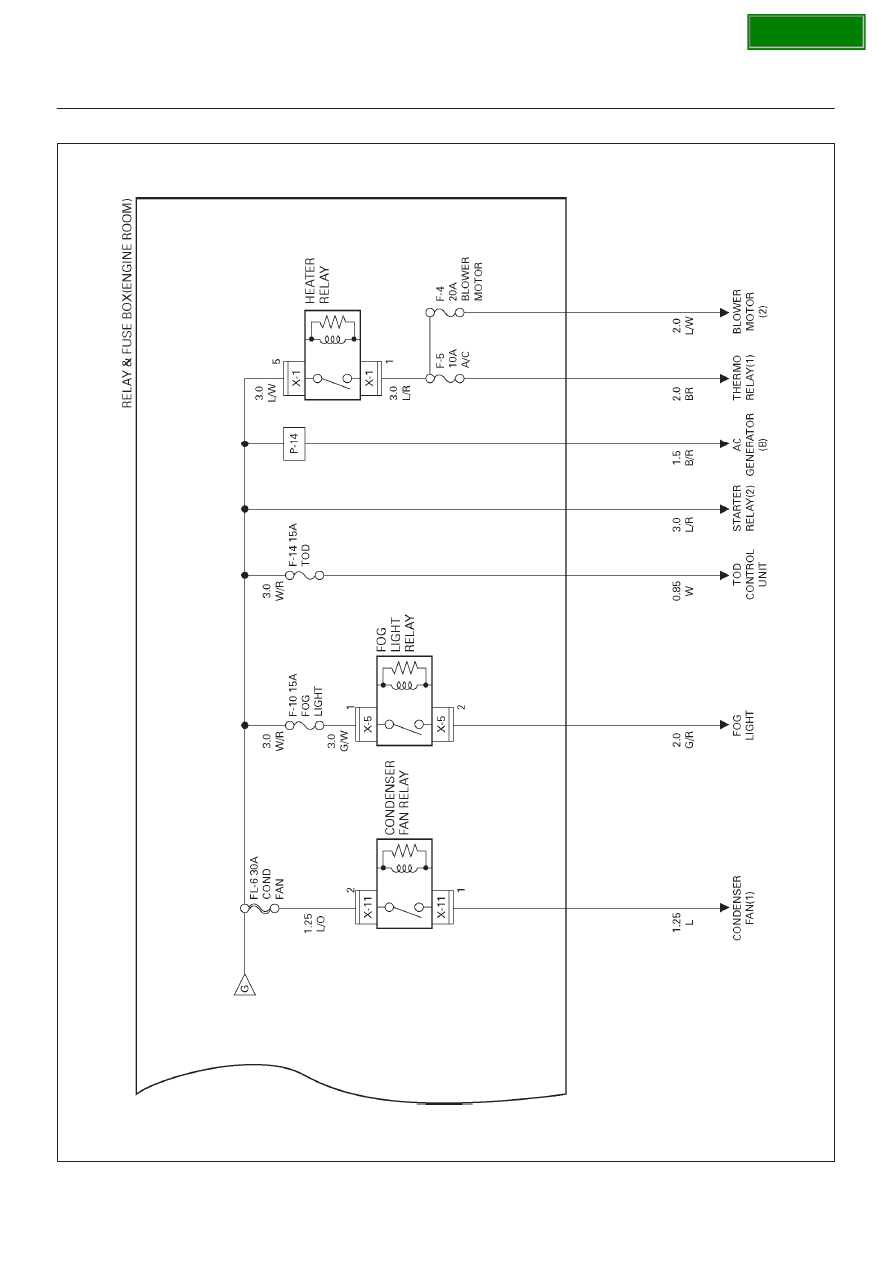

Relay & Fuse Box (Engine Room)
Fuse
No.
Capacity
Indication on label
F-1
15A
HAZARD
F-2
10A
HORN
F-3
10A
ACG-S
F-4
20A
BLOWER
F-5
10A
A/C
F-6
–
–
F-7
–
–
F-8
10A
H/L LIGHT-LH
F-9
10A
H/L LIGHT-RH
F-10
15A
(FOG LIGHT)
F-11
10A
O2 SENS. HEATER
F-12
20A
FUEL PUMP
F-13
15A
ECM
F-14
15A
(TOD)
FL-1
100A
MAIN
FL-2
60A
IGN.1
FL-3
30A
ECM
FL-4
50A
ABS
FL-5
50A
IGN.2
FL-6
30A
COND. FAN
FL-7
–
–
FL-8
30A
ACTIVE RIDE
Relay & Fuse Box (Instrument panel)
Fuse
No.
Capacity
Indication on label
C-1
20A
ACC. SOCKET
C-2
15A
(AUDIO) +B
C-3
10A
STARTER
C-4
15A
TAIL/ILLUMI. LIGHT
C-5
10A
DOME LIGHT
C-6
15A
STOP LIGHT
C-7
20A
POWER DOOR LOCK
C-8
10A
MIRROR DEFOG
C-9
15A
REAR DEFOG
C-10
15A
REAR DEFOG
C-11
15A
METER
C-12
15A
ENGINE IG.
C-13
15A
IG. COIL
C-14
15A
BACK UP/TURN LIGHT
C-15
15A
ELEC. IG.
C-16
20A
REAR WIPER & WASHER
C-17
10A
FRONT WIPER & WASHER
C-18
10A
ACC (AUDIO)
C-19
15A
CIGAR LIGHTER
C-20
10A
–
C-21
30A
(POWER WINDOW)
C-22
10A
SRS
C-23
10A
1MOBI
