6E–119

6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

DTC P0101 – MAF System Performance

  (Cont'd)

Step

No

Yes

Value(s)

Action

7

1. Connect the MAF Sensor wiring harness connector

to the MAF Sensor.

2. Connect the Tech 2 to the vehicle.
3. Place the Transmission in Park/Neutral, and fully

apply the Parking Brake.

4. Start the engine.
5. Select the Mass Air Flow (MAF) parameter on the

Tech 2.

With the engine idling, does the Tech 2 display the
following value(s)?

4 to 7 g/s

Go to

Step 8

Go to

Step 9

8

Observe the Tech 2 value while increasing the engine
RPM to its upper limit.

Does the Tech 2 display the following value(s)?

25 to 40 g/s

Go to

Step 10

Go to

Step 9

9

Replace the MAF Sensor.

Is the action complete?

—

Verify repair

—

10

Replace the PCM.

IMPORTANT: The PCM must be reprogrammed. Refer
to PCM reprogramming.

And also refer to latest Service Bulletin.

Check to see if the Latest software is released or not.
And then Down Load the LATEST PROGRAMMED
SOFTWARE to the replacement PCM.

Is the action complete?

—

Verify repair

—

SECTION

6E–120

6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

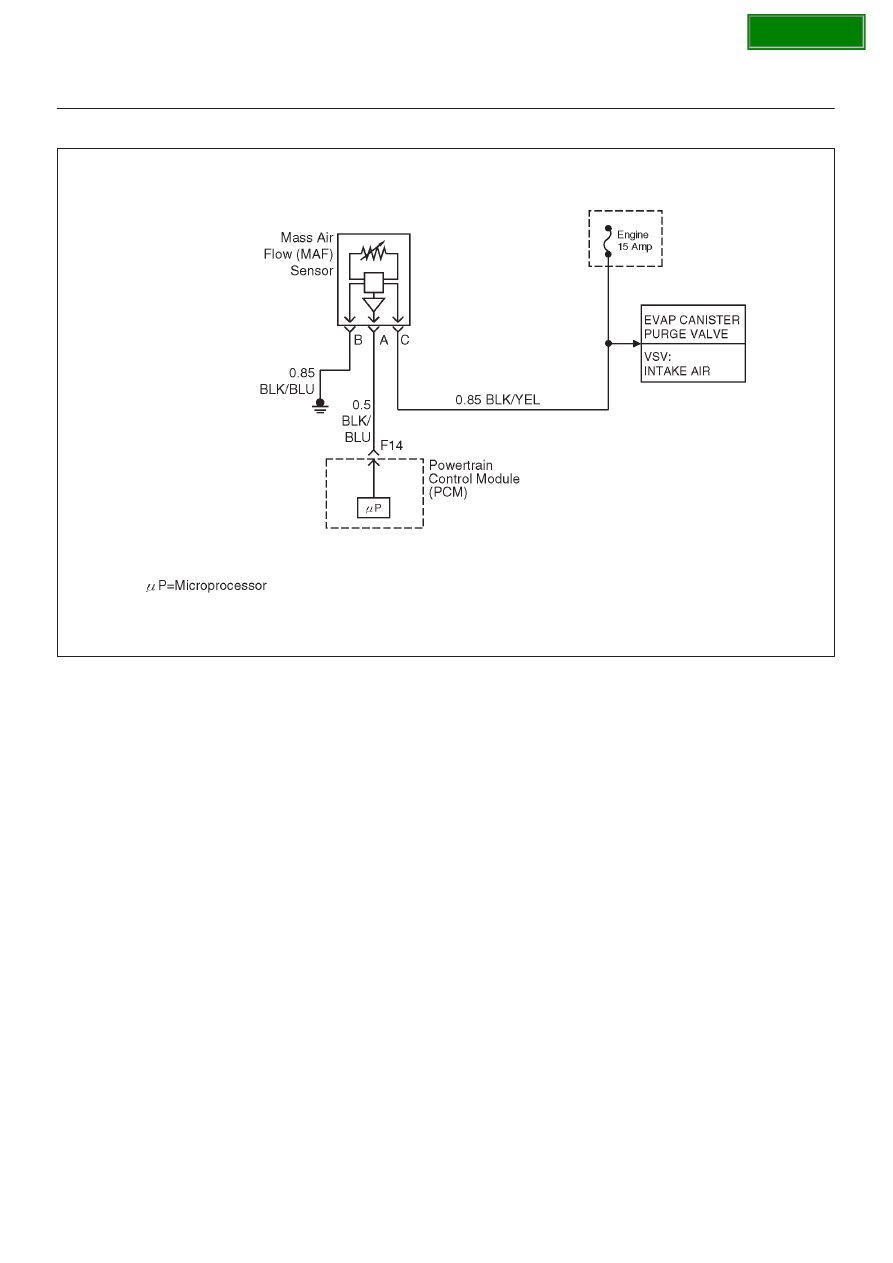

Diagnostic Trouble Code (DTC) P0102 MAF Sensor Circuit  Low Frequency

060R100112

Circuit Description

The mass air flow (MAF) sensor measures the amount of
air which passes through it into the engine during a given
time.  The powertrain control module (PCM) uses the
mass air flow information to monitor engine operating
conditions for fuel delivery calculations.  A large quantity
of air entering the engine indicates an accelerator or high
load situation, while a small quantity of air indicates
deceleration or idle.
The MAF sensor produces a frequency signal which can
be monitored using a Tech 2.  The frequency will vary
within a range of around 4 to 7g/s at idle to around 25 to 40
g/s at maximum engine load.  DTC P0102 will be set if the
signal from the MAF sensor is below the possible range of
a normally operating MAF sensor.

Conditions for Setting the DTC

D

The engine is running above 500 RPM for more than
10 seconds.

D

System voltage is above 11.5 volts.

D

MAF signal frequency is below 1 kHz for a total of
50-percent of the last 1000 samples monitored.  A
sample is taken every cylinder event.

Action Taken When the DTC Sets

D

The PCM will ON the MIL after second trip with
detected fault.

D

The PCM calculates an air flow value based on throttle
position, RPM and barometric pressure.

D

The PCM will store conditions which were present
when the DTC was set as Freeze Frame and in the
Failure Records data.

Conditions for Clearing the MIL/DTC

D

The PCM will turn the MIL “OFF” on the third
consecutive trip cycle during which the diagnostic has
been run and the fault condition is no longer present.

D

A history DTC P0102 will clear after 40 consecutive
warm-up cycles have occurred without a fault.

D

DTC P0102 can be cleared by using the Tech 2 “Clear
Info” function.

Diagnostic Aids

Check for the following conditions:

D

Poor connection at PCM – Inspect harness connectors
for backed-out terminals, improper mating, broken
locks, improperly formed or damaged terminals, and
poor terminal-to-wire connection.

D

Misrouted harness – Inspect the MAF sensor harness
to ensure that it is not routed too close to high voltage
wires.

D

Damaged harness – Inspect the wiring harness for
damage.  If the harness appears to be OK, observe the
Tech 2 while moving connectors and wiring harnesses
related to the MAF sensor.  A change in the display will
indicate the location of the fault.

D

Plugged intake air duct or filter element – A wide-open
throttle accelerator from a stop should cause the mass
air flow displayed on a Tech 2 to increase from about

SECTION

6E–121

6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

3-6 g/second at idle to 100 g/second or greater at the
time of the 1-2 shift.  If not, check for a restriction.

If DTC P0102 cannot be duplicated, the information
included in the Failure Records data can be useful in
determining vehicle mileage since the DTC was last set.

Test Description

Number(s) below refer to the step number(s) on the
Diagnostic Chart.

2. This step verifies that the problem is present at idle.

4. A voltage reading of less than 4 or over 5 volts at the

MAF sensor signal circuit indicates a fault in the
wiring or a poor connection.

5. This verifies that ignition feed voltage and a good

ground are available at the MAF sensor.

DTC P0102 – MAF Sensor Circuit Low Frequency



Step

Action

Value(s)

Yes

No

1

Was the “On-Board Diagnostic (OBD) System Check”
performed?

—

Go to

Step 2

Go to

OBD

System

Check

2

1. Start the engine.
2. With the engine idling, monitor “MAF Frequency”

display on the Tech 2.

Is the “MAF Frequency” below the specified value?

1.6 g/s

Go to

Step 4

Go to

Step 5

3

1. Ignition “ON”, engine “OFF”.
2. Review and record Tech 2 Failure Records data.
3. Operate the vehicle within Failure Records

conditions as noted.

4. Using a Tech 2, monitor “DTC” info for DTC P0102.

Does the Tech 2 indicate DTC P0102 failed this
ignition?

—

Go to

Step 4

Refer to

Diagnostic

Aids

4

1. Ignition “OFF”.
2. Disconnect the MAF sensor connector.
3. Ignition “ON”, engine “OFF”.
4. Using a DVM, measure voltage between the MAF

sensor signal circuit and battery ground.

Is the voltage near the specified value?

11.5–12 V

Go to

Step 5

Go to

Step 8

5

Connect a test light between the MAF sensor ignition
feed and ground circuits at the MAF sensor harness
connector.

Is the test light “ON”?

—

Go to

Step 13

Go to

Step 6

6

Connect a test light between the MAF sensor ignition
feed circuit and battery ground.

Is the test light “ON”?

—

Go to

Step 12

Go to

Step 7

7

1. Check for a poor connection at the MAF sensor.
2. If a poor connection is found, replace the faulty

terminal(s).

Was a poor connection found?

—

Verify repair

Go to

Step 11

8

1. Ignition “OFF”.
2. Disconnect the MAF sensor.
3. Disconnect the PCM connector for the MAF signal

circuit.

4. Ignition “ON”, engine “OFF”.
5. With the DVM, measure the voltage between the

MAF signal terminal at the PCM and battery ground.

Is the voltage under the specified value?

11.5–12 V

Go to

Step 9

Go to

Step 10

SECTION

6E–122

6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

DTC P0102 – MAF Sensor Circuit Low Frequency

  (Cont'd)

Step

No

Yes

Value(s)

Action

9

1. Ignition “OFF”.
2. Disconnect the PCM connector.
3. Ignition “ON”.
4. Check the MAF sensor signal circuit for a short to 5

volts.

Is the action complete?

—

Verify repair

—

10

1. Ignition “OFF”.
2. Disconnect the PCM connector.
3. Ignition “ON”.
4. Check the MAF sensor signal circuit between the

PCM and the MAF sensor for an open, short to
ground, or short to the MAF ground circuit.

Is the action complete?

—

Verify repair

Go to

Step 13

11

Locate and repair the open in the ground circuit to the
MAF sensor.

Is the action complete?

—

Verify repair

—

12

Locate and repair the open in the ignition feed circuit to
the MAF sensor.

Is the action complete?

—

Verify repair

—

13

Replace the MAF sensor.

Is the action complete?

—

Verify repair

Go to

Step 14

14

Replace the PCM.

IMPORTANT: The replacement PCM must be
programmed.  Refer to

On-Vehicle Service in

Powertrain Control Module and Sensors for
procedures.

And also refer to latest Service Bulletin.

Check to see if the Latest software is released or not.
And then Down Load the LATEST PROGRAMMED
SOFTWARE to the replacement PCM.

Is the action complete?

—

Verify repair

—
