EXTERIOR/INTERIOR TRIM

8J–31

Main Data and Specifications

Torque Specifications

Application

N·m

kg·m

lb ft

lb in

Front & Rear Seat Belt Anchor Bolts

39

4.0

29

—

Roof Rail Fixing Bolts

8

0.8

—

69

SEAT BELT SYSTEM

9A–1

RESTRAINTS

SEAT BELT SYSTEM

CONTENTS

Service Precaution......................................... 9A - 1

Front Seat Belt (LWB) ................................... 9A - 2

Front Seat Belt and Associated Parts......... 9A - 2
Removal ..................................................... 9A - 2
Inspection ................................................... 9A - 2
Installation .................................................. 9A - 3

Front Seat Belt (SWB)................................... 9A - 4

Front Seat Belt and Associated Parts......... 9A - 4
Removal ..................................................... 9A - 4
Inspection ................................................... 9A - 5
Installation .................................................. 9A - 6

Rear Seat Belt (LWB).................................... 9A - 7

Rear Seat Belt and Associated Parts ......... 9A - 7
Removal ..................................................... 9A - 7
Inspection ................................................... 9A - 8
Installation .................................................. 9A - 9

Rear Seat Belt (SWB) ................................... 9A - 10

Rear Seat Belt and Associated Parts ......... 9A - 10

Removal...................................................... 9A - 10
Inspection ................................................... 9A - 11
Installation................................................... 9A - 12

Front Seat Buckle Assembly ......................... 9A - 13

Removal...................................................... 9A - 13
Installation................................................... 9A - 13

Rear Center Seat Belt / Buckle Assembly..... 9A - 14

Rear Center Seat Belt / Buckle Assembly

and Associated Parts ................................ 9A - 14

Removal...................................................... 9A - 14
Installation................................................... 9A - 14

Child Seat Tether Anchor Bracket

(Child Restraint) .......................................... 9A - 15

General Description .................................... 9A - 15
Child Seat Tether Anchor Bracket

and Associated Parts ................................ 9A - 15

Installation................................................... 9A - 15

Main Data and Specifications ........................ 9A - 16

Service Precaution

WARNING:  THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT  AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE
SRS COMPONENTS OR THE  SRS WIRING, REFER
TO THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR  BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION:  Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after  removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE  SPECIFIED, do not
use supplemental coatings (Paints, greases, or
other corrosion inhibitors) on threaded fasteners  or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force,  and may damage the fastener.
When you install fasteners, use the correct
tightening sequence and specifications.  Following
these instructions can help you avoid damage to
parts and systems.

SECTION

9A–2

SEAT BELT SYSTEM

Front Seat Belt (LWB)

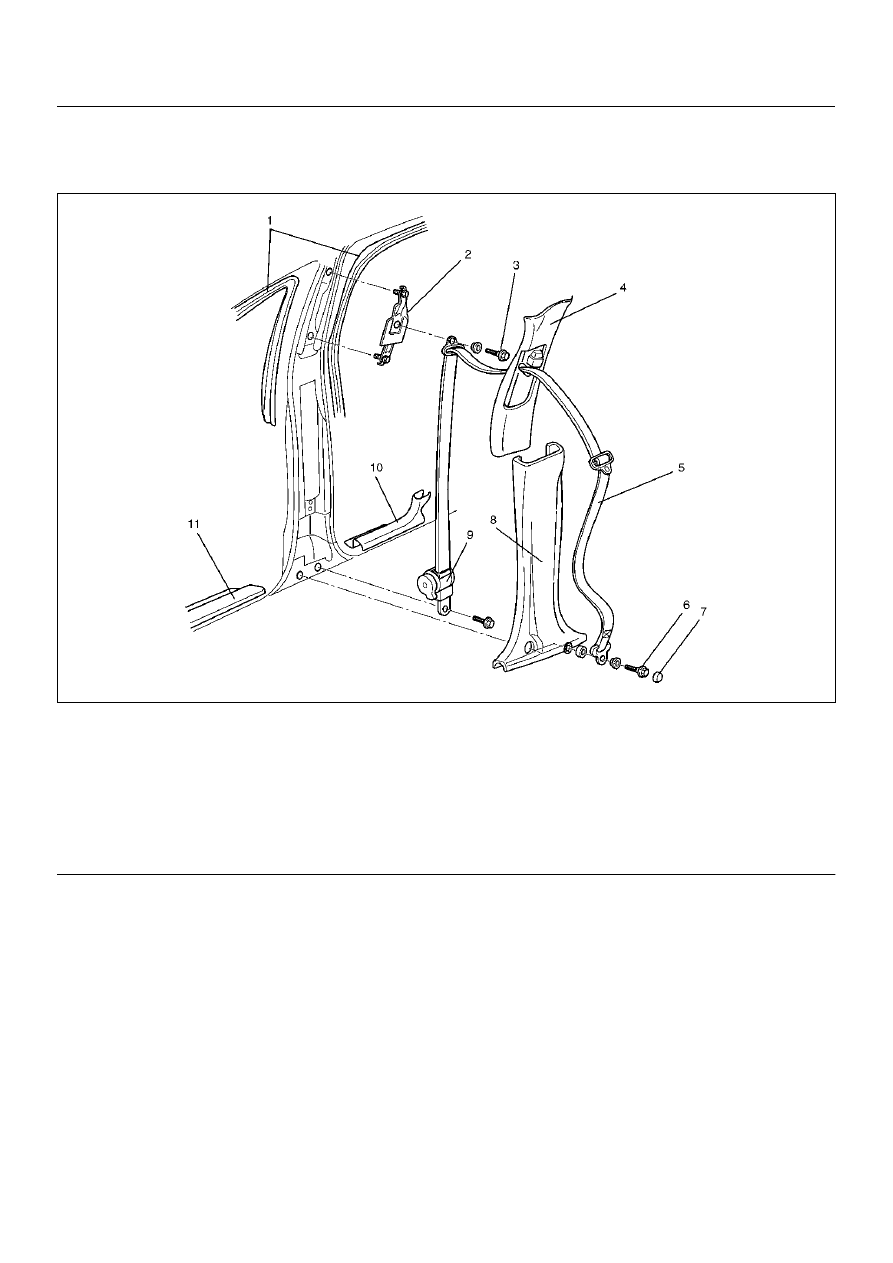

Front Seat Belt and Associated Parts

760RY00015

Legend

EndOFCallout

Removal

1. Disconnect the battery ground cable.

2. Remove the sill plate (Front & Rear).

3. Remove the cap and seat belt lower anchor bolt.

4. Remove the lower center pillar trim cover.

5. Remove the door seal finisher (Front & Rear).

6. Remove the upper center pillar trim cover.

7. Remove the seat belt upper anchor bolt.

8. Remove the retractor fixing bolt.

9. Remove the seat belt assembly.

10. Remove the adjustable shoulder anchor assembly.

• Remove the two fixing bolts.

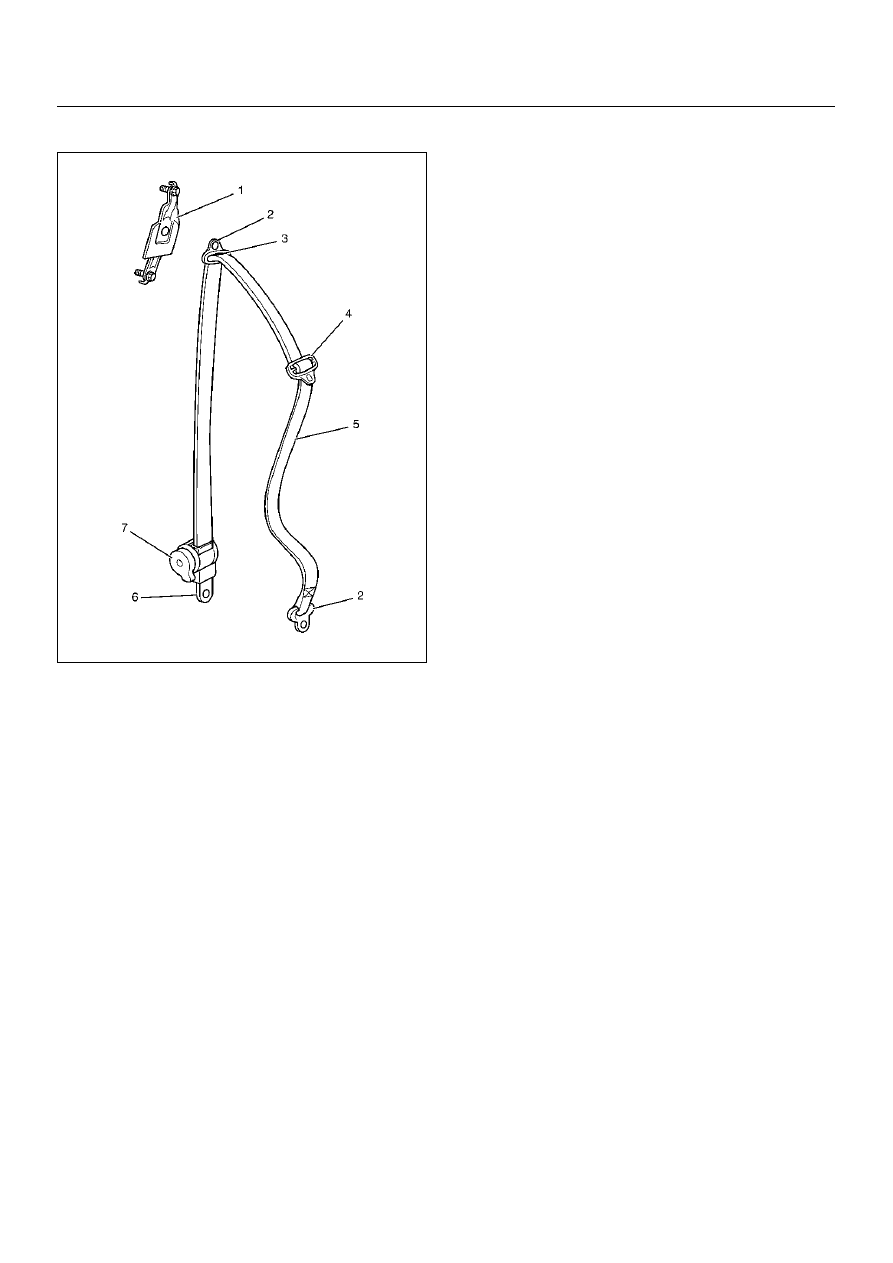

Inspection

If any of the following abnormalities is found, replace on
an assembly basis.

• Deform and malfunction of adjustable shoulder

anchor (1).

• No smooth move of upper/lower anchors (2) in the

circumferential direction.

• Damaged and/or deformed through ring (3).

• Damaged and/or deformed tongue (4).

• Damaged and/or frayed of webbing (5).

• Deformed retractor bracket (6).

• Seat belt not rewound up (7).

• Resistance or abnormal sound when seat belt is

wound out and rewound (7).

(1) Door Seal Finisher (Front & Rear)
(2) Adjustable Shoulder Anchor Assembly
(3) Seat Belt Upper Anchor Bolt
(4) Upper Center Pillar Trim Cover
(5) Front Seat Belt Assembly
(6) Seat Belt Lower Anchor Bolt

(7) Cap
(8) Lower Center Pillar Trim Cover
(9) Retractor

(10) Rear Sill Plate
(11) Front Sill Plate

SEAT BELT SYSTEM

9A–3

• Retractor (7) abnormality.

760RY00021

Inspection of retractor

1. ELR (Emergency Locking Retractor) lock inclining

angle check.

• When the retractor is moved gently from its

installing position, make sure it is not locked
within 15

°

 in any directions, and it remains locked

at 45

°

 or larger.

2. ELR lock check.

• When the seat belt is drawn slowly with the

retractor installed, make sure it is not locked. And
when it is drawn quickly, make sure it is locked.

CAUTION:  Do not disassemble the retractor.

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Tighten the adjustable shoulder anchor assembly

fixing bolts to the specified torque.

Torque: 39N·m (4.0 kg·m/29lbft)

2. Tighten the seat belt anchor bolts (Upper & Lower)

and the retractor fixing bolts to the specified torque.

Torque: 39N·m (4.0 kg·m/29lbft)
