EXTERIOR/INTERIOR TRIM

8J–23

Wheel Arch Moulding (LWB)

Wheel Arch Moulding and Associated Parts

620RY00005

Legend

EndOFCallout

Removal

1. Remove the front mud flap and front wheel arch

moulding.

• Refer to Wheel Arch Moulding (SWB) in this

section.

2. Remove the rocker wheel arch extension.

• Remove the fixing bolt (4) and screw (3). Pull out

the extension with the two clips (1) from the
rocker outer panel.

3. Remove the quarter panel wheel arch moulding.

• Remove the three fixing screws (2) and pull out

the moulding with the three clips (1) from the
quarter outer panel.

4. Remove the rear wheel arch moulding.

• Remove the three fixing screws (5) of the back of

the door panel and pull out the moulding with the
three clips (1) from the door outer panel.

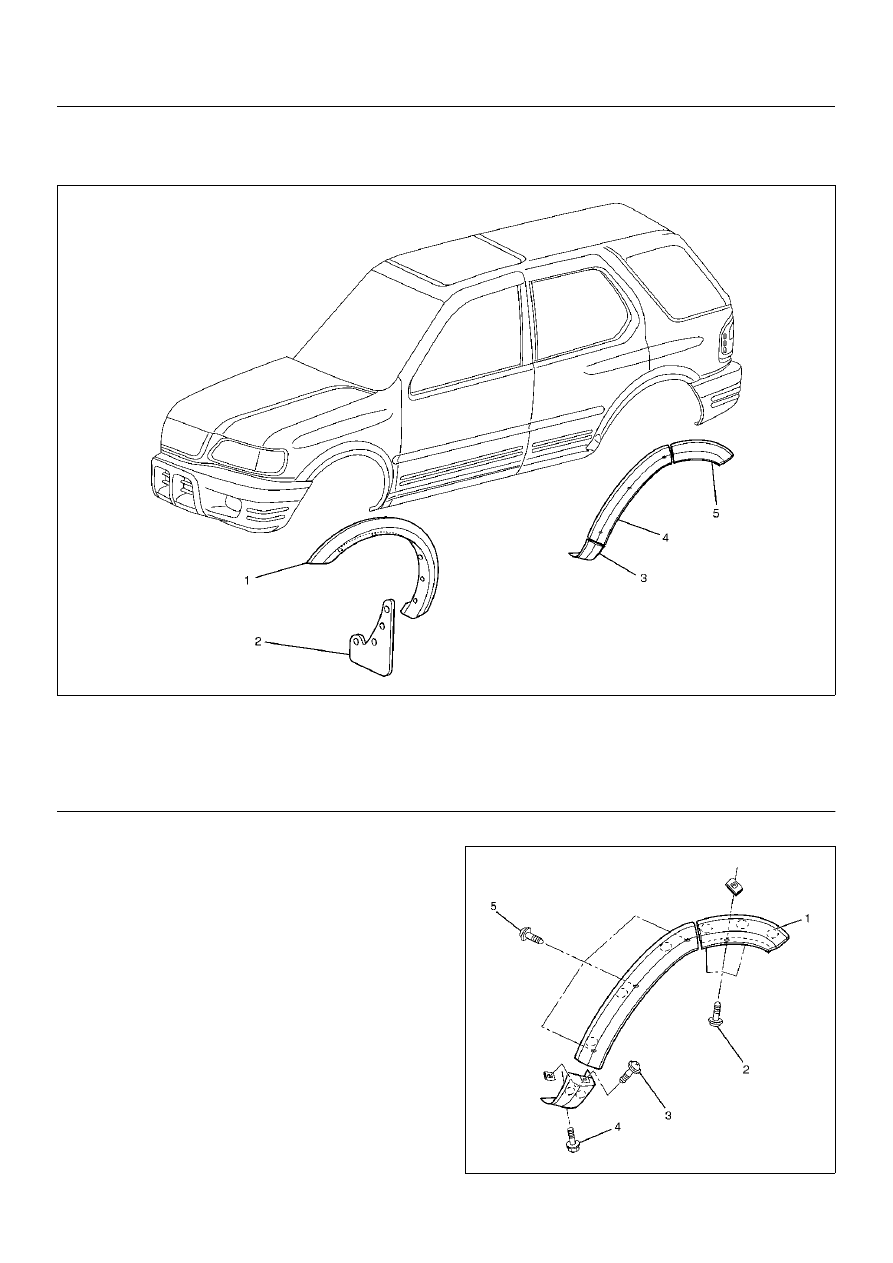

620RY00003

(1) Front Wheel Arch Moulding
(2) Front Mud Flap
(3) Rocker Wheel Arch Extension

(4) Rear Wheel Arch Moulding
(5) Quarter Panel Wheel Arch Moulding

8J–24

EXTERIOR/INTERIOR TRIM

Installation

To install, follow the removal steps in the reverse order.

EXTERIOR/INTERIOR TRIM

8J–25

Fuel Filler Door

Parts Location

686RW010

Legend

EndOFCallout

Removal

1. Open the fuel filler door.

2. Remove the fuel filler door.

• Remove the two fixing screws.

3. Pull out the fuel filler door buffer.

4. Pull out the fuel filler hinge buffer.

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Install the fuel filler door to match the basic hole.

2. Adjust the clearance between quarter outer panel

(1) and fuel filler door (2).

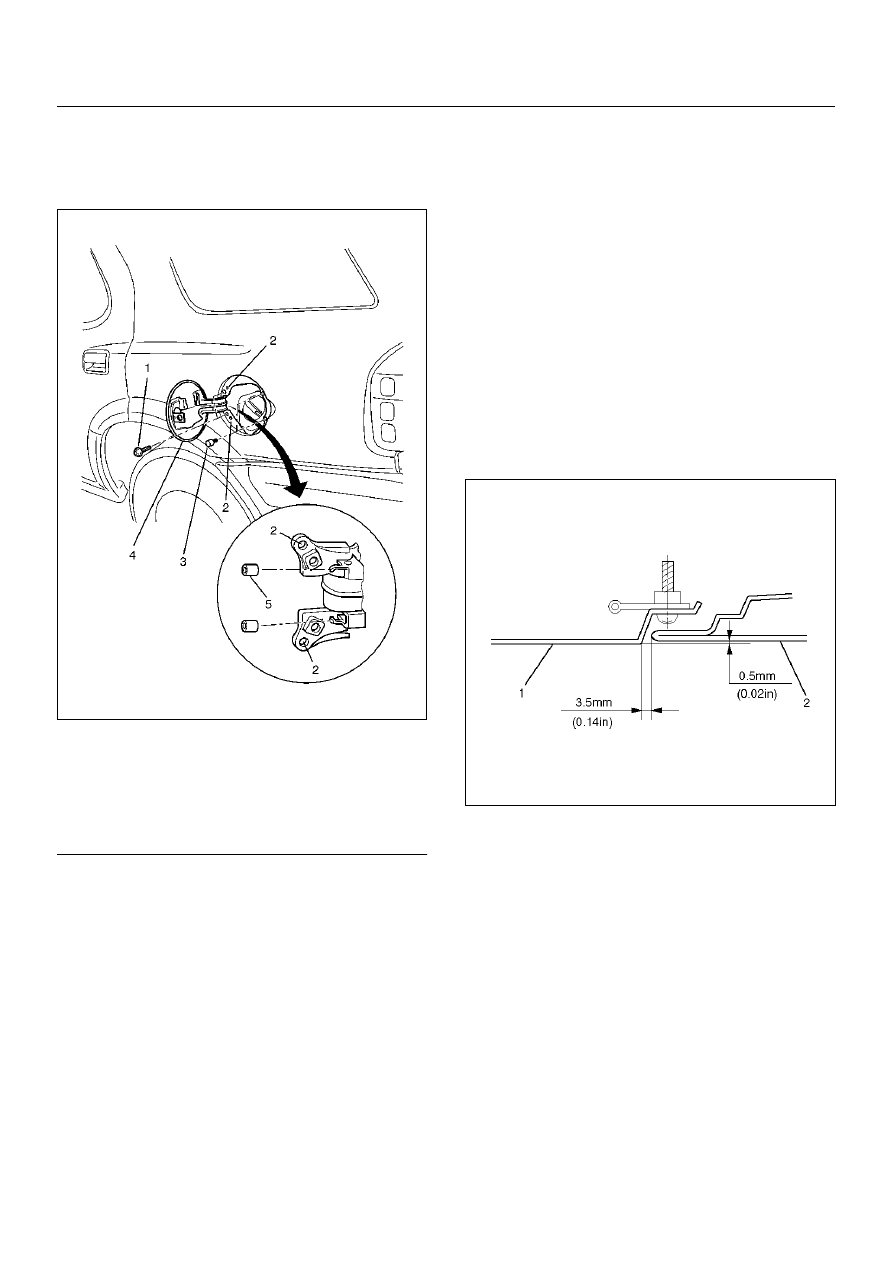

686RX003

(1) Fuel Filler Door Fixing Screw
(2) Basic Hole
(3) Fuel Filler Door Buffer
(4) Fuel Filler Door
(5) Fuel Filler Door Hinge Buffer

8J–26

EXTERIOR/INTERIOR TRIM

Roof Rail

Parts Location

660RY00016

Legend

EndOFCallout

Removal

1. Remove the front and rear of roof rail cover.

• Pry the roof rail covers.

2. Remove the roof rail sub assembly.

• Remove the four fixing bolts at each roof rail.

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Tighten the roof rail sub assembly fixing bolts to the

specified torque.

Torque 8N·m (0.8kg·m/69lbin)

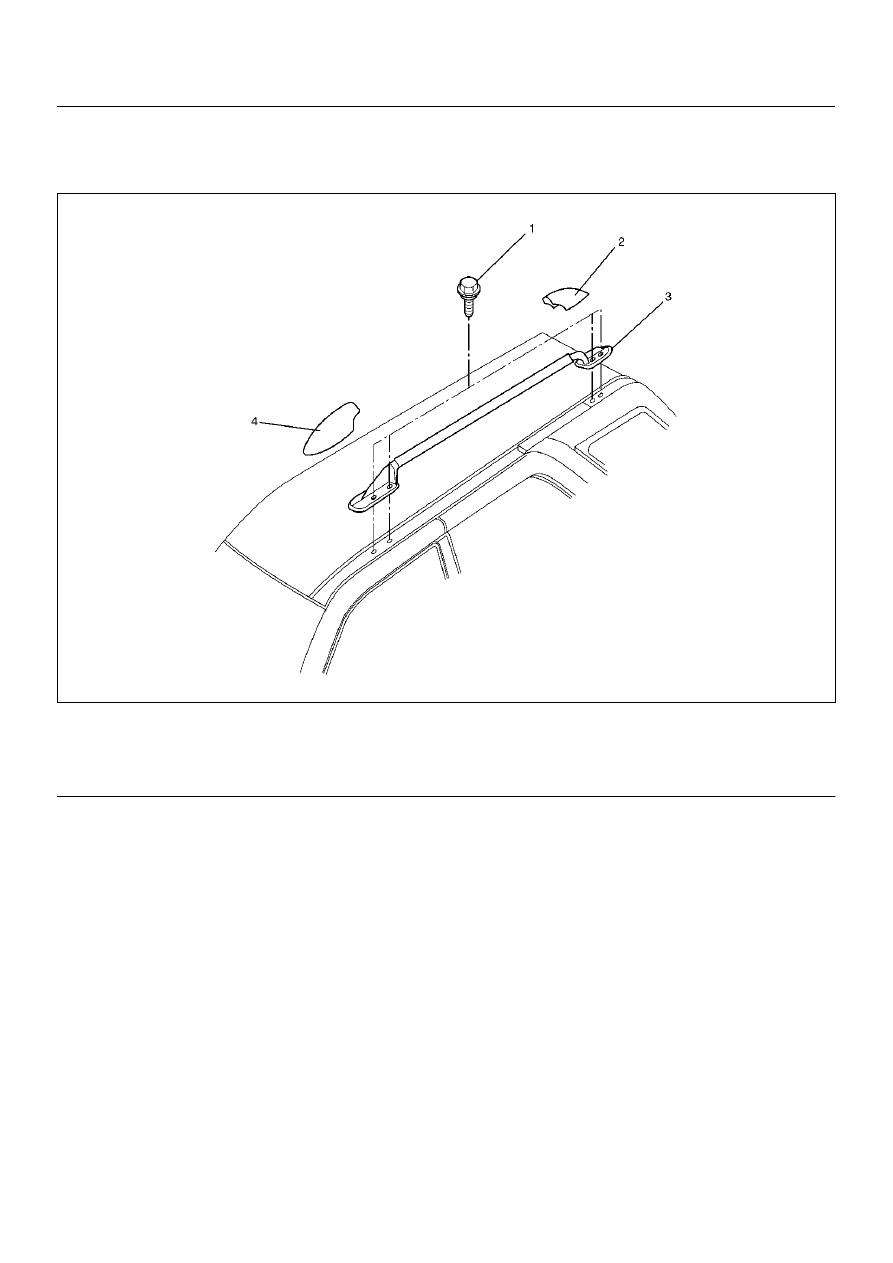

(1) Roof Rail Fixing Bolt
(2) Rear Roof Rail Cover

(3) Roof Rail Sub Assembly
(4) Front Roof Rail Cover
