EXTERIOR/INTERIOR TRIM

8J–27

Power Door Mirror System

General Description

The system consists of the starter switch, door mirror
switch, rear defogger/mirror defogger switch and door
mirrors on both sides.
When the door mirror switch is operated with the starter
switch at either “ACC" or “ON"  position, the motor in the
door mirror (on either side) rotates to allow the
horizontal and vertical adjustment of mirror angles.
When the rear defogger/mirror defogger switch is turned
“ON" (with the starter switch at “ON" position), the
heaters in both left and right mirrors and the rear
hatchgate glass are activated to defog both mirrors and
rear hatchgate glass at the same time.

Door Mirror Switch

Removal

1. Disconnect the battery ground cable.

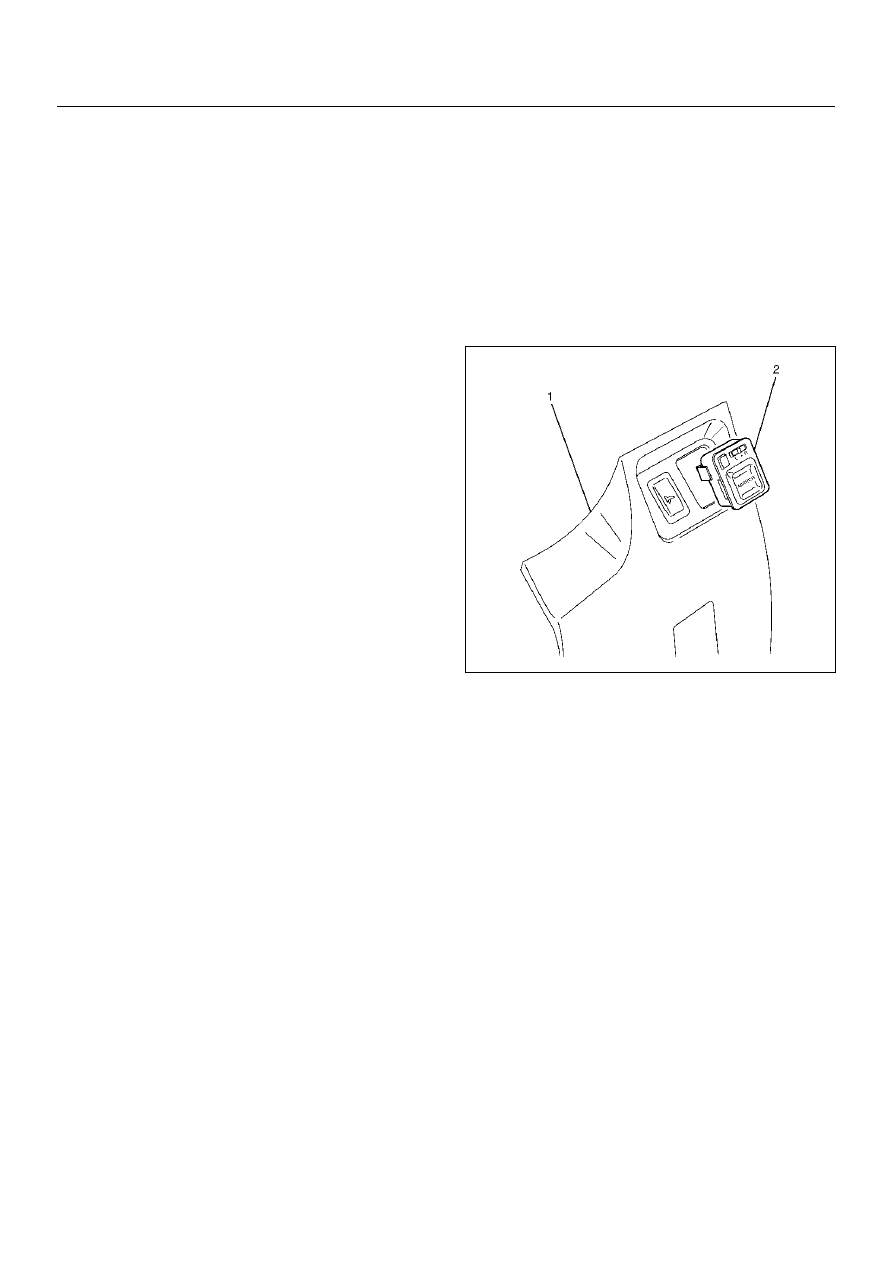

2. Remove the instrument panel lower cover (1).

Refer to the instrument panel assembly in Body
Structure section.

3. Remove the door mirror switch (2).

825RW266

Installation

To install, follow the removal steps in the reverse order.

Rear Defogger/Mirror Defogger Switch

Refer to Rear Defogger/Mirror Switch in Lighting
System section.

Door Mirrors

Refer to Door Mirror Assembly in this section.

8J–28

EXTERIOR/INTERIOR TRIM

Power Window System

General Description

The power window system consists of power window
switches and power window motors on driver and
passenger sides and power window relay. With the
starter switch in “ON" position, the battery voltage is
supplied through power window relay to the power
window switches on driver and passenger sides.
Selection of up or down switch changes the motor
rotating direction to open or close the window.
When the lock switch on the switch panel on the driver
side is pressed, the power window switch is in open
state. As a result, the power source to the other
switches are cut off, and the power window motors do
not run.

Power Window Switch Driver Seat
Side

Removal

1. Disconnect the battery ground cable.

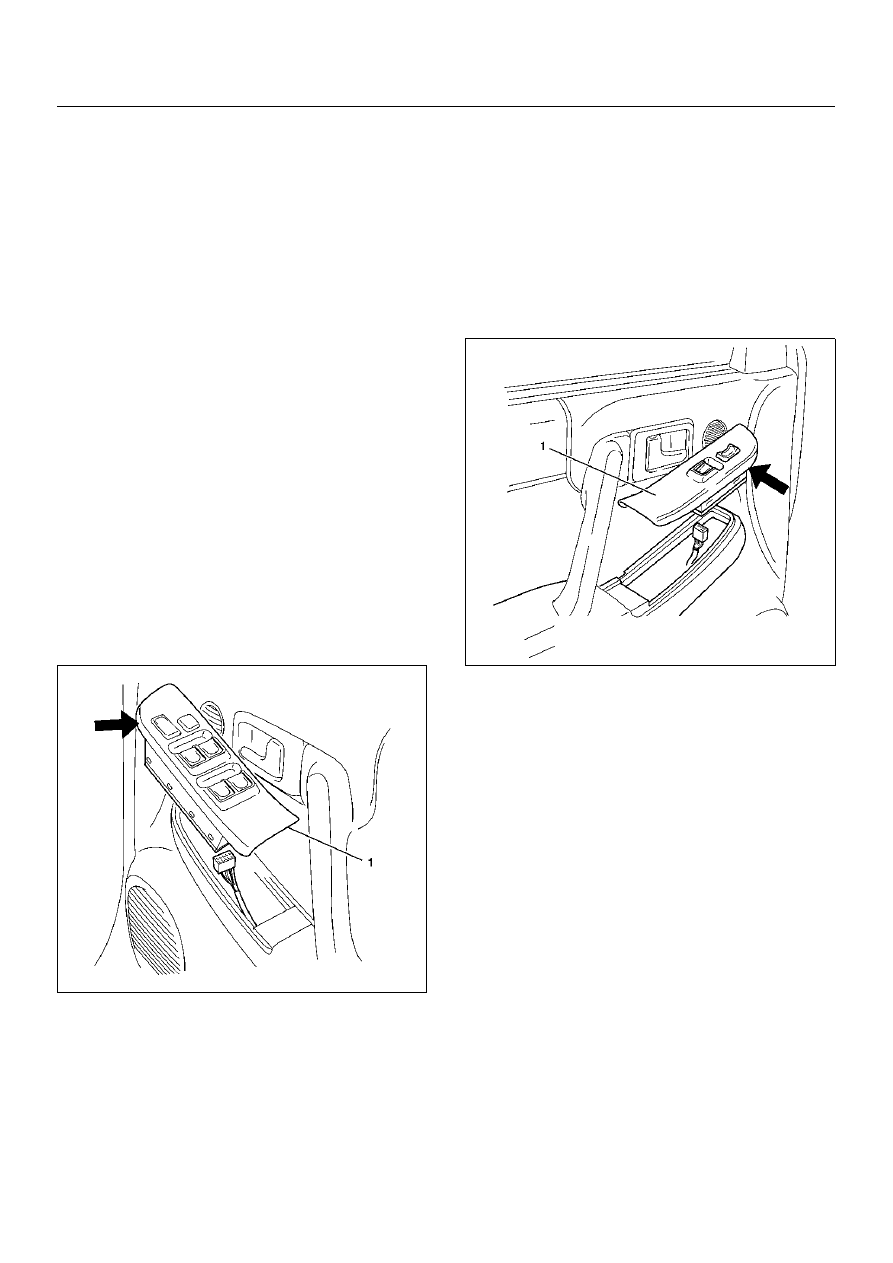

2. Remove the switch (1).

• Pull out the switch by pushing the spring with the

tip of a screwdriver.

• Disconnect the connector.

825RY00073

Installation

To install, follow the removal steps in the reverse order.

Front Passenger Seat Side

Removal

1. Disconnect the battery ground cable.

2. Remove the switch (1).

• Pull out the switch by pushing the spring with the

tip of a screwdriver.

• Disconnect the connector.

825RW264

Installation

To install, follow the removal steps in the reverse order.

Rear-Left and Right Sides

Removal

1. Disconnect the battery ground cable.

2. Remove the rear door trim panel (2).

• Refer to Rear Door Trim Panel in this section.

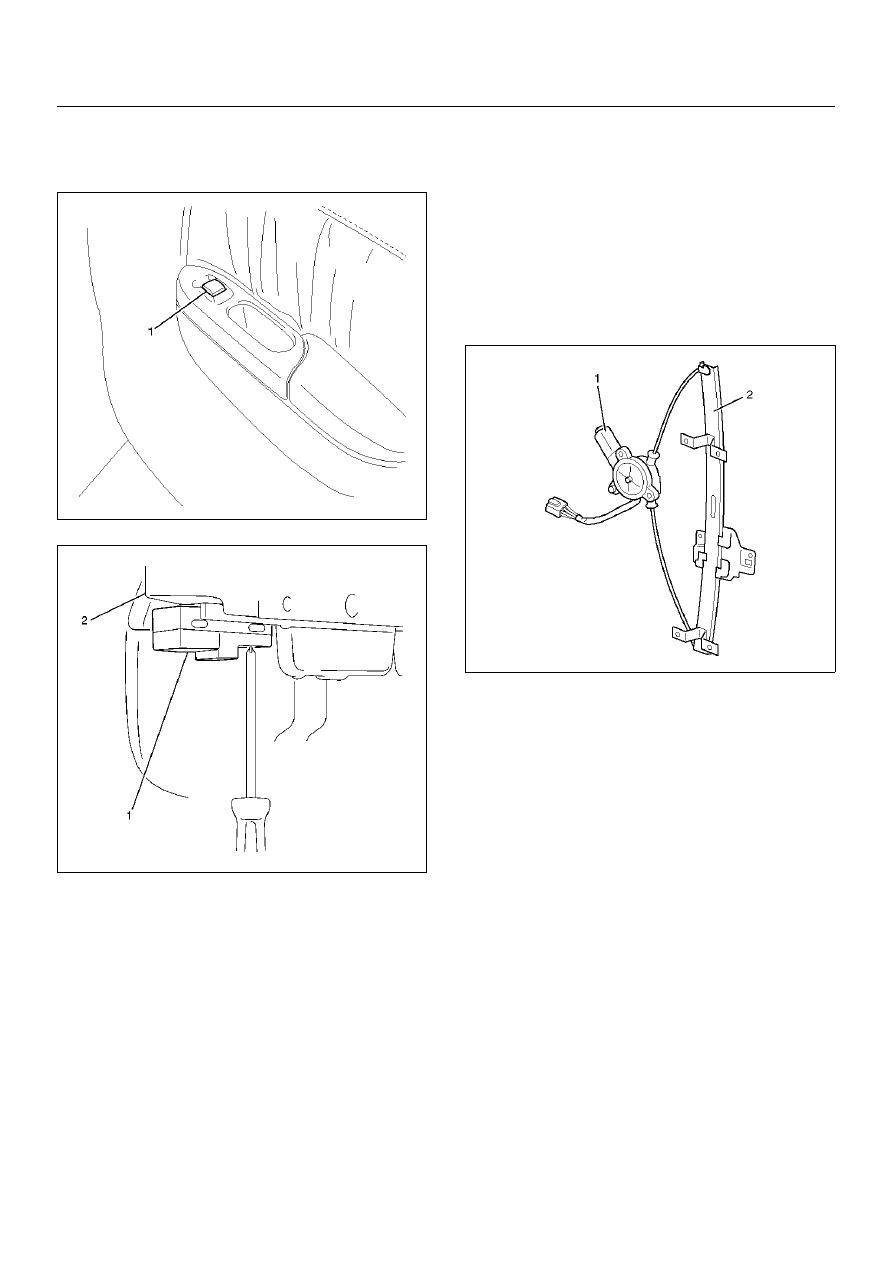

• Disconnect the rear power window switch (1)

connector.

EXTERIOR/INTERIOR TRIM

8J–29

3. Remove the rear power window switch (1).

• Remove the switch fixing screw from the back

side of the rear door trim (2).

825RW081

825RW079

Installation

To install, follow the removal steps in the reverse order.

Power Window Motor

Driver Seat Side

Removal

1. Disconnect the battery ground cable.

2. Remove the window regulator assembly (2).

• Refer to Window Regulator and Glass in Body

Structure section.

3. Remove the power window motor (1).

• Remove three screws.

825RW096

Installation

To install, follow the removal steps in the reverse order.

Front Passenger Seat Side

Removal and Installation

Refer to Front Window Motor — Driver Seat Side in this
section.

8J–30

EXTERIOR/INTERIOR TRIM

Rear-Left Side

Removal

1. Disconnect the battery ground cable.

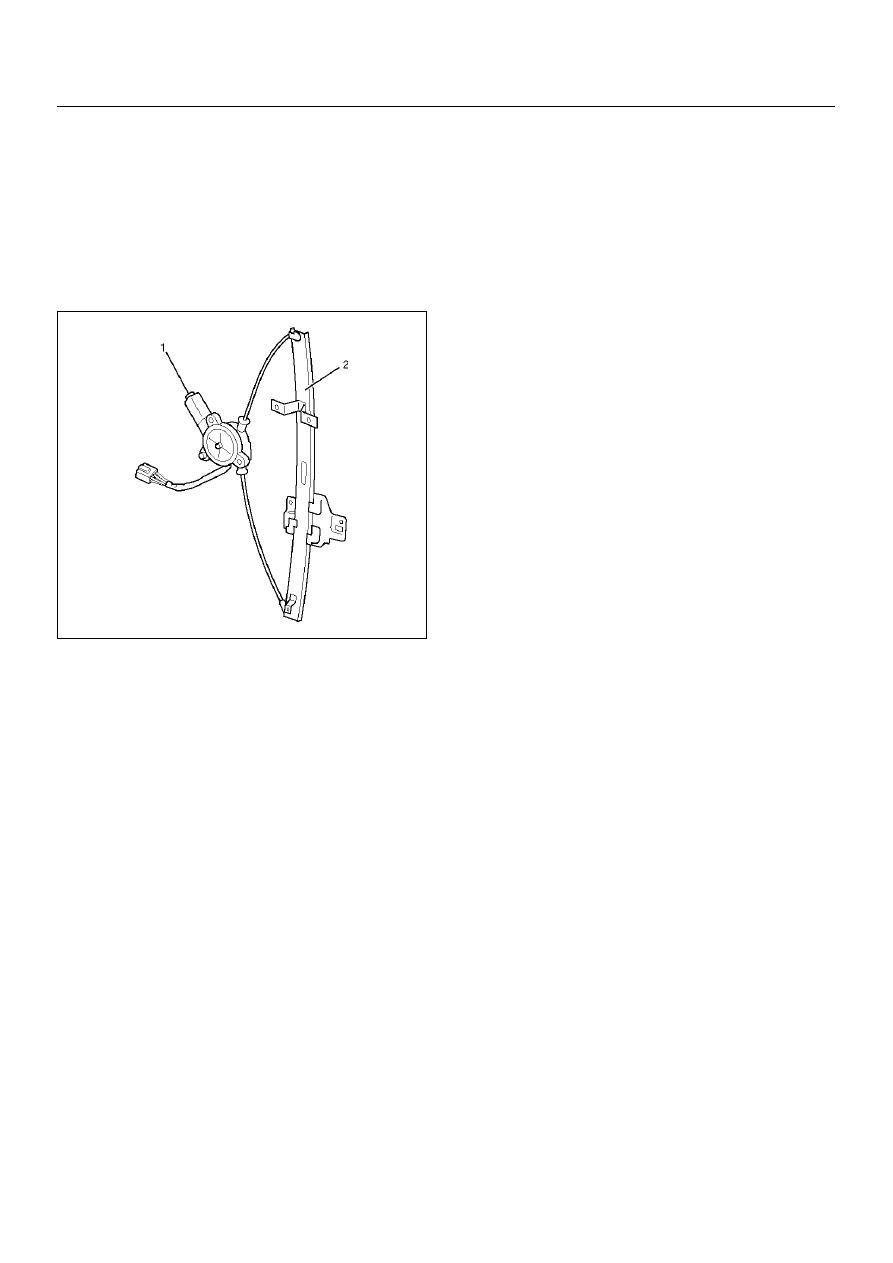

2. Remove the rear window regulator assembly (2).

• Refer to Rear Window Regulator and Glass in

Body Structure section.

3. Remove the power window motor (1).

• Remove three screws.

825RW095

Installation

To install, follow the removal steps in the reverse order.

Rear-Right Side

Removal and Installation

Refer to Rear Power Window Motor — Left Side in this
section.
