Overhead Console

Parts Location

743RY00001

Legend

EndOFCallout

Removal

1. Disconnect the battery ground cable.

2. Remove the overhead console assembly.

• Open the lid and remove the two screws.

• Disconnect the harness connector.

3. Remove the sunvisor and sunvisor holder. (right and

left)

4. Remove the front assist grip. (right and left)

5. Remove the front piller trim cover.

6. Remove the front door finisher.

• Remove the upper side of door finisher.

7. Remove the room mirror.

• Returning the base of mirror in 90 degrees, pull

out it downward.

8. Remove the overhead console bracket.

• Remove the two screws.

Installation

To install, follow the removal steps in the reverse order.

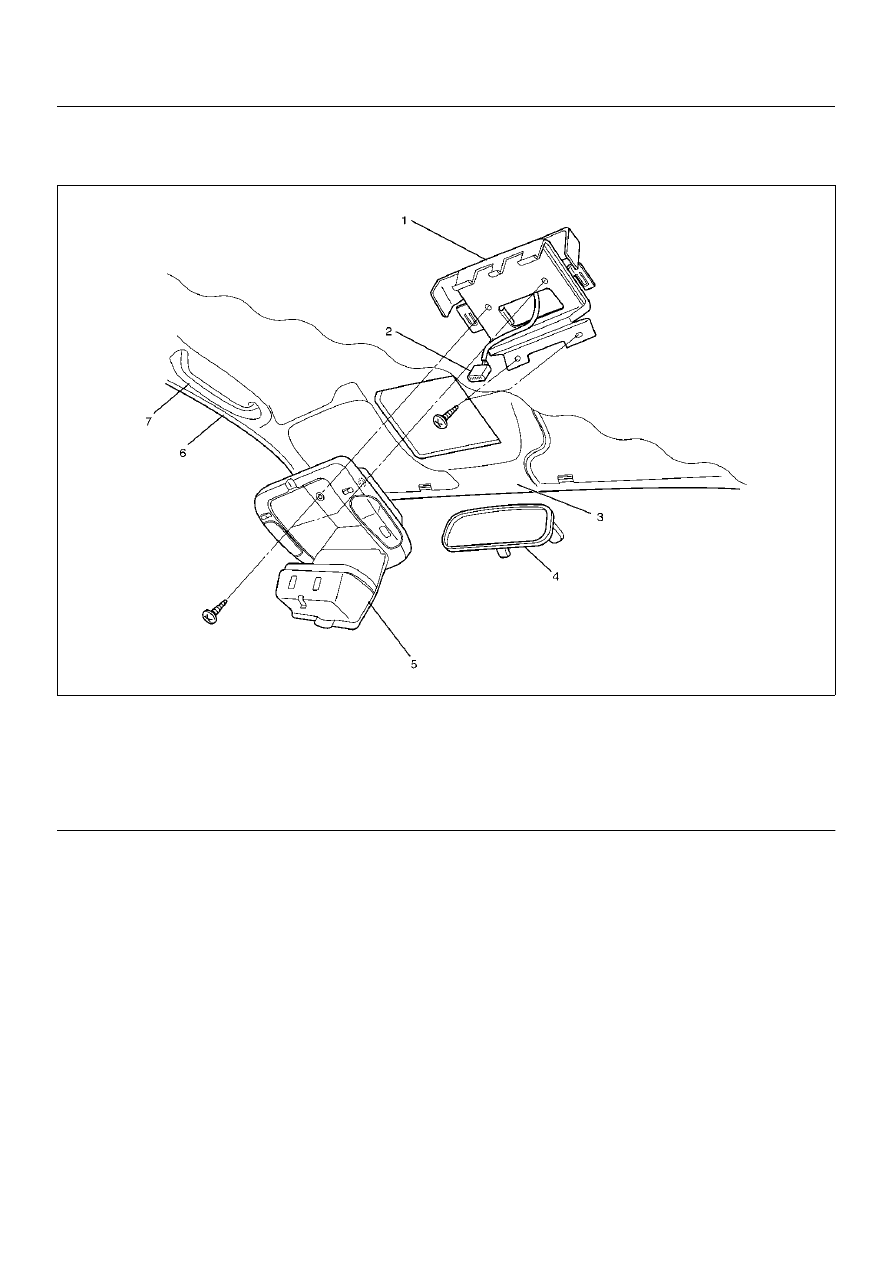

(1) Overhead Console Bracket
(2) Harness Connector
(3) Head Lining
(4) Room Mirror

(5) Overhead Console Assembly
(6) Front Door Finisher
(7) Front Assist Grip

8J–16

EXTERIOR/INTERIOR TRIM

Headlining (LWB)

Parts Location

666RY00003

Legend

EndOFCallout

Removal

1. Disconnect the battery ground cable.

2. Remove the interior trim panels.

• Refer to Interior Trim Panels (LWB) in this section.

3. Remove the dome light.

• Remove the dome light lens and the fixing

screws.

• Disconnect the dome light connectors.

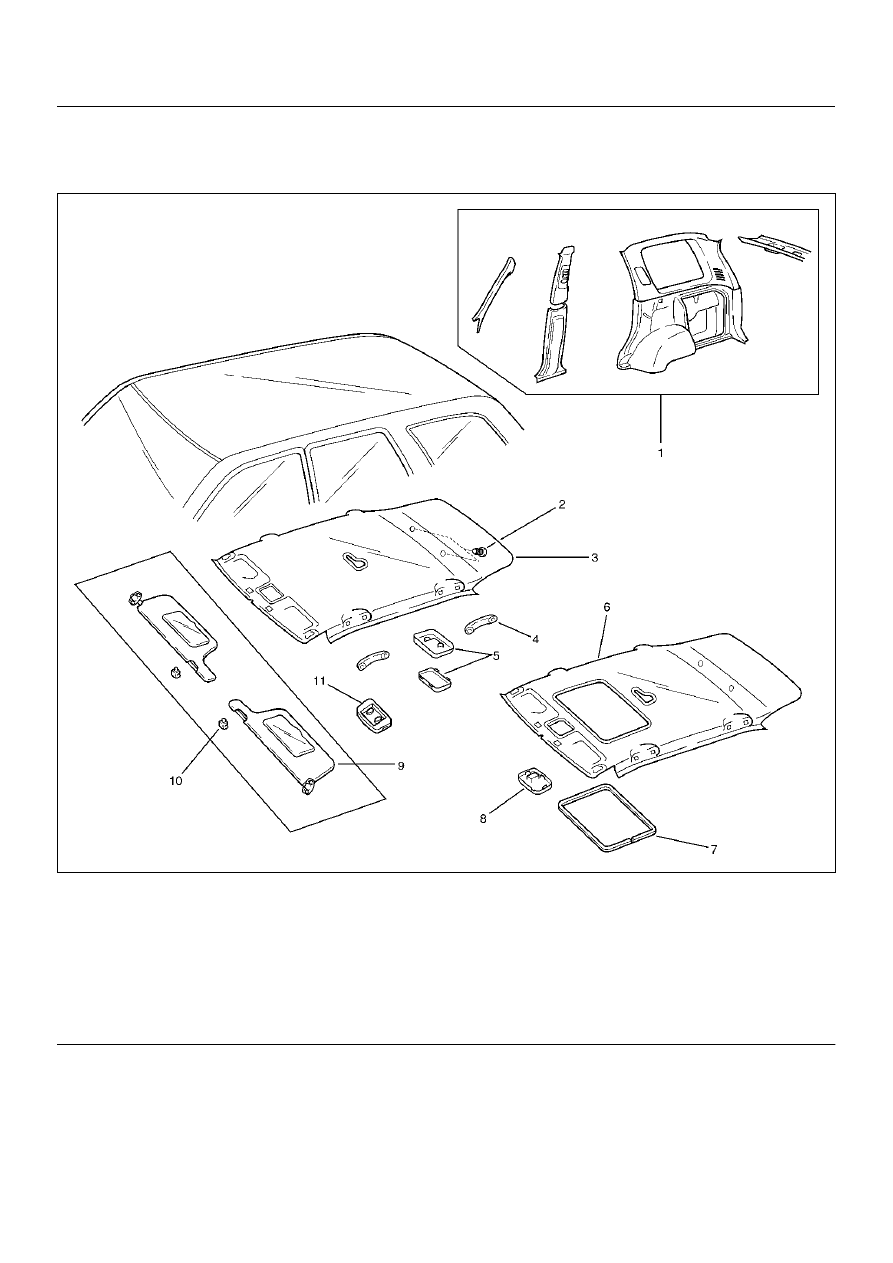

(1) Interior Trim Panels
(2) Clip
(3) Headlining (Without Sunroof)
(4) Assist Grip
(5) Dome Light
(6) Headlinng (With Sun Roof)

(7) Sunroof Finisher (With Sunroof)
(8) Sunroof Switch (With Sunroof)
(9) Sunvisors

(10) Sunvisor Holder
(11) Overhead Consol (Without Sunroof)

EXTERIOR/INTERIOR TRIM

8J–17

4. Remove the sunroof switch (With sunroof).

• Pry the clip positions free from the sunroof switch

bracket and disconnect the connector.

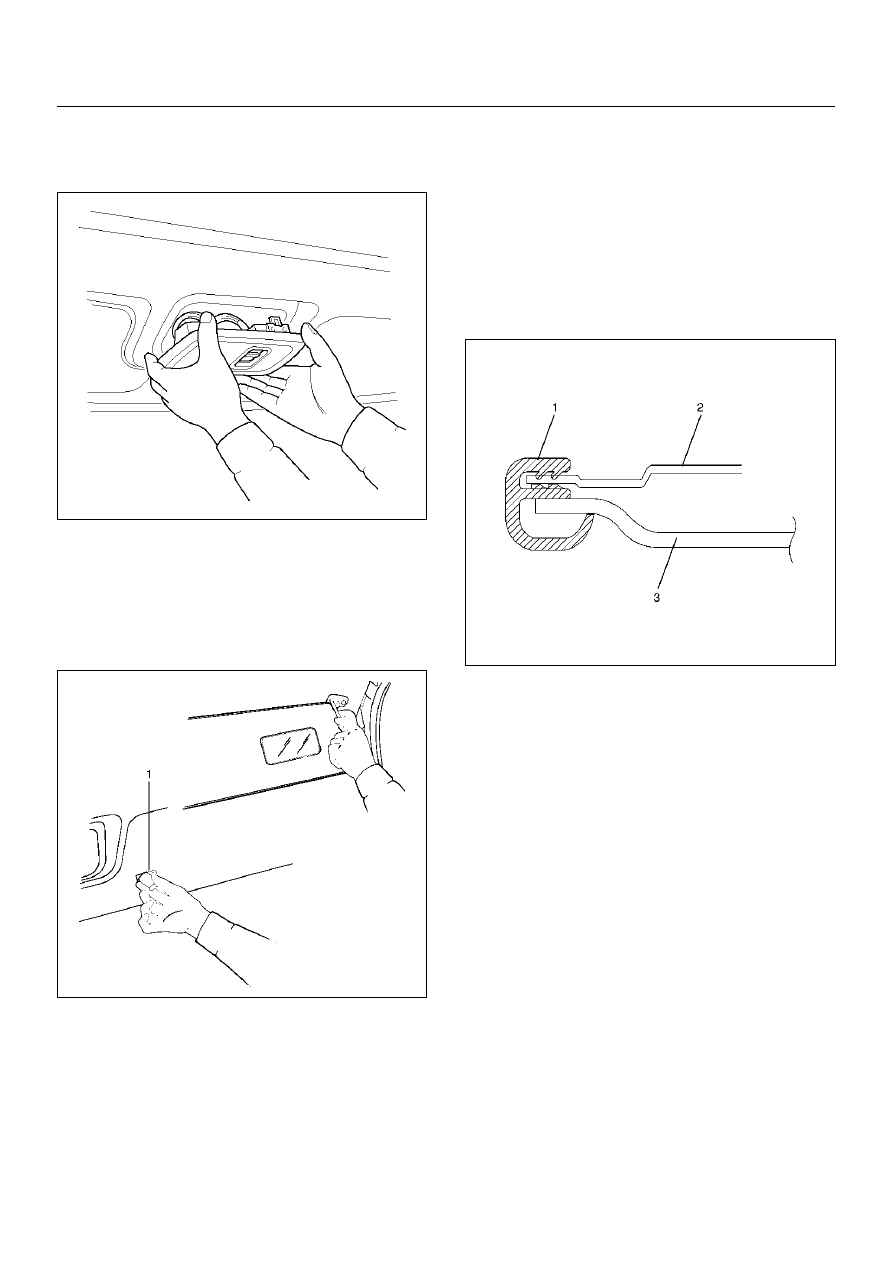

665RW002

5. Remove the overhead consol (Without sunroof).

• Refer to Overhead Consol Assembly in Exterior/

Interior section.

6. Remove the sunvisors.

• Remove the fixing screws and pull out the

sunvisor holder (1) to remove it.

743RS006

7. Remove the sunroof finisher (With sunroof).

8. Remove the headlining.

• Remove the headlining fixing clips.

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Install the headlining so that the fixing clips will not

come off.

2. To install the sunroof finisher (1), first fit it in at one

place with the headlining (3) close to the sunroof
frame complete (2), then install the entire finisher
tightly by hitting it with a plastic hammer, not
allowing it to move up.

665RW003

8J–18

EXTERIOR/INTERIOR TRIM

Headlining (SWB)

Parts Location

666RX002

Legend

EndOFCallout

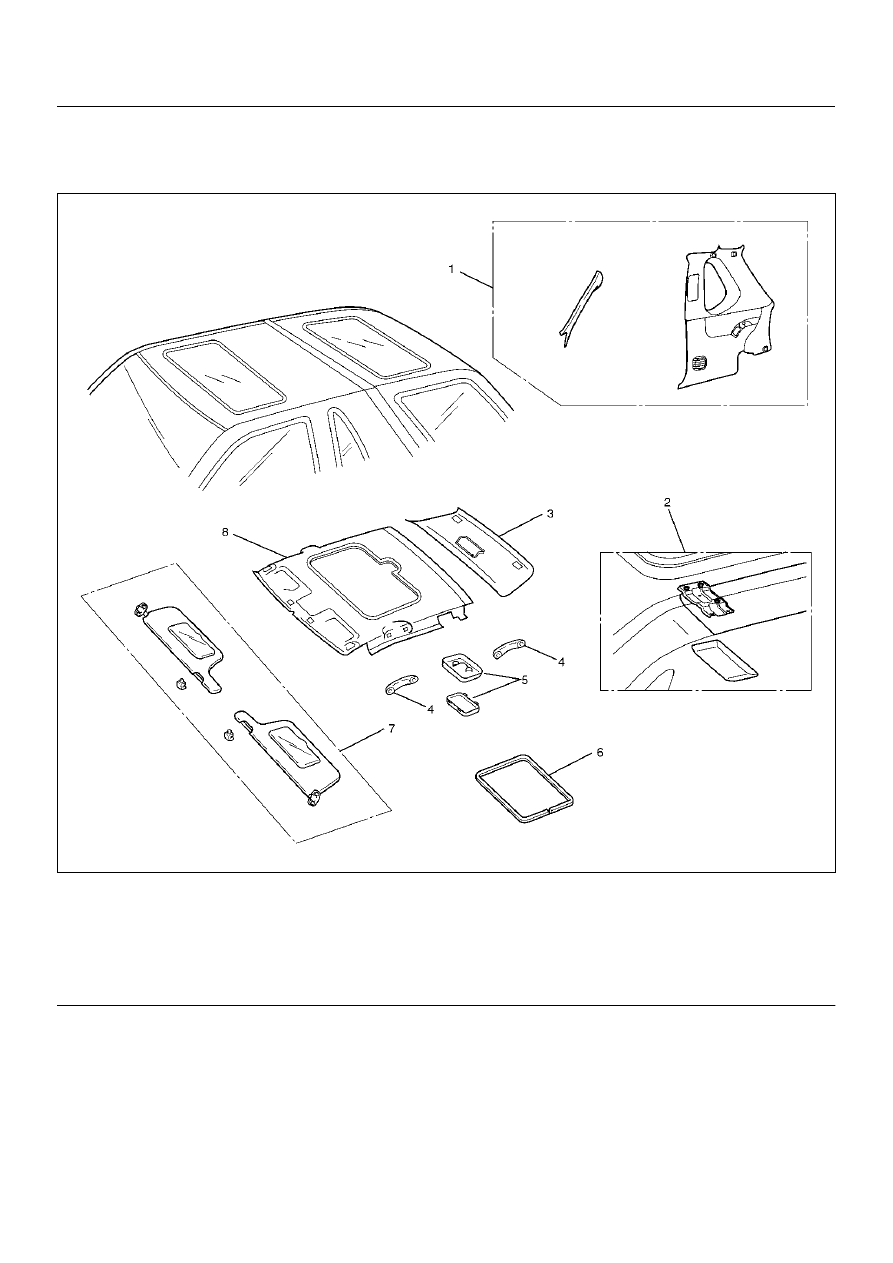

(1) Interior Trim Panels
(2) Rear Roof Cover & Roof Bracket
(3) Rear Roof Trim Cover
(4) Assist Grip

(5) Dome Light
(6) Sunroof Finisher
(7) Sunvisors
(8) Headlining
