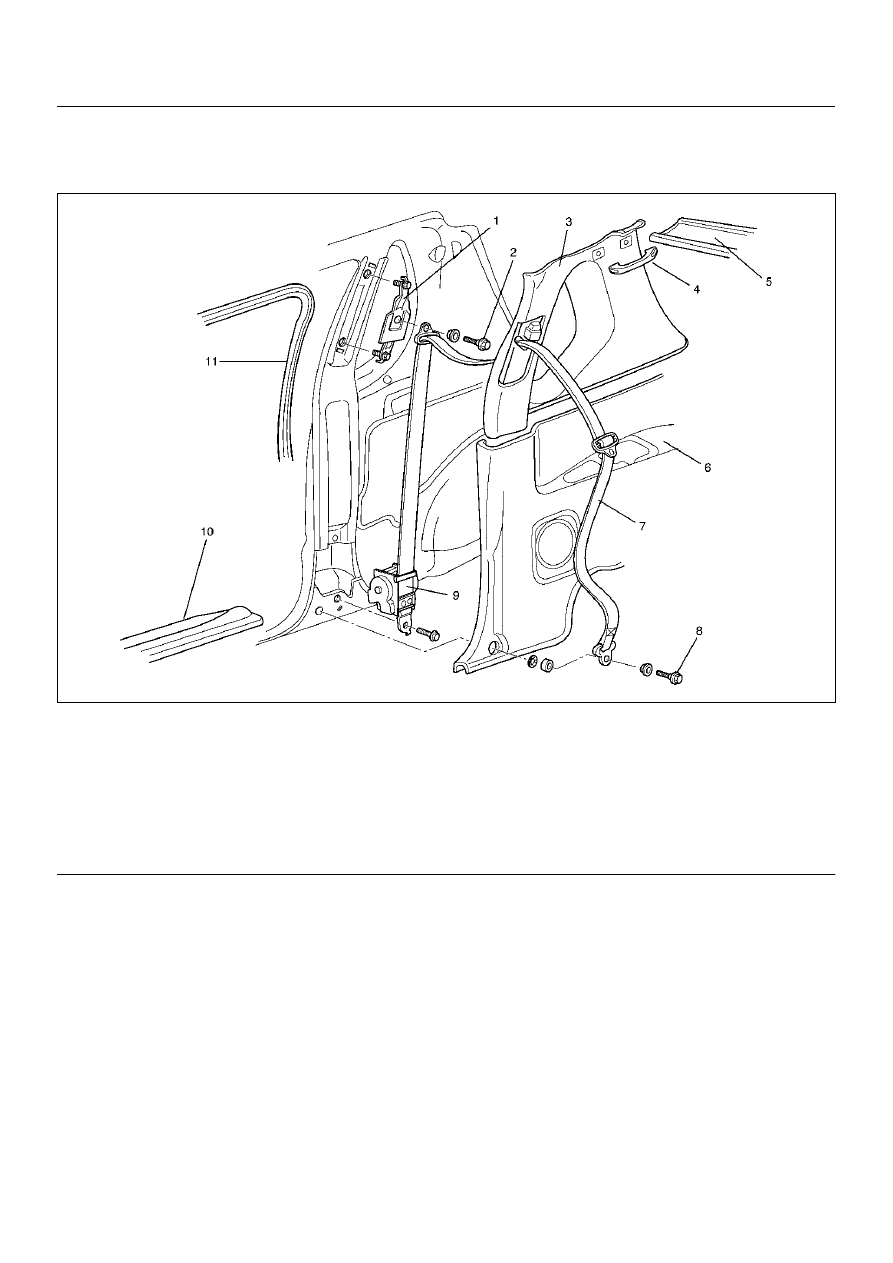

9A–4 SEAT BELT SYSTEM Front Seat Belt (SWB) Front Seat Belt and Associated Parts 760RW041 Legend EndOFCallout Removal 1. Disconnect the battery ground cable. 2. Remove the rear seat assembly. • Refer to Rear Seat Assembly in Seats section. 3. Remove the resin top assembly. • Refer to Resin Top Assembly in Sunroof/ Convertible Top section. 4. Remove the luggage side trim cover. • Refer to Rear Seat Belt (SWB) in this section. 5. Remove the sill plate. 6. Remove the seat belt lower anchor bolt (Front & Rear). (1) Adjustable Shoulder Anchor Assembly (7) Front Seat Belt Assembly (10) Sill Plate |
