METER AND GAUGE

8E–11

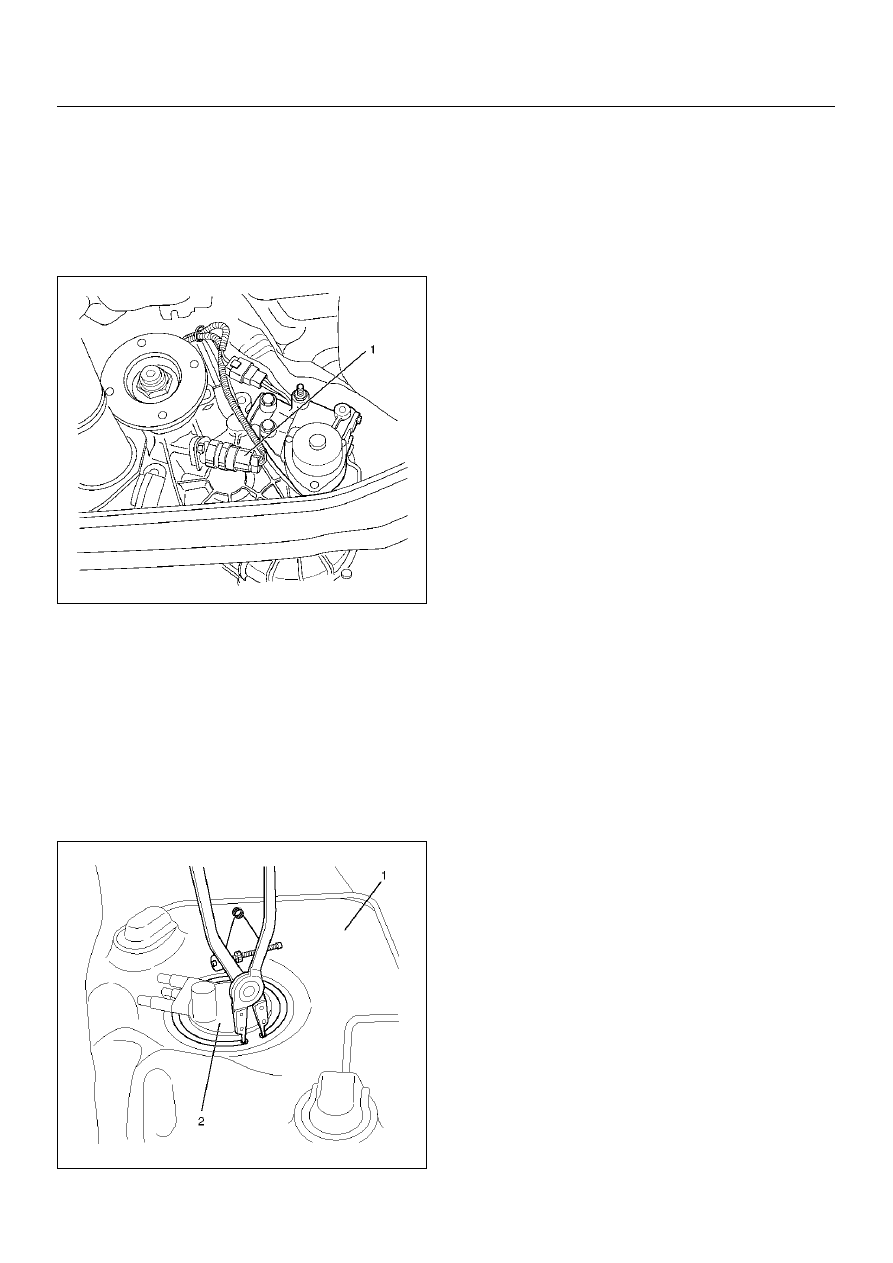

Vehicle Speed Sensor

Removal

1. Disconnect the battery ground cable.

2. Disconnect the connector, remove the vehicle speed

sensor (1) by rotating it.

220RX003

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Tighten the vehicle speed sensor to the specified

torque.

Torque: 27N·m (2.8kg·m/20lbft)

Fuel Tank Unit

Removal

1. Disconnect the battery ground cable.

2. Remove the fuel tank(1).

• Refer to the Fuel Tank in Engine Fuel section

3. Disconnect the connectors, remove five screws and

then remove the fuel tank unit(2).

825RW060

Installation

To install, follow the removal steps in the reverse order.

8E–12

METER AND GAUGE

Main Data and Specifications

Torque Specifications

Application

N·m

kg·m

LbFt

LbIn

Vehicle Speed Sensor Fixing

27

2.8

20

—

BODY STRUCTURE

8F–1

BODY AND ACCESSORIES

BODY STRUCTURE

CONTENTS

Service Precaution......................................... 8F - 2

Frame............................................................ 8F - 2

General Description .................................... 8F - 2
Frame Dimensions (LWB) .......................... 8F - 3
Frame Dimensions (SWB) .......................... 8F - 4

General Description (Bumper) ....................... 8F - 5

Front Bumper ................................................ 8F - 5

Parts Location............................................. 8F - 5
Removal ..................................................... 8F - 6
Installation .................................................. 8F - 6

Front Bumper Slider Bracket ......................... 8F - 7

Removal ..................................................... 8F - 7
Installation .................................................. 8F - 7

Rear Bumper................................................. 8F - 8

Parts Location............................................. 8F - 8
Removal ..................................................... 8F - 9
Installation .................................................. 8F - 9

Rear Bumper Slider....................................... 8F - 10

Removal ..................................................... 8F - 10
Installation .................................................. 8F - 10

General Description (Sheet Metal) ................ 8F - 11

Engine Hood ................................................. 8F - 11

Parts Location............................................. 8F - 11
Removal ..................................................... 8F - 12
Installation .................................................. 8F - 12

Engine Hood Lock......................................... 8F - 14

Parts Location............................................. 8F - 14
Removal ..................................................... 8F - 14
Installation .................................................. 8F - 15

Radiator Grille ............................................... 8F - 16

Parts Location............................................. 8F - 16
Removal ..................................................... 8F - 16
Installation .................................................. 8F - 17

Front Fender Panel ....................................... 8F - 18

Parts Location............................................. 8F - 18
Removal ..................................................... 8F - 18
Installation .................................................. 8F - 19

Body Mounting .............................................. 8F - 21

Parts Location............................................. 8F - 21
Tightening Torque ...................................... 8F - 21

Body Dimension ............................................ 8F - 22

Front Section .............................................. 8F - 22
Room Section (SWB) ................................. 8F - 25
Room Section (LWB) .................................. 8F - 27
Rear Section (SWB) ................................... 8F - 29
Rear Section (LWB).................................... 8F - 31
Side Body Section (Front side) ................... 8F - 33
Side Body Section (Rear side) ................... 8F - 35

General Description (Body) ........................... 8F - 37

Instrument Panel Assembly .......................... 8F - 37

Parts Location............................................. 8F - 37
Removal...................................................... 8F - 38
Installation................................................... 8F - 40

Front Door Assembly .................................... 8F - 41

Parts Location............................................. 8F - 41
Removal...................................................... 8F - 41
Installation................................................... 8F - 42

Rear Door Assembly ..................................... 8F - 43

Parts Location............................................. 8F - 43
Removal...................................................... 8F - 43
Installation................................................... 8F - 44

Front Window Regulator, Glass and

Glass Run.................................................... 8F - 45

Parts Location............................................. 8F - 45
Removal...................................................... 8F - 46
Installation................................................... 8F - 47

Rear Window Regulator, Glass and

Glass Run.................................................... 8F - 48

Parts Location............................................. 8F - 48
Removal...................................................... 8F - 49
Installation................................................... 8F - 50

Tailgate (LWB) .............................................. 8F - 51

Parts Location............................................. 8F - 51
Removal...................................................... 8F - 52
Installation................................................... 8F - 53

Tailgate (SWB) .............................................. 8F - 54

Parts Location............................................. 8F - 54
Removal...................................................... 8F - 54
Installation................................................... 8F - 55

Rear Hatchgate (LWB) .................................. 8F - 56

Parts Location............................................. 8F - 56
Removal...................................................... 8F - 57
Installation................................................... 8F - 57
Adjustment.................................................. 8F - 59

Tailgate Glass (SWB).................................... 8F - 60

Parts Location............................................. 8F - 60
Removal...................................................... 8F - 60
Installation................................................... 8F - 61

Spare Tire Carrier ......................................... 8F - 62

Parts Location............................................. 8F - 62
Removal...................................................... 8F - 62
Installation................................................... 8F - 62

Windshield..................................................... 8F - 63

Parts Location............................................. 8F - 63
Removal...................................................... 8F - 63
Installation................................................... 8F - 64

Rear Quarter Glass (LWB) ............................ 8F - 67

Parts Location............................................. 8F - 67

SECTION

8F–2

BODY STRUCTURE

Removal ..................................................... 8F - 67
Installation .................................................. 8F - 68

Rear Quarter Glass (SWB) ........................... 8F - 69

Parts Location............................................. 8F - 69
Removal ..................................................... 8F - 69
Installation .................................................. 8F - 69

Side Window Glass (SWB)............................ 8F - 71

Parts Location............................................. 8F - 71
Removal...................................................... 8F - 71
Installation................................................... 8F - 71

Main Data and Specifications ........................ 8F - 73
Special Tools ................................................. 8F - 76

Service Precaution

WARNING:  THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT  AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE
SRS COMPONENTS OR THE  SRS WIRING, REFER
TO THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR  BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION:  Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after  removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE  SPECIFIED, do not
use supplemental coatings (Paints, greases, or
other corrosion inhibitors) on threaded fasteners  or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force,  and may damage the fastener.
When you install fasteners, use the correct
tightening sequence and specifications.  Following
these instructions can help you avoid damage to
parts and systems.

Frame

General Description

Proper frame alignment is important to assure normal
vehicle life and performance of many other parts of the
vehicle. If the vehicle has been involved in a fire,
collision or has been overloaded, it is necessary to
check the frame alignment.
