METER AND GAUGE

8E–3

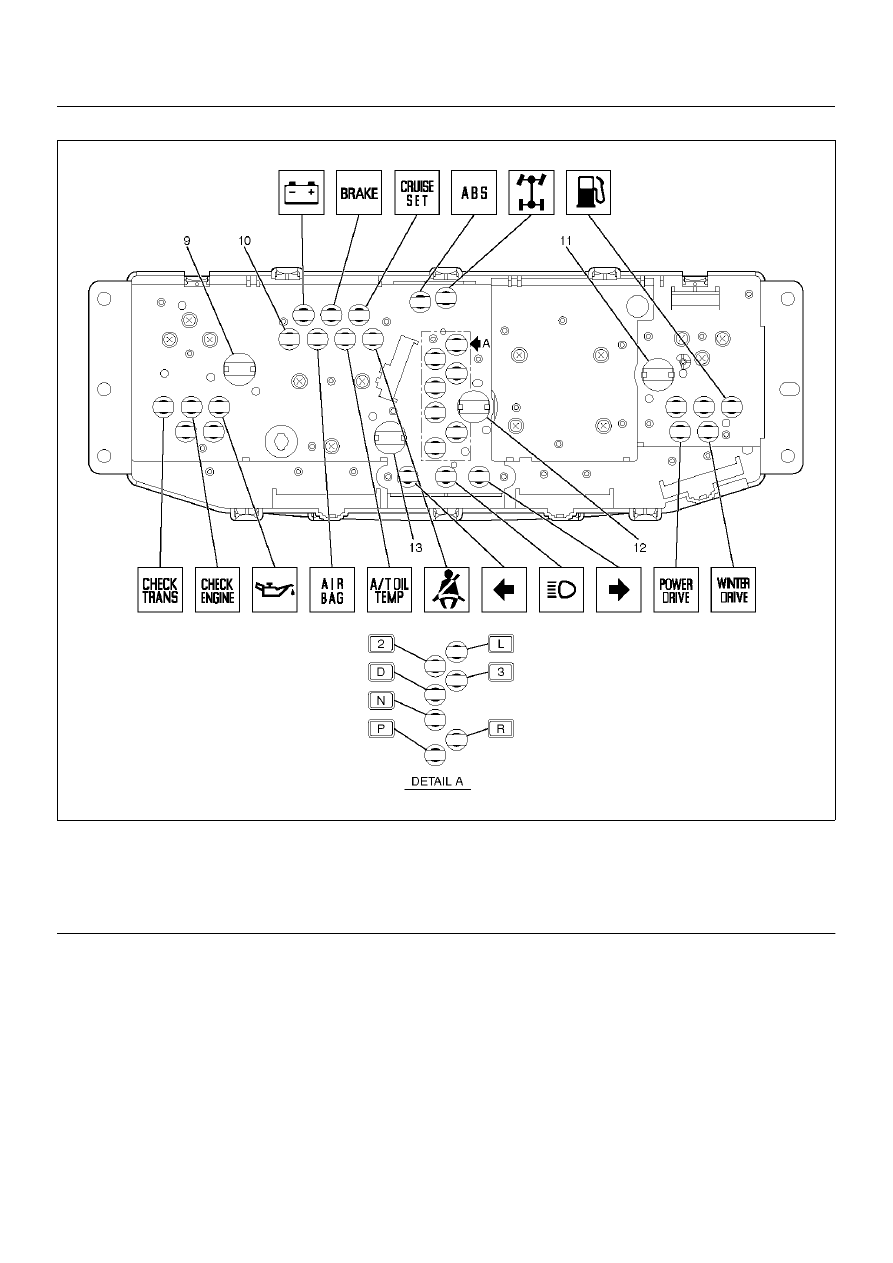

Meter Assembly W/A/T (Rear View)

825RX039

Legend

EndOFCallout

(9) Illumination Light

(10) LCD Light
(11) Illumination Light

(12) Illumination Light
(13) Illumination Light

8E–4

METER AND GAUGE

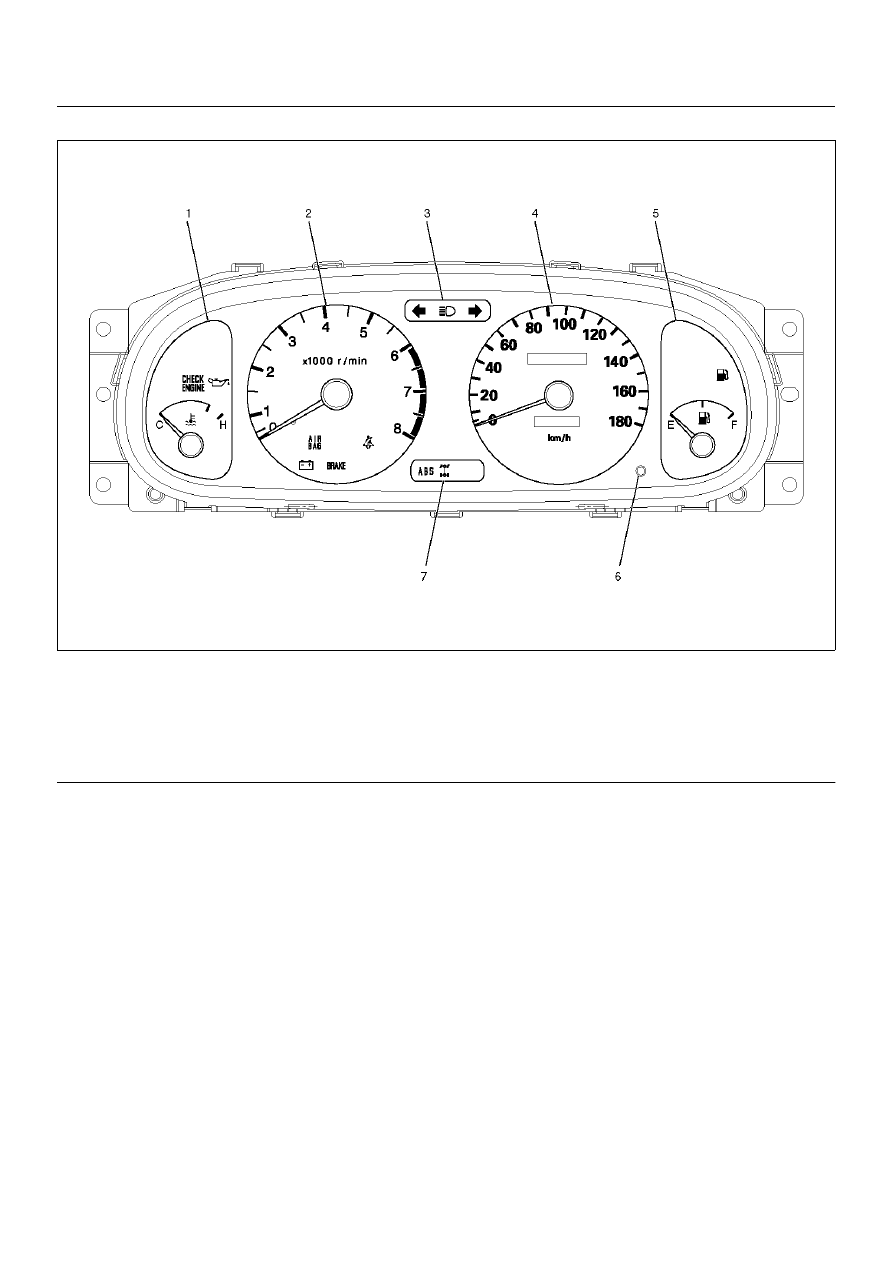

Meter Assembly W/M/T (Front View)

825RX036

Legend

EndOFCallout

(1) Engine Coolant Temperature Gauge
(2) Tachometer
(3) Warning Light Lens
(4) Speedometer

(5) Fuel Gauge
(6) Reset Knob
(7) Warning Light Lens

METER AND GAUGE

8E–5

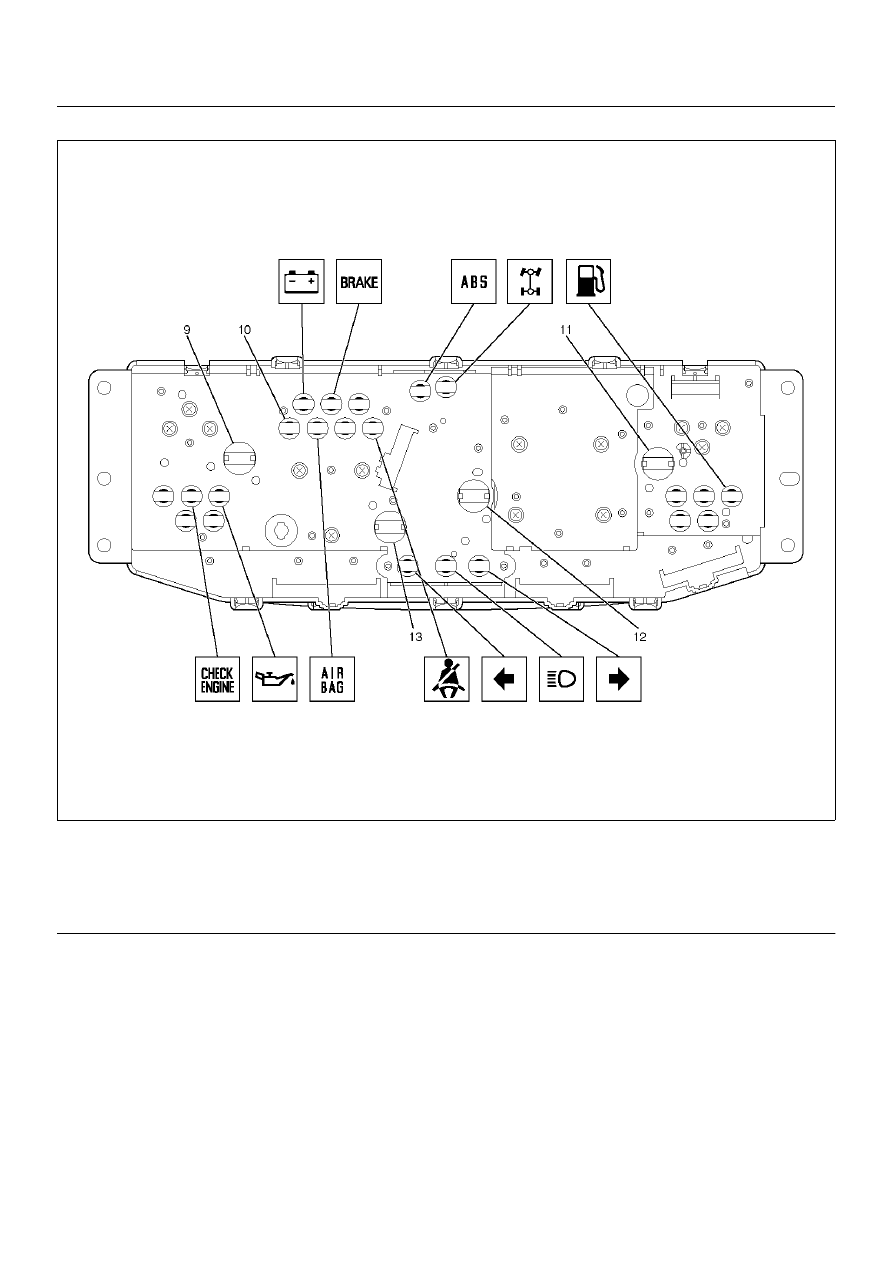

Meter Assembly W/M/T (Rear View)

825RX037

Legend

EndOFCallout

(9) Illumination Light

(10) LCD Light
(11) Illumination Light

(12) Illumination Light
(13) Illumination Light

8E–6

METER AND GAUGE

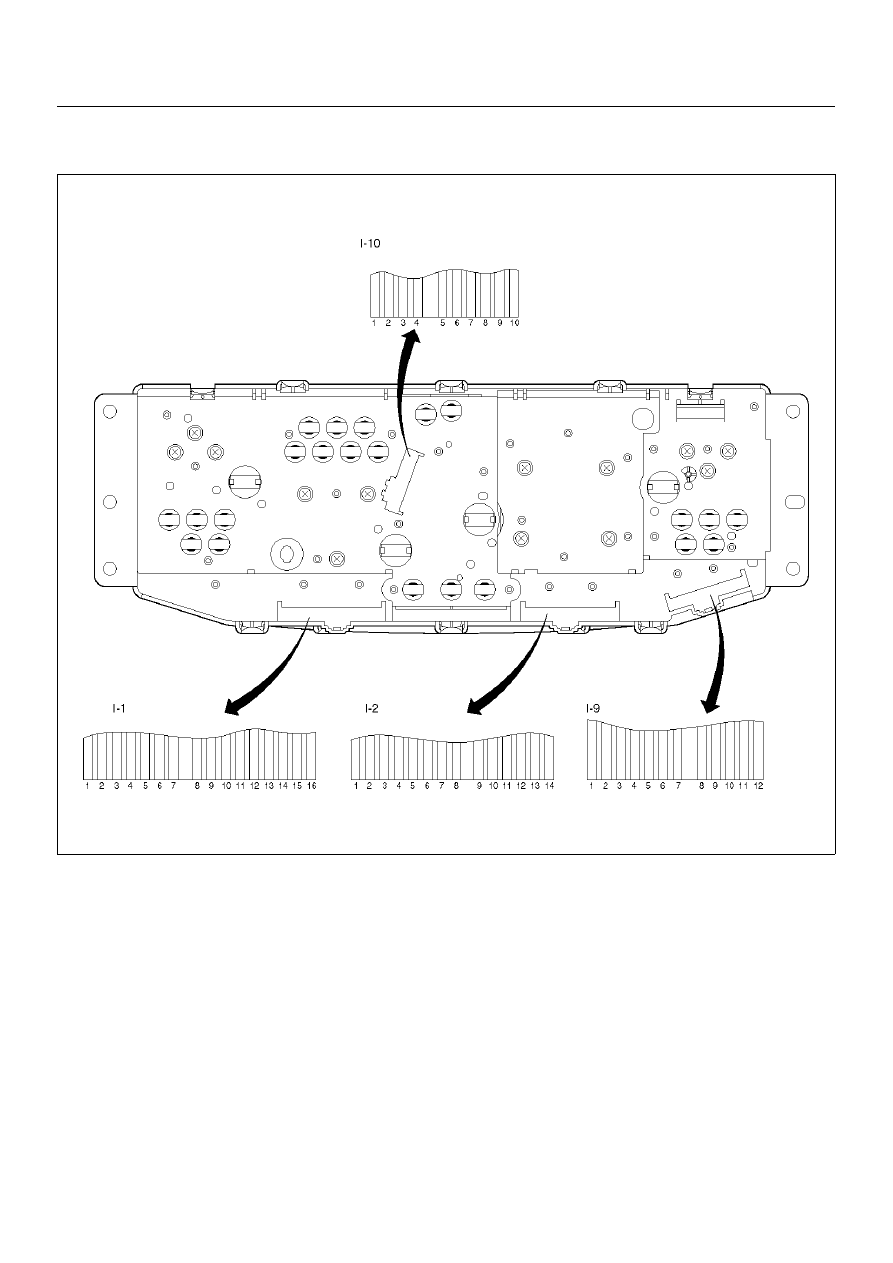

Table for Meter/Gauge Connector Terminal Connections

Meter Assembly W/M/T

825RX014
