BODY STRUCTURE

8F–3

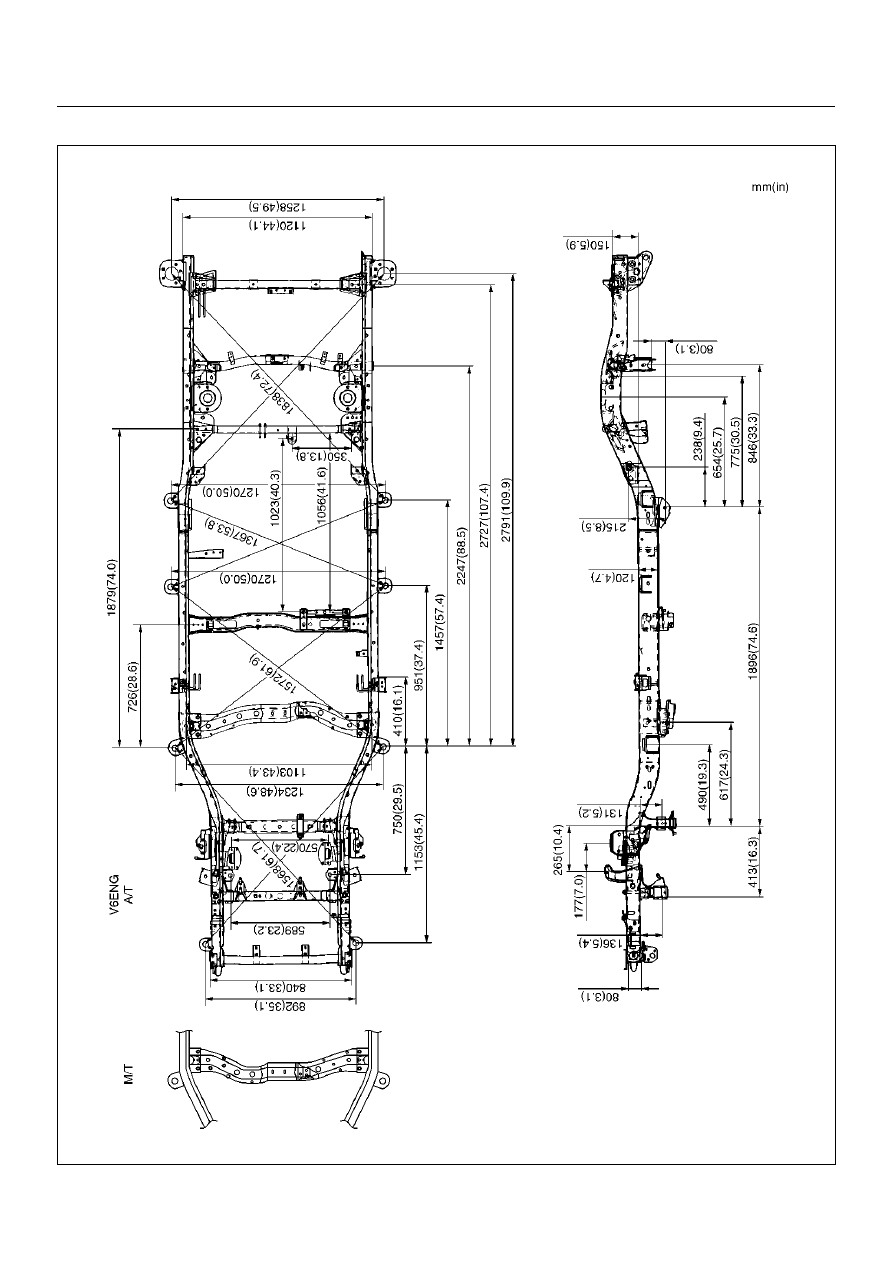

Frame Dimensions (LWB)

501RY00011

8F–4

BODY STRUCTURE

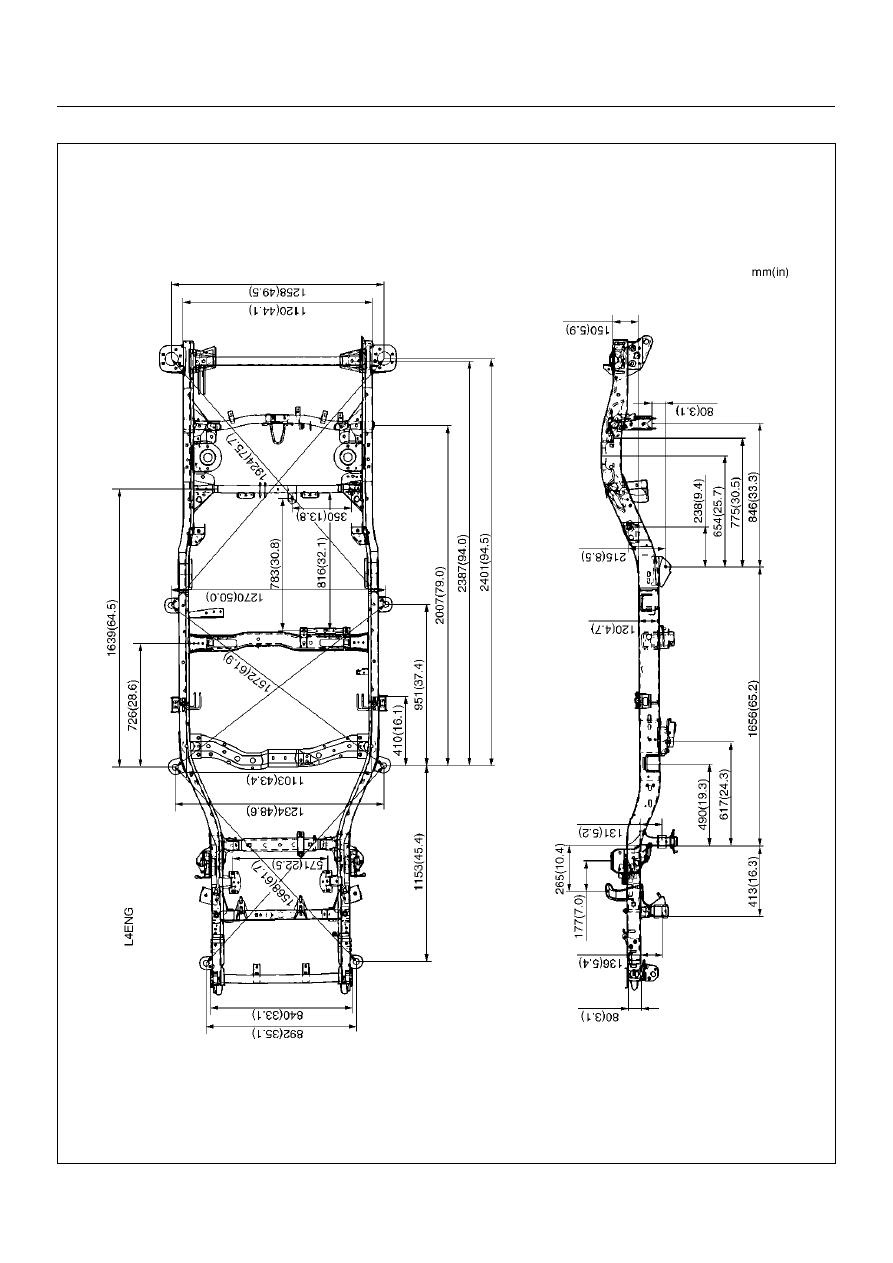

Frame Dimensions (SWB)

501RY00013

BODY STRUCTURE

8F–5

General Description (Bumper)

Front and rear bumpers consist of bumper fascia,
support, and reinforcement.

The absorbing capability for both front and rear bumper
systems are achieved through reinforcements in each
bumper.

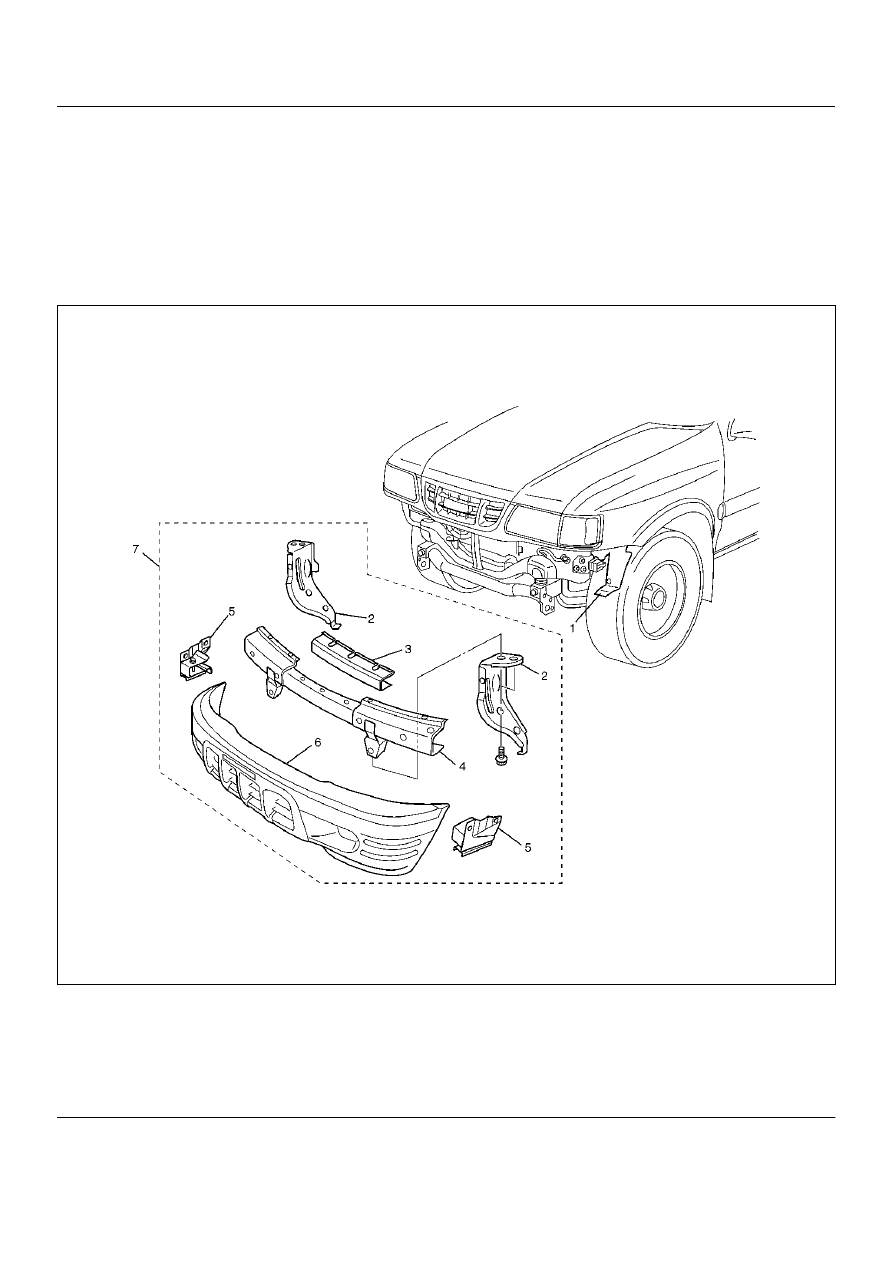

Front Bumper

Parts Location

601RY00010

Legend

EndOFCallout

(1) Inner Liner
(2) Backbar
(3) Support Assembly
(4) Front Bumper Reinforcement Assembly

(5) Front Bumper Slider
(6) Front Bumper Fascia
(7) Front Bumper Assembly

8F–6

BODY STRUCTURE

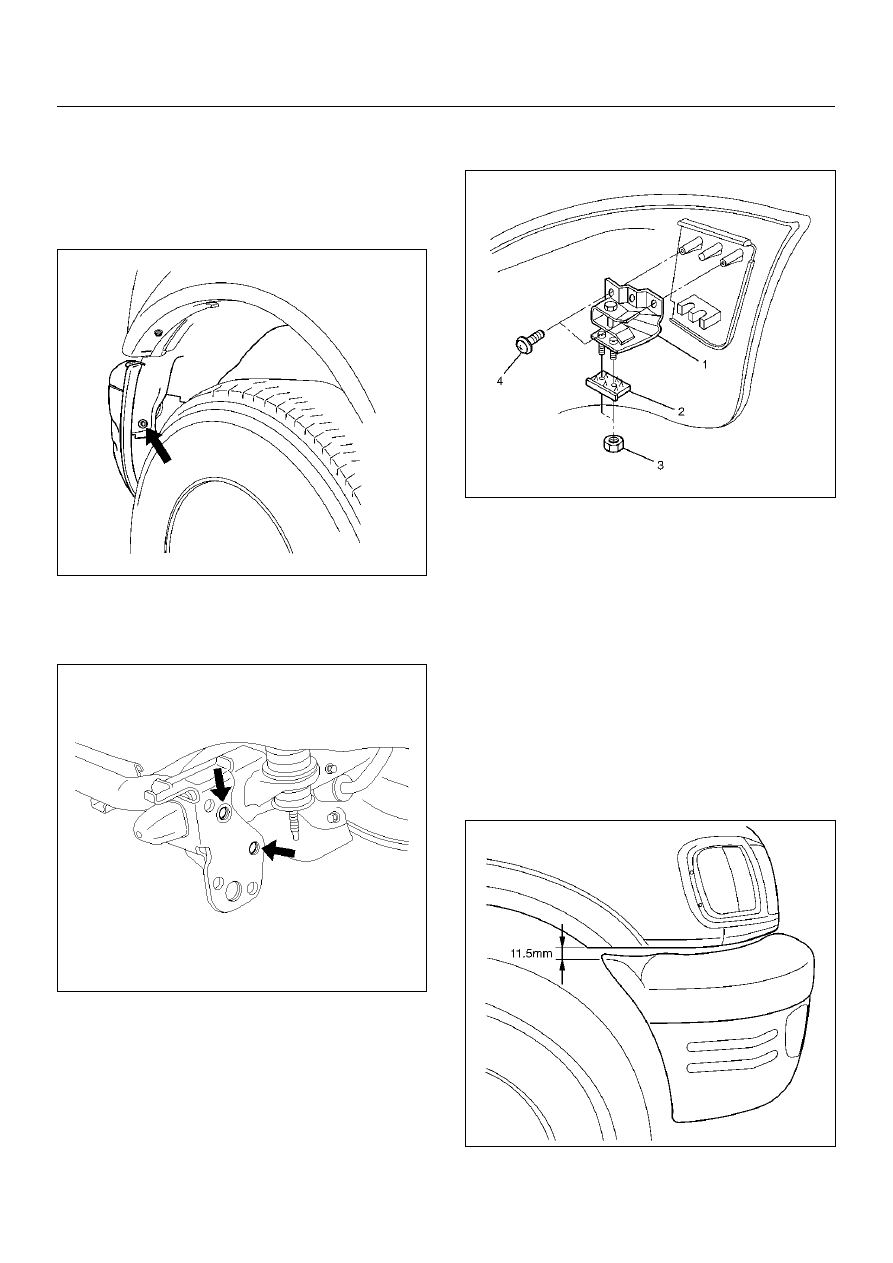

Removal

1. Disconnect the battery ground cable.

2. Disconnect front fog light connector (With fog light).

3. Remove the inner liner fixing clip on the back side of

the front bumper.

647RY00002

4. Remove the front bumper fixing bolts.

• Remove the two bolts from both sides of the front

bumper.

601RW004

5. Remove the front bumper assembly.

6. Remove the support assembly.

• Remove the three fixing bolts.

7. Remove the front bumper reinforcement assembly.

• Remove the eleven fixing bolts.

8. Remove the three bolts at each backbar and remove

backbars.

9. Remove the front fog light assembly (With fog light).

10. Remove the front bumper slider(1).

• Remove the two screws(4) and the two nuts(3),

and release the claw from the washer(2).

601RY00004

Installation

To install, follow the removal steps in reverse order
noting the following points:

1. Tighten the front bumper assembly fixing bolts to the

specified torque.

Torque : 147 N·m (15 kg·m/108 lb ft)

2. Front bumper adjustment

• When the bolts fixing front bumper assembly are

tightened, adjustment should be made between
the back bar and front side bumper so that a
clearance of 11.5 mm is provided between the
lower side of the fender and the upper side of the
front bumper.

601RY00013
