Nissan Frontier D40. Manual - part 910





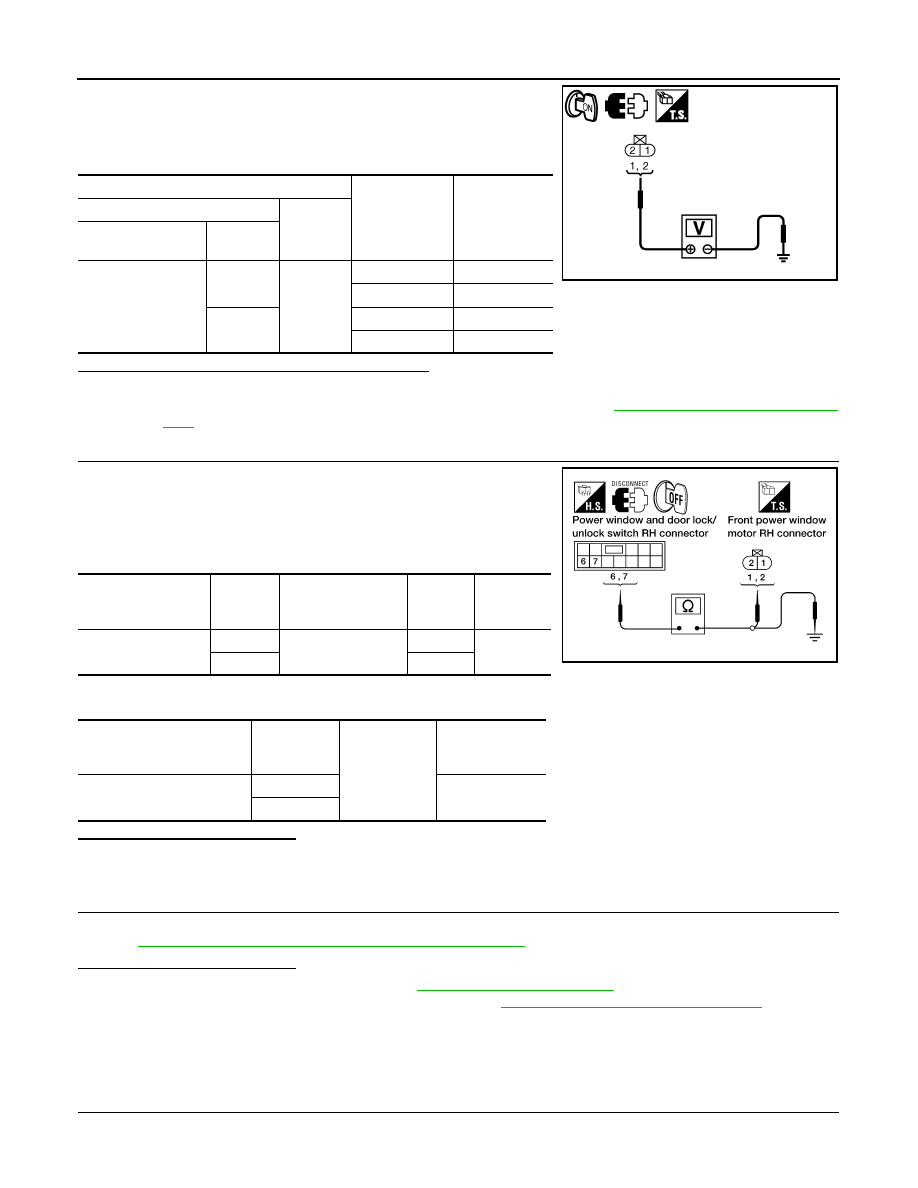

PWC-22

< COMPONENT DIAGNOSIS >

POWER WINDOW MOTOR

1.

Disconnect front power window motor RH.

2.

Turn ignition switch ON.

3.

Check voltage between front power window motor RH connector
and ground.

Is the measurement value within the specification?

YES

>> GO TO 2

NO

>> Replace power window and door lock/unlock switch RH. Refer to

PWC-66, "Removal and Installa-

tion"

.

2.

 CHECK HARNESS CONTINUITY

1.

Turn ignition switch OFF.

2.

Disconnect power window and door lock/unlock switch RH.

3.

Check continuity between power window and door lock/unlock
switch RH connector and front power window motor RH connec-
tor.

4.

Check continuity between power window and door lock/unlock switch RH connector and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

 CHECK FRONT POWER WINDOW MOTOR RH

Check front power window motor RH.
Refer to

PWC-22, "PASSENGER SIDE : Component Inspection"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-46, "Intermittent Incident"

.

NO

>> Replace front power window motor RH. Refer to

GW-16, "Front Door Glass Regulator"

.

PASSENGER SIDE : Component Inspection

INFOID:0000000005274627

COMPONENT INSPECTION

1.

 CHECK FRONT POWER WINDOW MOTOR RH

Does motor operate by connecting the battery voltage directly to front power window motor RH?

Terminal

Front power

window motor

RH condition

Voltage (V)

(Approx.)

(+)

(–)

Front power window
motor RH connector

Terminal

D104

2

Ground

UP

Battery voltage

DOWN

0

1

UP

0

DOWN

Battery voltage

PIIB6431E

Power window and

door lock/unlock

switch RH connector

Terminal

Front power window
motor RH connector

Terminal

Continuity

D105

6

D104

1

Yes

7

2

Power window and door

lock/unlock switch RH con-

nector

Terminal

Ground

Continuity

D105

6

No

7

LIIA2057E

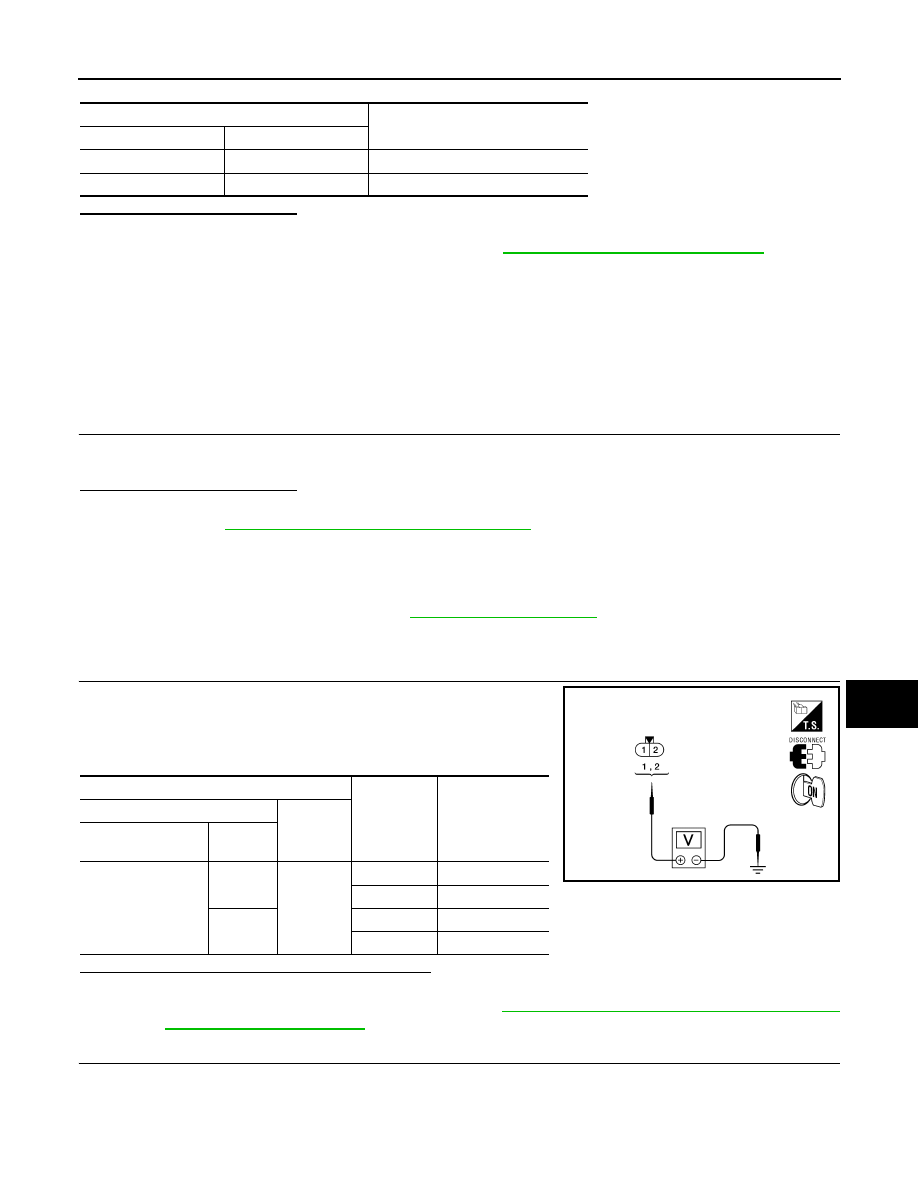

POWER WINDOW MOTOR

PWC-23

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

Is the inspection result normal?

YES

>> Front power window motor RH is OK.

NO

>> Replace front power window motor RH. Refer to

GW-16, "Front Door Glass Regulator"

.

REAR LH

REAR LH : Description

INFOID:0000000005274628

Door glass moves UP/DOWN by receiving the signal from power window main switch or rear power window
switch LH.

REAR LH : Component Function Check

INFOID:0000000005274629

1.

 CHECK REAR POWER WINDOW MOTOR LH CIRCUIT

Does rear power window motor LH operate with main power window and door lock/unlock switch or rear
power window switch LH?

Is the inspection result normal?

YES

>> Rear power window motor LH is OK.

NO

>> Refer to

PWC-23, "REAR LH : Diagnosis Procedure"

.

REAR LH : Diagnosis Procedure

INFOID:0000000005274630

Regarding Wiring Diagram information, refer to

PWC-33, "Wiring Diagram"

.

1.

 CHECK REAR POWER WINDOW SWITCH OUTPUT SIGNAL

1.

Disconnect rear power window motor LH.

2.

Turn ignition switch ON.

3.

Check voltage between rear power window motor LH connector
and ground.

Is the measurement value within the specification?

YES

>> GO TO 2

NO

>> Check rear power window switch LH. Refer to

PWC-17, "REAR POWER WINDOW SWITCH :

Component Function Check"

.

2.

 CHECK HARNESS CONTINUITY

Terminal

Motor condition

(+)

(–)

1

2

DOWN

2

1

UP

Terminal

Window

condition

Voltage (V)

(Approx.)

(+)

(–)

Rear power window
motor LH connector

Terminal

D204

1

Ground

UP

Battery voltage

DOWN

0

2

UP

0

DOWN

Battery voltage

LIIA2228E

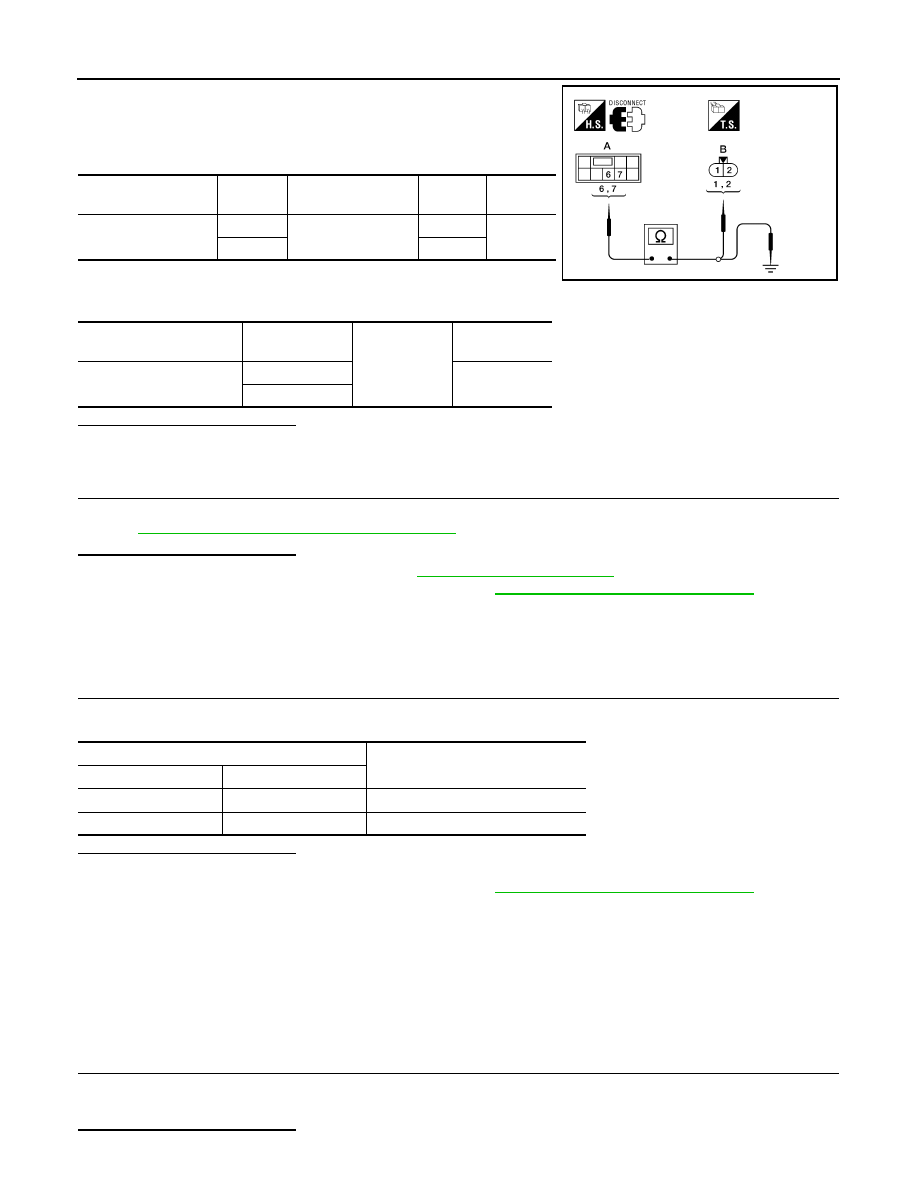

PWC-24

< COMPONENT DIAGNOSIS >

POWER WINDOW MOTOR

1.

Turn ignition switch OFF.

2.

Disconnect rear power window switch LH.

3.

Check continuity between rear power window switch LH connec-
tor (A) and rear power window motor LH connector (B).

4.

Check continuity between rear power window switch LH connec-
tor (A) and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

 CHECK REAR POWER WINDOW MOTOR LH

Check rear power window motor LH.
Refer to

PWC-24, "REAR LH : Component Inspection"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-46, "Intermittent Incident"

.

NO

>> Replace rear power window motor LH. Refer to

GW-20, "Rear Door Glass Regulator"

.

REAR LH : Component Inspection

INFOID:0000000005274631

COMPONENT INSPECTION

1.

 CHECK REAR POWER WINDOW MOTOR LH

Does motor operate by connecting the battery voltage directly to rear power window motor LH?

Is the inspection result normal?

YES

>> Rear power window motor LH is OK.

NO

>> Replace rear power window motor LH. Refer to

GW-20, "Rear Door Glass Regulator"

.

REAR RH

REAR RH : Description

INFOID:0000000005274632

Door glass moves UP/DOWN by receiving the signal from main power window and door lock/unlock switch or
rear power window switch RH.

REAR RH : Component Function Check

INFOID:0000000005274633

1.

 CHECK REAR POWER WINDOW MOTOR RH CIRCUIT

Does rear power window motor RH operate with operating main power window and door lock/unlock switch or
rear power window switch RH?

Is the inspection result normal?

Rear power window

switch LH connector

Terminal

Rear power window
motor LH connector

Terminal

Continuity

D203 (A)

6

D204 (B)

1

Yes

7

2

Rear power window switch

LH connector

Terminal

Ground

Continuity

D203 (A)

6

No

7

LIIA2229E

Terminal

Motor condition

(+)

(–)

2

1

DOWN

1

2

UP

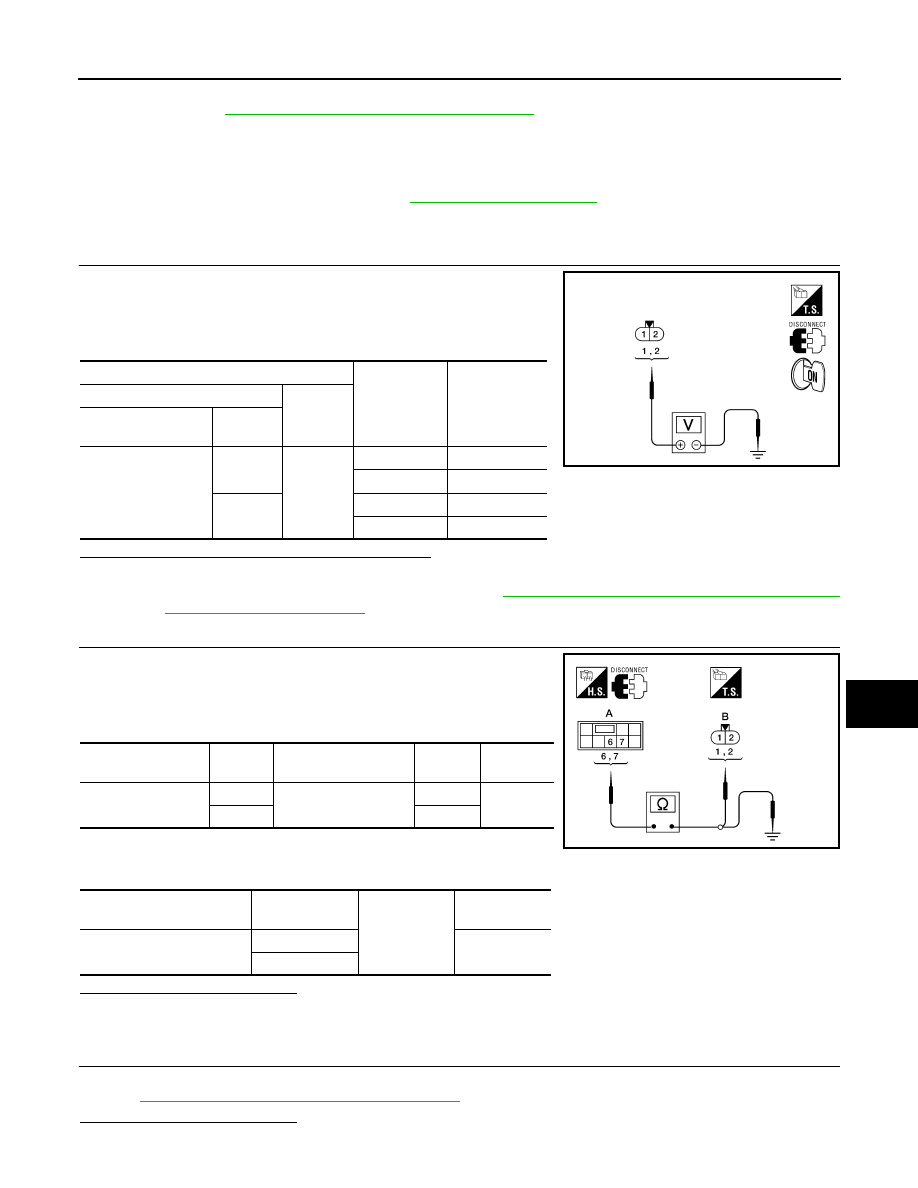

POWER WINDOW MOTOR

PWC-25

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

YES

>> Rear power window motor RH is OK.

NO

>> Refer to

PWC-25, "REAR RH : Diagnosis Procedure"

.

REAR RH : Diagnosis Procedure

INFOID:0000000005274634

Regarding Wiring Diagram information, refer to

PWC-33, "Wiring Diagram"

.

1.

 CHECK REAR POWER WINDOW SWITCH RH OUTPUT SIGNAL

1.

Disconnect rear power window motor RH.

2.

Turn ignition switch ON.

3.

Check voltage between rear power window motor RH connector
and ground.

Is the measurement value within the specification?

YES

>> GO TO 2

NO

>> Check rear power window switch RH. Refer to

PWC-17, "REAR POWER WINDOW SWITCH :

Component Function Check"

.

2.

 CHECK HARNESS CONTINUITY

1.

Turn ignition switch OFF.

2.

Disconnect rear power window switch RH.

3.

Check continuity between rear power window switch RH con-
nector (A) and rear power window motor RH connector (B).

4.

Check continuity between rear power window switch RH con-
nector (A) and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

 CHECK REAR POWER WINDOW MOTOR RH

Check rear power window motor RH.
Refer to

PWC-26, "REAR RH : Component Inspection"

.

Is the inspection result normal?

Terminal

Rear power

window switch

RH condition

Voltage (V)

(Approx.)

(+)

(–)

Rear power window

motor RH connector

Terminal

D304

1

Ground

UP

Battery voltage

DOWN

0

2

UP

0

DOWN

Battery voltage

LIIA2228E

Rear power window

switch RH connector

Terminal

Rear power window

motor RH connector

Terminal

Continuity

D303 (A)

6

D304 (B)

1

Yes

7

2

Rear power window switch

RH connector

Terminal

Ground

Continuity

D303 (A)

6

No

7

LIIA2229E
