PWC-26

< COMPONENT DIAGNOSIS >

POWER WINDOW MOTOR

YES

>> Check intermittent incident. Refer to

GI-46, "Intermittent Incident"

.

NO

>> Replace rear power window motor RH. Refer to

GW-20, "Rear Door Glass Regulator"

.

REAR RH : Component Inspection

INFOID:0000000005274635

COMPONENT INSPECTION

1.

 CHECK REAR POWER WINDOW MOTOR RH

Does motor operate by connecting the battery voltage directly to rear power window motor RH?

Is the inspection result normal?

YES

>> Rear power window motor RH is OK.

NO

>> Replace rear power window motor RH. Refer to

GW-20, "Rear Door Glass Regulator"

.

Terminal

Motor condition

(+)

(–)

2

1

DOWN

1

2

UP

DOOR SWITCH

PWC-27

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

DOOR SWITCH

KING CAB

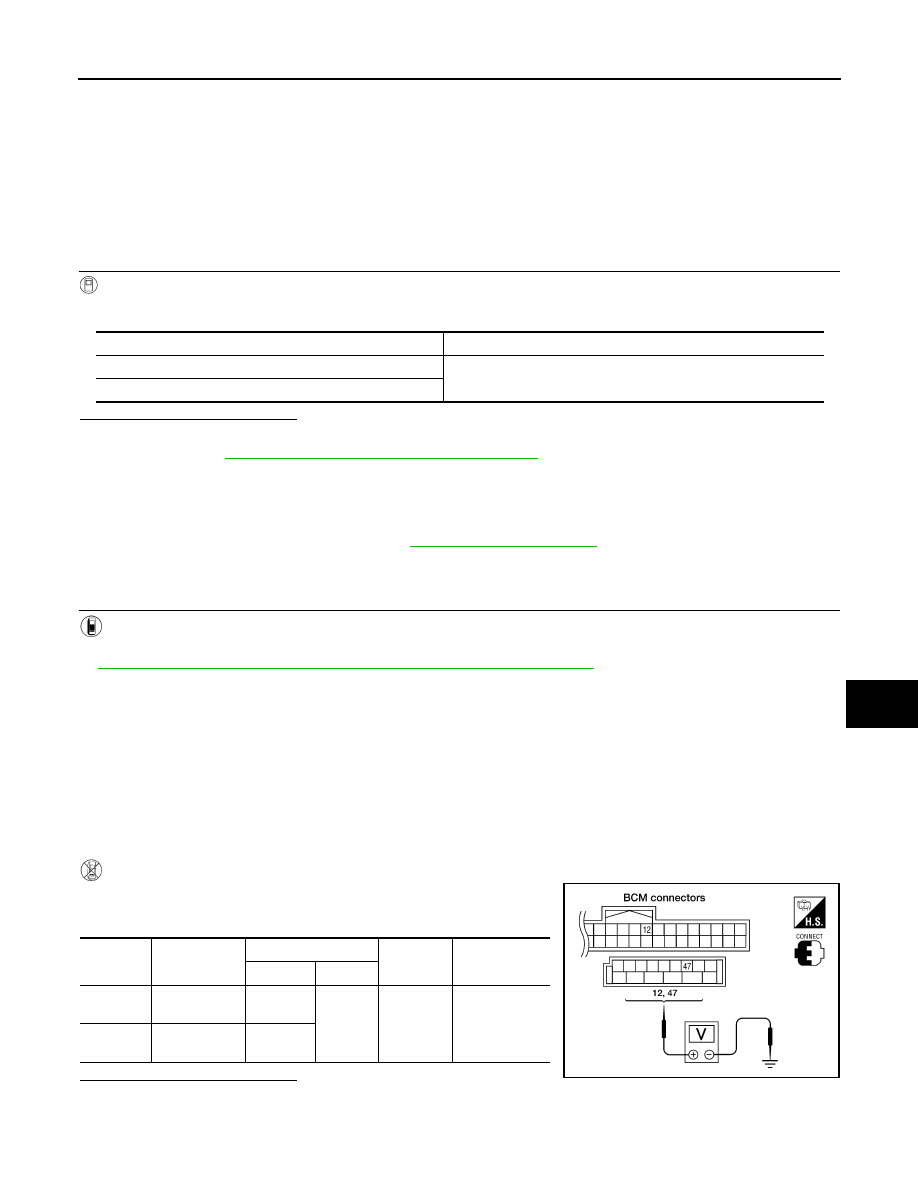

KING CAB : Description

INFOID:0000000005274636

Detects door open/close condition.

KING CAB : Component Function Check

INFOID:0000000005274637

1.

 CHECK FUNCTION

With CONSULT-III

Check door switches in data monitor mode with CONSULT-III.

Is the inspection result normal?

YES

>> Door switch is OK.

NO

>> Refer to

PWC-27, "KING CAB : Diagnosis Procedure"

.

KING CAB : Diagnosis Procedure

INFOID:0000000005274638

Regarding Wiring Diagram information, refer to

PWC-33, "Wiring Diagram"

.

1.

 CHECK DOOR SWITCHES INPUT SIGNAL

With CONSULT-III

Check door switches ("DOOR SW-DR", "DOOR SW-AS") in DATA MONITOR mode with CONSULT–III. Refer
to

BCS-15, "DOOR LOCK : CONSULT-III Function (BCM - DOOR LOCK)"

.

• When any doors are open:

• When any doors are closed:

Without CONSULT-III

Check voltage between BCM connector M18 or M19 terminals 12,
47 and ground.

Is the inspection result normal?

YES

>> Door switch circuit is OK.

NO

>> GO TO 2

Monitor item

Condition

DOOR SW-DR

CLOSE

 OPEN: OFF

 ON

DOOR SW-AS

DOOR SW-DR

:ON

DOOR SW-AS

:ON

DOOR SW-DR

:OFF

DOOR SW-AS

:OFF

Connec-

tor

Item

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(–)

M19

Front door

switch LH

47

Ground

Open

Closed

0

Battery voltage

M18

Front door

switch RH

12

LIIA1174E

PWC-28

< COMPONENT DIAGNOSIS >

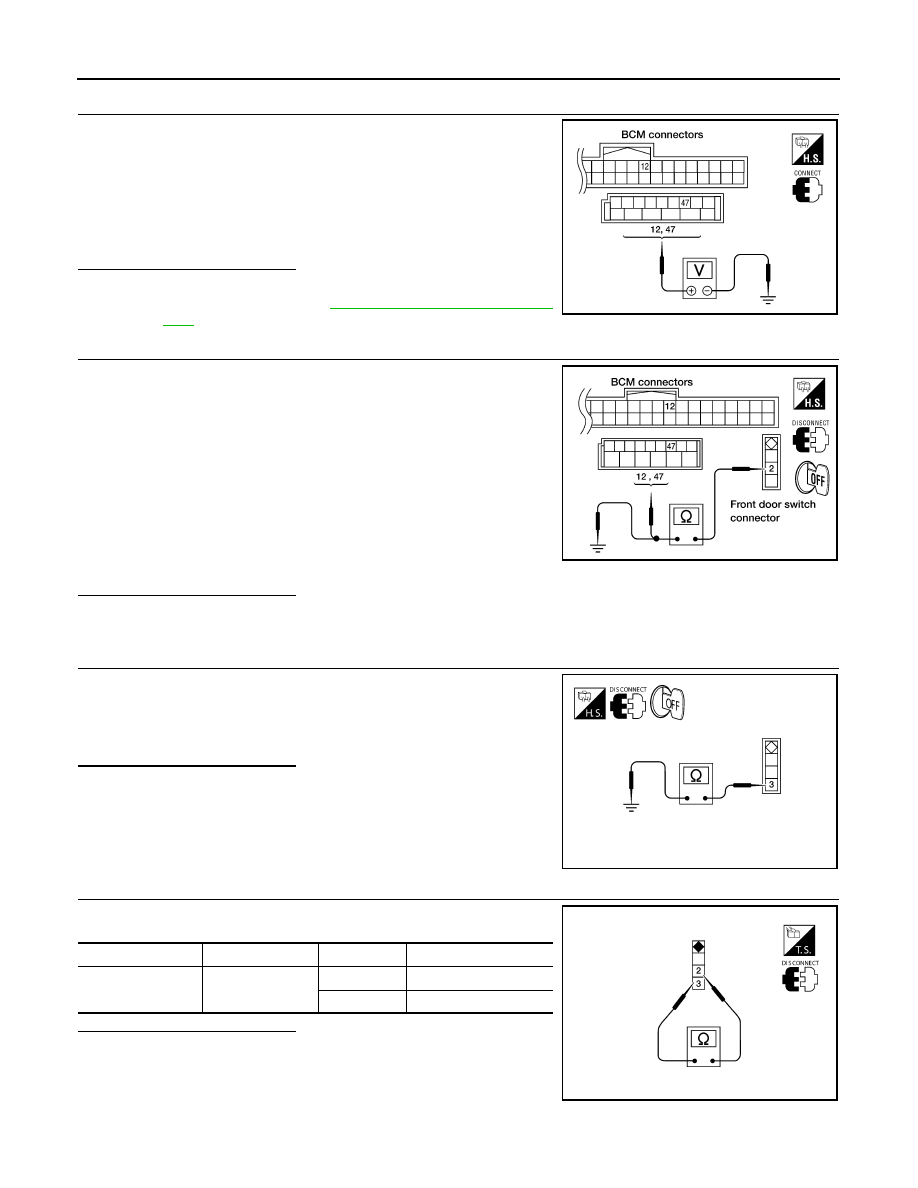

DOOR SWITCH

2.

 CHECK BCM OUTPUT VOLTAGE

1.

Turn ignition switch OFF.

2.

Disconnect door switches.

3.

Check voltage between BCM connector M18, M19 terminals 12,
47 and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Replace BCM. Refer to

BCS-54, "Removal and Installa-

tion"

.

3.

 CHECK DOOR SWITCH CIRCUIT

1.

Disconnect BCM.

2.

Check continuity between door switch connector D213 (Front
LH), D314 (Front RH) terminal 2 and BCM connector M18, M19
terminals 12, and 47.

3.

Check continuity between door switch connector D213 (Front
LH), D314 (Front RH) terminal 2 and ground.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Repair or replace harness.

4.

 CHECK DOOR SWITCHES GROUND CIRCUIT

Check continuity between door switch connector D213 (Front LH),
D314 (Front RH) terminal 3 and ground.

Is the inspection result normal?

YES

>> GO TO 5

NO

>> Repair or replace harness.

5.

 CHECK DOOR SWITCHES

Check continuity between door switch terminals.

Is the inspection result normal?

YES

>> Check condition of harness and connector.

NO

>> Replace door switch.

CREW CAB

12 - Ground

: Battery voltage

47 - Ground

: Battery voltage

LIIA1174E

2 - 47

: Continuity should exist

2 - 12

: Continuity should exist

2 - Ground

: Continuity should not exist

LIIA0947E

3 - Ground

: Continuity should not exist

ALKIA1848ZZ

Item

Terminal

Condition

Continuity

Door switches

(front)

2 – 3

Open

Yes

Closed

No

ALKIA1849ZZ

DOOR SWITCH

PWC-29

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

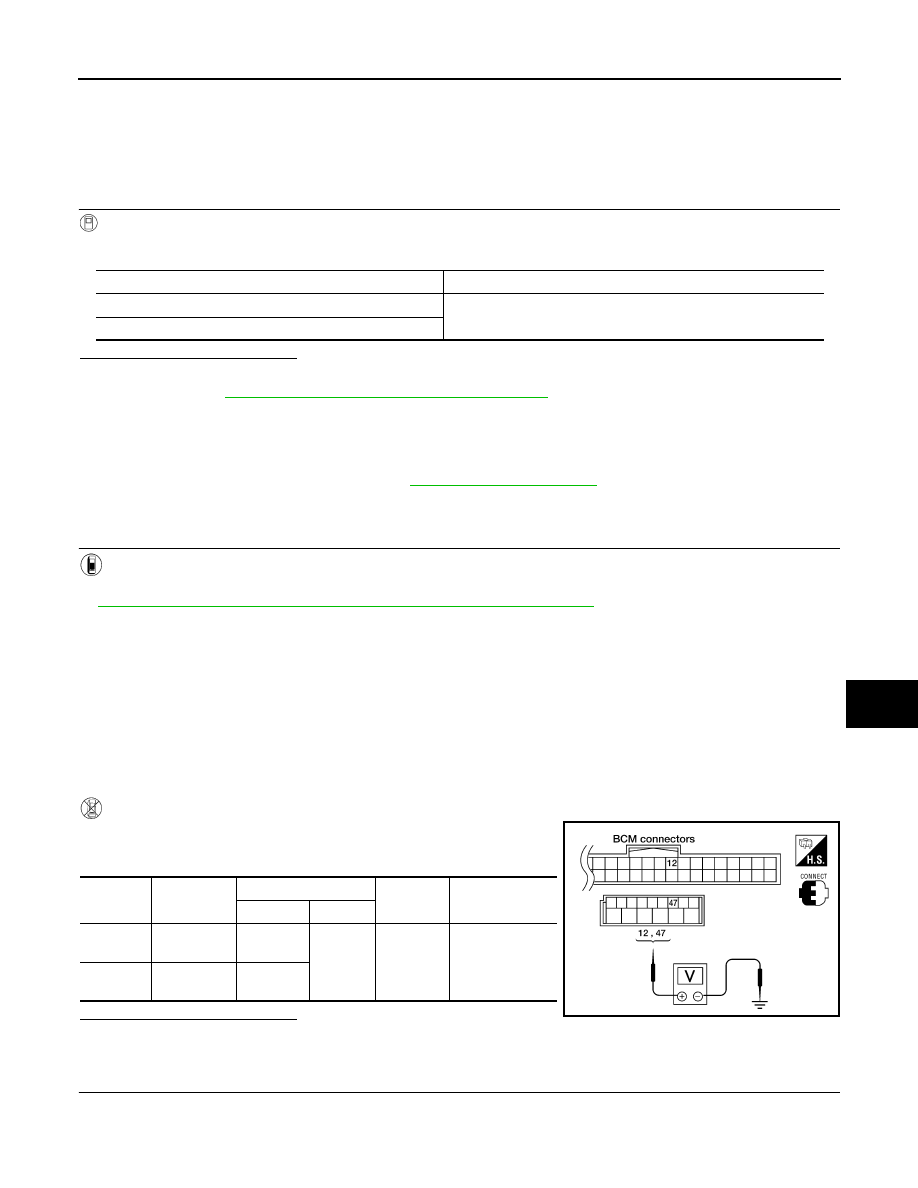

CREW CAB : Description

INFOID:0000000005274639

Detects door open/close condition.

CREW CAB : Component Function Check

INFOID:0000000005274640

1.

 CHECK FUNCTION

With CONSULT-III

Check door switches in data monitor mode with CONSULT-III.

Is the inspection result normal?

YES

>> Door switch is OK.

NO

>> Refer to

PWC-29, "CREW CAB : Diagnosis Procedure"

.

CREW CAB : Diagnosis Procedure

INFOID:0000000005274641

Regarding Wiring Diagram information, refer to

PWC-33, "Wiring Diagram"

.

1.

 CHECK DOOR SWITCHES INPUT SIGNAL

With CONSULT-III

Check door switches ("DOOR SW-DR", "DOOR SW-AS") in DATA MONITOR mode with CONSULT–III. Refer
to

BCS-15, "DOOR LOCK : CONSULT-III Function (BCM - DOOR LOCK)"

.

• When any doors are open:

• When any doors are closed:

Without CONSULT-III

Check voltage between BCM connector M18 or M19 terminals 12,
47 and ground.

Is the inspection result normal?

YES

>> Door switch circuit is OK.

NO

>> GO TO 2

2.

 CHECK BCM OUTPUT VOLTAGE

Monitor item

Condition

DOOR SW-DR

CLOSE

 OPEN: OFF

 ON

DOOR SW-AS

DOOR SW-DR

: ON

DOOR SW-AS

: ON

DOOR SW-DR

: OFF

DOOR SW-AS

: OFF

Connec-

tor

Item

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(–)

M19

Front door

switch LH

47

Ground

Open

Closed

0

Battery voltage

M18

Front door

switch RH

12

LIIA0946E
