FOREWORD

This manual contains maintenance and repair procedure for the 2010
NISSAN FRONTIER.

In order to assure your safety and the efficient functioning of the vehicle,
this manual should be read thoroughly. It is especially important that the
PRECAUTIONS in the GI section be completely understood before starting
any repair task.

All information in this manual is based on the latest product information
at the time of publication. The right is reserved to make changes in specifi-
cations and methods at any time without notice.

IMPORTANT SAFETY NOTICE

The proper performance of service is essential for both the safety of
the technician and the efficient functioning of the vehicle.
The service methods in this Service Manual are described in such a
manner that the service may be performed safely and accurately.
Service varies with the procedures used, the skills of the technician
and the tools and parts available. Accordingly, anyone using service
procedures, tools or parts which are not specifically recommended
by NISSAN must first be completely satisfied that neither personal
safety nor the vehicle’s safety will be jeopardized by the service

method selected.

PLEASE HELP MAKE THIS SERVICE MANUAL BETTER!

Your comments are important to NISSAN and will help us to improve our Service Manuals.
Use this form to report any issues or comments you may have regarding our Service Manuals.
Please print this form and type or write your comments below. Mail or fax to:

Nissan North America, Inc.
Technical Service Information
39001 Sunrise Drive, P.O. Box 9200
Farmington Hills, MI USA 48331
FAX: (248) 488-3910

SERVICE MANUAL: Model:

Year:

PUBLICATION NO. (Refer to Quick Reference Index ):
Please describe any Service Manual issues or problems in detail:
Page number(s)

Note: Please include a copy of each page, marked with your comments.

Are the trouble diagnosis procedures logical and easy to use? (circle your answer)

YES

NO

If no, what page number(s)?

Note: Please include a copy of each page, marked with your comments.

Please describe the issue or problem in detail:

Is the organization of the manual clear and easy to follow? (circle your answer)

YES

NO

Please comment:

What information should be included in NISSAN Service Manuals to better support you in servicing or
repairing customer vehicles?

DATE:

YOUR NAME:

POSITION:

DEALER:

DEALER NO.:

ADDRESS:

CITY:

STATE/PROV./COUNTRY:

ZIP/POSTAL CODE:

2010

QUICK REFERENCE CHART: FRONTIER

QUICK REFERENCE CHART: FRONTIER

Engine Tune-up Data: QR25DE

INFOID:0000000005612473

GENERAL SPECIFICATIONS

DRIVE BELT

SPARK PLUG

*: Always check with the Parts Department for the latest parts information

Engine Tune-up Data: VQ40DE

INFOID:0000000005612472

GENERAL SPECIFICATIONS

Cylinder arrangement

In-line 4

Displacement

cm

3

 (cu in)

2,488 (151.82)

Bore and stroke

mm (in)

89.0 x 100.0 (3.504 x 3.937)

Valve arrangement

DOHC

Firing order

1-3-4-2

Number of piston rings

Compression

2

Oil

1

Compression ratio

9.5

Compression pressure
kPa (kg/cm

2

, psi) / 250 rpm

Standard

1,304 (13.3, 189)

Minimum

1,108 (11.3, 161)

Differential limit between cylinders

100 (1.0, 14)

Tension of drive belt

                         Auto adjustment by auto-tensioner

Make

NGK

Standard type*

PLZKAR6A–11

Gap (nominal)

1.1 mm (0.043 in)

Cylinder arrangement

V-6

Displacement cm

3

(cu in)

3,954 (241.30)

Bore and stroke mm (in)

95.5

× 92.0 (3.76 × 3.622)

Valve arrangement

DOHC

Firing order

1-2-3-4-5-6

Number of piston rings

Compression

2

Oil

1

Number of main bearings

4

Compression ratio

9.7

Compression pressure
kPa (kg/cm

2

, psi)/300 rpm

Standard

1,275 (13.0, 185)

Minimum

981 (10.0, 142)

Differential limit between cylinders

98 (1.0, 14)

QUICK REFERENCE CHART: FRONTIER

2010

DRIVE BELT

SPARK PLUG

*: Always check with the Parts Department for the latest parts information

Front Wheel Alignment (Unladen*1)*6

INFOID:0000000005612471

Cylinder number

Valve timing
(Intake valve timing control - “OFF”)

Unit: degree

a

b

c

d

e

f

244

240

−4

64

6

58

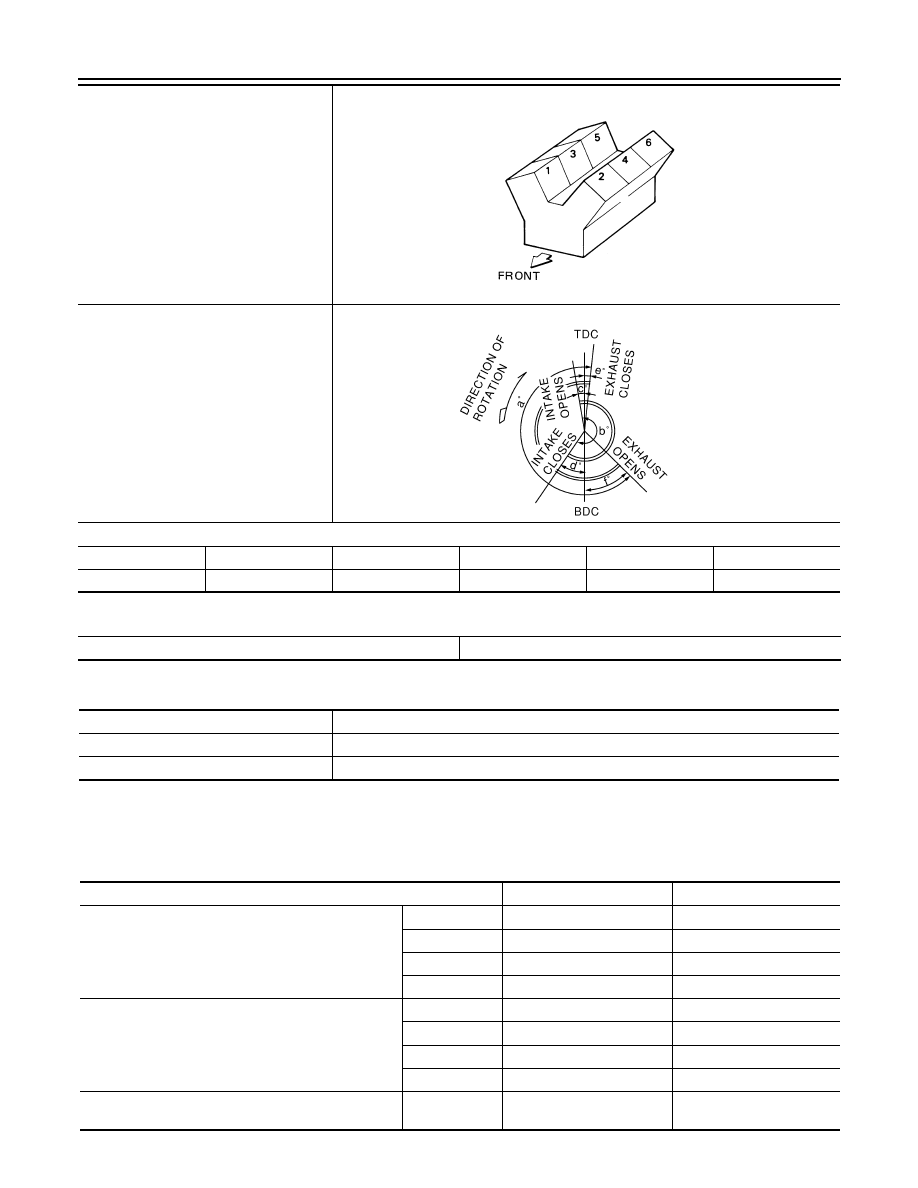

SEM713A

PBIC0187E

Tension of drive belts

Auto adjustment by auto tensioner

Make

NGK

Standard type*

DILFR5A-11

Gap (nominal)

1.1 mm (0.043 in)

Drive type

2WD

4WD

Camber
Degree minute (decimal degree)

Minimum

-0

° 30′ (-0.50°)

-0

° 15′ (-0.25°)

Nominal

0

° 15′ (0.25°)

0

° 30′ (0.50°)

Maximum

1

° 0′ (1.00°)

1

° 15′ (1.25°)

Cross camber

0

° 45′ (0.75°) or less

 0

° 45′ (0.75°) or less

Caster
Degree minute (decimal degree)

Minimum

2

° 15′ (2.25°)

2

° 0′ (2.00°)

Nominal

3

° 0′ (3.00°)

2

° 45′ (2.75°)

Maximum

3

° 45′ (3.75°)

3

° 30′ (3.50)

Cross caster

0

° 45′ (0.75°) or less

0

° 45′ (0.75°) or less

Kingpin inclination
Degree minute (decimal degree)

Nominal

13

° 0′ (13.00°)

12

° 45′ (12.75°)
