QUICK REFERENCE CHART: FRONTIER
*1: Fuel, radiator coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.
*2: Target value 35
° 26′ (35.43°)
*3: Target value 31
° 22′ (31.37°)
*4: Target value 35
° 36′ (35.60°)
*5: Target value 31
° 44′ (31.73°)
*6: Some vehicles may be equipped with straight (non-adjustable) lower link bolts and washers. In order to adjust camber and caster on
these vehicles, first replace the lower link bolts and washers with adjustable (cam) bolts and washers.

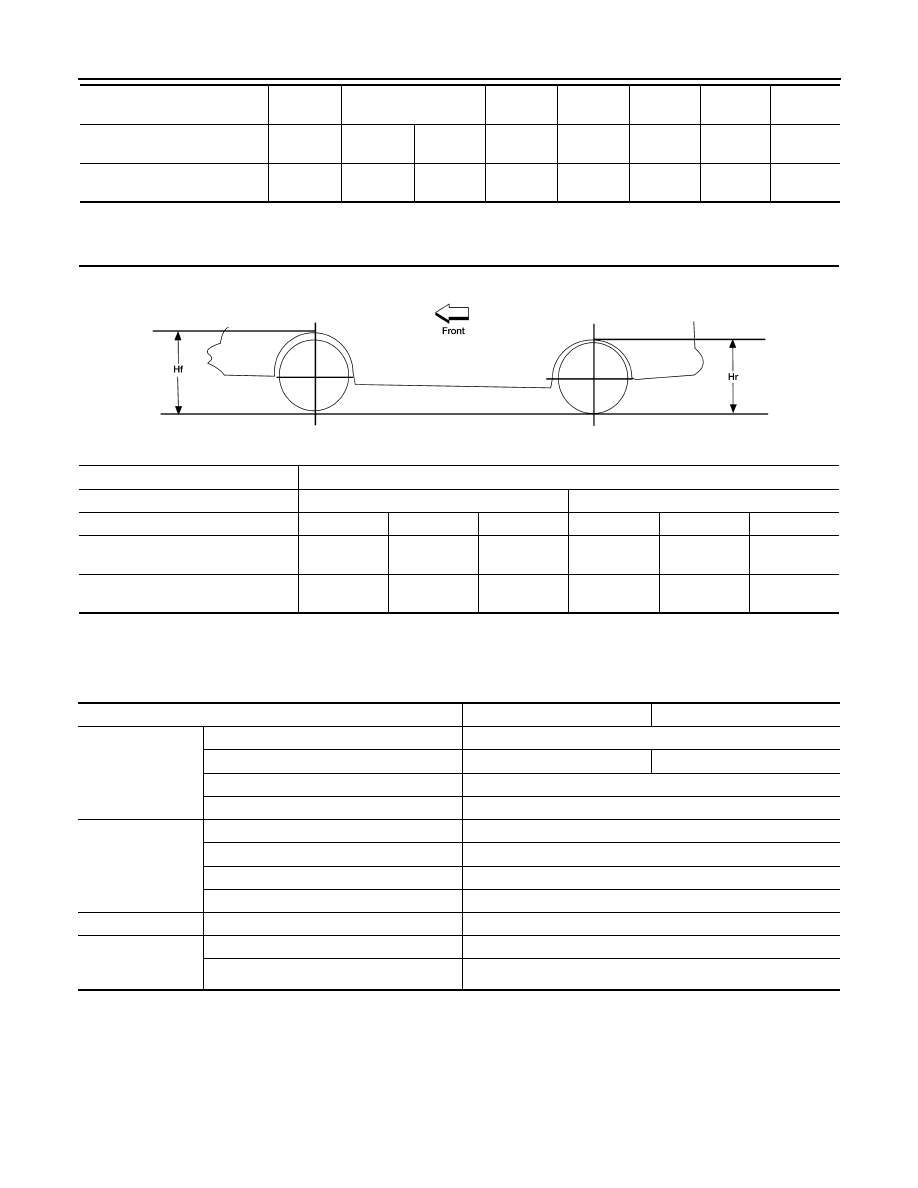

Rear Suspension Specifications
INFOID:0000000005612469
Wheelarch Height (Unladen*
1
)
INFOID:0000000005612470
King Cab
Unit: mm (in)

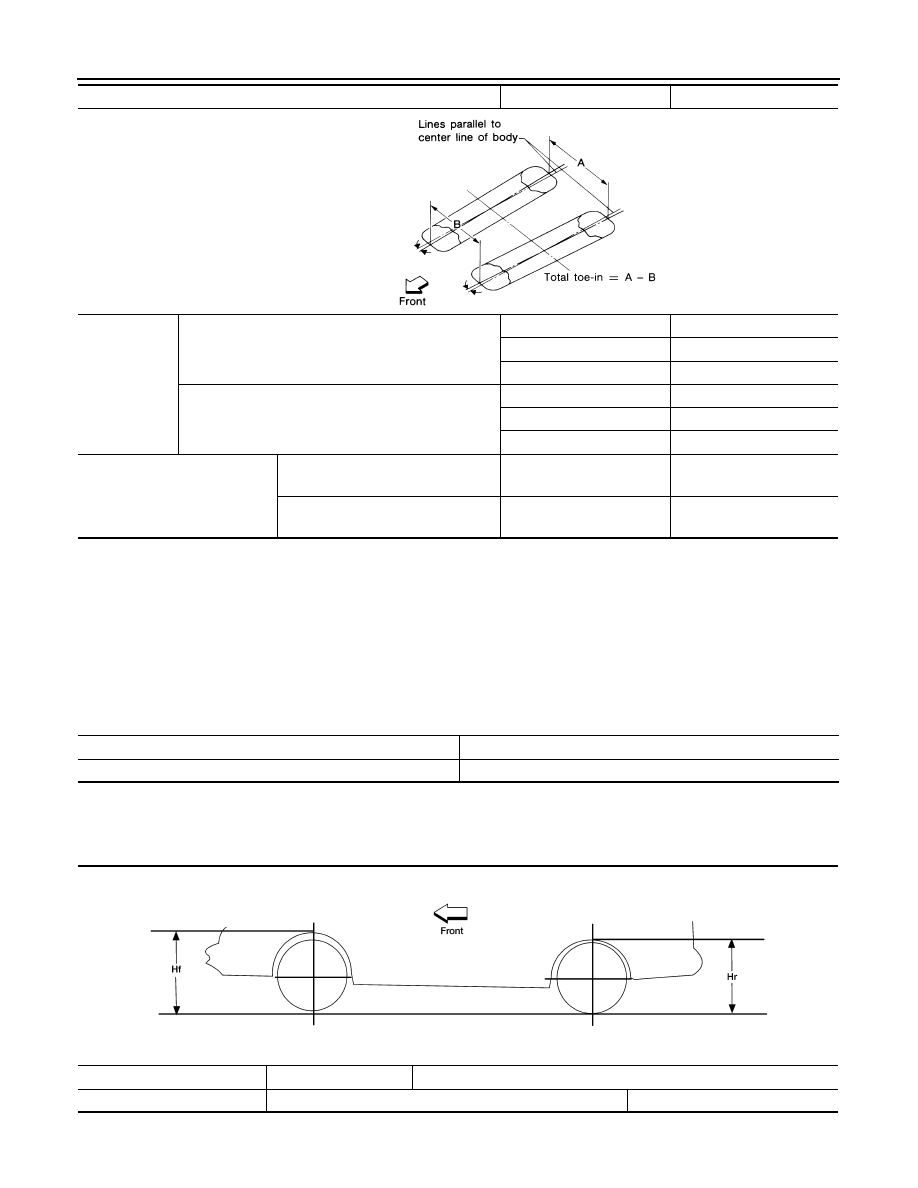

Total toe-in
Distance (A
− B)
2.1 mm (0.08 in)
2.1 mm (0.08 in)
3.1 mm (0.12 in)
3.1 mm (0.12 in)
4.1 mm (0.16 in)
4.1 mm (0.16 in)
Angle (left wheel or right wheel)
Degree minute (Decimal degree)
0
° 5′ (0.08°)
0
° 5′ (0.08°)
0
° 7′ (0.12°)
0
° 7′ (0.12°)
0
° 9′ (0.15°)
0
° 9′ (0.15°)
Wheel turning angle (full turn)
Inside
Degree minute (Decimal degree)
33
° 26′ – 35° 26′ *
2
(33.43
° – 35.43°)
33
° 36′ – 35° 36′ *
4
(33.60
° – 35.60°)
Outside
Degree minute (Decimal degree)
29
° 22′ – 31° 22′ *
3
(29.37
° – 31.37°)
29
° 44′ – 31° 44′ *
5
(29.73
° – 31.73°)
Drive type
2WD
4WD
SFA234AC
Suspension type
Rigid axle with semi-elliptic leaf springs
Shock absorber type
Double-acting hydraulic
Engine type
QR25DE
VQ40DE
Drive type
2WD
4WD
LEIA0085E
