CREW CAB

Removal and Installation

INFOID:0000000005274582

REMOVAL

1.

Remove the rear door module assembly. Refer to

GW-20, "Rear Door Glass Regulator"

.

2.

Remove the door side grommet and the bolt (TORX T30) from
the grommet hole.

AWKIA0678ZZ

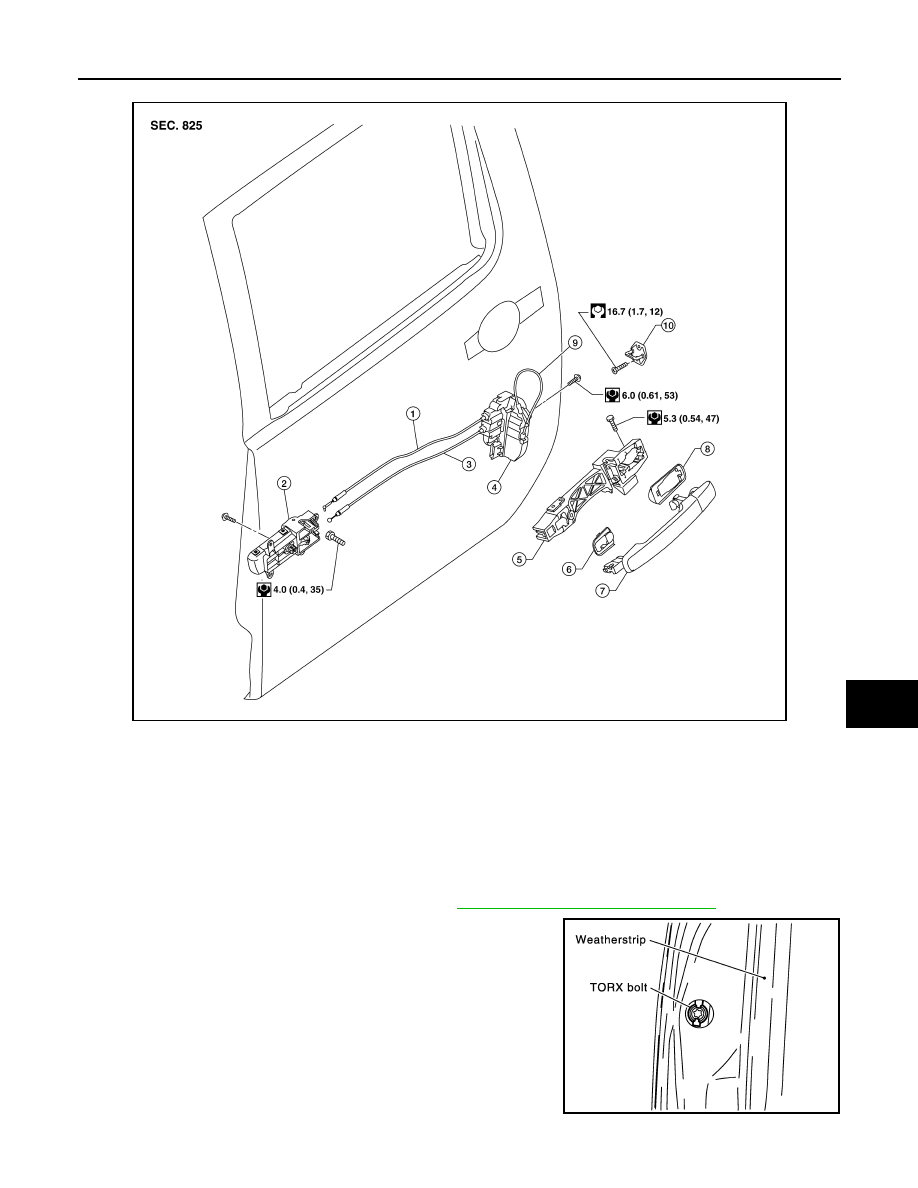

1.

Lock knob cable

2.

Rear inside door handle assembly

3.

Inside handle cable

4.

Rear door lock assembly

5.

Outside handle bracket

6.

Front gasket

7.

Outside handle

8.

Rear gasket

9.

Outside handle cable

10. Rear door striker

Torx bolt

: 5.3 N·m (0.54 kg-m, 47 in-lb)

PIIA3553E

DLK-140

< ON-VEHICLE REPAIR >

REAR DOOR LOCK

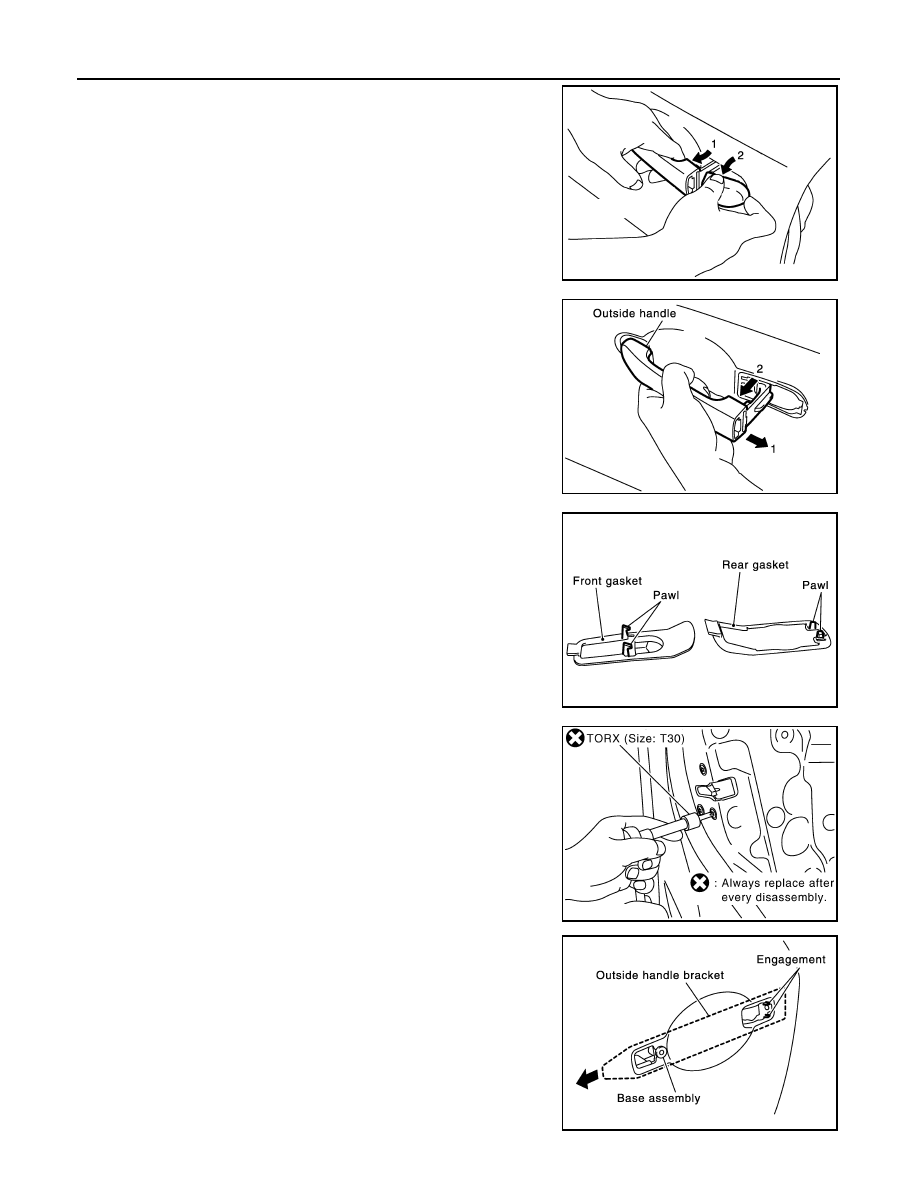

3.

While pulling the outside handle (1), remove the door handle
escutcheon (2).

4.

While pulling the outside handle (2), slide it toward the rear of
vehicle to remove (1).

5.

Remove the front and rear gaskets.

6.

Remove the TORX bolts (T30), remove the door lock assembly.

7.

While pulling outside handle bracket, slide toward rear of vehicle
to remove outside handle bracket and door lock assembly.

LIIA1971E

LIIA0532E

PIIA3557E

Door lock assembly
bolts

: 6.0 N·m (0.61 kg-m, 53 in-lb)

PIIA1090E

PIIA3558E

REAR DOOR LOCK

DLK-141

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

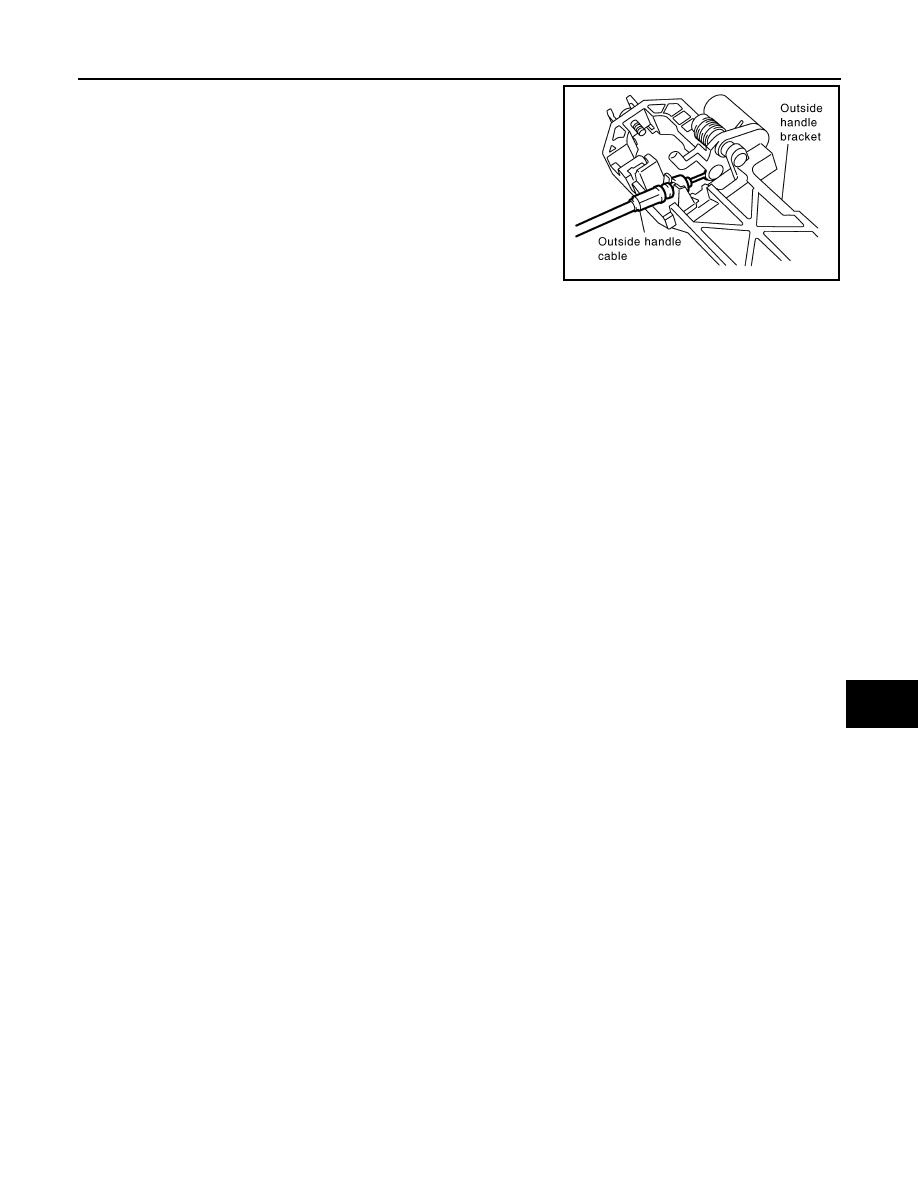

8.

Disconnect the outside handle cable.

INSTALLATION

Installation is in the reverse order of removal.

PIIA5059E

DLK-142

< ON-VEHICLE REPAIR >

TAIL GATE

TAIL GATE

Removal and Installation

INFOID:0000000005274583

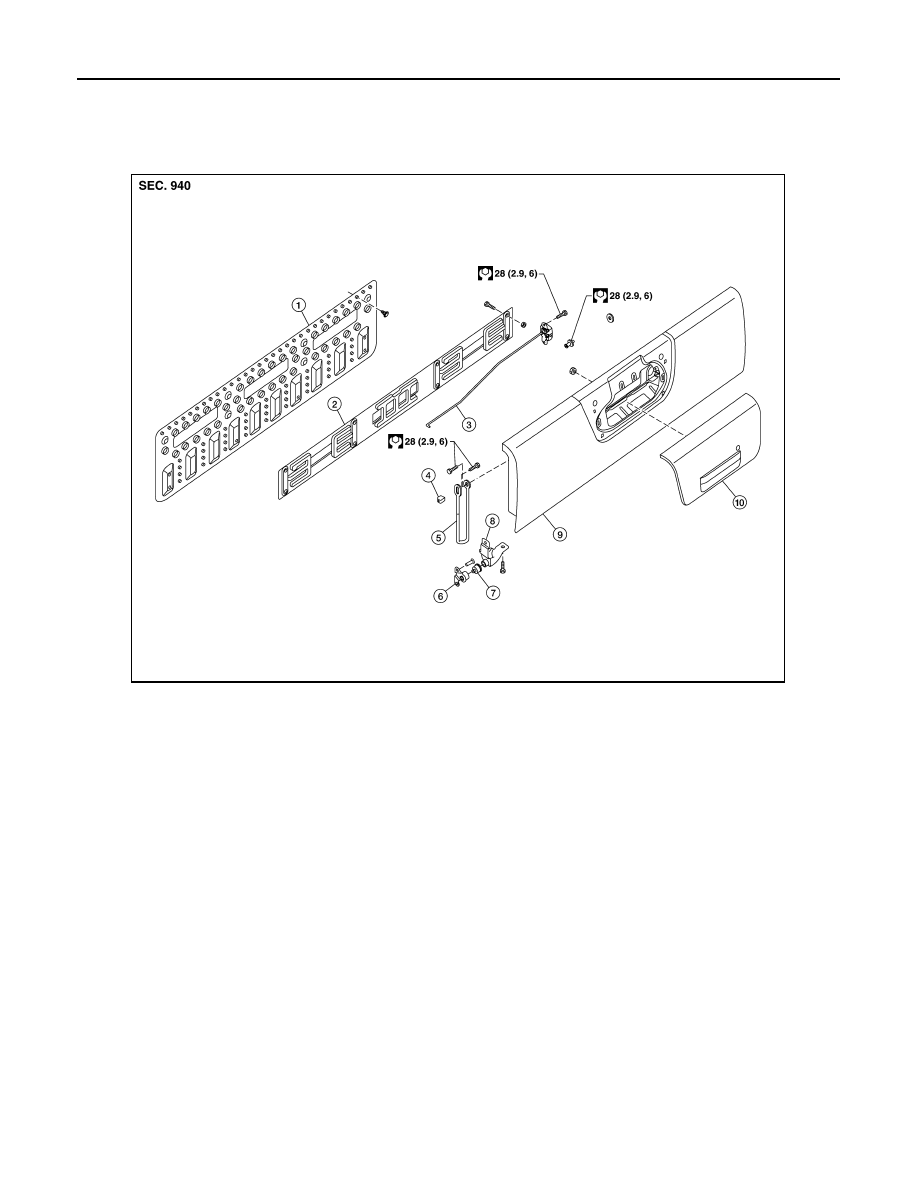

1.

Rear gate liner cover (if equipped)

2.

Rear gate inner panel

3.

Rear gate latch assembly (RH/ LH)

4.

Rear gate rubber bumper

5.

Rear gate stay assembly

6.

Rear gate hinge assembly (RH/ LH),
body side

7.

Rear gate ring (LH)

8.

Rear gate hinge assembly (RH/ LH),
gate side

9.

Rear gate

10. Rear gate handle and latch assem-

bly

AWIIA1278GB
