FRONT DOOR LOCK

DLK-135

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

FRONT DOOR LOCK

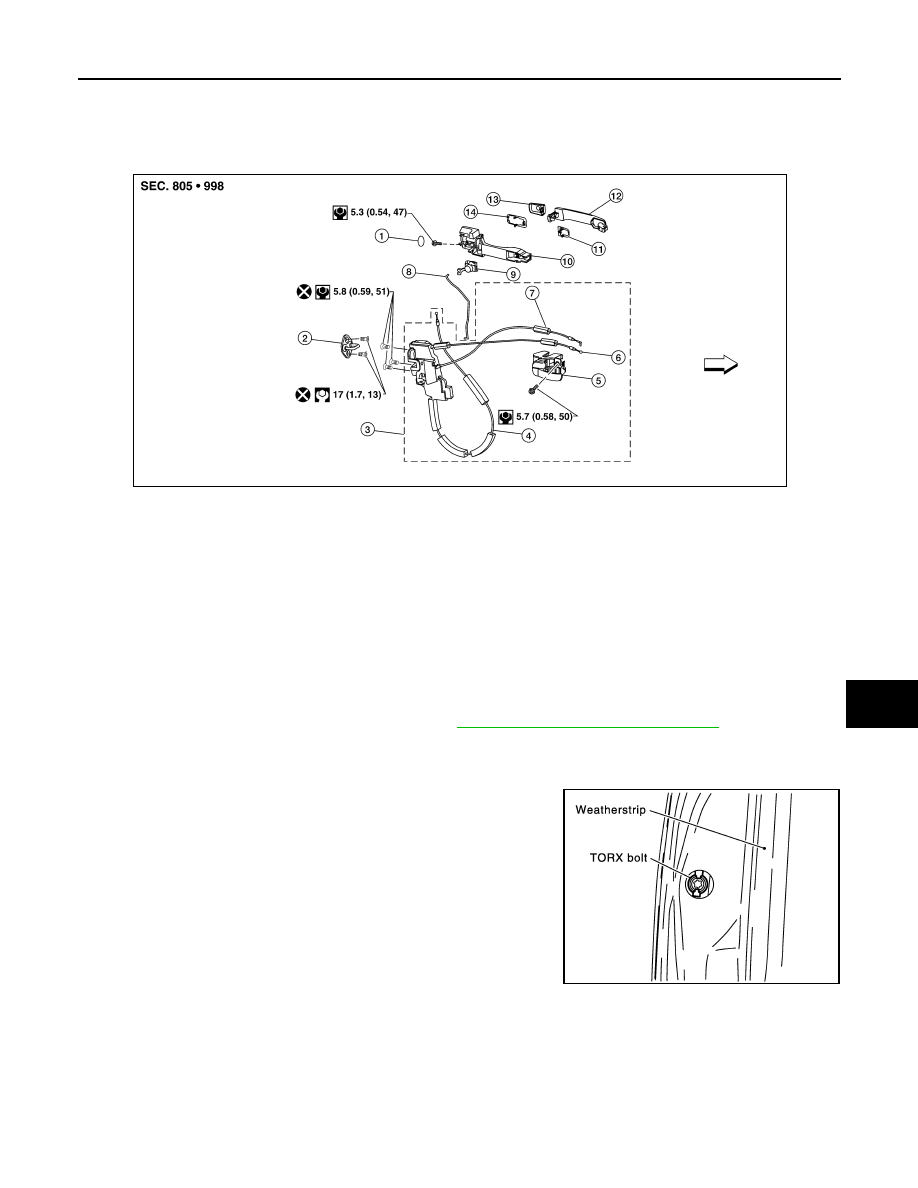

Component Structure

INFOID:0000000005274578

Removal and Installation

INFOID:0000000005274579

REMOVAL

1.

Remove the front door window regulator. Refer to

GW-16, "Front Door Glass Regulator"

.

2.

Remove door side grommet, and remove door key cylinder assembly (driver side) or outside handle
escutcheon (passenger side) bolts (TORX T30) from grommet hole.

CAUTION:

Do not forcibly remove the TORX bolts (T30).

3.

Separate the key cylinder rod from the key cylinder assembly.

1.

Grommet

2.

Front door striker

3.

Door lock assembly

4.

Outside handle cable

5.

Inside handle assembly

6.

Inside handle cable

7.

Door lock cable

8.

Key cylinder rod (Driver side only)

9.

Door key cylinder

10. Outside handle bracket

11.

Front gasket

12. Outside handle

13. Door key cylinder assembly (Driver

side) Outside handle escutcheon
(Passenger side)

14. Rear gasket

⇐

Vehicle front

WIIA0736E

Torx bolt

5.3 N·m (0.54 kg-m, 47 in-lb)

PIIA3553E

DLK-136

< ON-VEHICLE REPAIR >

FRONT DOOR LOCK

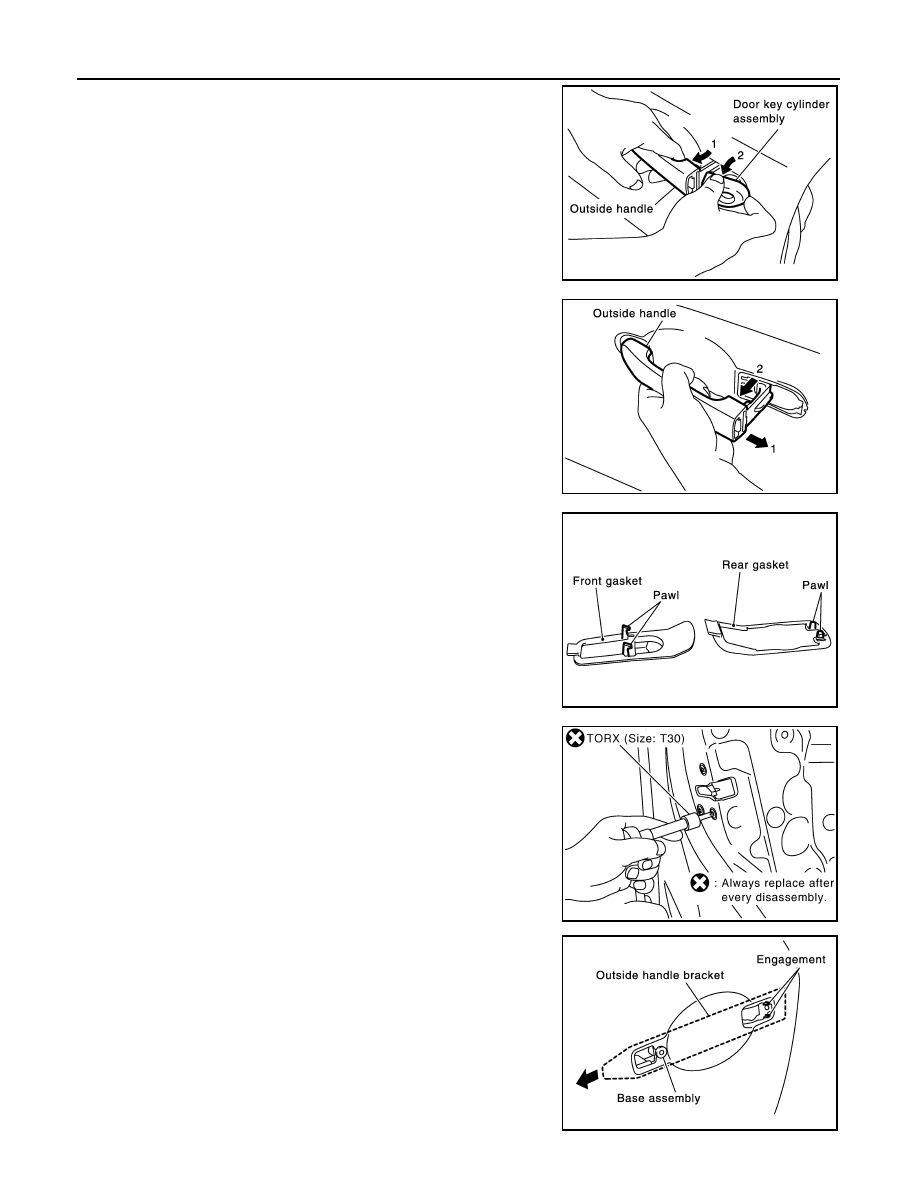

4.

While pulling the outside handle (1), remove door key cylinder
assembly or escutcheon (2).

5.

While pulling outside handle (2), slide toward rear of vehicle to
remove outside handle (1).

6.

Remove the front gasket and rear gasket.

7.

Remove the TORX bolts (T30), remove the door lock assembly.

8.

While pulling outside handle bracket, slide toward rear of vehicle
to remove outside handle bracket and door lock assembly.

PIIA3554E

LIIA0532E

PIIA3557E

Door lock assembly bolts

5.8 N·m (0.59 kg-m, 51 in-lb)

PIIA1090E

PIIA3558E

FRONT DOOR LOCK

DLK-137

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

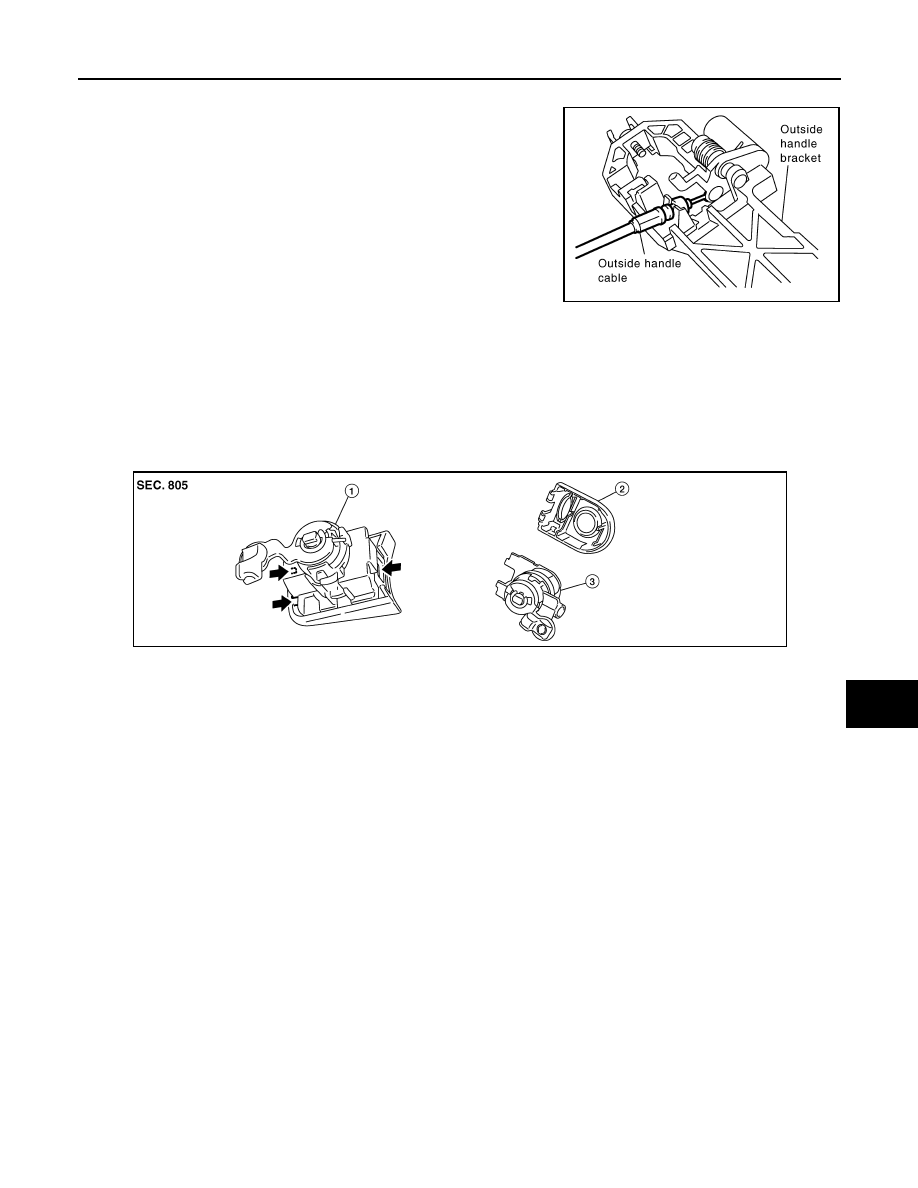

9.

Disconnect the door lock actuator connector.

10. Separate the outside handle cable connection from the outside

handle bracket.

INSTALLATION

Installation in the reverse order of removal.

CAUTION:

To install each rod, be sure to rotate the rod holder until a click is felt.

Disassembly and Assembly

INFOID:0000000005274580

DOOR KEY CYLINDER ASSEMBLY

Remove the key cylinder escutcheon pawl and remove the door key cylinder.

PIIA5059E

1.

Door key cylinder assembly

2.

Key cylinder escutcheon

3.

Door key cylinder

⇐

Pawl

WIIA1057E

DLK-138

< ON-VEHICLE REPAIR >

REAR DOOR LOCK

REAR DOOR LOCK

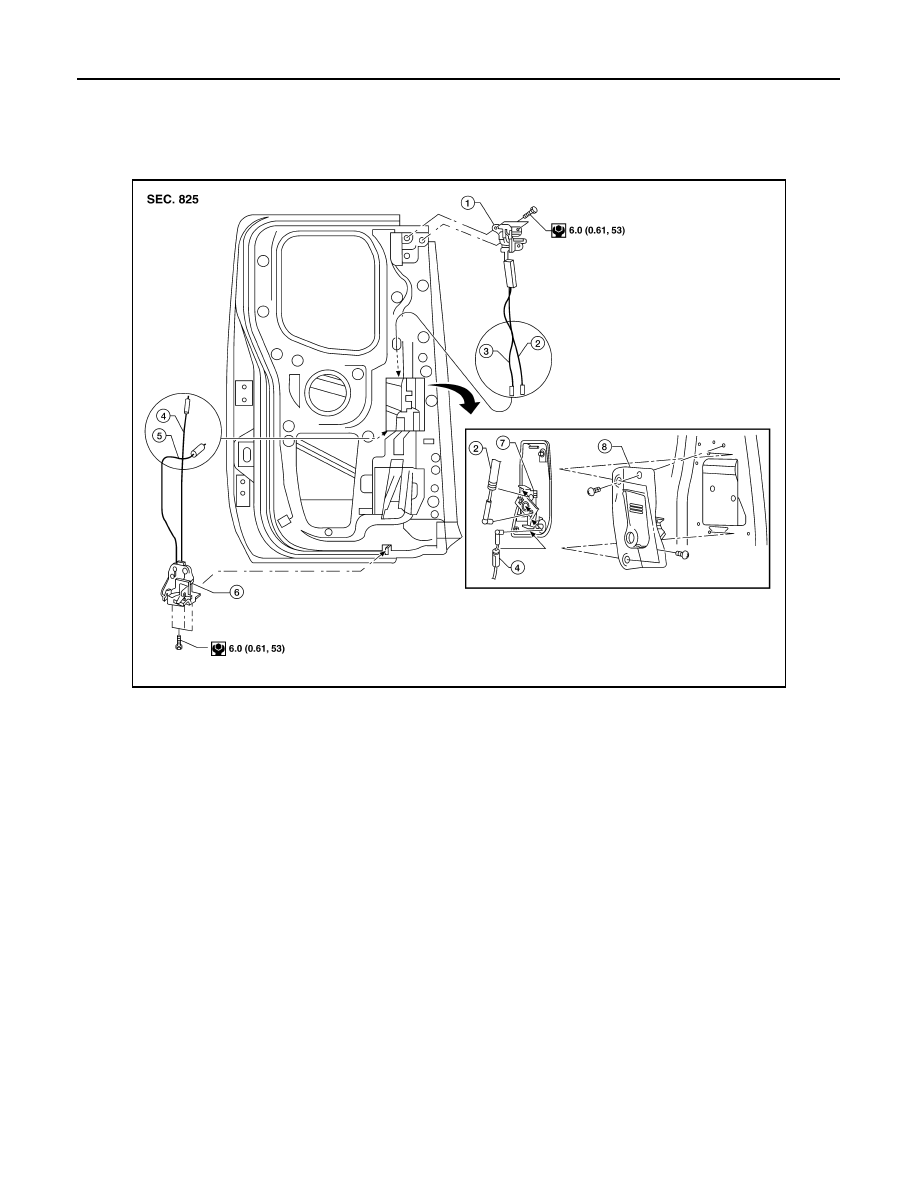

Component Structure

INFOID:0000000005274581

KING CAB

WIIA1064E

1.

Rear upper door latch

2.

Upper latch cable

3.

Rear door switch upper harness

4.

Lower latch cable

5.

Rear door switch lower harness

6.

Rear lower door latch

7.

Rear door lock assembly

8.

Rear door handle
