TM-354

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

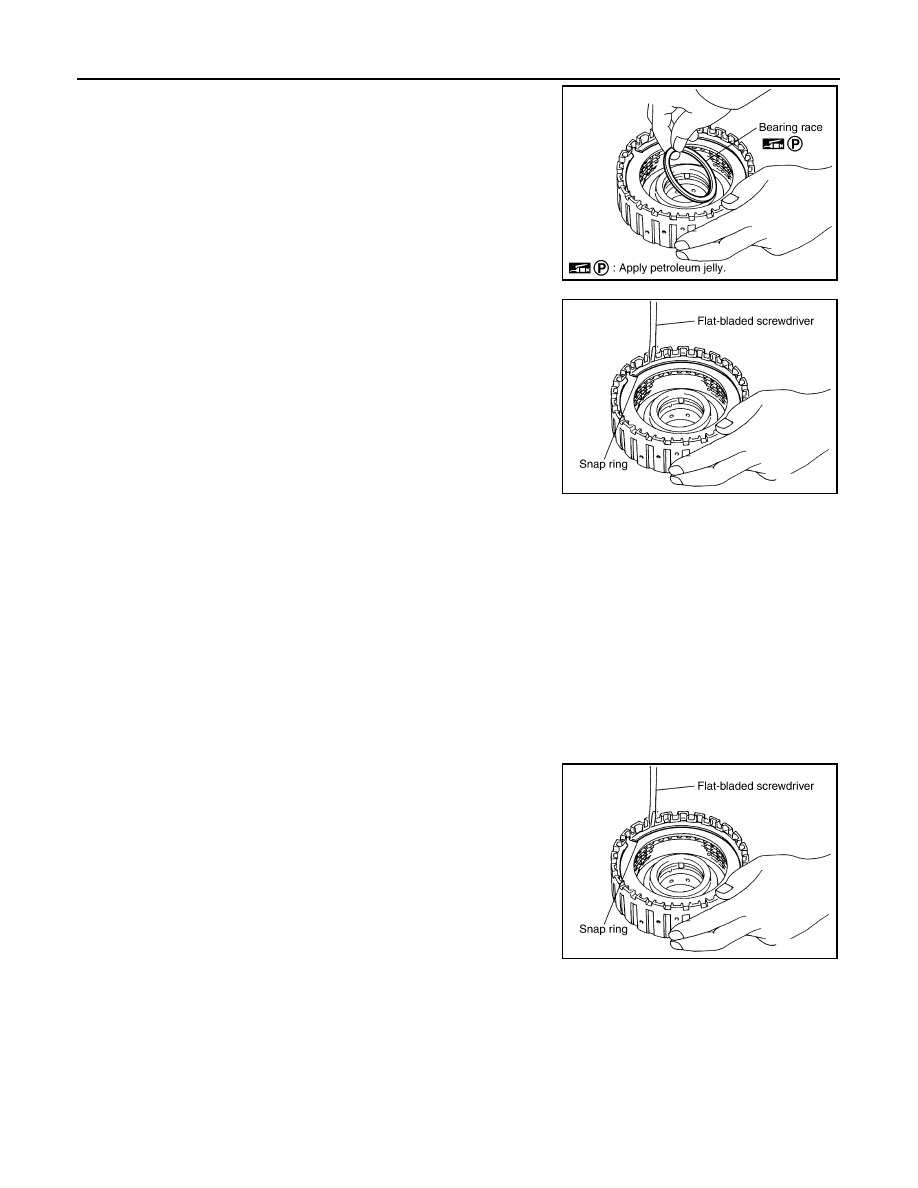

HIGH AND LOW REVERSE CLUTCH

1.

Remove bearing race from high and low reverse clutch drum.

2.

Remove snap ring from high and low reverse clutch drum using
suitable tool.

3.

Remove drive plates, driven plates and retaining plate from high
and low reverse clutch drum.

INSPECTION

• Check the following, and replace high and low reverse clutch assembly if necessary.

High and Low Reverse Clutch Snap Ring

• Check for deformation, fatigue or damage.

High and Low Reverse Clutch Drive Plates

• Check facing for burns, cracks or damage.

High and Low Reverse Clutch Retaining Plate and Driven Plates

• Check facing for burns, cracks or damage.

ASSEMBLY

1.

Install drive plates, driven plates and retaining plate in high and low reverse clutch drum.

CAUTION:

Take care with order of plates.

2.

Install snap ring in high and low reverse clutch drum using suit-
able tool.

SCIA5215E

SCIA2868E

SCIA2868E

HIGH AND LOW REVERSE CLUTCH

TM-355

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

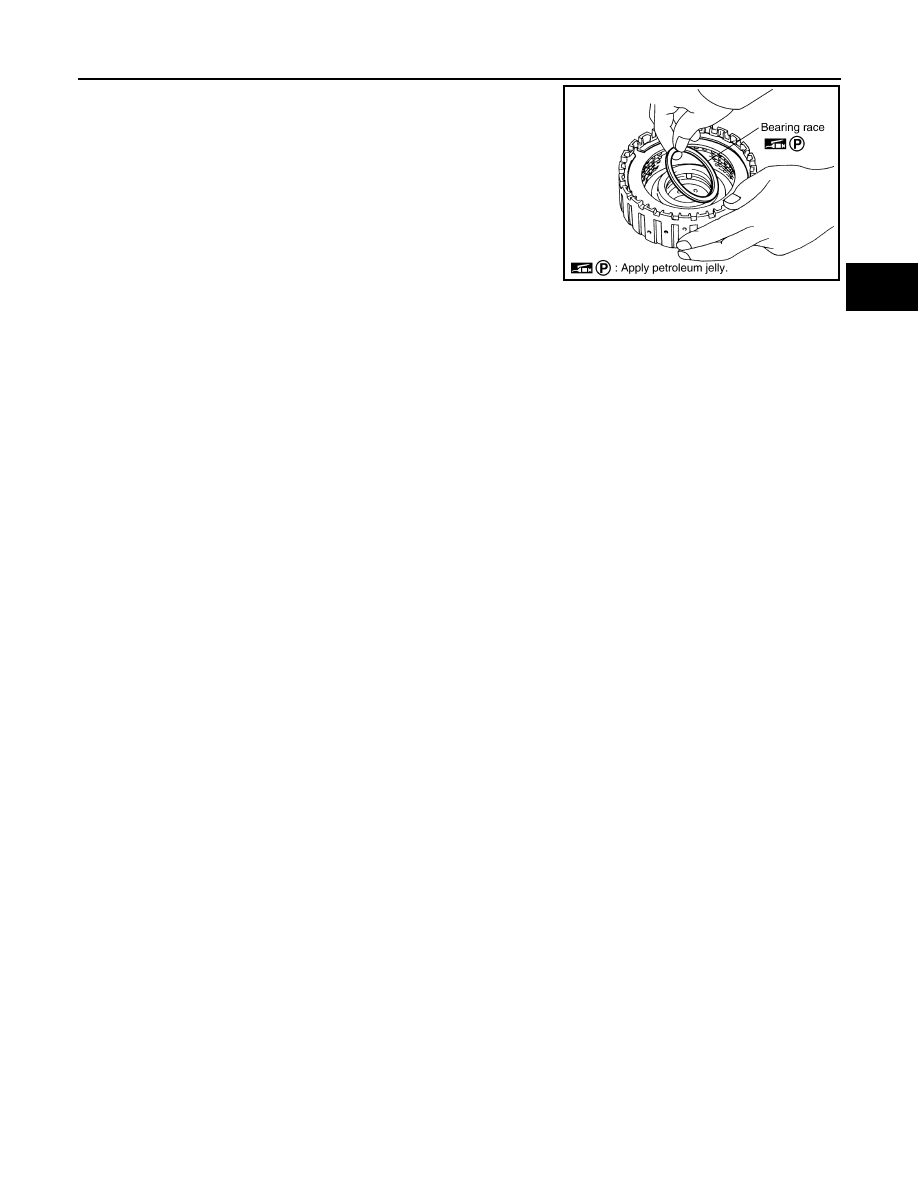

3.

Install bearing race to high and low reverse clutch drum.

CAUTION:

Apply petroleum jelly to bearing race.

SCIA5215E

TM-356

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

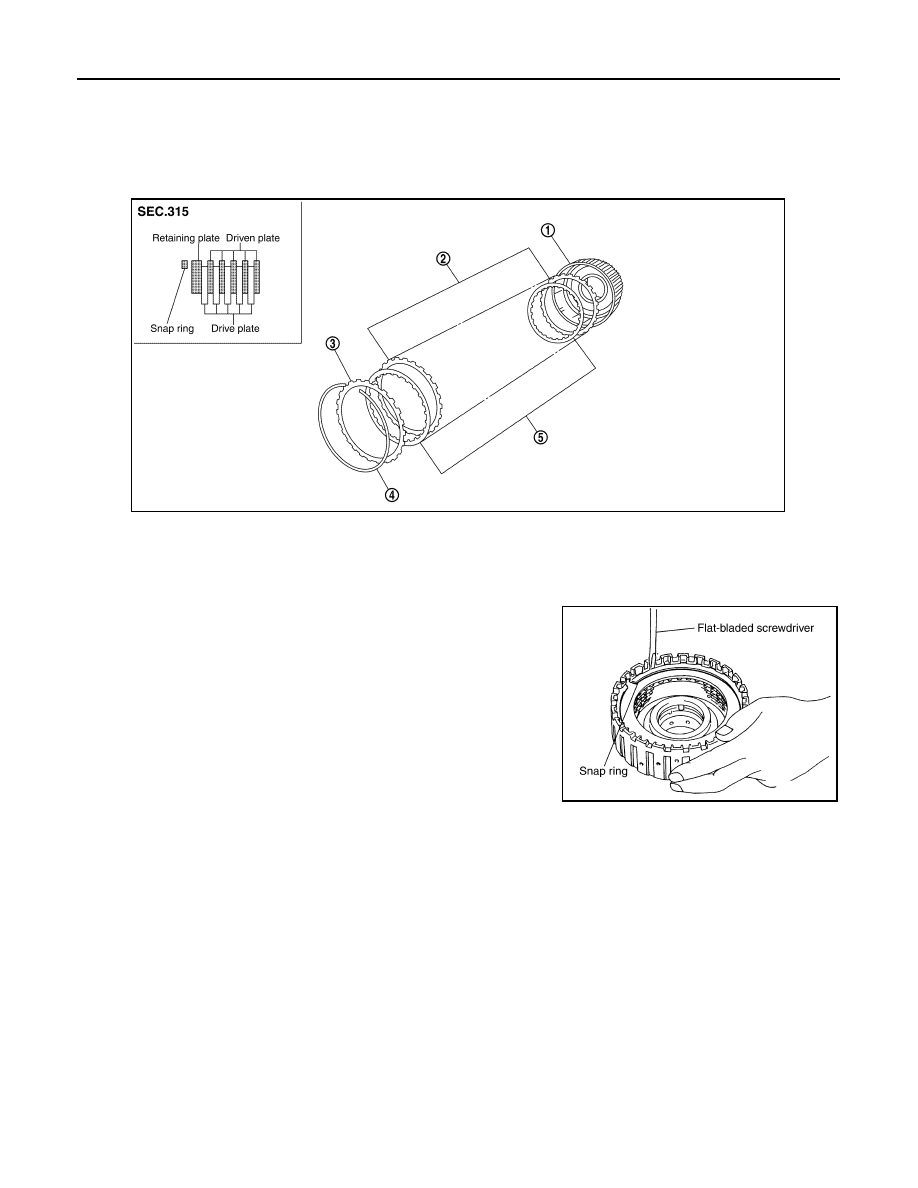

DIRECT CLUTCH

DIRECT CLUTCH

Direct Clutch

INFOID:0000000005274228

COMPONENTS

DISASSEMBLY

1.

Remove snap ring from direct clutch drum using suitable tool.

2.

Remove drive plates, driven plates and retaining plate from
direct clutch drum.

INSPECTION

• Check the following, and replace direct clutch assembly if necessary.

Direct Clutch Snap Ring

• Check for deformation, fatigue or damage.

Direct Clutch Drive Plates

• Check facing for burns, cracks or damage.

Direct Clutch Retaining Plate and Driven Plates

• Check facing for burns, cracks or damage.

ASSEMBLY

1.

Install drive plates, driven plates and retaining plate in direct clutch drum.

CAUTION:

Take care with order of plates.

1.

Direct clutch drum

2.

Driven plate

3.

Retaining plate

4.

Snap ring

5.

Drive plate

SCIA5046E

SCIA2868E

DIRECT CLUTCH

TM-357

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

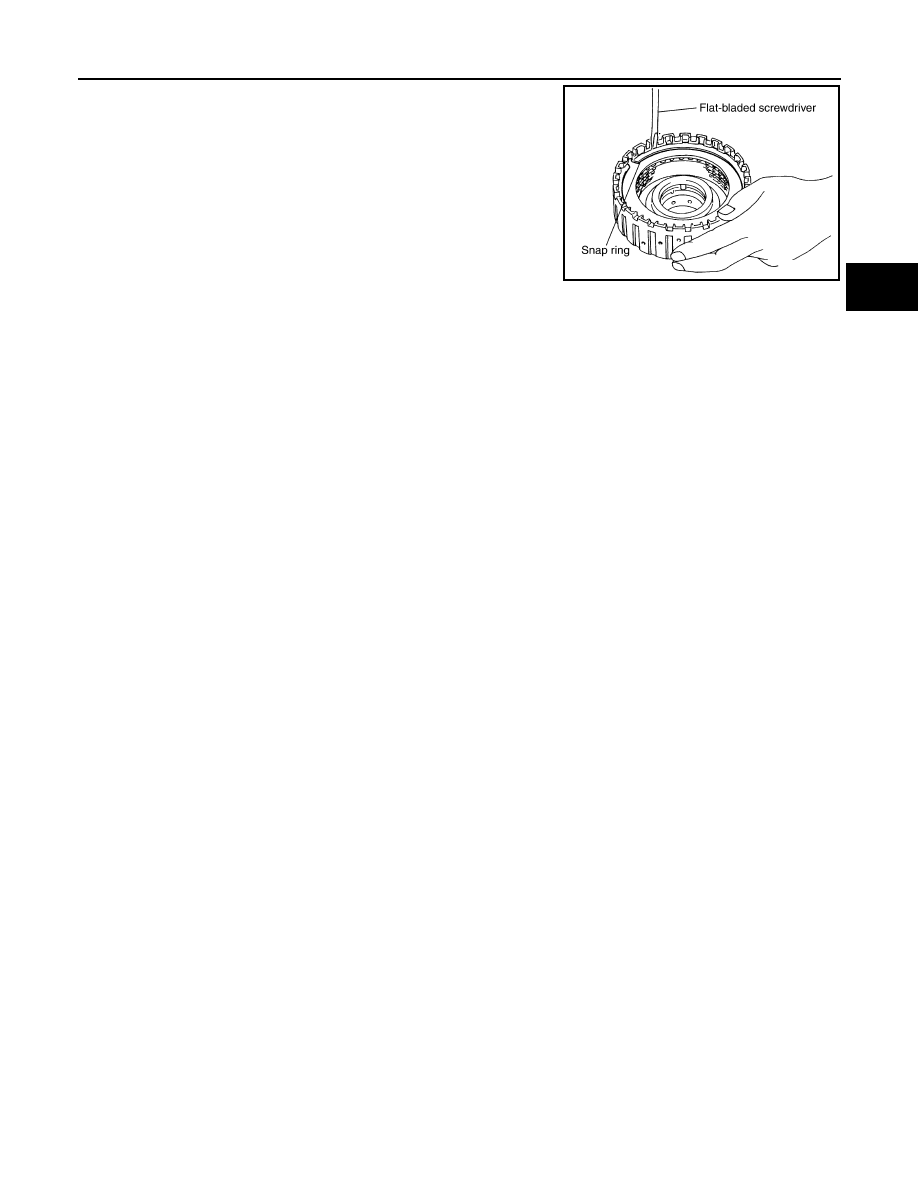

2.

Install snap ring in direct clutch drum using suitable tool.

SCIA2868E
