Checking Steering Wheel Play

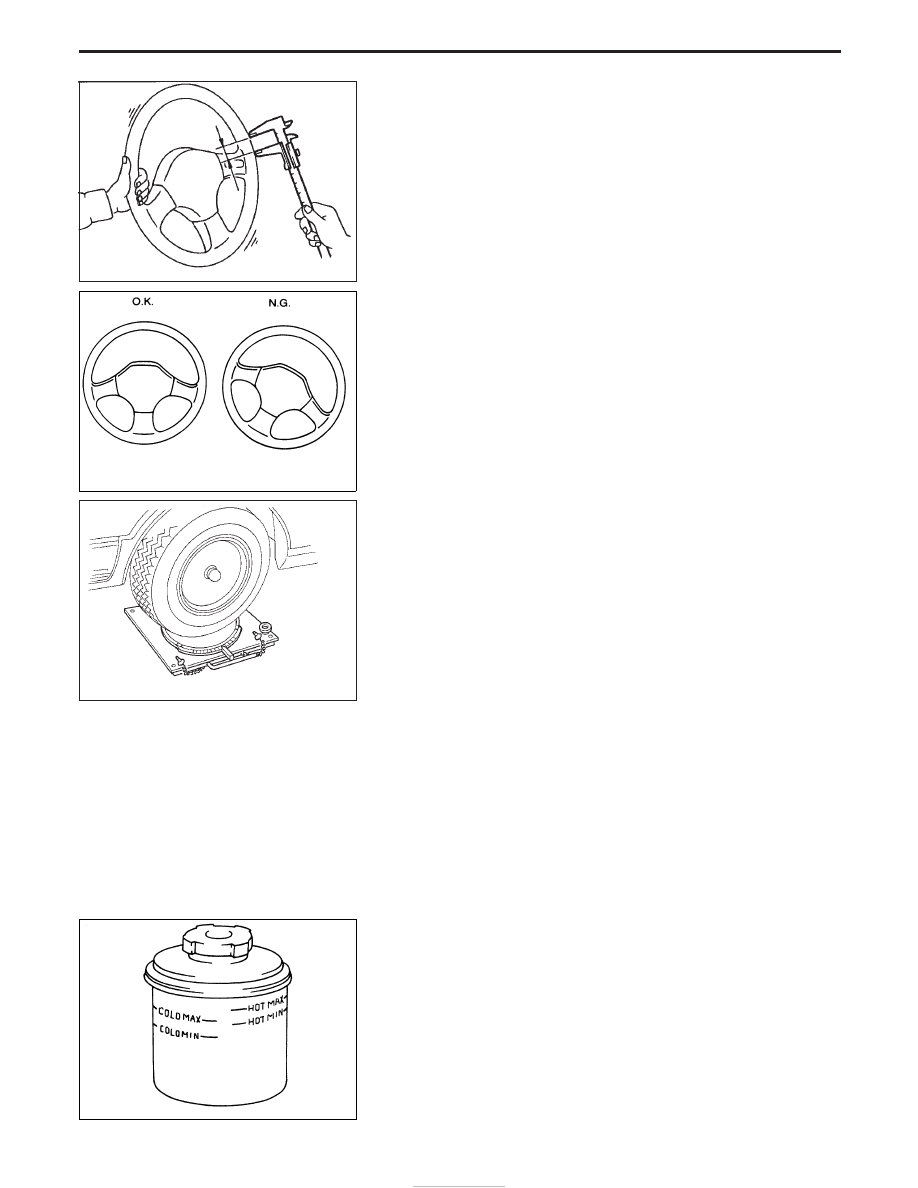

1. With wheels in a straight-ahead position, check steering wheel

play.

Steering wheel play:

35 mm (1.38 in) or less

2. If it is not within specification, check steering gear assembly

when front suspension and axle, steering gear assembly and
steering column are mounted correctly.

Checking Neutral Position on Steering Wheel

CHECKING

1. Check that the steering wheel is in the neutral position when

driving straight ahead.

2. If it is not in the neutral position, remove the steering wheel and

reinstall it correctly.

3. If the neutral position is between two serrated teeth, loosen

tie-rod lock nut and move tie-rod in the opposite direction by the
same amount on both left and right sides to compensate for
error in the neutral position.

Front Wheel Turning Angle

Rotate steering wheel all the way right and left; measure turning
angle.

Turning angle of full turns:

Refer to section FA for SDS.

Checking and Adjusting Drive Belts

Refer to section MA for Drive Belt Inspection.

Checking Fluid Level

Check the fluid level in the reservoir when the engine is cold. If the
fluid level is below the MIN line, and fluid up to the MAX line.

CAUTION:

I

Do not overfill the MAX level.

I

Do not reuse any used power steering fluid.

I

Use only “DEXRON

TM

” or equivalent.

SST103B

SST900A

SMA127

NST030

ON-VEHICLE SERVICE

ST-4

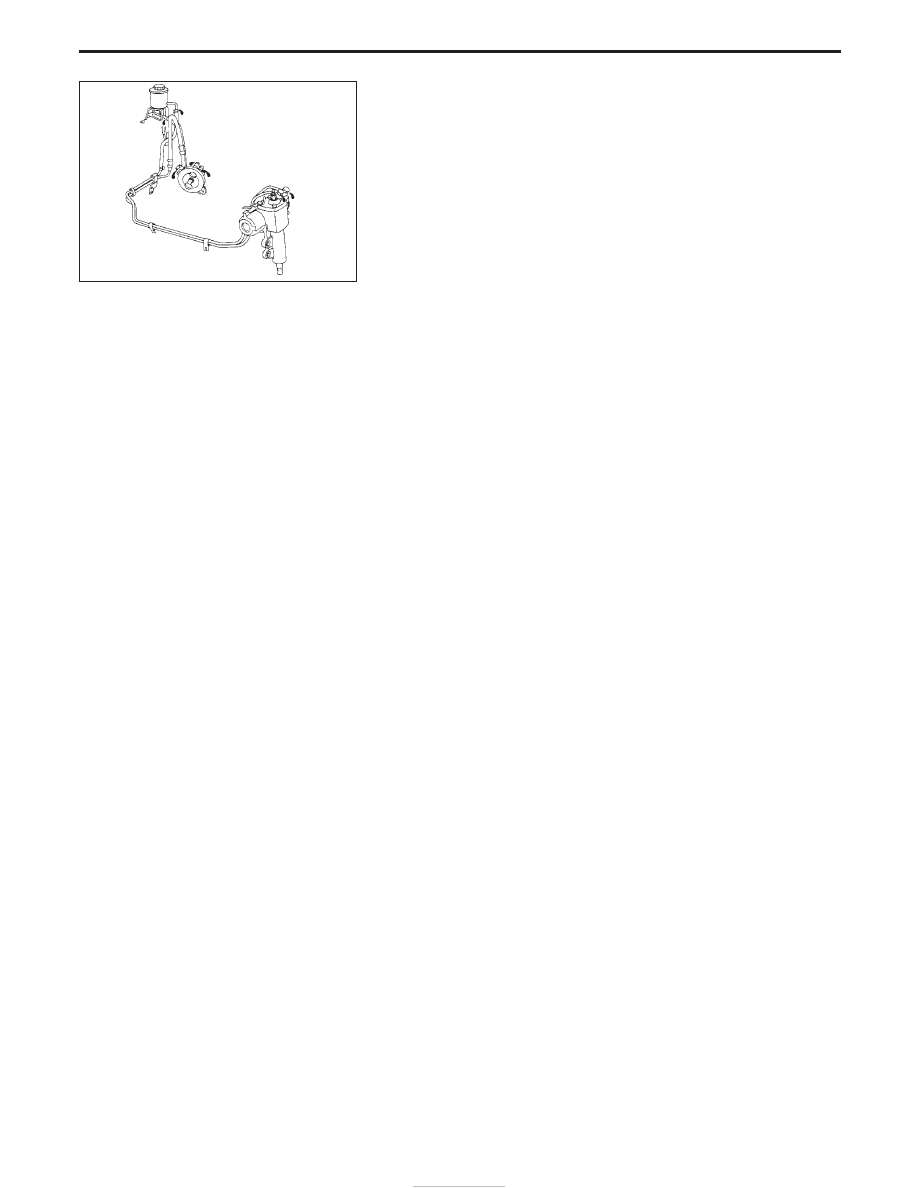

Checking Fluid Leakage

Check the lines for improper attachment and for leaks, cracks,
damage, loose connections, chafing or deterioration.
1. Run engine between idle speed and 1,000 rpm.
Make sure temperature of fluid in oil tank rises to 50 to 80°C
(122 to 176°F).
2. Turn steering wheel right-to-left several times.
3. Hold steering wheel at each “lock” position for five seconds and

carefully check for fluid leakage.

CAUTION:

Do not hold the steering wheel in a locked position for more
than 10 seconds (There is possibility that oil pump may be
damaged.).
4. If fluid leakage at connectors is noticed, loosen flare nut and

then retighten.

Do not overtighten connector as this can damage O-ring,
washer and connector.
5. If fluid leakage at the connectors are noticed, then loosen the

flare nut and retighten it.

Bleeding Hydraulic System

1. Raise front end of vehicle until wheels are clear of the ground.
2. Add fluid into oil tank to specified level. Meanwhile quickly turn

steering wheel fully to right and left and lightly touch steering
stoppers.
Repeat steering wheel operation until fluid level no longer
decreases.

3. Start engine.

Repeat step 2 above.

I

Incomplete air bleeding will cause the following to occur. When
this happens, bleed air again.

a. Generation of air bubbles in reservoir tank
b. Generation of clicking noise in oil pump
c. Excessive buzzing in oil pump
While the vehicle is stationary or while moving the steering wheel
slowly, fluid noise may occur in the valve or oil pump. This noise is
inherent in this steering system, and it will not affect performance
or durability of the system.

SST621A

ON-VEHICLE SERVICE

ST-5

Checking Steering Wheel Turning Force

1. Park vehicle on a level, dry surface and set parking brake.
2. Start engine.
3. Bring power steering fluid up to adequate operating tempera-

ture.

Temperature:

50° - 80°C (122 - 176°F)

Tires need to be inflated to normal pressure.

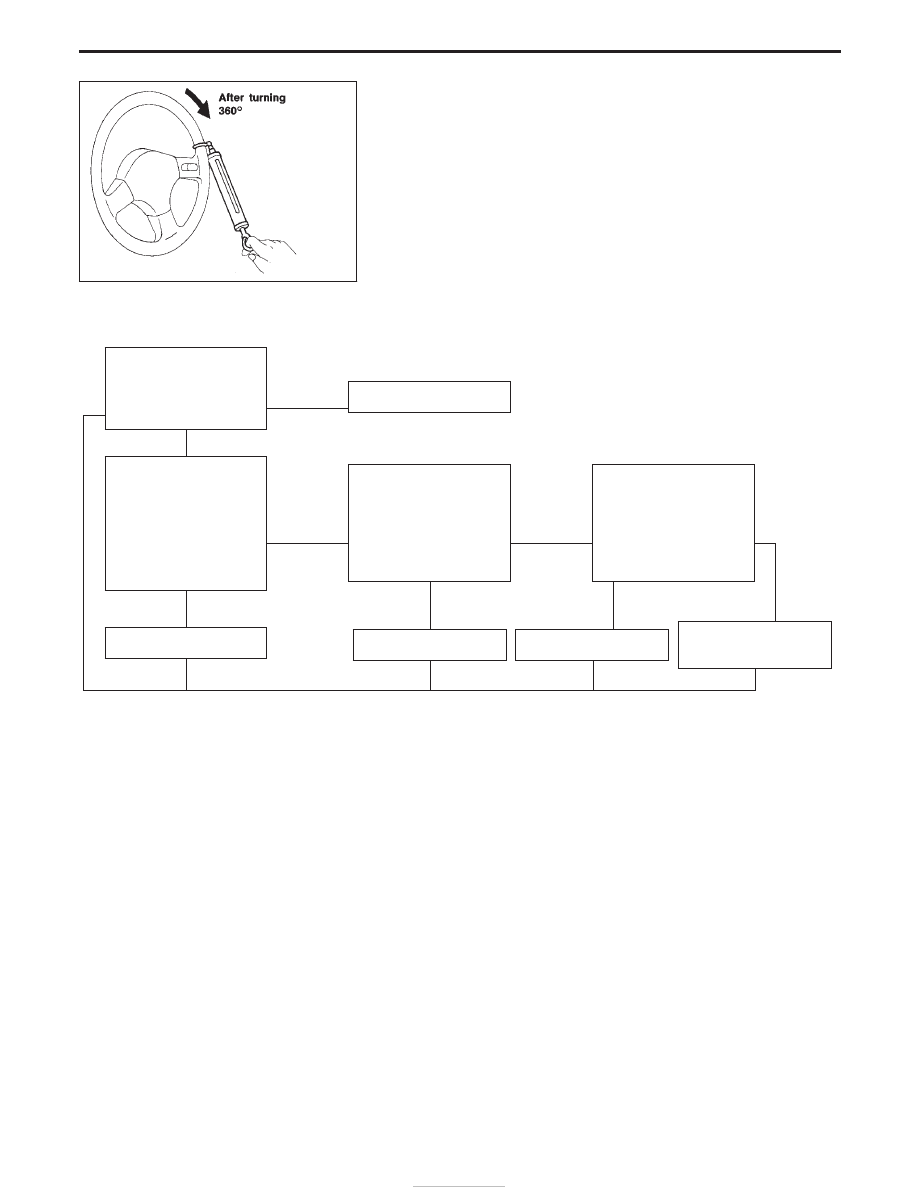

4. Check steering wheel turning force when steering wheel has

been turned 360° from neutral position.

Steering wheel turning force:

39 N (4 kg, 9 lb) or less

I

If steering wheel turning force is not within specification,
perform the following inspection procedure:

E

Measure steering

wheel

turning force

39 N (4 kg, 9 lb) or less.

NG

E

OK

Test end

Measure preload of the

power steering gear

input shaft.

Refer to “Inspection

and Adjustment” in

“POWER STEERING

GEAR”.

NG

E

OK

Check oil pump

pressure.

Refer to “Checking

Hydraulic System” in

“ON-VEHICLE

SERVICE”.

NG

E

OK

Check ball joints,

swivel joints and

linkage for smooth

operation.

See “Inspection” in

“STEERING LINKAGE”.

NG

OK

Adjust preload.

Replace oil pump.

Replace joints.

Replace power

steering gear.

SST108B

H

H

H

H

H

H

H

H

H

ON-VEHICLE SERVICE

ST-6

Checking Hydraulic System

Before starting, check belt tension, driving pulley and tire pressure.

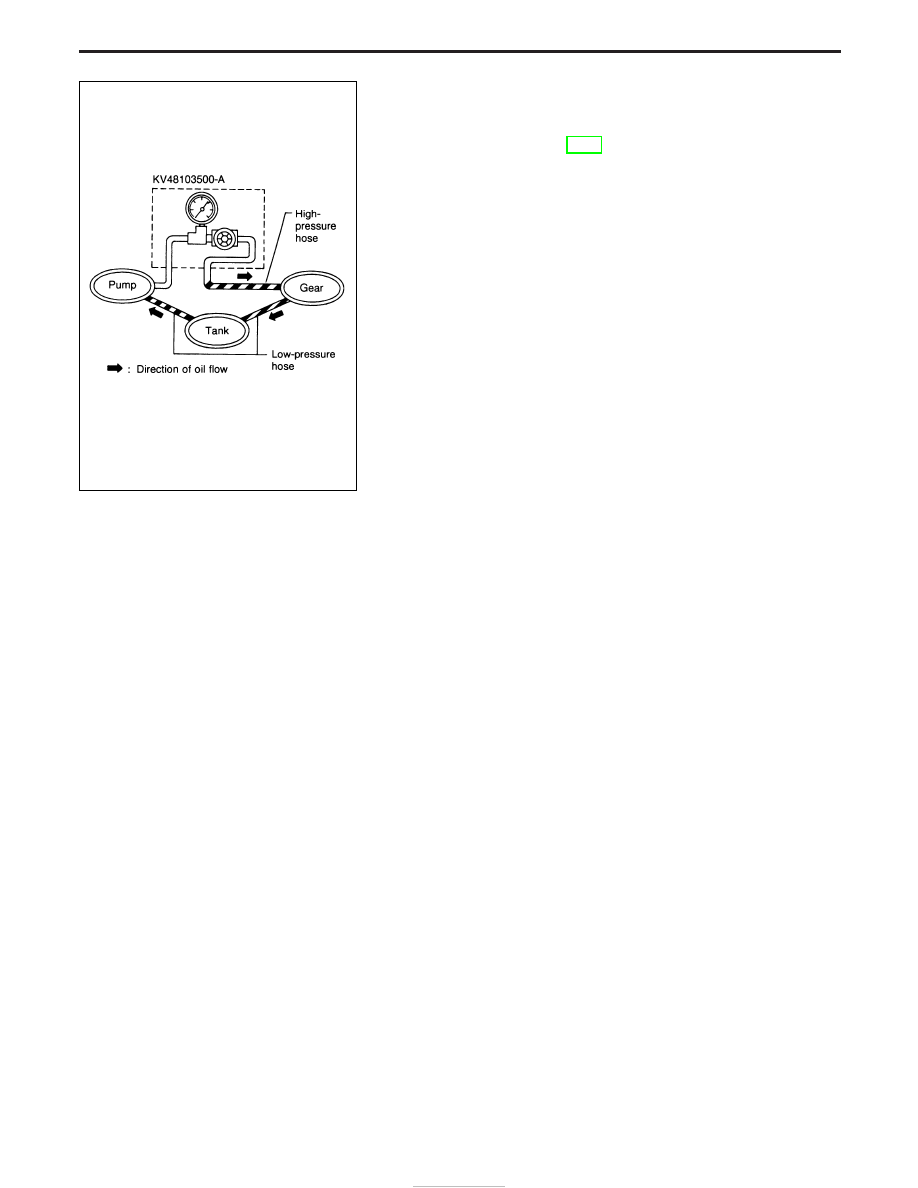

1. Set Tool. Open shut-off valve, then bleed air. (Refer to “Bleed-

ing Hydraulic System”, ST-5.)

2. Run engine.
Make sure temperature of fluid in tank rises to 60 to 80°C (140
to 176°F).

WARNING:

Warm up engine with shut-off valve fully opened. If engine is
started with shut-off valve closed, oil pressure in oil pump will
increase to relief pressure, resulting in an abnormal rise in oil
temperature.
3. Check pressure with steering wheel fully turned to left and right

positions with engine idling at 1,000 rpm.

CAUTION:

Do not hold the steering wheel in a locked position for more
than 15 seconds.

Oil pump maximum standard pressure:

TD27Ti engine

8,800 - 9,200 kPa (88 - 92 bar,
89 - 93 kg/cm

2

, 1,276 - 1,334 psi)

ZD30DTi engine

9,800 - 10,500 kPa (98.0 - 105.0 bar,
99.96 - 107.10 kg/cm

2

, 1,421 - 1,523 psi)

4. If oil pressure is below the maximum pressure, slowly close

shut-off valve and check pressure.

I

When pressure reaches maximum pressure, gear is damaged.

I

When pressure remains below maximum pressure, pump is
damaged.

CAUTION:

Do not close shut-off valve for more than 15 seconds.
5. If oil pressure is higher than maximum pressure, check oil

pump flow control valve.

6. After checking hydraulic system, remove Tool and add fluid if

necessary, then completely bleed air out of system.

NST033

ON-VEHICLE SERVICE

ST-7
