Nissan Terrano model r20 series 2004. Manual - part 245





I

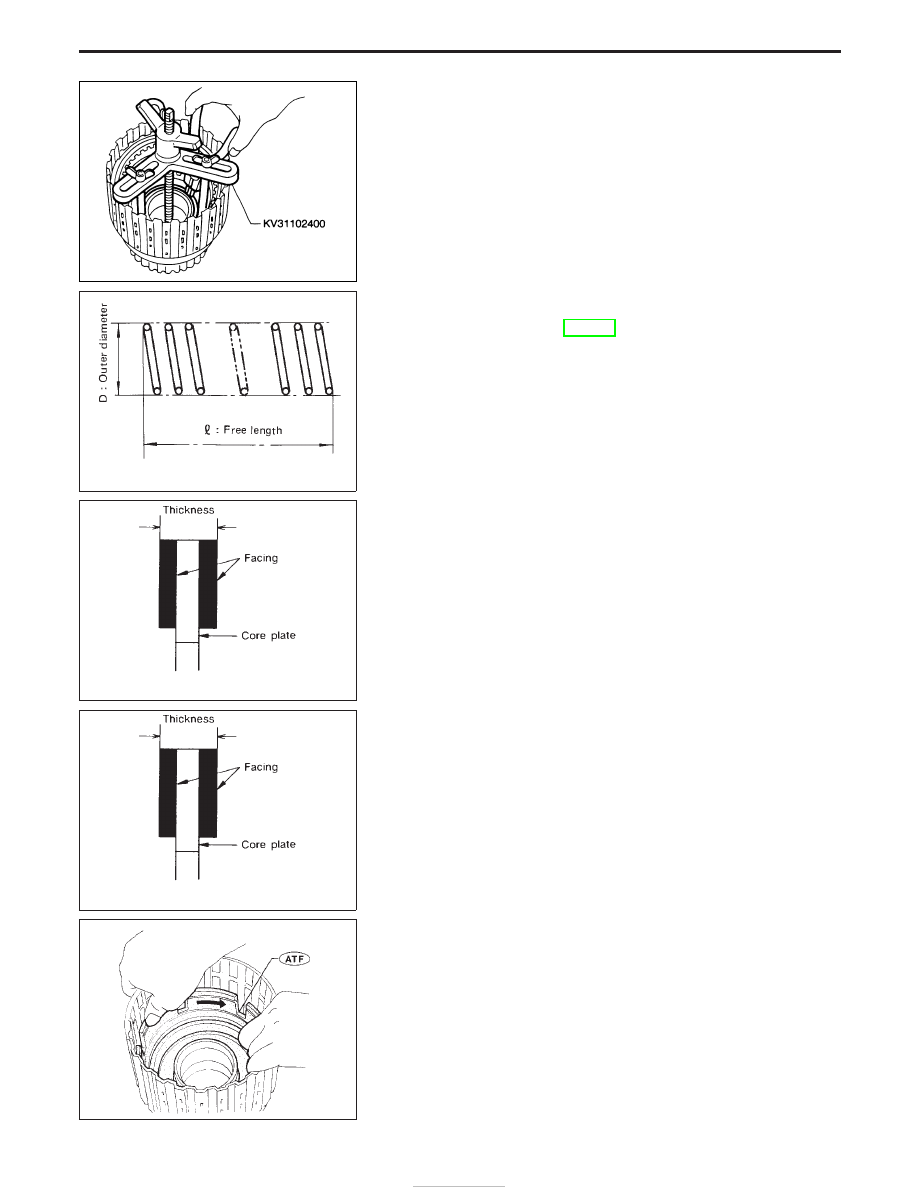

Removal and installation of return springs

I

Inspection of forward clutch and overrun clutch return springs

Inspection standard:

Refer to SDS, AT-202.

I

Inspection of forward clutch drive plates

Thickness of drive plate:

Standard

1.52 - 1.67 mm (0.0598 - 0.0657 in)

Wear limit

1.40 mm (0.0551 in)

I

Inspection of overrun clutch drive plates

Thickness of drive plate:

Standard

1.90 - 2.05 mm (0.0748 - 0.0807 in)

Wear limit

1.80 mm (0.0709 in)

I

Installation of forward clutch piston and overrun clutch piston

1. Install forward clutch piston by turning it slowly and evenly.

I

Apply ATF to inner surface of clutch drum.

NAT302

SAT829A

SAT845A

SAT845A

SAT866A

REPAIR FOR COMPONENT PARTS

Forward and Overrun Clutches (Cont’d)

AT-164

I

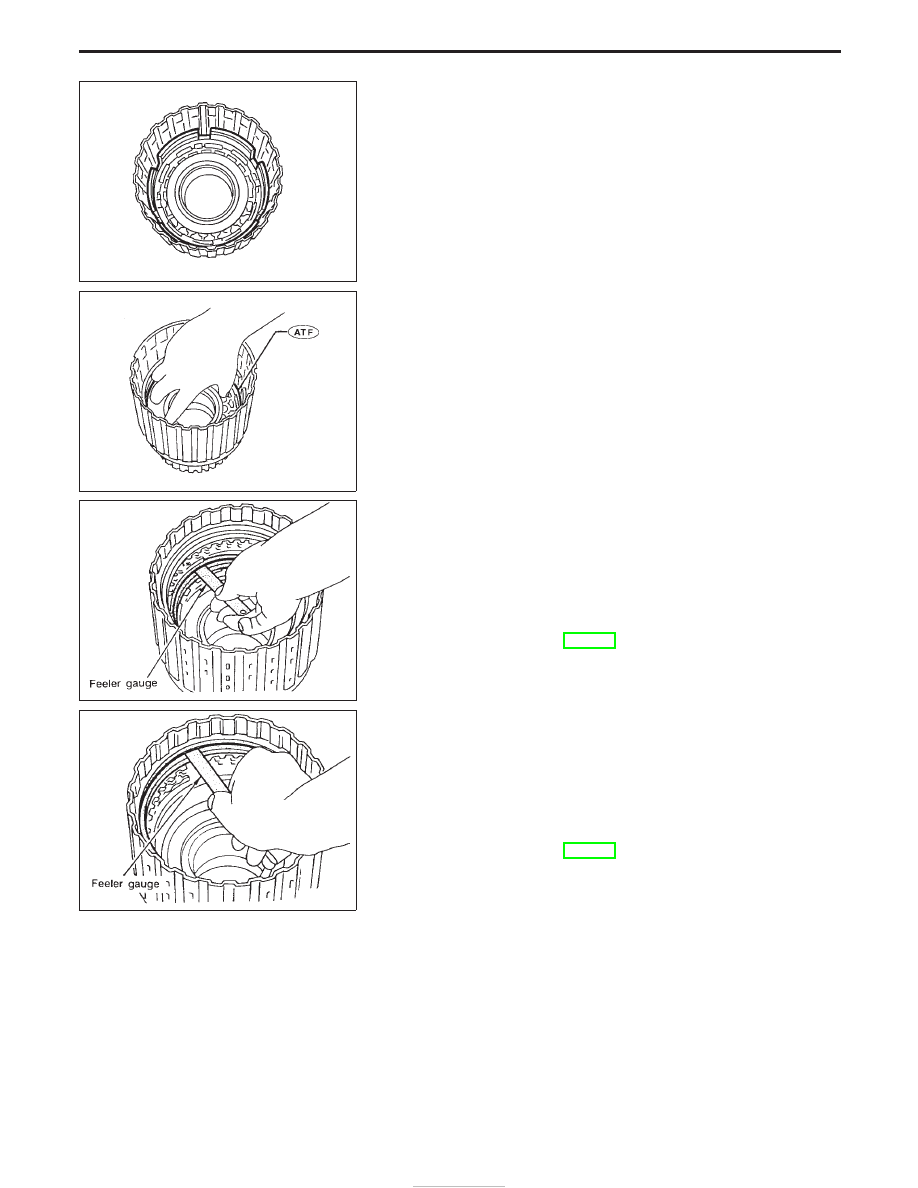

Align notch in forward clutch piston with groove in forward
clutch drum.

2. Install overrun clutch by turning it slowly and evenly.

I

Apply ATF to inner surface of forward clutch piston.

I

Measurement of clearance between retaining plate and snap
ring of overrun clutch

Specified clearance:

Standard

1.0 - 1.4 mm (0.039 - 0.055 in)

Allowable limit

2.0 mm (0.079 in)

Retaining plate:

Refer to SDS, AT-203.

I

Measurement of clearance between retaining plate and snap
ring of forward clutch

Specified clearance:

Standard

0.45 - 0.75 mm (0.0138 - 0.0295 in)

Allowable limit

2.15 mm (0.0846 in)

Retaining plate:

Refer to SDS, AT-203.

SAT867A

SAT868A

SAT869A

SAT870A

REPAIR FOR COMPONENT PARTS

Forward and Overrun Clutches (Cont’d)

AT-165

Low & Reverse Brake

DISASSEMBLY

1. Check operation of low and reverse brake.
a. Install seal ring onto oil pump cover and install reverse clutch.

Apply compressed air to oil hole.

b. Check to see that retaining plate moves to snap ring.
c. If retaining plate does not contact snap ring,

I

D-ring might be damaged.

I

Oil seal might be damaged.

I

Fluid might be leaking past piston check ball.

2. Remove snap ring, low and reverse brake drive plates, driven

plates and dish plate.

NAT298

SAT872A

SAT873A

REPAIR FOR COMPONENT PARTS

AT-166

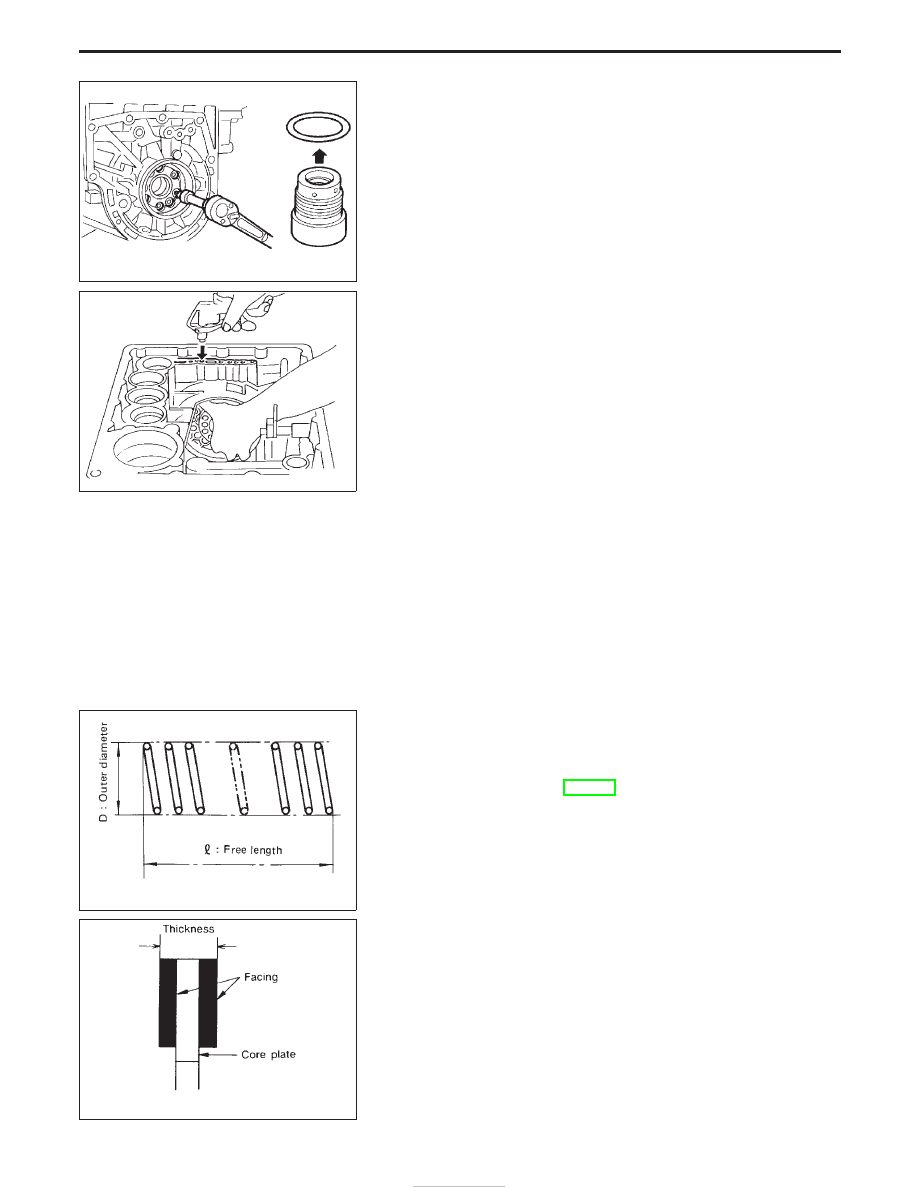

3. Remove low one-way clutch inner race, spring retainer and

return spring from transmission case.

4. Remove seal rings from low one-way clutch inner race.
5. Remove needle bearing from low one-way clutch inner race.

6. Remove low and reverse brake piston using compressed air.
7. Remove oil seal and D-ring from piston.

INSPECTION

Low and reverse brake snap ring and spring retainer

I

Check for deformation, or damage.

Low and reverse brake return springs

I

Check for deformation or damage. Also measure free length
and outside diameter.

Inspection standard:

Refer to SDS, AT-202.

Low and reverse brake drive plates

I

Check facing for burns, cracks or damage.

I

Measure thickness of facing.

Thickness of drive plate:

Standard value

1.52 - 1.67 mm (0.0598 - 0.0657 in)

Wear limit

1.4 mm (0.055 in)

I

If not within wear limit, replace.

SAT382I

SAT876A

SAT829A

SAT845A

REPAIR FOR COMPONENT PARTS

Low & Reverse Brake (Cont’d)

AT-167
