Nissan Terrano model r20 series 2004. Manual - part 188

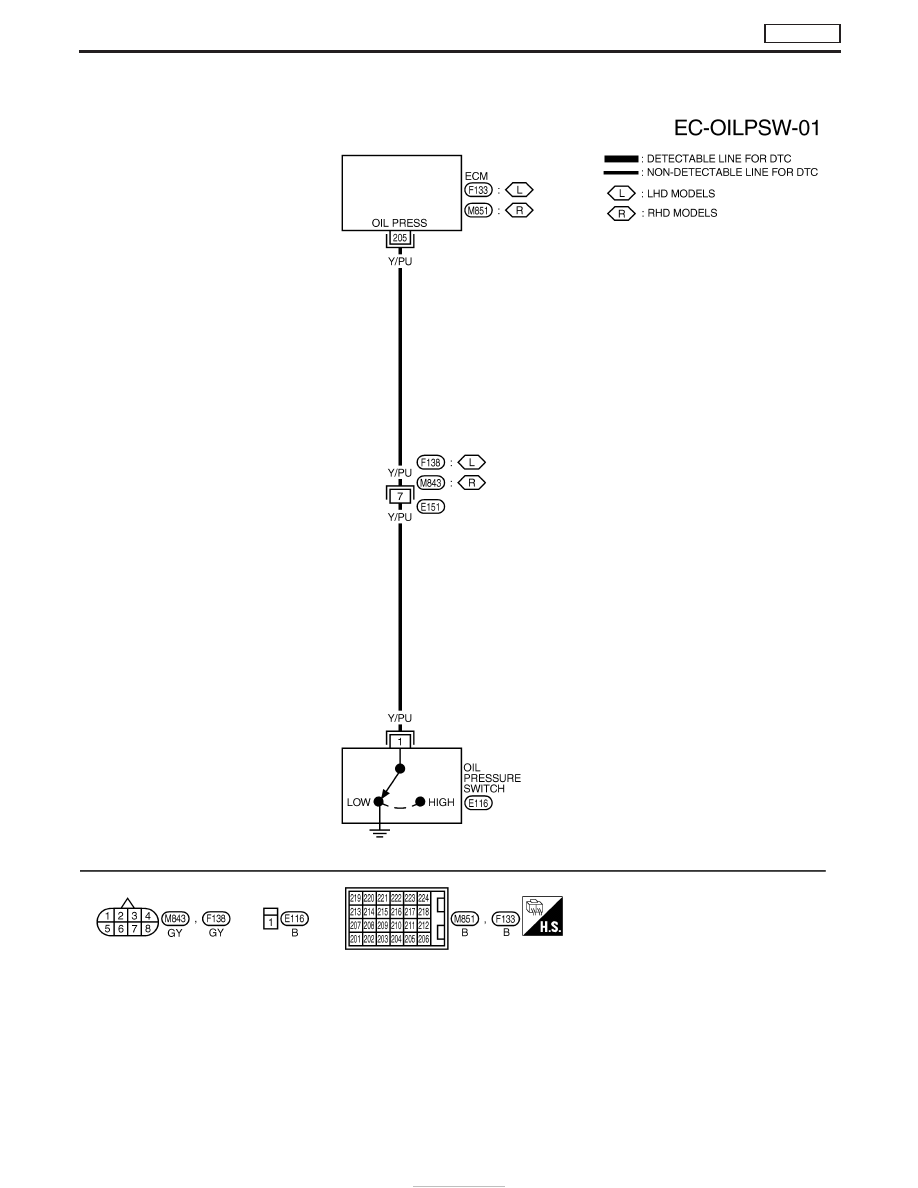

Wiring Diagram

YEC162A

OIL PRESSURE SWITCH

TD27Ti

EC-474

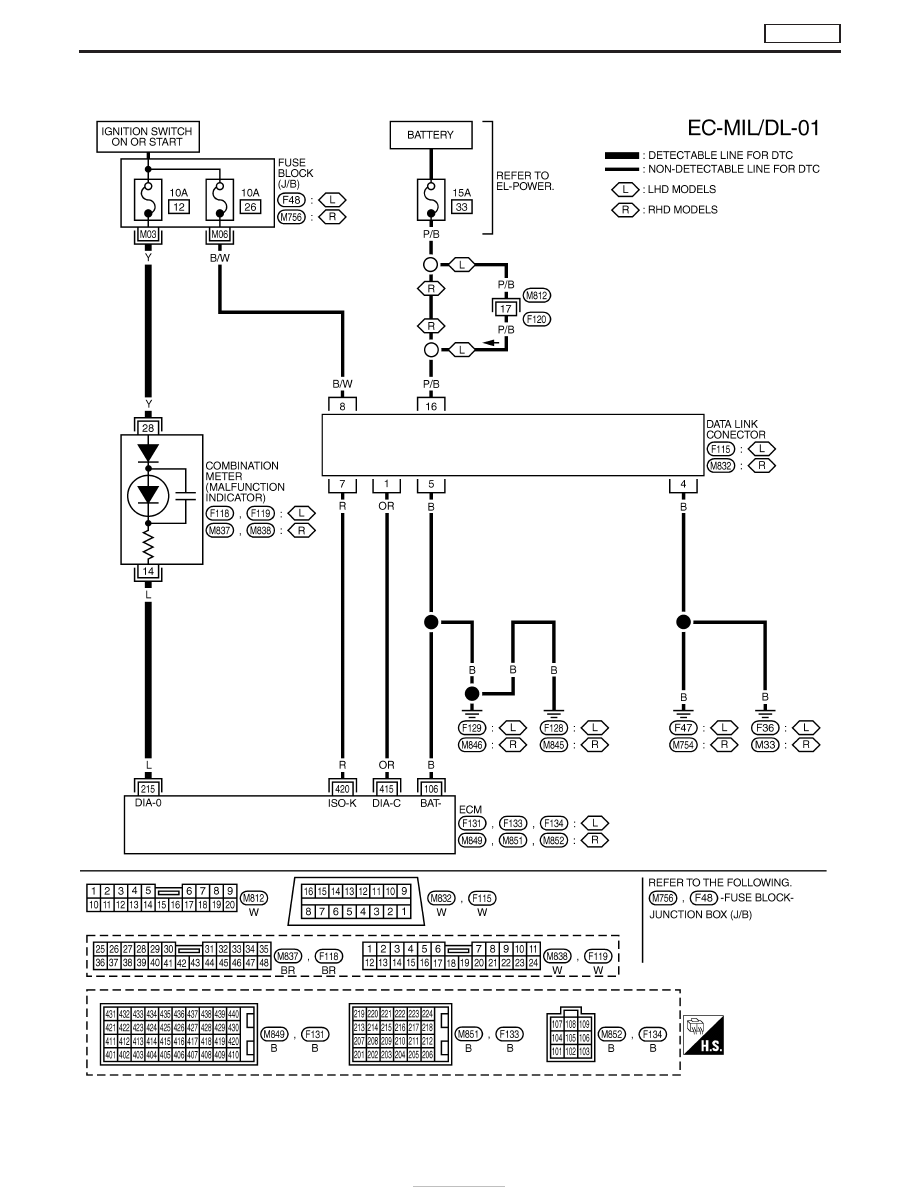

Wiring Diagram

YEC688A

MI & DATA LINK CONNECTORS

TD27Ti

EC-475

General Specifications

Engine speed

Unit: rpm

Engine

TD27Ti

Idle speed

A/C: ON

725
845

Maximum engine speed

5,500

Pump numbers

Engine

Part number

Pump assembly num-

ber

TD27Ti

16700 7F406

A 460 801 135

Pump data is not yet available.
Refer to CALIBRATION STANDARD published
by BOSCH.

Injection Nozzle

INSPECTION AND ADJUSTMENT

Injection nozzle assembly

Unit: kPa (bar, kg/cm

2

, psi)

Initial injection pressure

New

12,749 - 13,730 (127.5 - 137.3, 130 - 140,

1,849 - 1,991)

Used

12,259 - 12,749 (122.6 - 127.5, 120 - 135,

1,706 - 1,849)

Inspection and Adjustment

Plunger lift

mm (in)

at TDC

0.275 ± 0.02

(0.0108) ± (0.0008)

Idle speed

rpm

(“N” or “P” position)

725 ± 25

MASS AIR FLOW SENSOR

Supply voltage

V

Approximately 5

Output voltage

V

1.5 - 2.7*

*: Engine is warmed up sufficiently and idling under no-load.

ENGINE COOLANT TEMPERATURE
SENSOR

Temperature °C (°F)

Resistance k

20 (68)

2.1 - 2.9

50 (122)

0.68 - 1.00

90 (194)

0.236 - 0.260

CONTROL SLEEVE POSITION SENSOR

Resistance [at 25°C (77°F)]

Approximately 6.1

INJECTION TIMING CONTROL VALVE

Resistance [at 25°C (77°F)]

Approximately 15

NEEDLE LIFT SENSOR

Resistance [at 25°C (77°F)]

Approximately 105

CRANKSHAFT POSITION SENSOR (TDC)

Resistance [at 25°C (77°F)]

Approximately 900

GLOW PLUG

Resistance [at 25°C (77°F)]

0.5

ACCELERATOR POSITION SENSOR

Throttle valve conditions

Resistance k

[at 25°C (77°F)]

Completely closed

Approximately 1.2

Partially open

1.2 - 1.9

Completely open

Approximately 1.9

FUEL TEMPERATURE SENSOR

Temperature °C (°F)

Resistance k

25 (77)

Approximately 1.9

SERVICE DATA AND SPECIFICATIONS (SDS)

TD27Ti

EC-476

ACCELERATOR CONTROL, FUEL &

EXHAUST SYSTEM

SECTION

FE

CONTENTS

ZD30DDTi

ACCELERATOR CONTROL SYSTEM

...........................2

Removal and Installation .............................................2

FUEL SYSTEM

................................................................3

EXHAUST SYSTEM

........................................................4

TD27Ti

ACCELERATOR CONTROL SYSTEM

...........................5

Adjusting Accelerator Cable ........................................5

FUEL SYSTEM

................................................................6

Fuel Pump and Gauge ................................................7

EXHAUST SYSTEM

......................................................10
