Throttle control solenoid valve

YEC685A

DTC P1404 EGR SOL/V A, DTC P1405 EGR SOL/V B/P1407

THROTTLE SOLENOID VALVE

TD27Ti

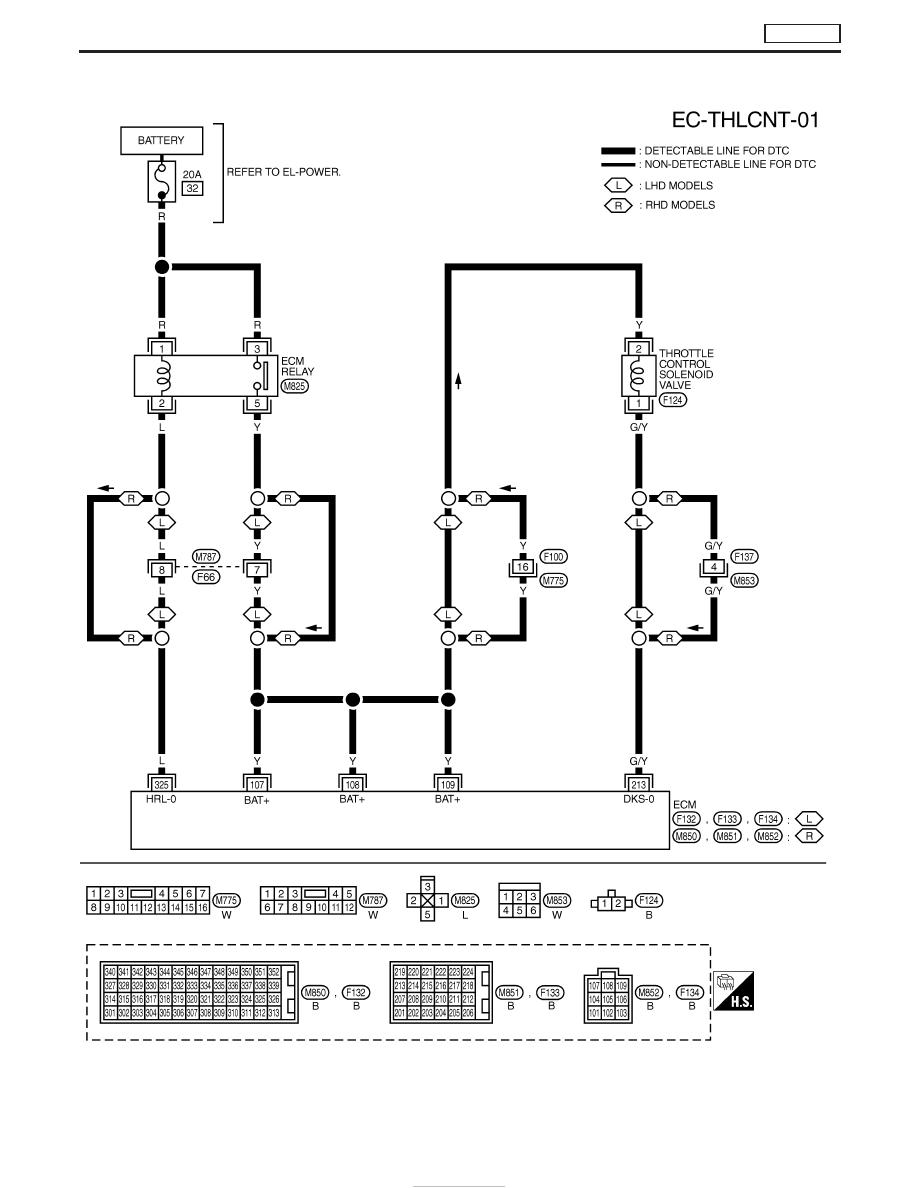

Wiring Diagram (Cont’d)

EC-458

Diagnostic Procedure

EGR CONTROL

INSPECTION START

CHECK OVERALL FUNCTION.
1. Start engine and warm it up sufficiently.
2. Perform diagnostic test mode II (Self-

diagnostic results).
Make sure that diagnostic trouble code
P0000 (0505) is displayed.

3. Make sure that EGR valve spring

moves up and down (Use your finger)
under the following conditions.
At idle:

Spring does not move.

Racing engine from idle to 3,000
rpm:

Spring moves up and down.

4. Make sure that throttle control valve rod

moves up and down under the following
conditions.
At idle:

Rod does not move.

Racing engine from idle to 3,000
rpm:

Rod moves up and down.

NG

E

OK

INSPECTION END

CHECK VACUUM SOURCES TO EGR
VALVE AND THROTTLE CONTROL
VALVE.
1. Disconnect vacuum hoses to EGR

valve and throttle control valve.

2. Make sure that vacuum exists under

the following conditions.
At idle:

Vacuum should exist.

Racing engine from idle to 3,000
rpm:

Vacuum should not exist.

NG

E

OK

CHECK COMPONENTS
(EGR valve and throttle
control valve).
(See page EC-462.)

NG

Replace malfunctioning
component(s).

q

A

YEC243A

NEF509

YEC244A

NEF511

H

H

H

H

DTC P1404 EGR SOL/V A, DTC P1405 EGR SOL/V B/P1407

THROTTLE SOLENOID VALVE

TD27Ti

EC-459

q

A

CHECK CONTROL FUNCTION.

With CONSULT-II

1. Turn ignition switch to “ON” position.
2. Turn EGRC-solenoid valve A, B and

throttle control solenoid valve to “ON”
and to “OFF” in “ACTIVE TEST” mode
with CONSULT and check operating
sound.

Without CONSULT-II

1. Check voltage between ECM connector

terminals

208

,

210

and engine

ground with tester under the following
conditions.
Voltage:

At idle:

Approximately 0.4V

Engine speed is more than 3,000
rpm:

Battery voltage

2. Check voltage between ECM connector

terminal

q

1

and engine ground with

tester under the following conditions.
Voltage:

At idle:

Approximately 0.4V

Engine speed is more than 2,400
rpm:

Battery voltage

NG

E

OK

CHECK VACUUM HOSE.
Check vacuum hose for
clogging, cracks or
improper connection.

CHECK POWER SUPPLY-I.
1. Turn ignition switch to “LOCK” position.
2. Disconnect EGRC-solenoid valve A and

B harness connector.

3. Turn ignition switch to “ON” position.
4. Check voltage between EGRC-solenoid

valve A and B terminals

q

2

and engine

ground with CONSULT-II or tester.
Voltage: Battery voltage

OK

E

NG

Check the following:

I

20A fuse

I

Condition and operation
of ignition switch

I

Harness connectors

M787

,

F66

(LHD mod-

els)

I

Harness connectors

F100

,

M775

(RHD mod-

els)

I

ECM relay

I

Harness for open or
short-circuit between
EGRC-solenoid valve A,
B and fuse.

If NG, replace fuse or
repair ignition switch, har-
ness or connectors.

q

B

MEC953D

SEF816F

YEC247A

H

H

H

DTC P1404 EGR SOL/V A, DTC P1405 EGR SOL/V B/P1407

THROTTLE SOLENOID VALVE

TD27Ti

Diagnostic Procedure (Cont’d)

EC-460

q

B

CHECK POWER SUPPLY-II.
1. Turn ignition switch “OFF”.
2. Disconnect throttle control solenoid

valve harness connector.

3. Turn ignition switch “ON”.
4. Check voltage between throttle solenoid

valve connector terminal

q

2

and engine

ground with CONSULT-II or tester.
Voltage: Battery voltage

OK

E

NG

Check the following.

I

20A fuse

I

ECM relay

I

Harness connectors

M787

,

F66

(LHD mod-

els)

I

Harness connectors

F100

,

M77

(RHD mod-

els)

I

Harness for open or
short circuit between
throttle control solenoid
valve and ECM relay.

If NG, repair or replace
harness or connectors.

CHECK OUTPUT SIGNAL CIRCUIT-I.
1. Disconnect ECM harness connector.
2. Check harness continuity between

ECM connector terminal

208

and

EGR Control Solenoid Valve A connec-
tor terminal

q

1

; ECM connector terminal

210

and EGR Control Solenoid Valve

B connector terminal

q

1

. Refer to wiring

diagram.
Continuity should exist.
If OK, check harness for short-circuit.

OK

E

NG

Check the following:

I

Harness connectors

F100

,

M775

(RHD mod-

els)

I

Harness for open or
short-circuit between
EGRC-solenoid valve A,
B and ECM

If NG, repair harness or
connectors.

CHECK OUTPUT SIGNAL CIRCUIT-II.
1. Disconnect ECM harness connector.
2. Check harness continuity between

ECM connector terminal

213

and

throttle control solenoid valve terminal

q

1

. Refer to wiring diagram.

Continuity should exist.
If OK, check harness for short circuit.

OK

E

NG

Check the following:

I

Harness connectors

F137

,

M853

(RHD mod-

els)

I

Harness for open or
short circuit between
throttle control solenoid
valve and ECM

If NG, repair harness or
connectors.

CHECK COMPONENTS
(EGRC-solenoid valve A and B).
(Throttle control valve)
Refer to EC-462.

OK

E

NG

Replace malfunctioning
component(s).

Disconnect and reconnect harness con-
nectors in the circuit. Then retest.

Trouble is not fixed.

Check ECM pin terminals for damage or
the connection of ECM harness connector.
Reconnect ECM harness connector and
retest.

INSPECTION END

MEC954D

H

H

H

H

H

H

H

DTC P1404 EGR SOL/V A, DTC P1405 EGR SOL/V B/P1407

THROTTLE SOLENOID VALVE

TD27Ti

Diagnostic Procedure (Cont’d)

EC-461
