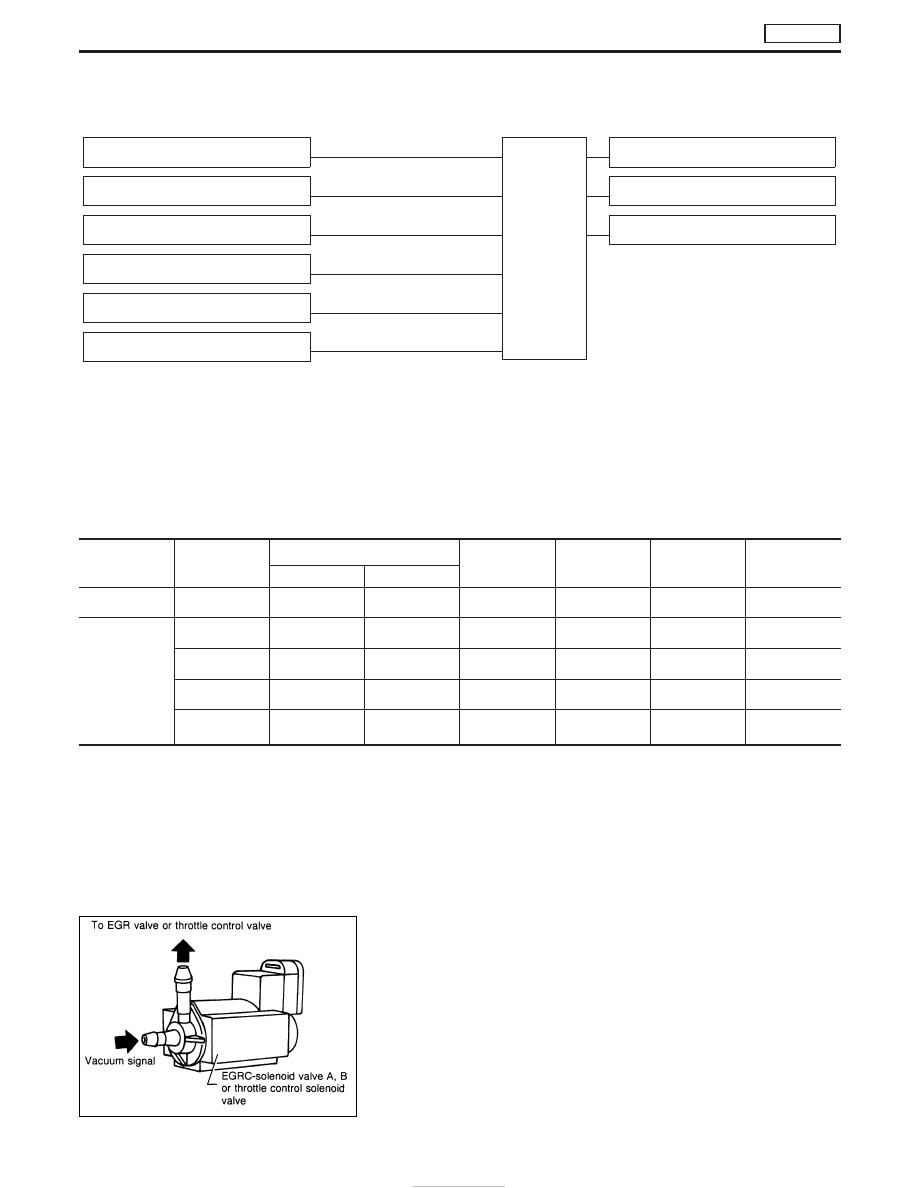

System Description

EGR CONTROL

Camshaft position sensor (TDC)

E

Engine speed

ECM

E

EGRC-solenoid valve A

Mass air flow sensor

E

Mass air flow

E

EGRC-solenoid valve B

Engine coolant temperature sensor

E

Engine coolant temperature

E

Throttle control solenoid valve

Ignition switch

E

Start signal

Atmospheric pressure sensor

E

Atmospheric pressure

Air conditioner switch

E

Air conditioner “ON” signal

The ECM receives signals sent from the engine coolant tempera-
ture sensor, crankshaft position sensor (TDC), ignition switch etc.
to determine engine speed and operating conditions. Based on
these signals, the ECM controls EGRC-solenoid valve (A and B)
operation and throttle solenoid valve operation.
The EGR control stops when engine coolant temperature is below
45°C (113°F), at idling, at starting and when the system compo-
nents and engine speed signals are disordered.

Engine coolant

temperature

°C (°F)

Load

EGRC-solenoid valve

Throttle control

solenoid valve

EGR valve

Throttle control

valve

Amount of EGR

gas

A

B

Below 45 (113)

Any

OFF

(Closed)

OFF

(Closed)

OFF

(Closed)

Fully closed

Fully open

Above 45 (113)

Low load

ON

(Open)

ON

(Open)

ON

(Open)

Fully open

Closed

Large

Medium load-1

ON

(Open)

ON

(Open)

OFF

(Closed)

Fully open

Fully open

Medium

Medium load-2

ON

(Open)

OFF

(Closed)

OFF

(Closed)

Half open

Fully open

Small

High load

OFF

(Closed)

OFF

(Closed)

OFF

(Closed)

Fully closed

Fully open

Component Description

The EGRC-solenoid valves A and B, control vacuum pressure act-
ing on the EGR valve. The EGR control valve will be fully opened,
half-opened or fully closed, as required.
The throttle control solenoid valve controls vacuum pressure acting
on the throttle control valve. Thus, intake air passages are opened
or closed in relation to exhaust gas and intake air. Utilizing the
relationship between exhaust gas pressure and intake air pressure
control, the amount of EGR (exhaust gas recirculated) is regulated
in three approximate measures — large, medium, small.

NEF513

DTC P1404 EGR SOL/V A, DTC P1405 EGR SOL/V B/P1407

THROTTLE SOLENOID VALVE

TD27Ti

EC-454

On Board Diagnosis Logic

DTC

Malfunction is detected when ....

Check Items

(Possible cause)

P1404
0806

I

EGRC-solenoid valve A circuit is open or shorted.

I

Harness or connectors
(EGRC-solenoid valve A circuit is open or shorted.)

I

EGRC-solenoid valve A

P1405
0808

I

EGRC-solenoid valve B circuit is open or shorted.

I

Harness or connectors
(EGRC-solenoid valve B circuit is open or shorted.)

I

EGRC-solenoid valve B

P1407
0808

I

Throttle control solenoid valve circuit is open or
shorted.

I

Harness or connectors
(Throttle control solenoid valve circuit is open or
shorted.)

I

Throttle control solenoid valve

DTC Confirmation Procedure

WITH CONSULT-II

1) Turn ignition switch to “ON” position.
2) Select “DATA MONITOR” mode with CONSULT-II.
3) Wait at least 2 seconds.

WITHOUT CONSULT-II

1) Turn ignition switch to “ON” position and wait at least 2 sec-

onds.

2) Turn ignition switch to “LOCK” position, wait at least 5 seconds

and then turn to “ON” position.

3) Perform “Diagnostic Test Mode II” (Self-diagnostic results).

DTC P1404 EGR SOL/V A, DTC P1405 EGR SOL/V B/P1407

THROTTLE SOLENOID VALVE

TD27Ti

EC-455

Wiring Diagram

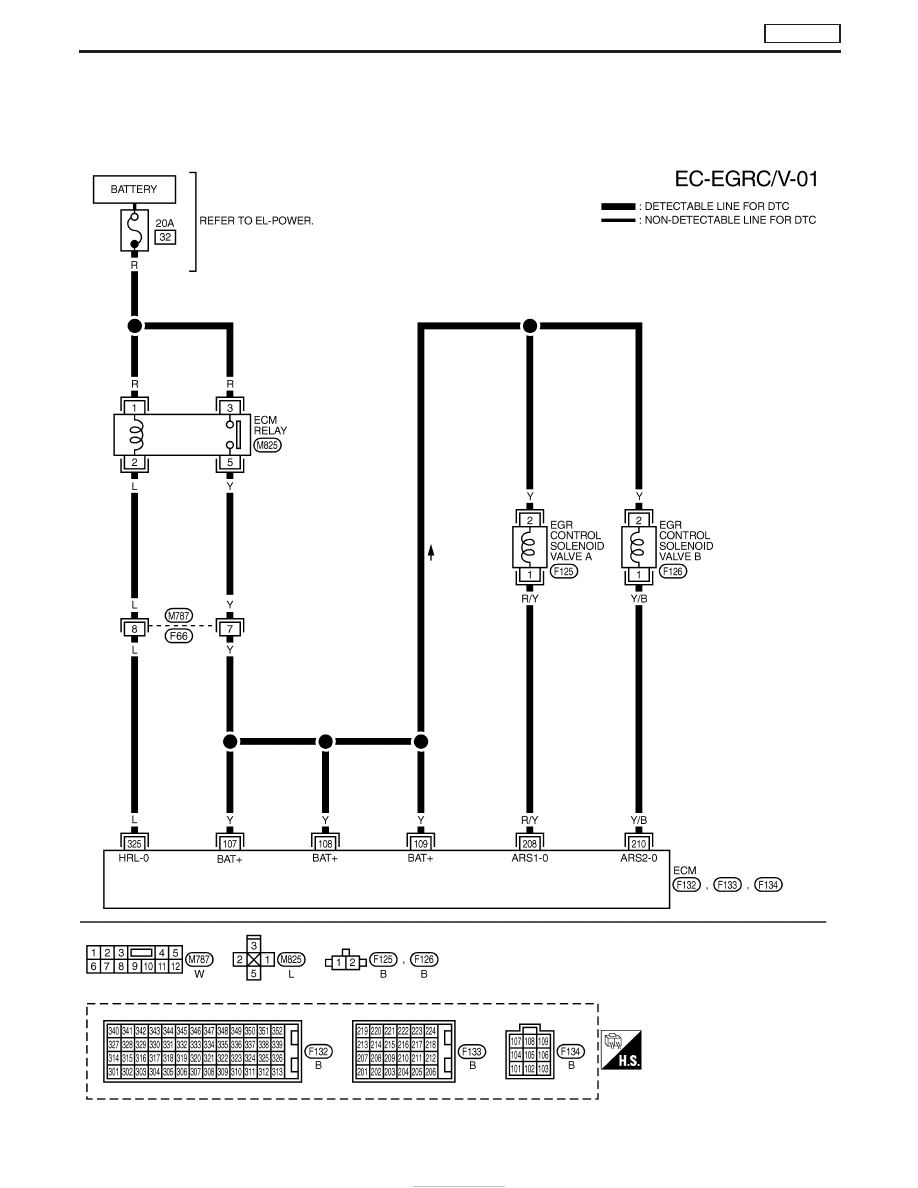

LHD MODELS

EGR control solenoid valve A and B

YEC683A

DTC P1404 EGR SOL/V A, DTC P1405 EGR SOL/V B/P1407

THROTTLE SOLENOID VALVE

TD27Ti

EC-456

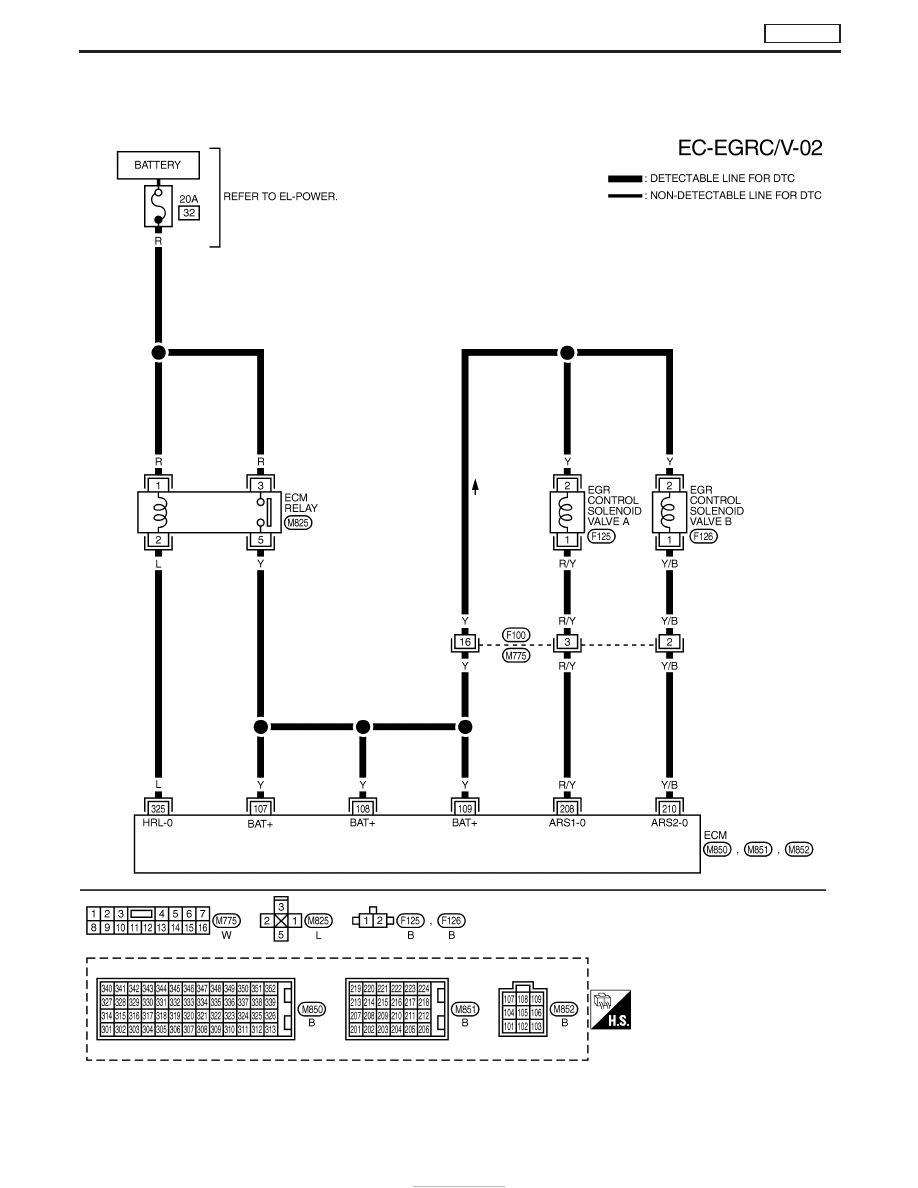

RHD MODELS

EGR control solenoid valve A and B

YEC684A

DTC P1404 EGR SOL/V A, DTC P1405 EGR SOL/V B/P1407

THROTTLE SOLENOID VALVE

TD27Ti

Wiring Diagram (Cont’d)

EC-457
