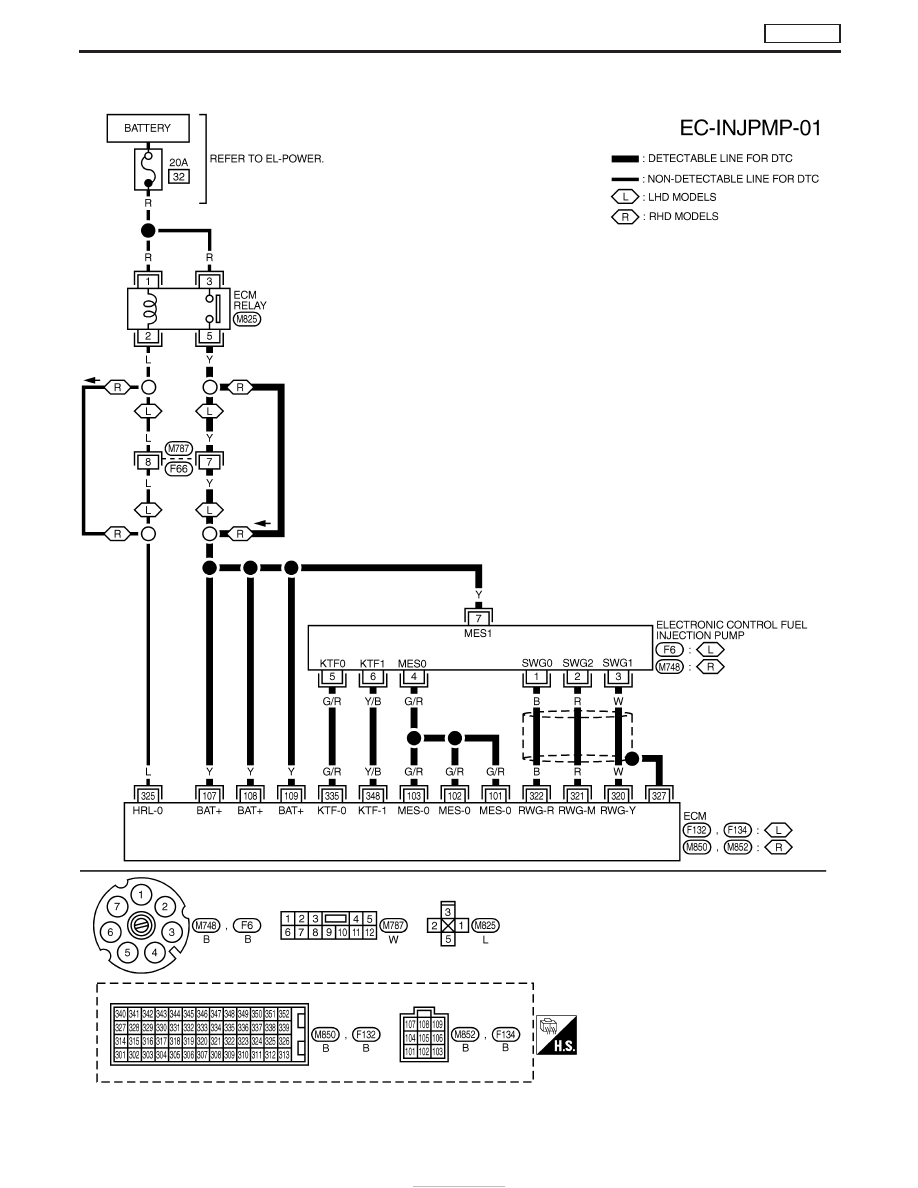

Wiring Diagram

YEC677A

DTC P1206 F/INJ F/B 2

TD27Ti

EC-434

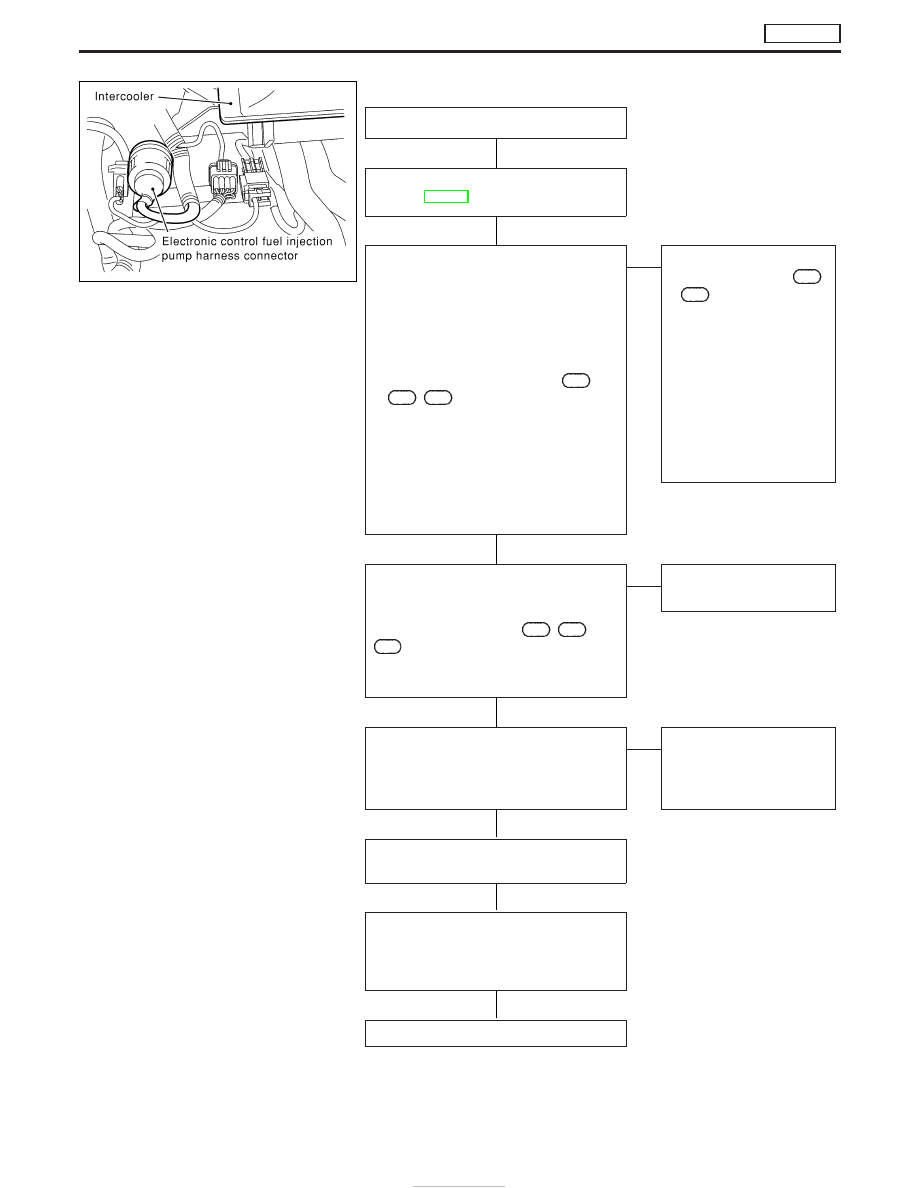

Diagnostic Procedure

INSPECTION START

CHECK MAIN POWER SUPPLY.
Refer to EC-375.

CHECK POWER SUPPLY CIRCUIT.
1. Turn ignition switch to “LOCK” position.
2. Disconnect ECM harness connector

and electronic injection pump harness
connector.

3. Check harness continuity between

injection pump connector terminal

q

7

and ECM connector terminals

107

,

108

,

109

. Refer to wiring diagram.

Continuity should exist.

4. Check harness continuity between

injection pump connector terminal

q

7

and ECM relay terminal

q

5

.

Refer to wiring diagram.
Continuity should exist.
If OK, check harness for short-circuit.

OK

E

NG

Check the following.

I

Harness connector

M787

,

F66

(LHD models)

I

Harness for open or
short between electronic
control injection pump
and ECM relay

I

Harness for open or
short between electronic
control injection pump
and ECM

If NG, repair harness or
connectors.

CHECK GROUND CIRCUIT.
Check harness continuity between injec-
tion pump connector terminal

q

4

and

ECM connector terminals

101

,

102

,

103

. Refer to wiring diagram.

Continuity should exist.
If OK, check harness for short-circuit.

OK

E

NG

Repair harness or connec-
tors.

CHECK COMPONENT
(Electric governor).
Refer to “COMPONENT INSPECTION” on
next page.

OK

E

NG

Have the injection pump
assembly serviced by an
authorised service repre-
sentative.

Disconnect and reconnect harness connec-
tors in the circuit. Then retest.

Trouble is not fixed.

Check ECM pin terminals for damage and
check the connection of ECM harness con-
nector. Reconnect ECM harness connector
and retest.

INSPECTION END

YEC248A

H

H

H

H

H

H

H

DTC P1206 F/INJ F/B 2

TD27Ti

EC-435

Component Inspection

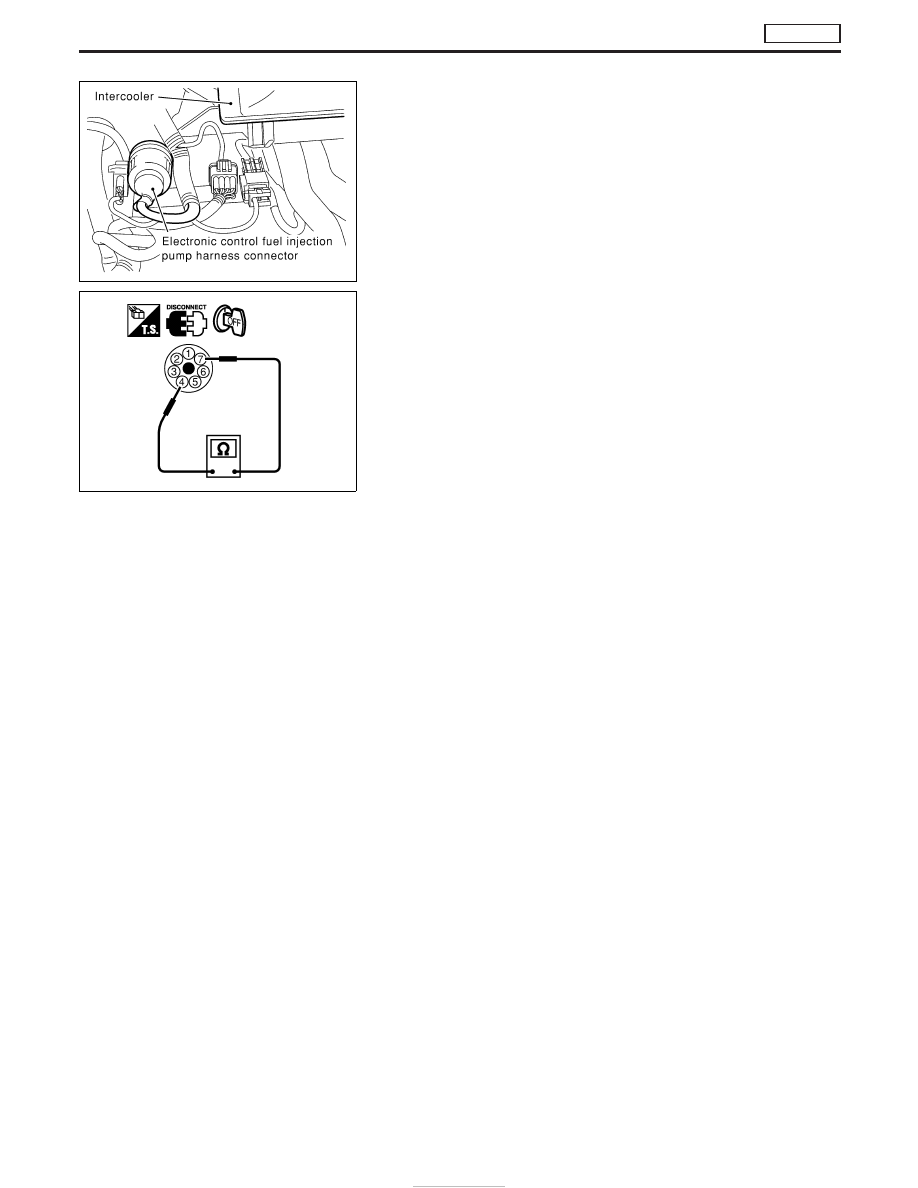

ELECTRIC GOVERNOR

1. Disconnect electronic injection pump harness connector.
2. Check continuity between injection pump connector terminals

q

4

and

q

7

.

Resistance: Approximately 1.0

[at 25°C (77°F)]

If NG, replace.

YEC248A

YEC242A

DTC P1206 F/INJ F/B 2

TD27Ti

EC-436

Component Description

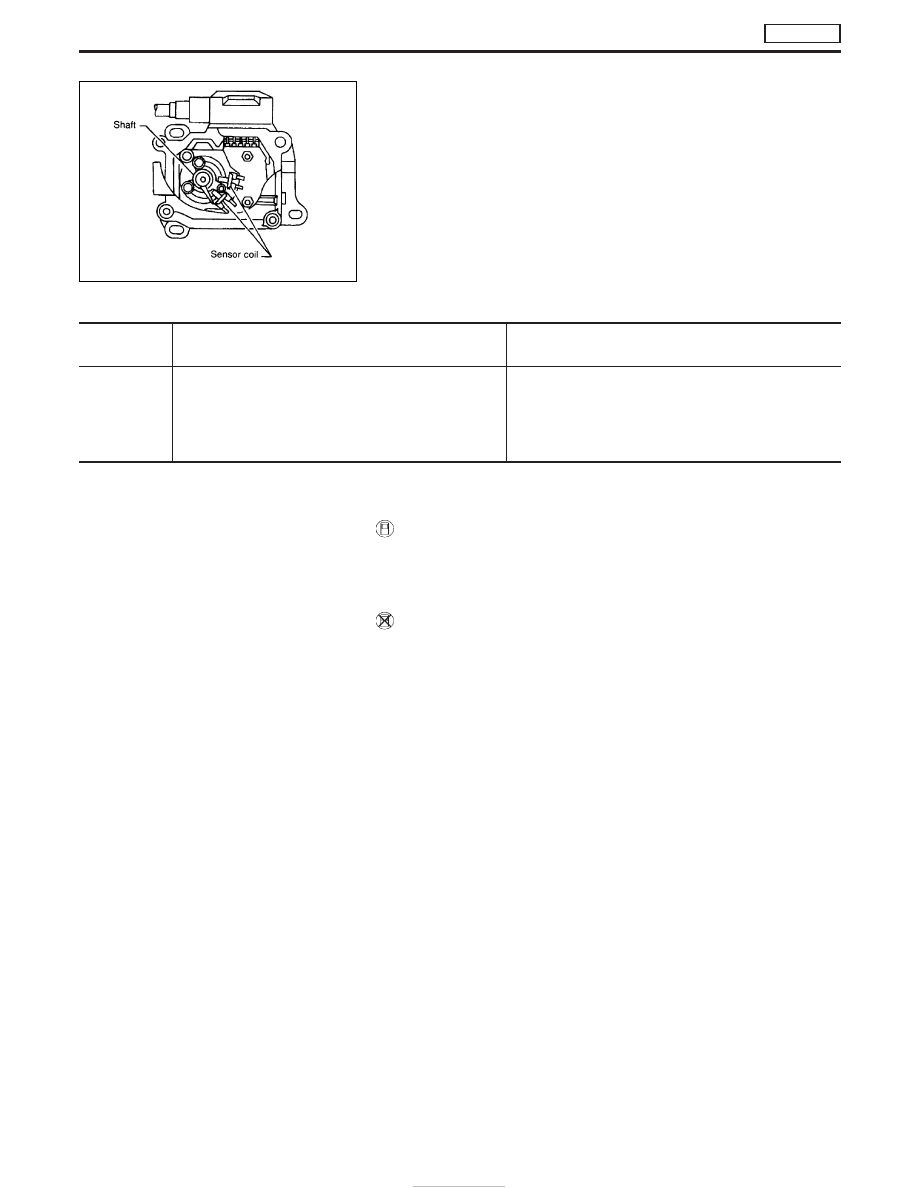

CONTROL SLEEVE POSITION SENSOR (CSPS)

The control sleeve position sensor is installed on the electric gov-
ernor. It senses the position of control sleeve (rotor angle) while the
control sleeve is being driven by the electric governor, and feeds it
back to the ECM.

On Board Diagnosis Logic

DTC

Malfunction is detected when ....

Check Items

(Possible cause)

P1207
0105

I

An excessively high or low voltage from the sensor is
detected by ECM.

...........................................................................................

I

An improper voltage signal from the sensor is detected
by ECM during engine running.

I

Harness or connectors
(The control sleeve position sensor circuit is open or
short-circuited.)

I

Control sleeve position sensor

DTC Confirmation Procedure

WITH CONSULT-II

1) Turn ignition switch to “ON” position and select “DATA MONI-

TOR” mode with CONSULT-II.

2) Start engine and run it for at least 2 seconds at idle speed.

WITHOUT CONSULT-II

1) Start engine and run it for at least 2 seconds at idle speed.
2) Turn ignition switch to “LOCK” position, wait at least 5 seconds

and then to “ON” position.

3) Perform “Diagnostic Test Mode II (Self-diagnostic results)”.

SEF641S

DTC P1207 CONT SLEEV POS SEN

TD27Ti

EC-437
