Nissan Terrano model r20 series 2004. Manual - part 17





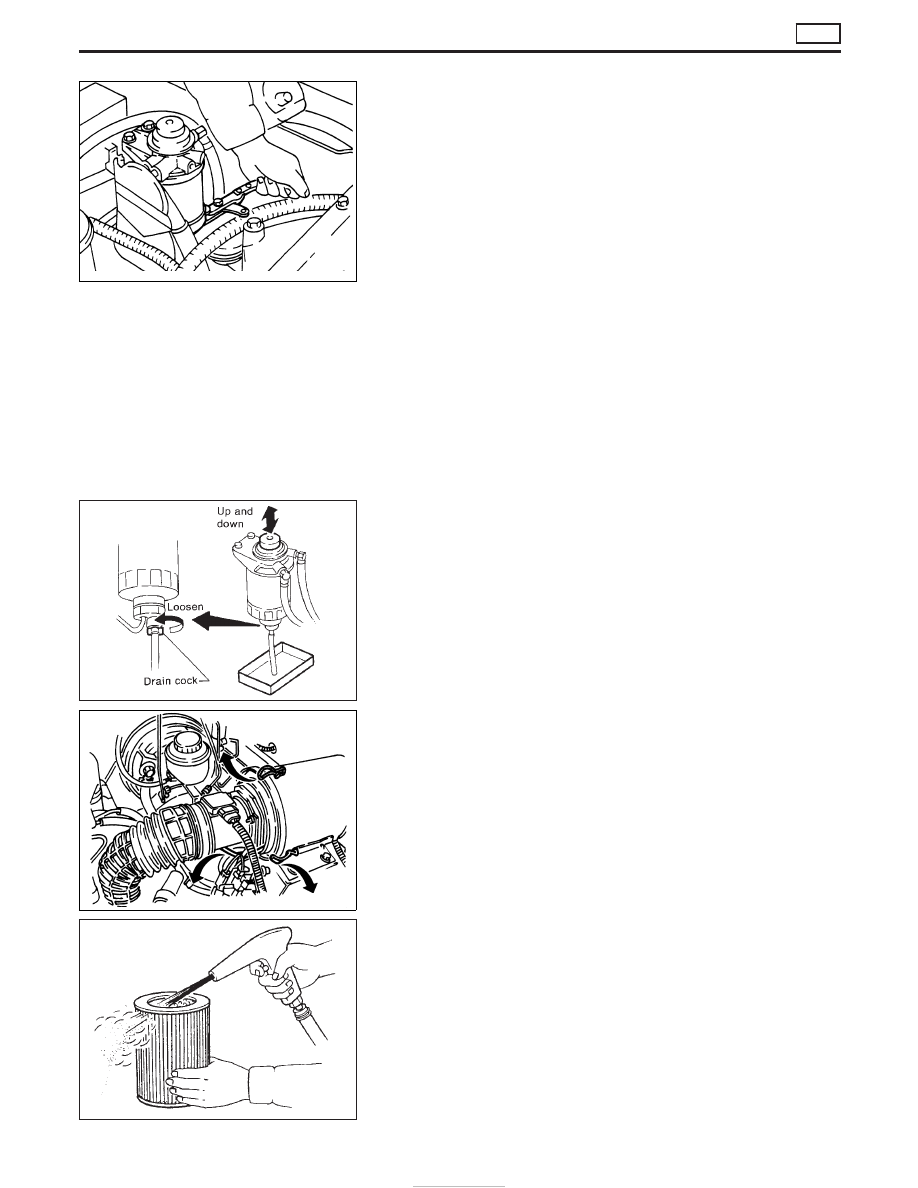

2. Remove fuel filter, using a suitable tool.

3. Wipe clean fuel filter mounting surface on fuel filter bracket and

smear a little fuel on rubber seal of fuel filter.

4. Screw fuel filter on until a slight resistance is felt, then tighten

and additional more than 2/3 turn.

5. Install fuel filter sensor to new filter.
6. Bleed air from fuel line.

Refer to Bleeding Fuel System in EC section.

7. Start engine and check for leaks.

DRAINING WATER

1. Loosen drain cock and drain water.
Loosening drain cock 4 to 5 turns causes water to start drain-
ing. Do not remove drain cock by loosening it excessively.

If water does not drain properly, move the priming pump up and
down.

2. Bleed air.

Refer to section EC for fuel system bleeding instructions.

Cleaning and Replacing Air Cleaner Filter (Dry
paper type)

Clean or replace element more often under dusty driving condi-
tions.

NMA056

SMA825B

NMA069

SMA485B

ENGINE MAINTENANCE

TD

Checking and Replacing fuel filter and Draining
Water (Cont’d)

MA-24

Pinch the rubber cap located under the cyclone air cleaner assem-
bly to remove dust.

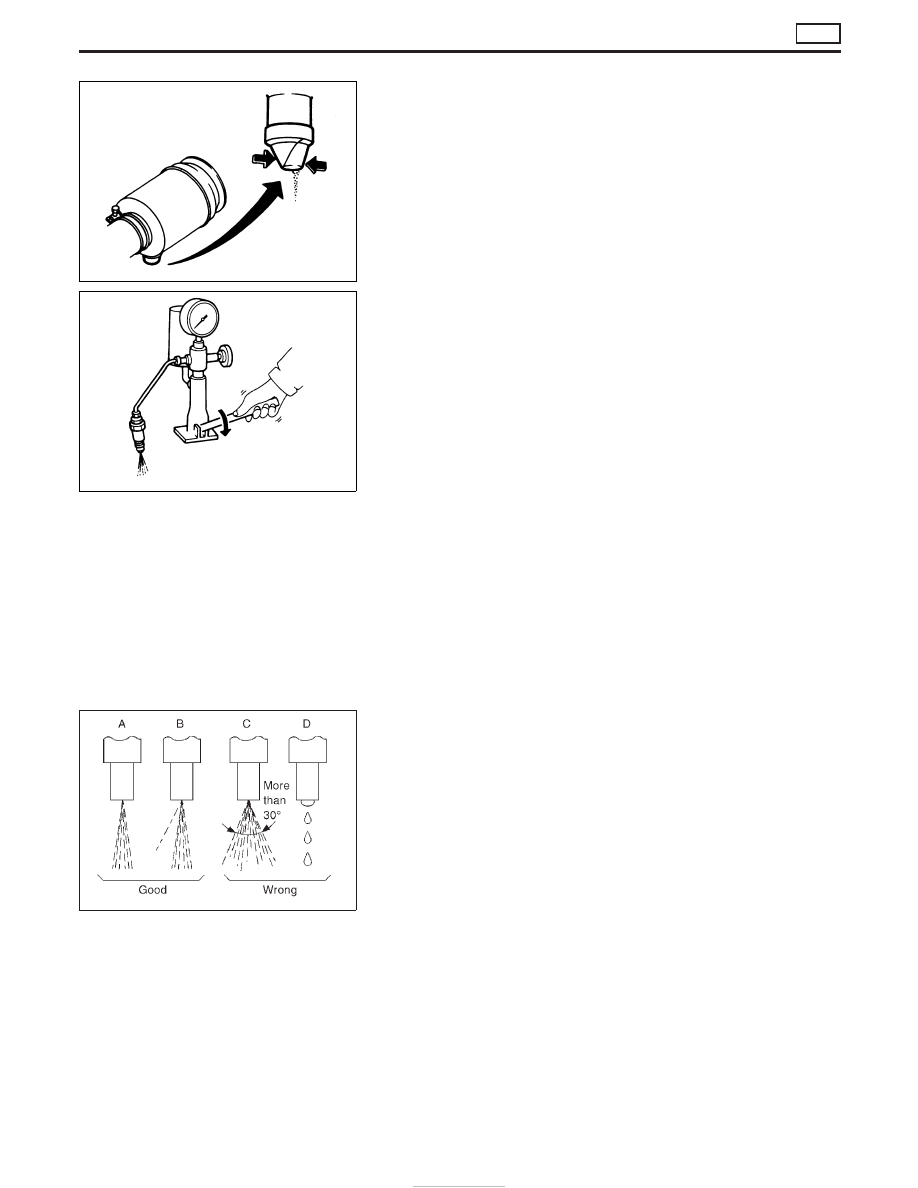

Checking Injection Nozzle

WARNING:

When using nozzle tester, do not allow fuel sprayed from
nozzle to contact your hand or body, and make sure that your
eyes are properly protected with goggles.
1. Check initial injection pressure by pumping tester handle one

time per second.

Initial injection pressure:

Used Nozzle

12,259 - 12,749 kPa
(122.6 - 127.5 bar, 125 - 130 kg/cm

2

,

1,778 - 1,849 psi)

New Nozzle

12,749 - 13,730 kPa
(127.5 - 137.3 bar, 130 - 140 kg/cm

2

,

1,849 - 1,991 psi)

I

Always check initial injection pressure before installing
new nozzle.

Do not disassemble injection nozzle assembly. Entrust disas-
sembly or adjustment to BOSCH service shop.

2. Check spray pattern by pumping tester handle 4 to 6 times or

more per second.
a.

If main spray angle is within 30 degrees as shown, injec-
tion nozzle is good.

b.

It is still normal even if a thin stream of spray deviates from
the main spray (pattern B).

3. If spray is not correct, clean injection nozzle tip or replace it.

I

For details, refer to INJECTION NOZZLE ASSEMBLY in EC
section.

NMA063

EF792A

SEF079S

ENGINE MAINTENANCE

TD

Cleaning and Replacing Air Cleaner Filter (Dry
paper type) (Cont’d)

MA-25

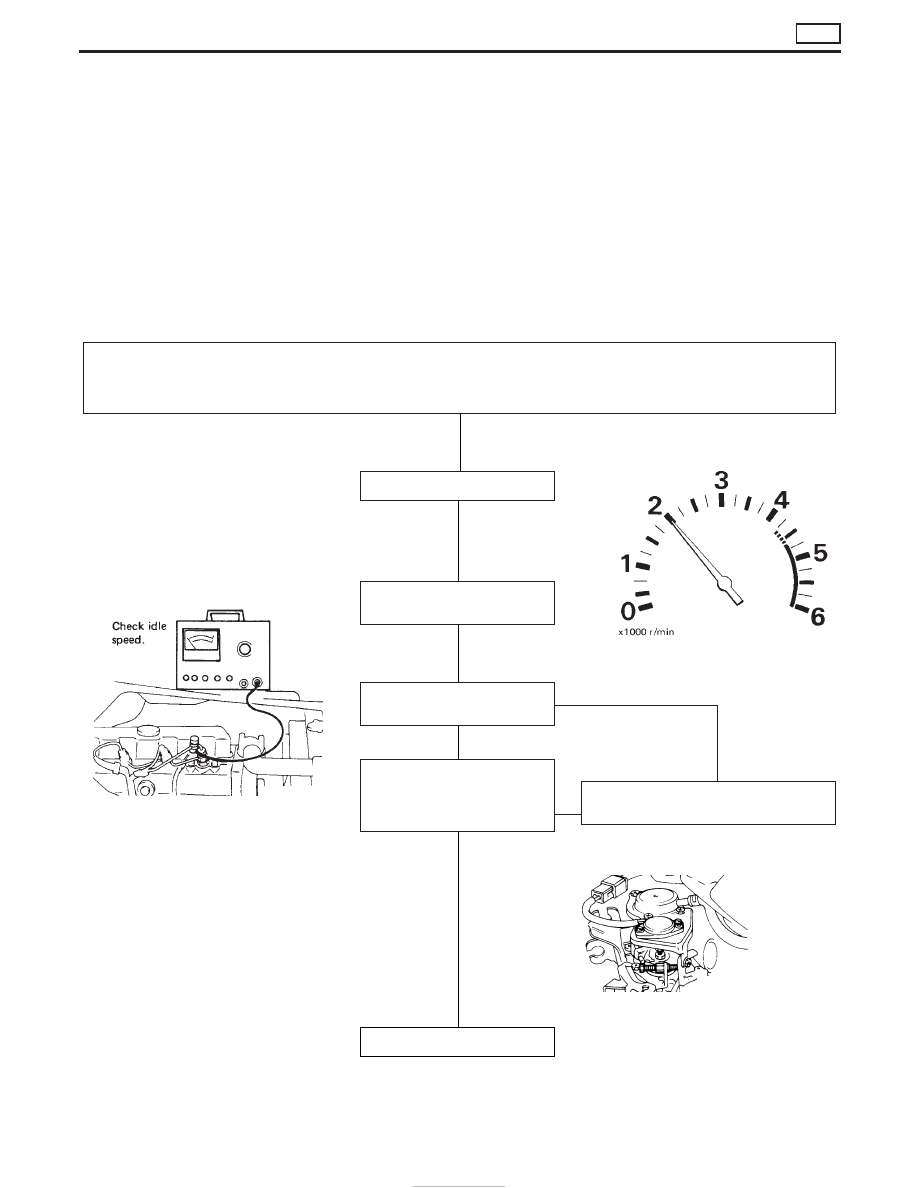

Checking Idle Speed

Preparation

1. Make sure that injection timing is correct.
2. Make sure that injection nozzle are in good condition.
3. Make sure that the following parts are in good condition.

I

Air cleaner clogging

I

Glow system

I

Engine oil and coolant levels

I

Valve clearance

I

Air intake system (Oil filler cap, oil level gauge, etc.)

4. Set shift lever in “Neutral” position. Engage parking brake and

lock both front and rear wheels with wheel chocks.

5. Turn off air conditioner, lights and accessories.

I

Warm up engine until water temperature indicator points to middle of gauge.

I

Lights, heater fan and all accessories are off.

I

Attach tachometer’s pick-up to No. 1 fuel injection tube.

In order to take accurate reading of engine rpm, remove clamps that secure No. 1 fuel injection tube.

Start engine.

SMA406B

SMA021A

Run engine at about 2,000 rpm for
about 2 minutes under no-load.

Run engine for one minute at idle
speed.

F

Check idle speed.

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

IDLE SPEED:

700+ 50 rpm

OK

E

NG

Adjust idle speed by turning idle speed adjust-
ing screw.

EMA049

END

I

Race engine two or three times and allow engine to return to idle speed. If idle speed is not within
the specified range, check acceleration linkage for binding and correct it if necessary.

H

H

H

H

H

ENGINE MAINTENANCE

TD

MA-26

AIR CONDITIONER EQUIPPED MODEL

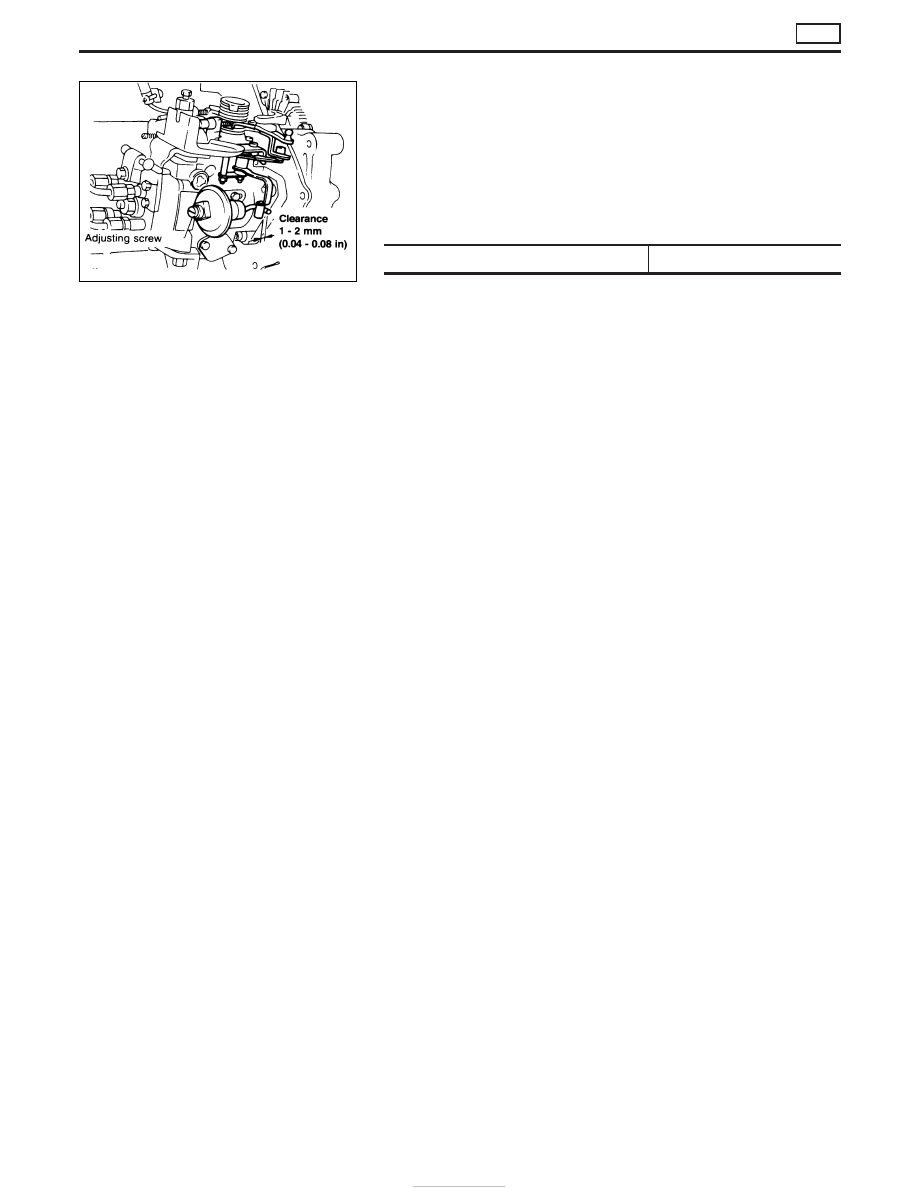

1. Make certain that the clearance between the actuator idle con-

trol lever pin and the injection pump control lever is within the
specified limits.

2. Adjust idle speed to specified rpm without the air conditioner

operating.

3. Then check the idle speed when the air conditioner is operat-

ing and make sure it is correct.

Unit: rpm

Idle speed (Air conditioner: “ON”)

850±50

If not, adjust it by turning FICD actuator stroke adjusting screw.

SMA794B

ENGINE MAINTENANCE

TD

Checking Idle Speed (Cont’d)

MA-27
